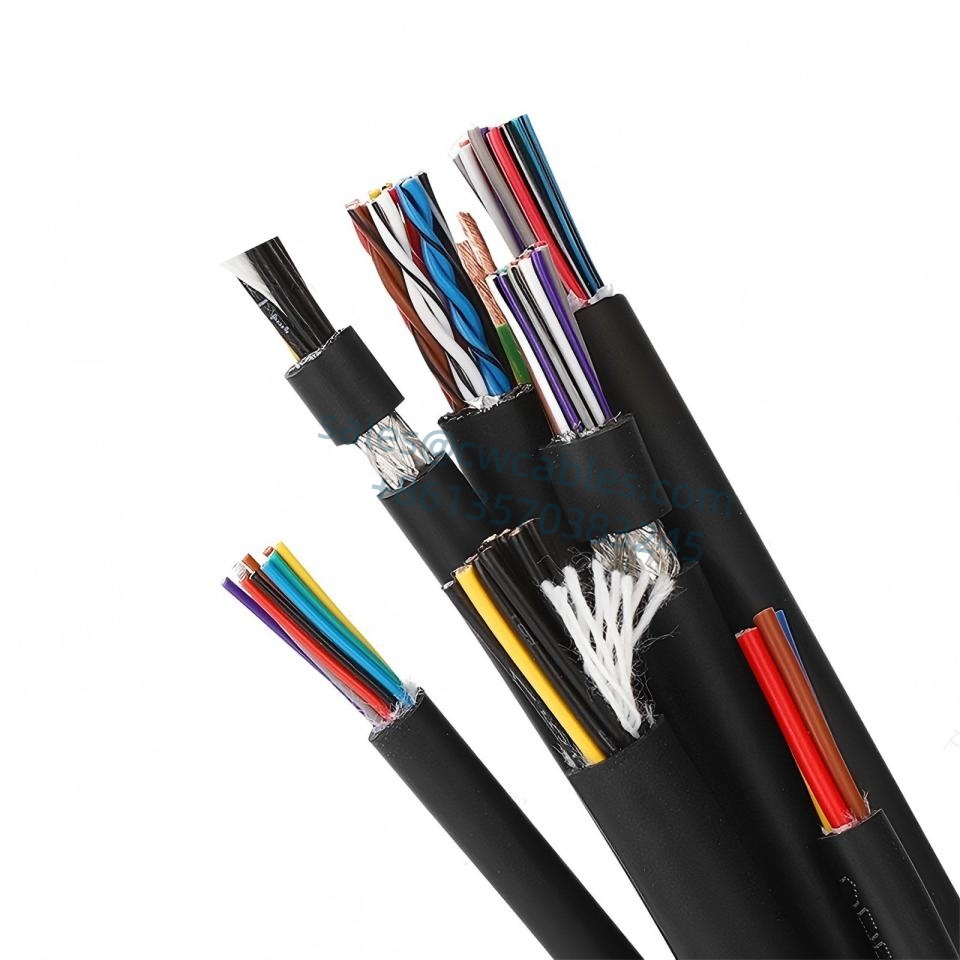

5 million times TRVV Control Servo Towline Cable, using special PVC as the outer sheath, it is extremely resistant to
oil and coolant, can be used in humid environments, but can not be used outdoors, the special structure and PVC
synthetic materials make the cable durable Working life. Widely used in sensor technology, computer systems and
control equipment of measurement control technology; the overall copper wire shielding ensures accurate data
transmission and protects the cable from electromagnetic interference. The outer sheath color is black, other colors
is available
Product Feature
TRVV Control Servo Towline Cable Technical Parameter
|
Standard
|
Comply with EU RoHS and Reach regulations
|
|||
|
Conductor
|
adopts high-quality tinned copper stranded copper wire
|
|||
|
Insulation material
|
Special PVC sheath with high flexibility
|
|||
|
Temperature range:
|
Mobile installation -5C to +70°c Fixed installation -15°C to +80°c
|
|||
|
Insulation resistance:
|
Minimum 20 MOhm x km
|
|||
|
Outer sheath
|
Modified PVC mate
|
|||
|
Color
|
black (other colors can be customized)
|
|||
|
Minimum bending radius:
|
Mobile installation 7.5×cable diameter Fixed installation 6×cable diameter
|
|||
|
Nominal voltage
|
Uo/U 300/300 V
|
|||
|
Test voltage
|
1500 V
|
|||
|
Application:
|
It is especially suitable for continuous high-flexible drag chain bending applications of mechanical equipment and machine tools.
The highly flexible cable uses specially modified insulating materials and outer covering materials, has high abrasion resistance and medium resistance, and can withstand long-term acceleration, deceleration, tensile and compressive stress, and more than five million cycles of periodic bending , And always maintain high stability. |
|||

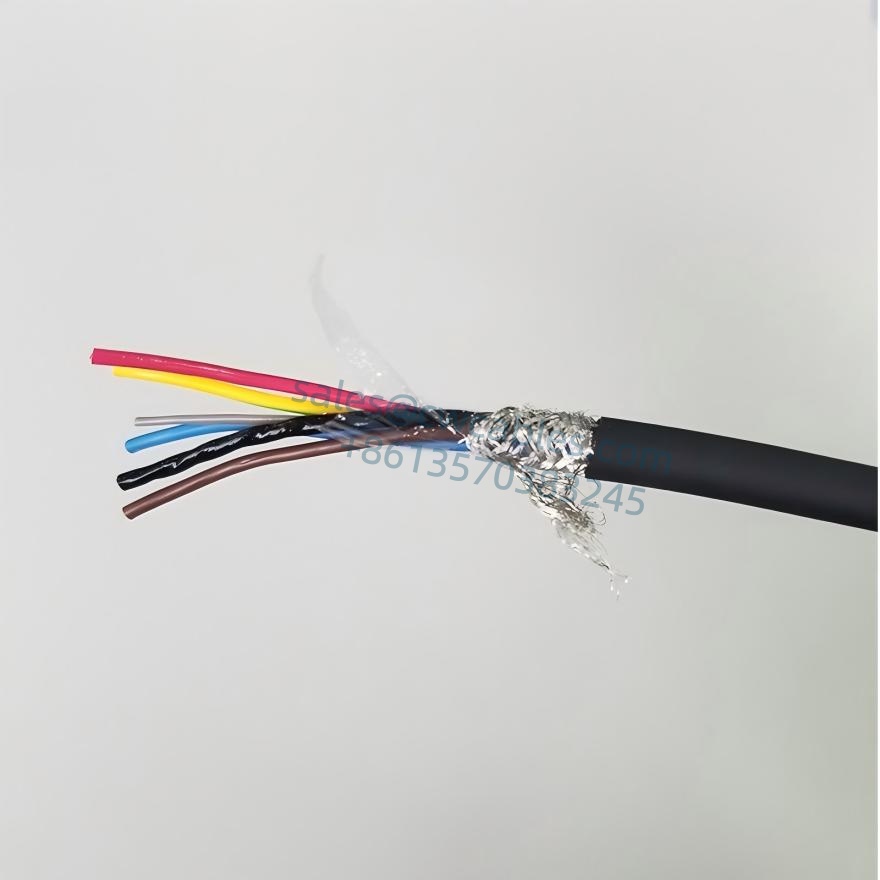

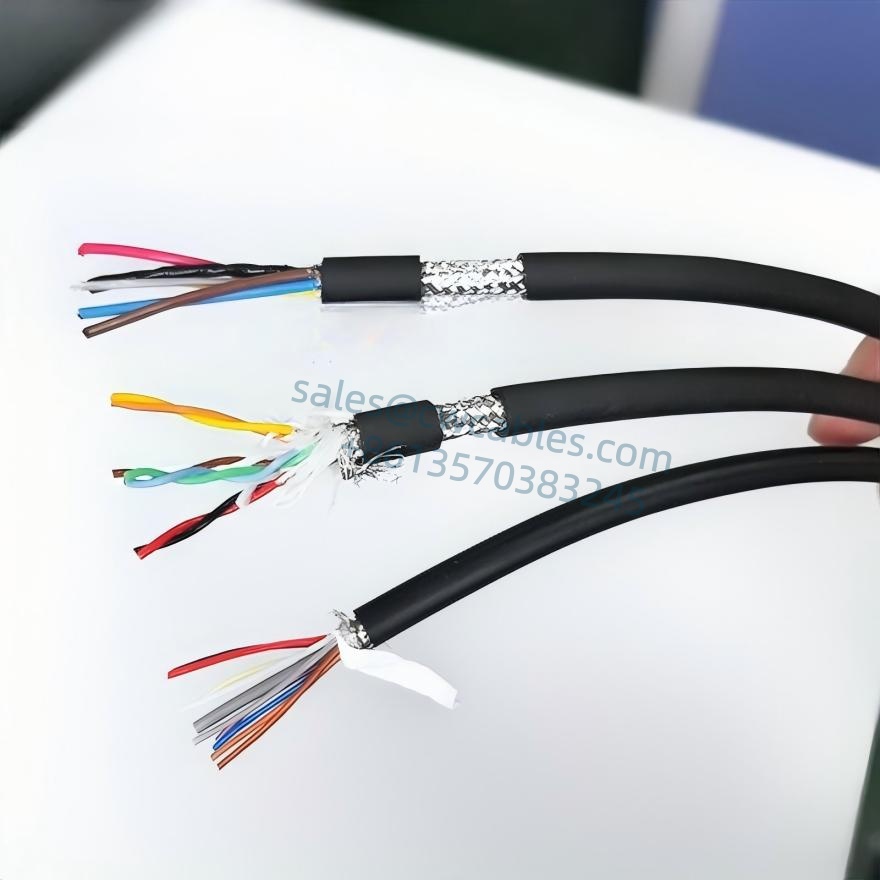

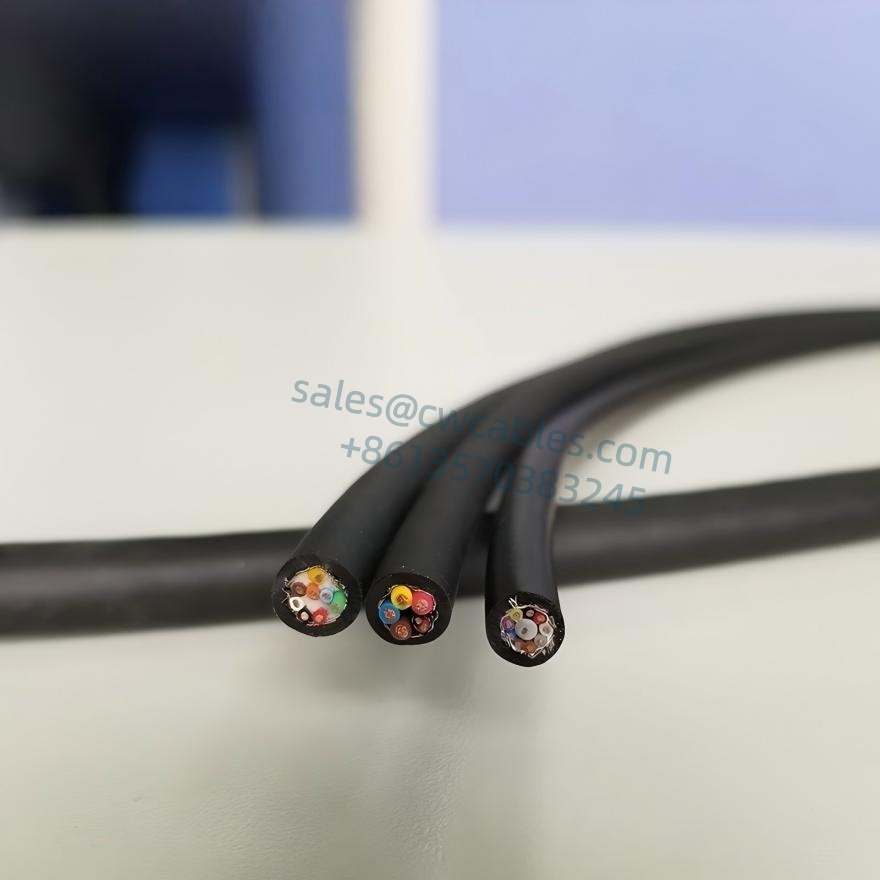

Cable Structure
Control Cable Structure
1. Bare copper conductor, thin copper wire Complies with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Black core wire, with continuous white digital code, yellow-green ground wire on the outer layer (3 cores and above)
4. The wire core is stranded in layers with the best pitch
5. Special PVC outer sheath
6. Black (RAL 9005) matte
|
No.
|
Product Code
|
Cores Number and cross-sectional area
(NO.Xm㎡)
|
Approximate outer diameter （mm)
|
Outer sheath color
|
20℃ Conductor DC resistance
Ω/km
|
|
1
|
YY501.06.0050
|
6×0.5
|
.6.5
|
Black
|
39
|
|
2
|
YY501.08.0050
|
8×0.5
|
7.6
|
Black
|
39
|
|
3
|
YY501.10.0050
|
10×0.5
|
8.8
|
Black
|
39
|
|
4
|
YY501.12.0050
|
12×0.5
|
8.4
|
Black
|
39
|
|
5
|
YY501.16.0050
|
16×0.5
|
9.4
|
Black
|
39
|
|
6
|
YY501.20.0050
|
20×0.5
|
10.2
|
Black
|
39
|
|
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters
|
|||||
