TP1006 HIGH FLEXIBILITY PUR SERVO CABLE TWISTED PAIR SHIELDED (10 million times reliability tests for drag chain)
TP1006.10.0025 5x2x0.25mm2
Technical data
Moving inside the drag chain: -20°C to 80°C
Moving outside the drag chain: -40°C to 80°C
Bending Radius:
Moving inside the drag chain: Minimum 7.5 xd
Moving outside the drag chain: Minimum 6 xd
Drag Chain Life:
Factors affecting the service life of cables within the drag chain:
Temperature, Bending radius, Travel distance, Speed
TUV and Stable Drag Chain Testing Standards:
Temperature range: +15°C to 25°C
Bending radius: 7.5xd
Travel distance: 0.9 meters
Speed: 90 cycles/minute
The drag chain’s life can reach: 10 million cycle times
Standard Voltage: 300/300V
Test Voltage: 1500V
Application
Especially suitable for mechanical equipment, machine tools, and other applications involving continuous high-intensity and high-speed bending of drag chains.
*Suitable for short-distance, high-speed applications of drag chains.
The TP1006 series drag chain cables have been widely used in woodworking machinery, stone equipment, laser equipment, glass equipment, as well as in the packaging industry, logistics industry, and 3C automation for indoor drag chain systems.

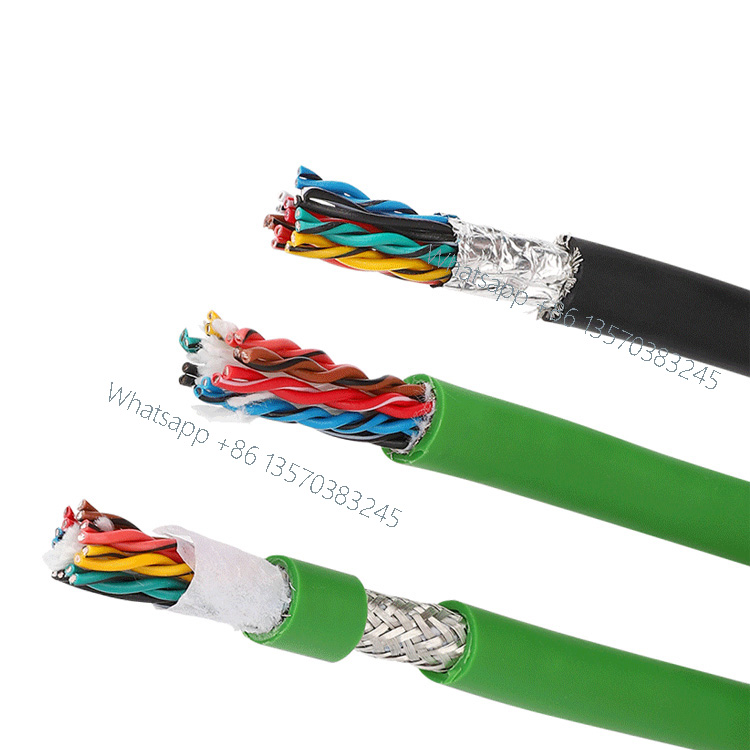

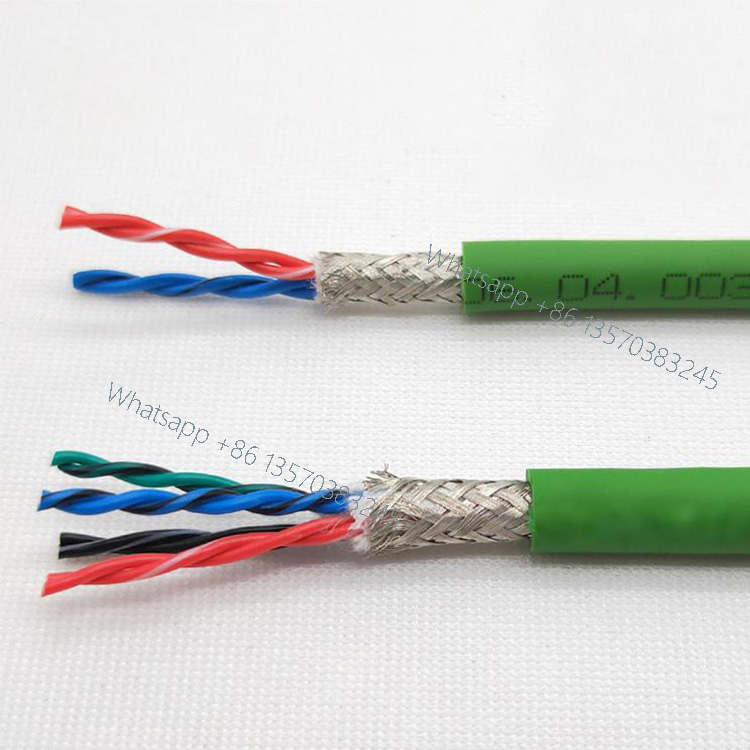

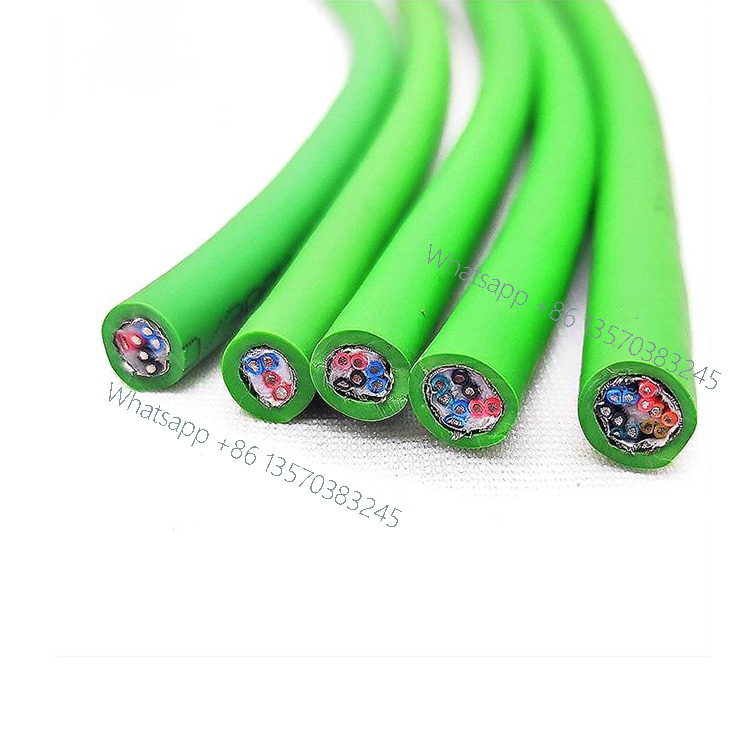

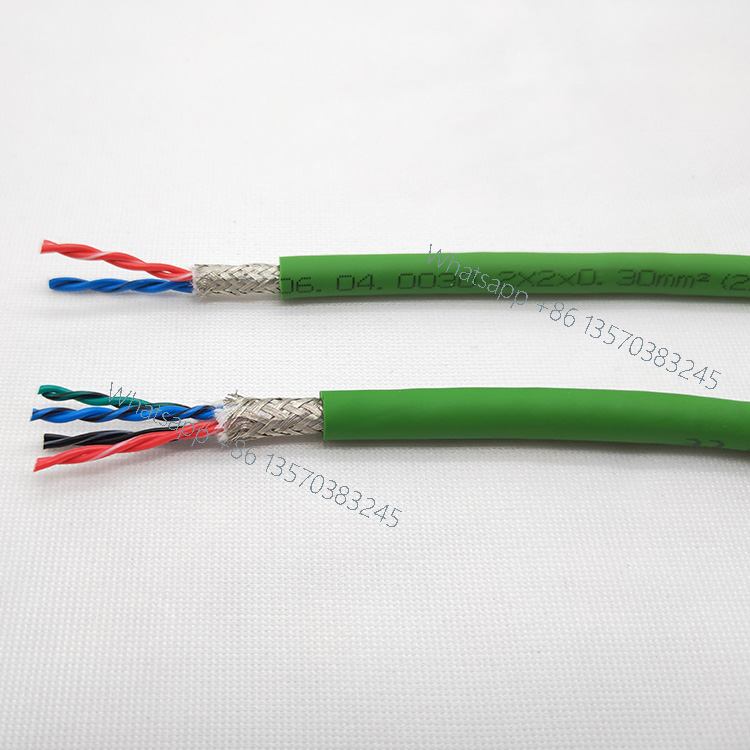

Cable Structure
Product Structure: Complies with UL758 STYLE 2464
Conductor: Fine bare copper stranded wire with high bending strength, meeting DIN VDE 0295 Class 5 and IEC 60228 Class 5
Insulation: High mechanical performance TPE polymer
Core Wire Color: Color-coded core wires for differentiation
Stranding Method: Optimal pitch layered stranding of the core wires
Overall Shielding: High-strength tin-plated copper wire shielding, optical coverage > 85%
Outer Jacket: Modified high-strength PUR polymer
| Item | Product Code | Number of Cores and Cross-Sectional Area | Approximate Outer Diameter | Color | Product Number | MOQ |
| 1 | TY1006.06.0025 | 3Px0.25 | 6.30 | Green | C-2502 | |
| 2 | TY1006.08.0025 | 4Px0.25 | 7.00 | Green | C-2503 | |
| 3 | TY1006.10.0025 | 5Px0.25 | 7.50 | Green | C-2504 |
Notes
G = With yellow-green grounding wire; X = Without yellow-green grounding wire
American Wire Gauge (AWG) sizes are approximate values; actual cross-sectional area shall prevail
For wire diameters greater than 10mm, specifications with ※ have a minimum order of ten meters, delivered as needed.
.
