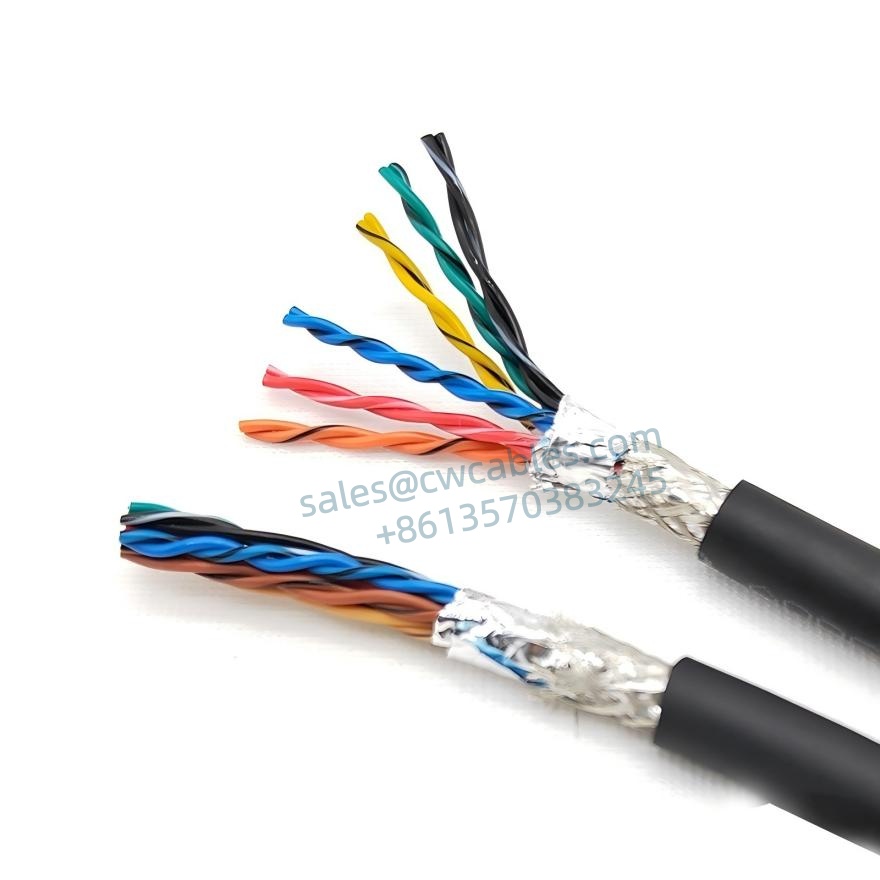

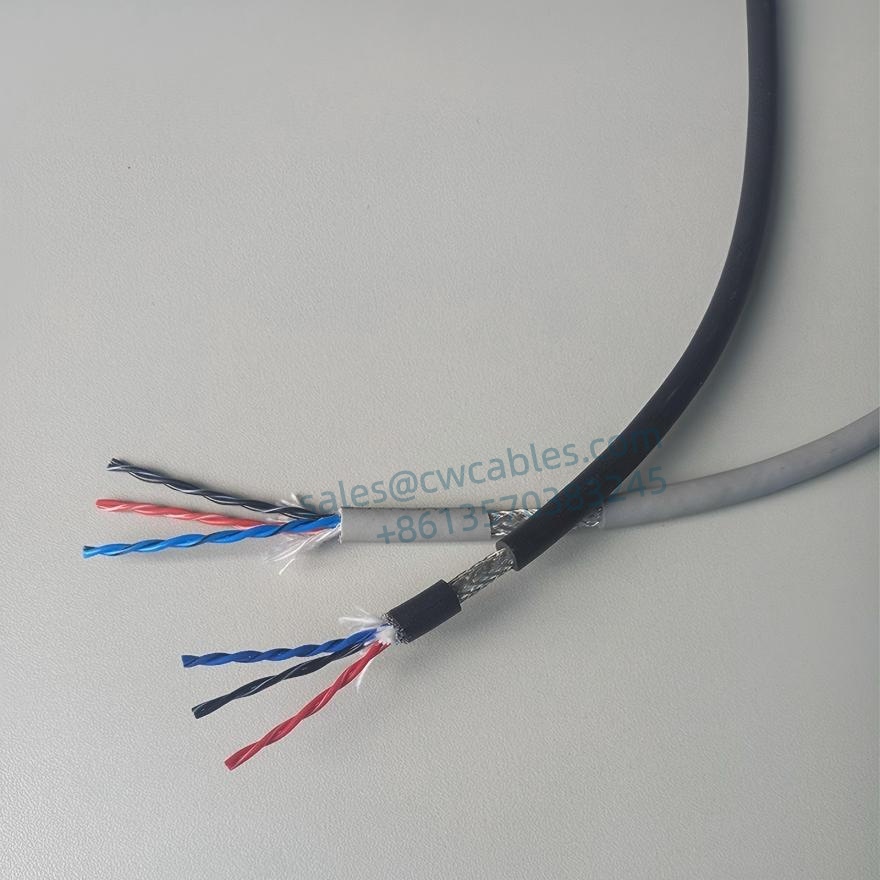

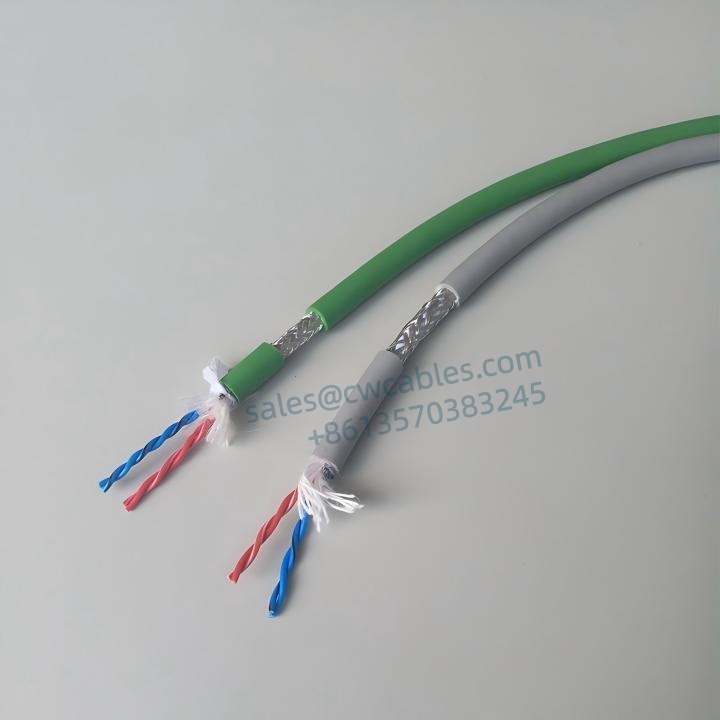

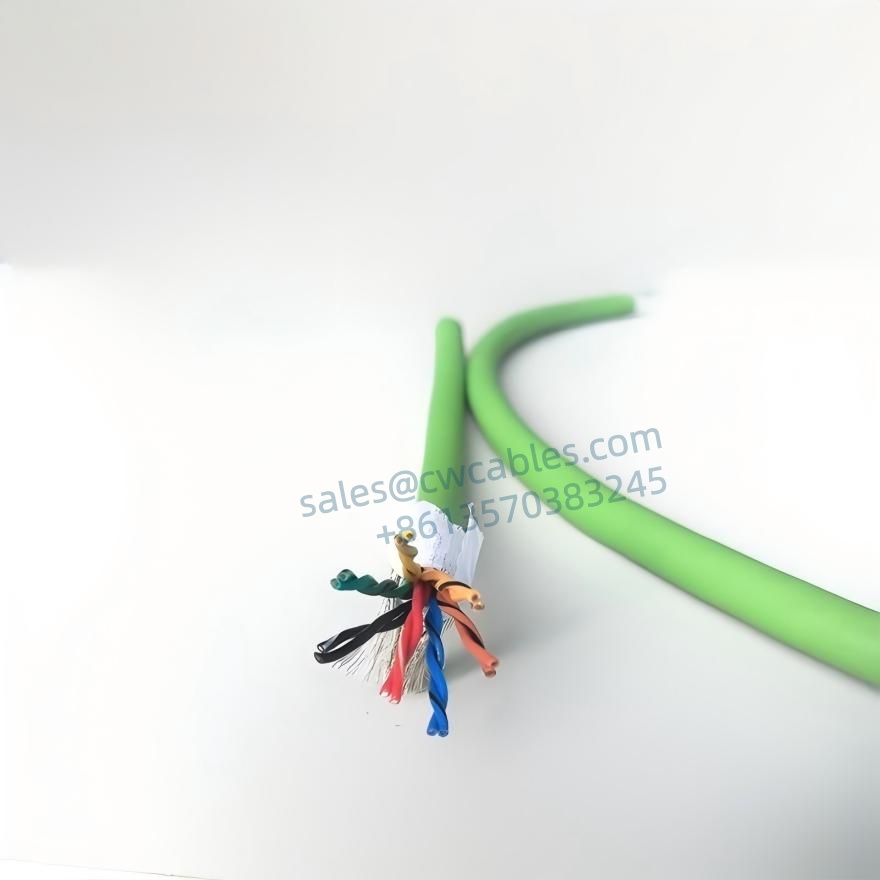

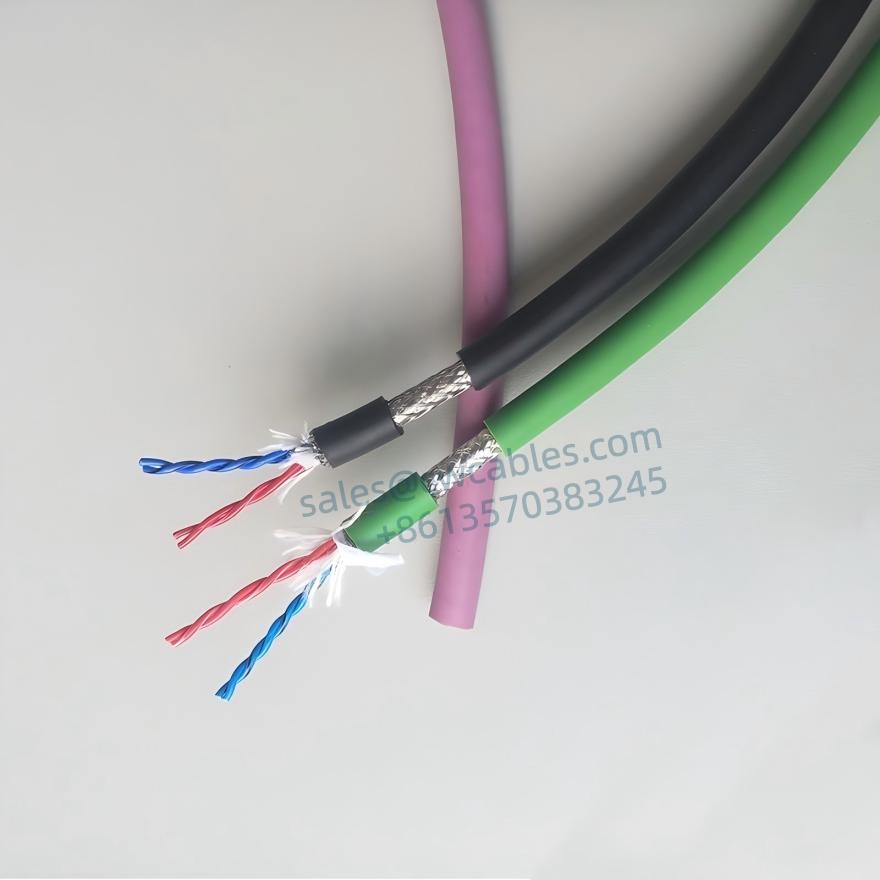

This wire carrier shielded twisted pair cable is a type of cable widely used in mechanical equipment and machine tools, which has special advantages for continuous high-flex drag chain bending applications. This cable uses specially modified insulation and sheathing materials, making it excellent in wear resistance and media resistance.
In practical applications, this highly flexible cable can withstand long-term acceleration, deceleration, stretching, and compression stresses, and can also withstand more than five million cycles of periodic bending. Whether in a frequently changing working environment or in highly demanding industrial production processes, the cable always maintains excellent stability
Wire carrier shielded twisted pair cable Parameter
| YY506 HIGH FLEXIBLE DRAG CHAIN DATA CABLE ( 5 million times reliability tests for drag chain)) | ||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 1 | YY506.04.0014 | 2x2x0.14 | 5.5 | Black |
| 2 | YY506.06.0014 | 3x2x0.14 | 6.0 | Black |
| 3 | YY506.08.0014 | 4x2x0.14 | 6.6 | Black |
| 4 | YY506.10.0014 | 5x2x0.14 | 7.0 | Black |
| 5 | YY506.12.0014 | 6x2x0.14 | 7.4 | Black |
| 6 | YY506.14.0014 | 7x2x0.14 | 7.8 | Black |
| 7 | YY506.16.0014 | 8x2x0.14 | 8.2 | Black |
| 8 | YY506.20.0014 | 10x2x0.14 | 9.2 | Black |
| 9 | YY506.26.0014 | 13x2x0.14 | 9.8 | Black |
| 10 | YY506.04.0020 | 2x2x0.2 | 6.0 | Black/ Green |
| 11 | YY506.06.0020 | 3x2x0.2 | 6.4 | Black/ Green |
| 12 | YY506.08.0020 | 4x2x0.2 | 7.0 | Black/ Green |
| 13 | YY506.10.0020 | 5x2x0.2 | 7.5 | Black/ Green |
| 14 | YY506.12.0020 | 6x2x0.2 | 8.2 | Black/ Green |
| 15 | YY506.14.0020 | 7x2x0.2 | 8.5 | Black |
| 16 | YY506.16.0020 | 8x2x0.2 | 9.0 | Black |
| 17 | YY506.20.0020 | 10x2x0.2 | 10.0 | Black |
| 18 | YY506,26,0020 | 13x2x0.2 | 10.5 | Black |
| 19 | YY506.04.0030 | 2x2x0.3 | 6.2 | Black |
| 20 | YY506.06.0030 | 3x2x0.3 | 6.6 | Black |
| 21 | YY506.08.0030 | 4x2x0.3 | 7.5 | Black |
| 22 | YY506.10.0030 | 5x2x0.3 | 7.8 | Black |
| 23 | YY506.12.0030 | 6x2x0.3 | 8.6 | Black |
| 24 | YY506.14.0030 | 7x2x0.3 | 9.0 | Black |
| 25 | YY506.16.0030 | 8x2x0.3 | 9.5 | Black |
| 26 | YY506.26.0030 | 13x2x0.3 | 11.2 | Black |
shielded twisted pair cable Technical data
Special PVC sheath with high flexibility
●Temperature range: Mobile installation -5°C to +70°C
Fixed installation -15°C to +80°C
●Nominal voltage Uo/U 300/300V
●Test voltage 1500V
●Insulation resistance: Minimum 20 MOhm x km
●Minimum bending radius: Mobile installation 7.5x cable diameter
Fixed installation 6x cable diameter
●Complies with EU RoHS and Reach regulations requirements

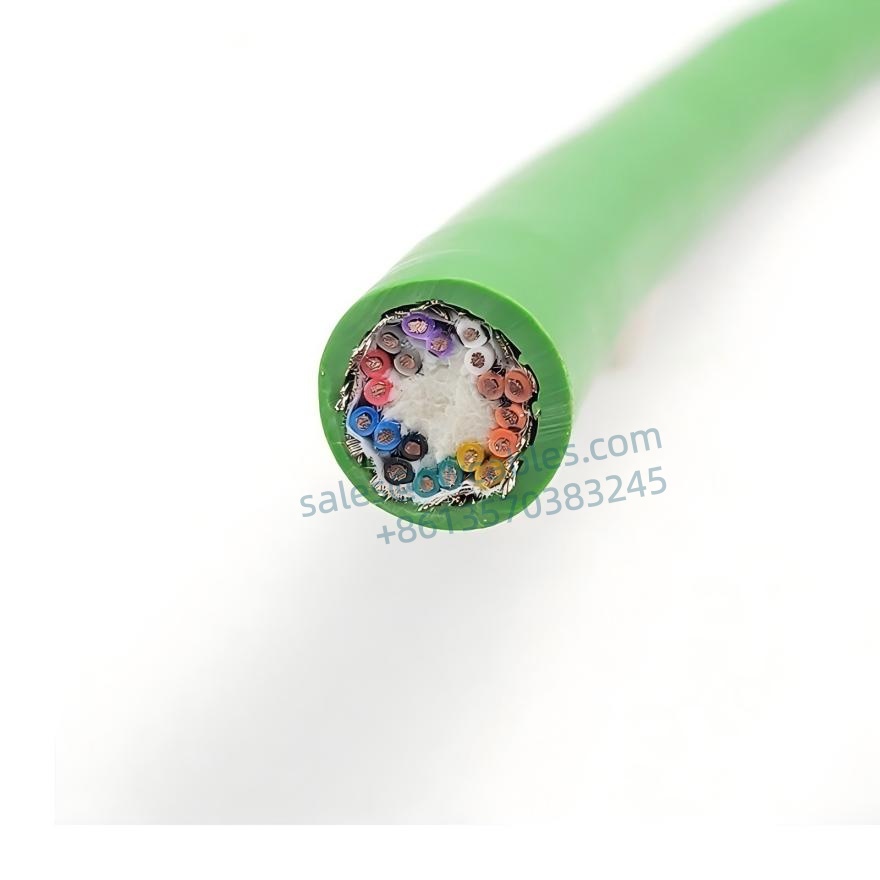

shielded twisted pair cable Structure:
●Tinned copper (below 0.5mm²) or bare copper (0.5mm² and above) conductors Fine copper wire,
compliant with DIN VDE 0295 class 6 and IEC 60228 class 6
●Special PVC insulation
●Color-coded cores (below 0.5mm²)
●Black cores with continuous white numerical coding (0.5mm² and above)
●Optimum lay length of stranded cores
●Improved tinned copper wire braided shielding
●Minimum overall shielding coverage of 80%
●Special PVC outer sheath
●Black color (RAL 9005) with matte finish
| High Flexibility 5 Million Times Drag Chain Cable Test Standards | ||
| Drag Chain Bending Test Test Method: Take a 2-meter finished cable, with a bending radius of 6 times the outer diameter of the cable, a moving stroke of 900 mm, and reciprocating movement at a speed of 90 times/minute. |
Two-Wheel Winding Test Test Method: Take a 5-meter finished cable, according to the specified pulley diameter and weight of the weights. The pulley moves at a speed of 0.33 m/sec, and the moving distance is more than 1.0 meter under reciprocating conditions |
90-Degree Bend Test Test Method: Take a 2-meter finished cable, with a bending radius of 2.5 times the outer diameter of the cable, according to the standard specified weight of the weights, bending at a speed of 40 times/minute |
| Judgment Criteria: 1. The number of reciprocations exceeds 5,000,000 times without open circuit or short circuit. 2. The sheath is not broken | Judgment Criteria: 1. The number of reciprocations exceeds 200,000 times without open circuit or short circuit. 2. The sheath is not broken | Judgment Criteria: 1. The number of reciprocations exceeds 100,000 times without open circuit or short circuit. 2. The sheath is not broken |
