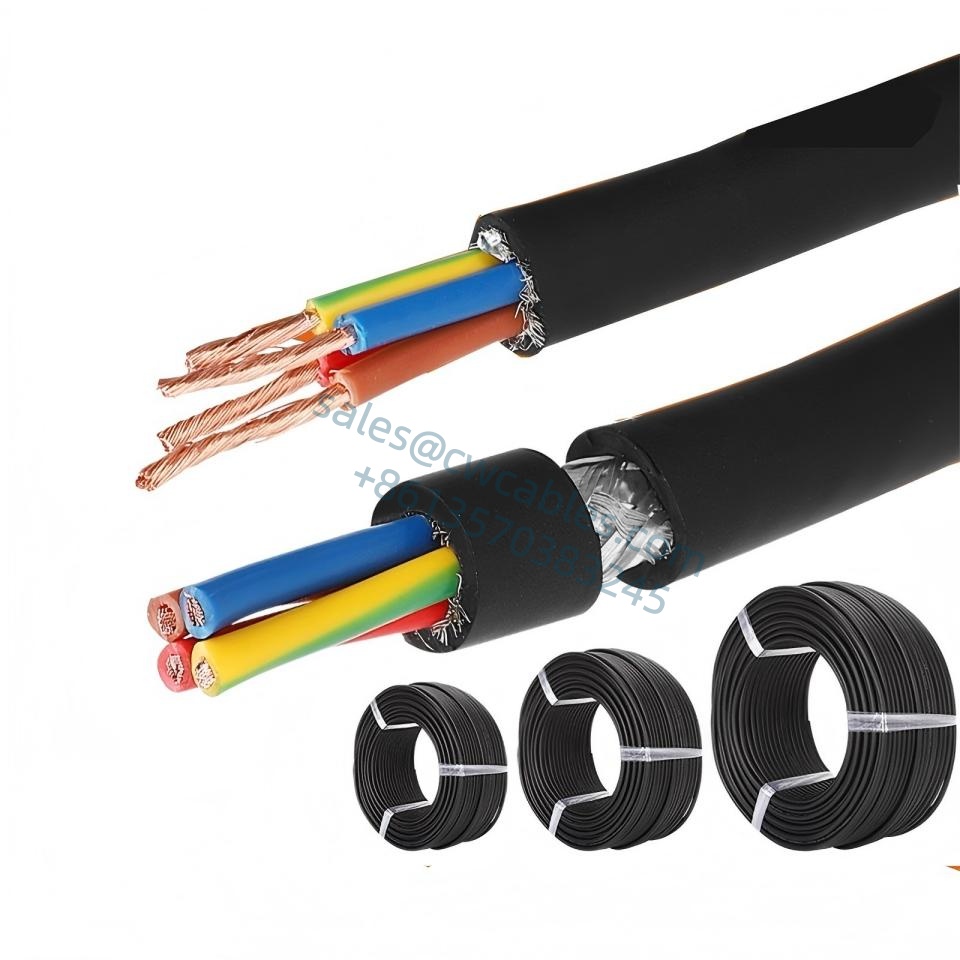

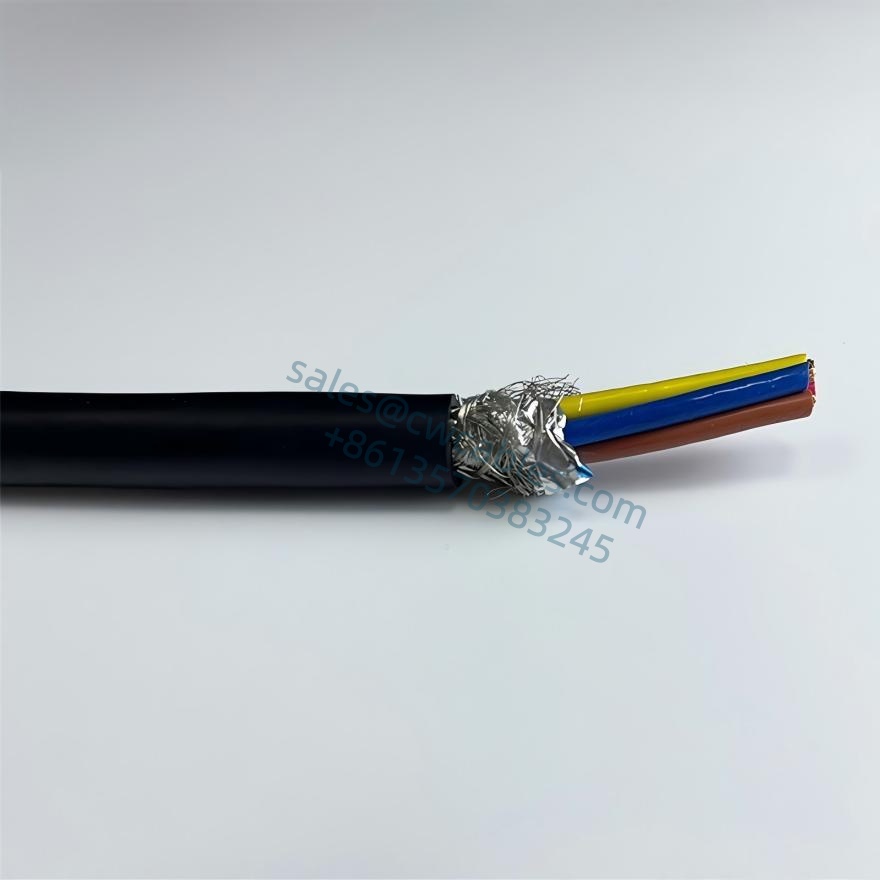

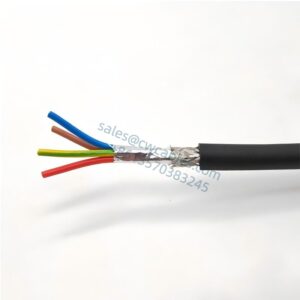

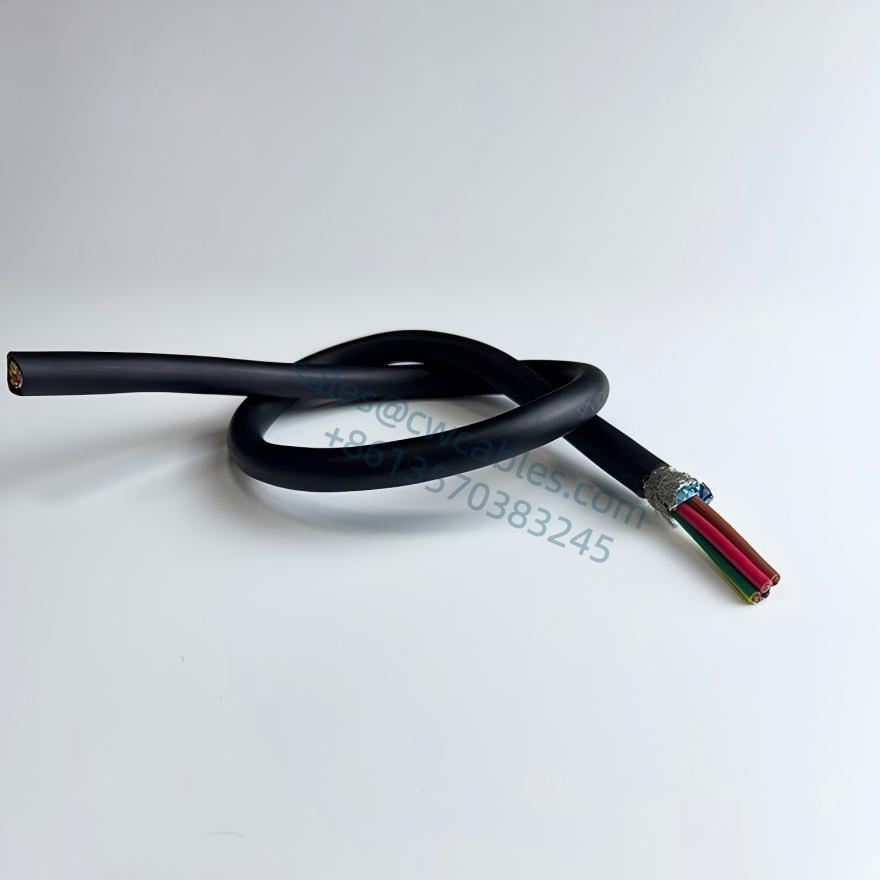

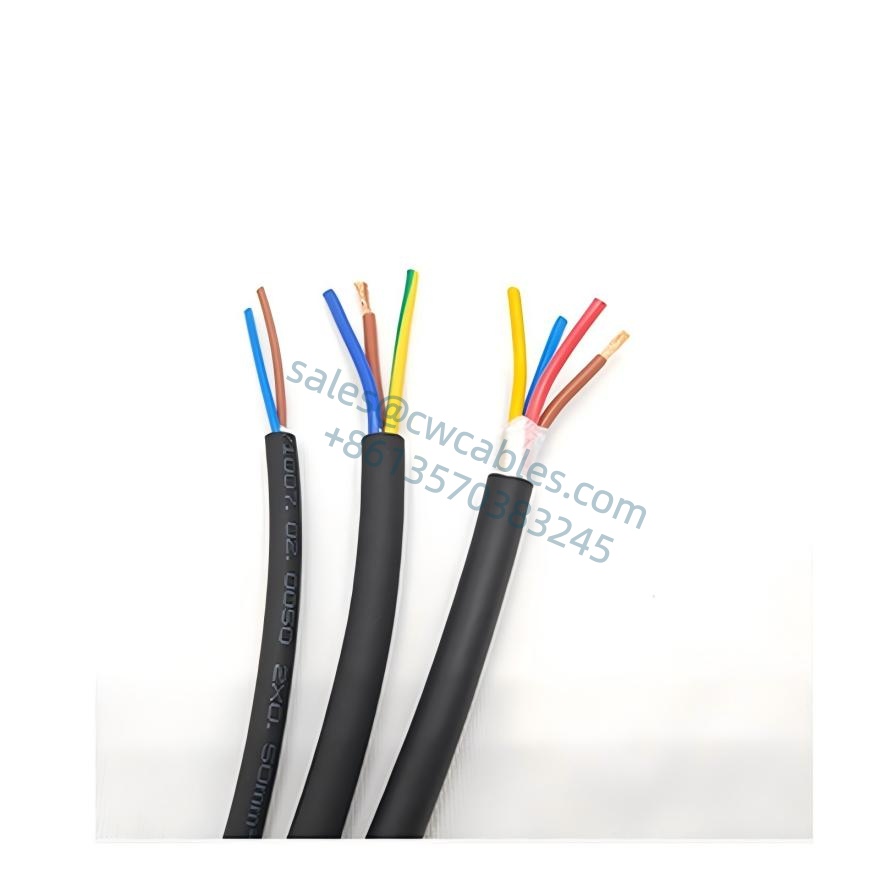

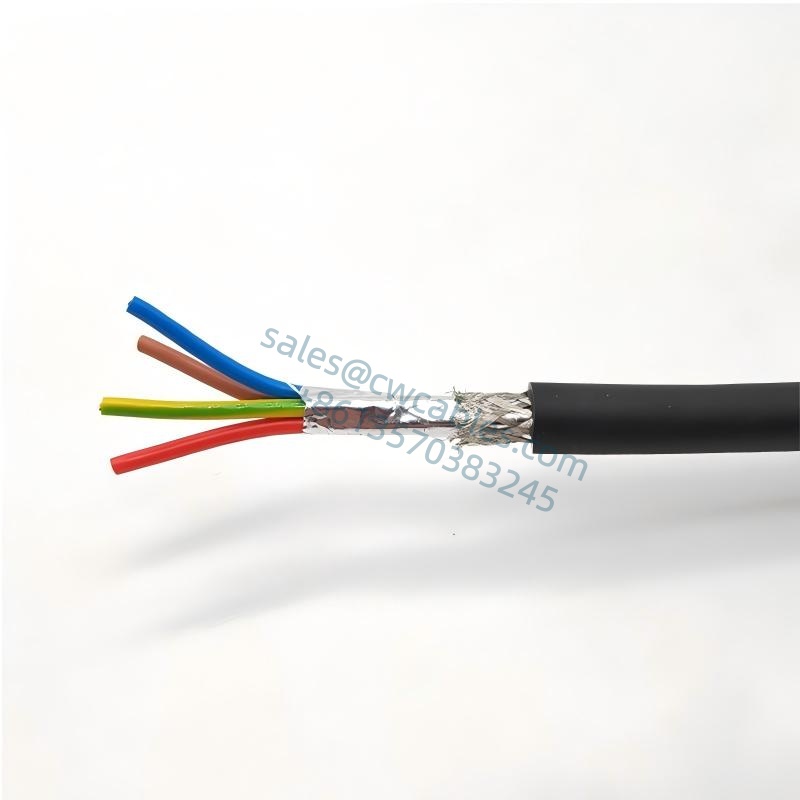

YY07 unshielded/shielded Flexible multiconductor PVC Power Control Cable are mainly used as control and power transmission systems,
which are widely used in sensing technology, computers and equipment control equipment and control engineering; three
cores and three cores have green/yellow protection grounding wires, and core wire twisted cable twisted collisions Short
-distance. The color of the outer cover is: black, you can choose other colors as needed.
Technical Parameter YY07 No shielded flexible multi core power cable
|
Standard
|
Comply with UL20276 standard, thin wire diameter design
|
|||
|
Conductor
|
adopts high-quality tinned copper stranded copper wire
|
|||
|
Insulation material
|
Modified PVC
|
|||
|
Core structure
|
Small pitch single stranding
|
|||
|
Core recognition
|
Color core
|
|||
|
Outer sheath
|
Modified PVC mate
|
|||
|
Color
|
black (other colors can be customized)
|
|||
|
Bending radius
|
Mobile installation 7.5×cable diameter Fixed installation 6x cable diameter
|
|||
|
Nominal voltage
|
Uo/U 300/500 V
|
|||
|
Test voltage
|
2000 V
|
|||
|
Application:
|
It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servers/motors, drag
chain systems and other fields. |
|||
Flexible Power Control Cable Structure
1. Bare copper conductor, thin copper wire Complies with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification
4. The wire core is stranded in layers with the best pitch
5. With yellow and green grounding wire (3 cores and above)
6. Special PVC outer sheath
7. Black (RAL 9005) matte
|
No.
|
Product Code
|
Cores Number and cross-sectional area
(NO.Xm㎡)
|
Approximate outer diameter （mm)
|
Outer sheath color
|
20℃ Conductor DC resistance
Ω/km
|
|
1
|
YY07.02.0050
|
2×0.5
|
5.6
|
Black
|
39
|
|
2
|
YY07.03.0050
|
3G0.5
|
6
|
Black
|
39
|
|
3
|
YY07.04.0050
|
4G0.5
|
6.5
|
Black
|
39
|
|
4
|
YY07.02.0075
|
2×0.75
|
6
|
Black
|
26
|
|
5
|
YY07.03.0075
|
3G0.75
|
6.5
|
Black
|
26
|
|
6
|
YY07.04.0075
|
3G0.75
|
7.2
|
Black
|
26
|
|
7
|
YY07.02.0100
|
2X1.0
|
6.4
|
Black
|
19.5
|
|
8
|
YY07.03.0100
|
3G1.0
|
6.9
|
Black
|
19.5
|
|
9
|
YY07.04.0100
|
4G1.0
|
7.8
|
Black
|
19.5
|
|
10
|
YY07.02.0150
|
2×1.5
|
7.5
|
Black
|
13.3
|
|
11
|
YY07.03.0150
|
3G1.5
|
8.2
|
Black
|
13.3
|
|
12
|
YY07.04.0150
|
4G1.5
|
9
|
Black
|
13.3
|
|
13
|
YY07.02.0250
|
2×2.5
|
9
|
Black
|
7.98
|
|
14
|
YY07.03.0250
|
3G2.5
|
9.8
|
Black
|
7.98
|
|
15
|
YY07.04.0250
|
4G2.5
|
11
|
Black
|
7.98
|
|
16
|
YY07.04.00400
|
4G4.0
|
12.8
|
Black
|
4.95
|
|
17
|
YY07.04.0600
|
4G6.0
|
14.4
|
Black
|
3.3
|
|
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters
|
|||||
