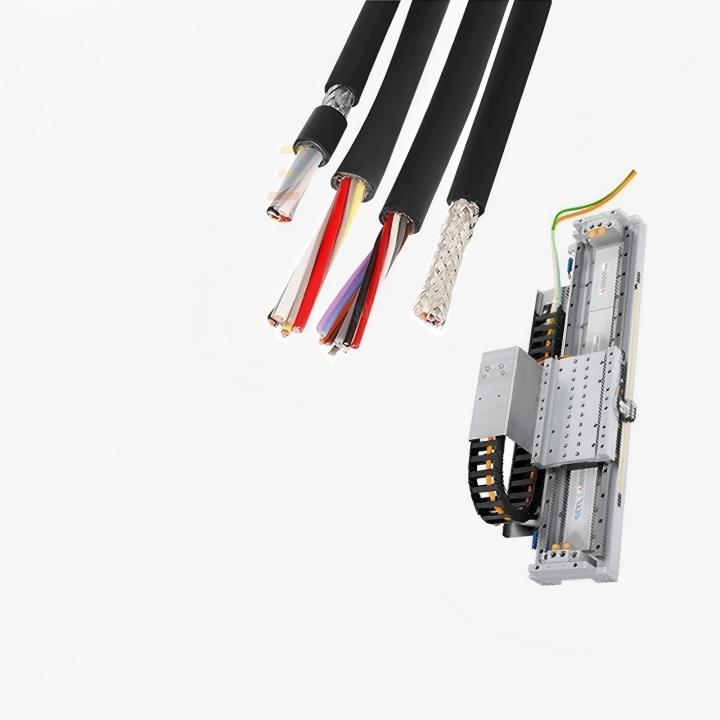

Linear encoder connection cable are particularly suitable for compact, long-term, high-speed drag chain, bending, and high-intensity
applications. These cables must meet the highest requirements in terms of mechanical, chemical, and thermal performance. They
need to withstand high-speed acceleration and deceleration, as well as stretching, compression stress, and over fifty million cycles
of periodic bending. Additionally, they must be resistant to high temperatures, metal shavings splashing, oil, and other chemicals.
Technical data Linear encoder connection cable
Special Teflon insulation, special PUR outer sheath
With ultra -high strength, bending and reversing performance
Conforms to TUV 2 PfG 2577 ClassV requirements
Temperature range: Mobile installation -20°C to +80°C
Fixed installation -40°C to +90°C
Nominal voltage Uo/U300/300V
Test voltage 1500V
Insulation resistance:
Minimum 100 MOhm x km
Minimum bending radius:
Mobile installation 6X cable diameter
Fixed installation 4X cable diameter
Meet EU ROHS, Reach regulations

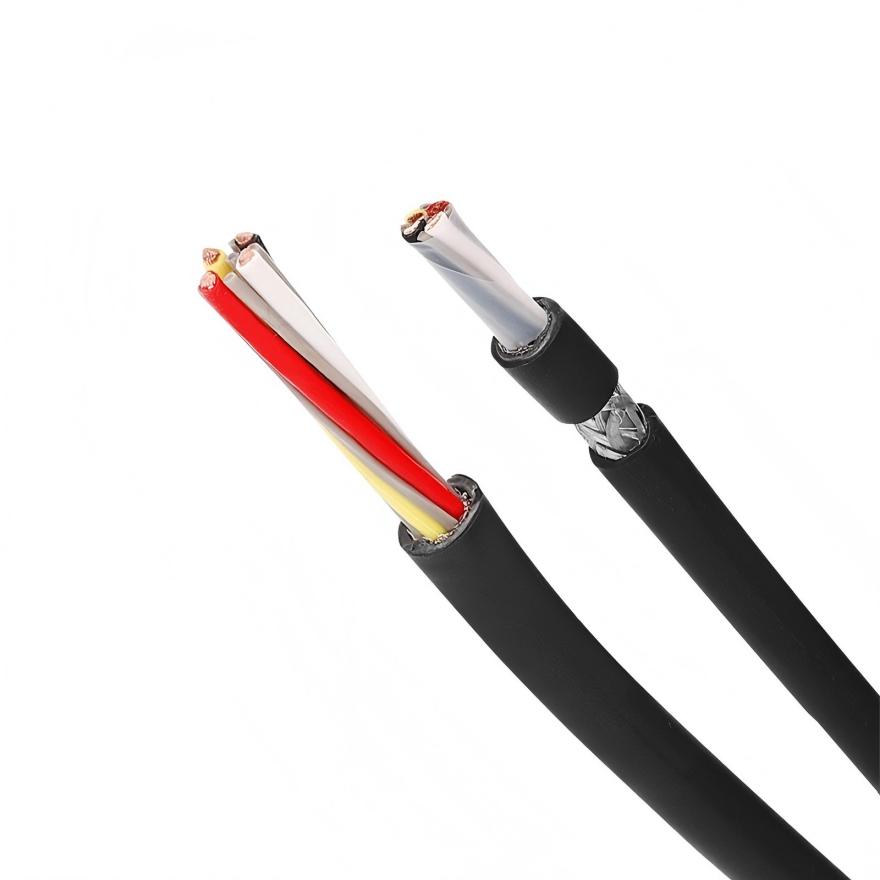

Bare copper conductor, ultra-fine copper wire
Conforms to DIN VDE 0295 category 6 and IEC 60228 category 6
Special Teflon insulation
The color of the core wire is colored
The cores are layered and stranded at an optimal pitch
Special material inner sheath

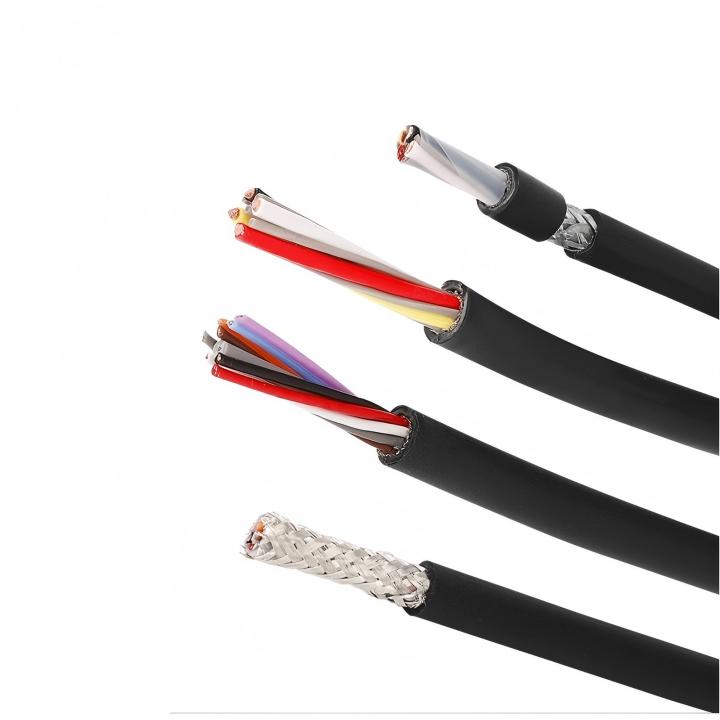

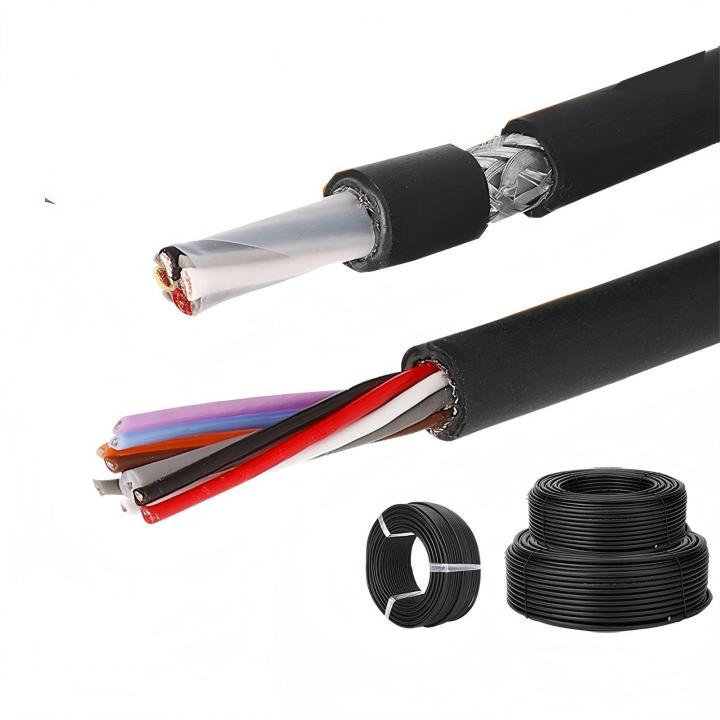

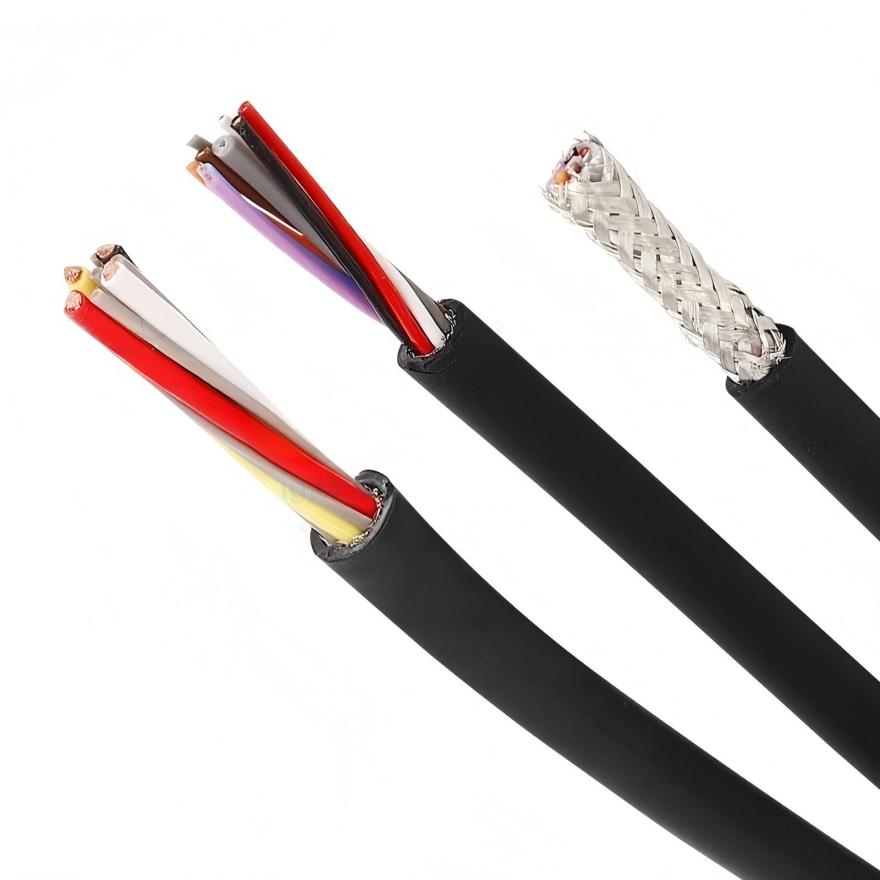

Improved Tinned Copper Wire Braid Shield
Minimum coverage 90%
Special PUR outer sheath
black (RAL 9005) matte
| Linear encoder connection cable test standard Parameter | ||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 1 | LM-FP5006.08.0020 | 4x2x0.2 | 6.4 | Black |
| 2 | LM-FP5002.08.0014 | 8×0.14 | 5.2 | Black |
| 3 | LM-FP5002.05.0014 | 5×0.14 | 4.2 | Black |
50 Million Times Linear encoder connection cable test standard |
||
| Drag chain bending test | Two rounds of winding test | 90 degree bending test |
| The test method is to take 2 meters of finished cable, the bending radius is 6 times the outer diameter of the cable, the moving stroke is 900mm, and the reciprocating movement is performed at a speed of 90 times/min. | Test method: take 5 meters of finished cable, according to the specified pulley diameter and weight weight, the pulley moves back and forth at a speed of 0.33 m/s, and the moving distance is more than 1.0 m. | Test method: take 2 meters of finished cable, the bending radius is 2.5 times the outer diameter of the cable, and bend it at a speed of 40 times per minute according to the weight specified in the standard. |
 |
 |
 |
| 1. The number of round trips exceeds 50.000.000 times without open circuit or short circuit. 2. The sheath is not broken | 1. The number of round trips exceeds 1,000,000 times without open circuit or short circuit. 2. The sheath is not broken. | 1. The number of round trips exceeds 1,000.000 times without open circuit or short circuit. 2. The sheath is not broken |
