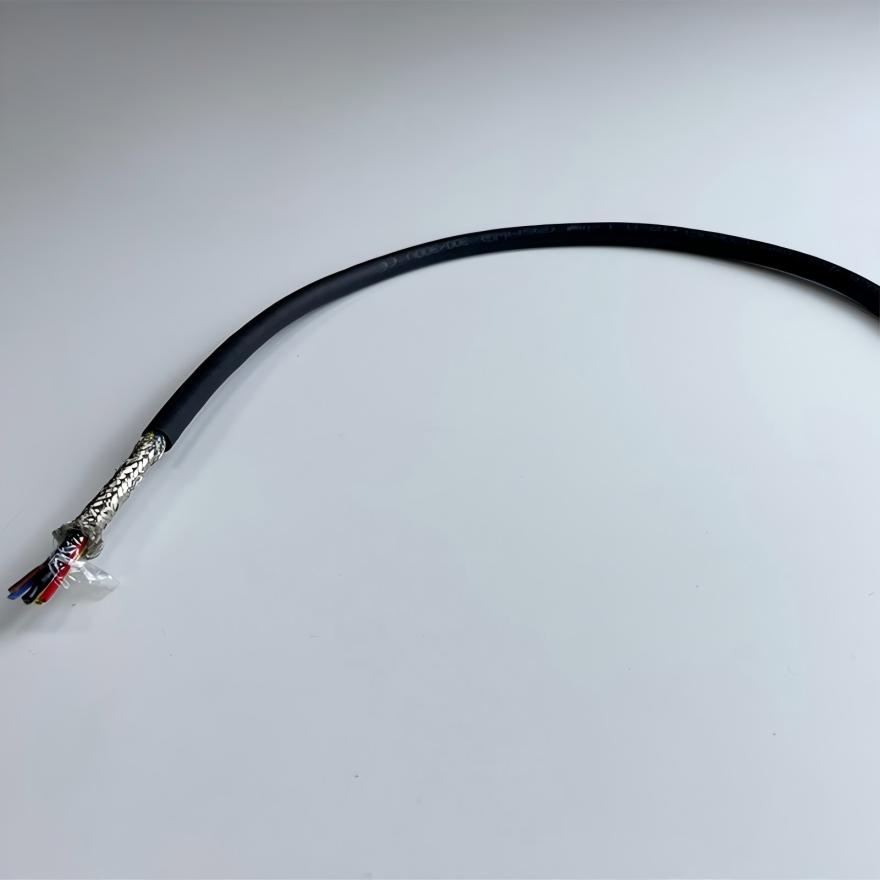

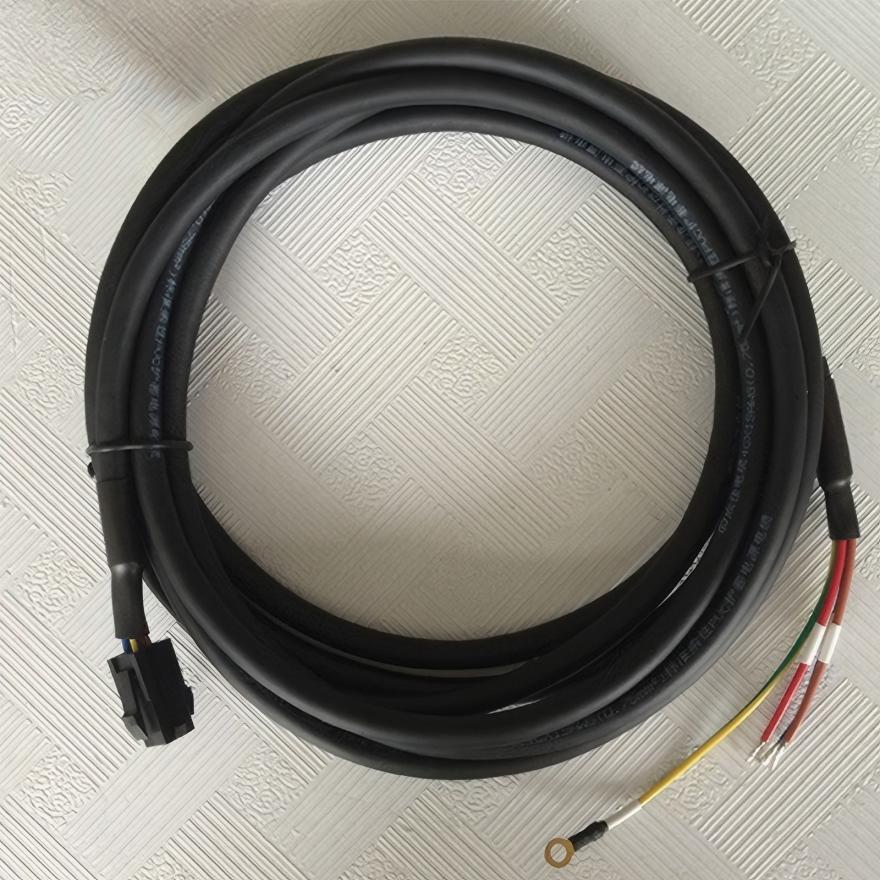

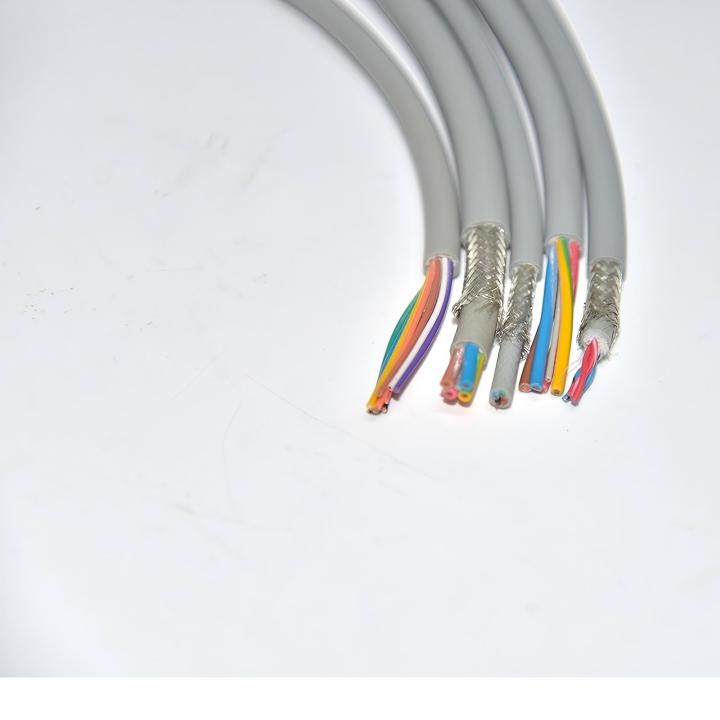

Especially suitable for small-scale, long-term, high-speed drag chain, bending, and high-intensity applications like linear
motors, the 20 Million Times Linear Motor Power Cable for linear motors must meet the highest requirements in terms of
mechanical, chemical, and thermal performance. They must withstand high-speed acceleration and deceleration, tension,
compression stress, as well asmore than twenty million cycles of periodic bending. Additionally, they must be resistant to
high temperatures, metal shaving splashes, oil, and other chemicals.
Technical data Linear Motor Power Cable
TPE-E insulation, special PUR outer sheath
Has ultra-high strength and bending properties
Conforms to TUV 2 PfG 257 7ClassII requirements
Temperature range: Mobile installation -20°C to +80°C
Fixed installation -40°C to +90°C
Nominal voltage Uo/U300/500V
Test voltage 2000V
Insulation resistance:
Minimum 100MOhmxkm0
Minimum bending radius:
Mobile installation 6X cable diameter
Fixed installation 4X cable diameter
Meet EU ROHS, Reach regulations

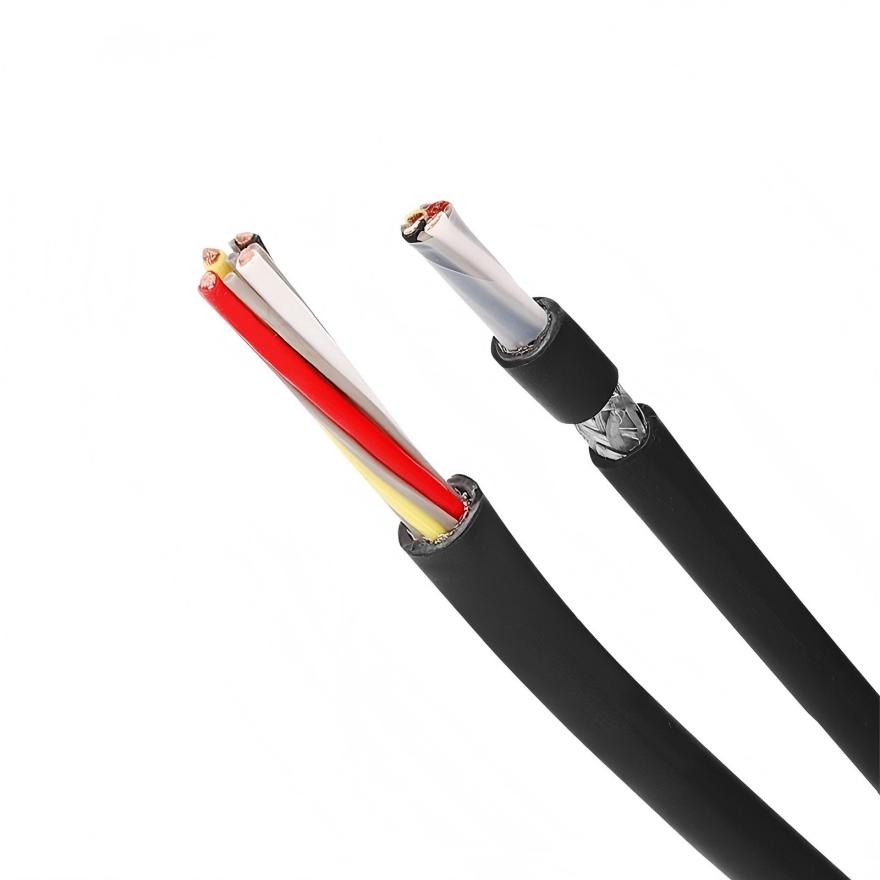

Bare copper conductor, ultra-fine copper wire
Conforms to DIN VDE 0295 category 6 and IEC 60228 category 6
TPE-E insulation
The color of the core wire is colored
The cores are layered and stranded at an optimal pitch
Special material inner sheath

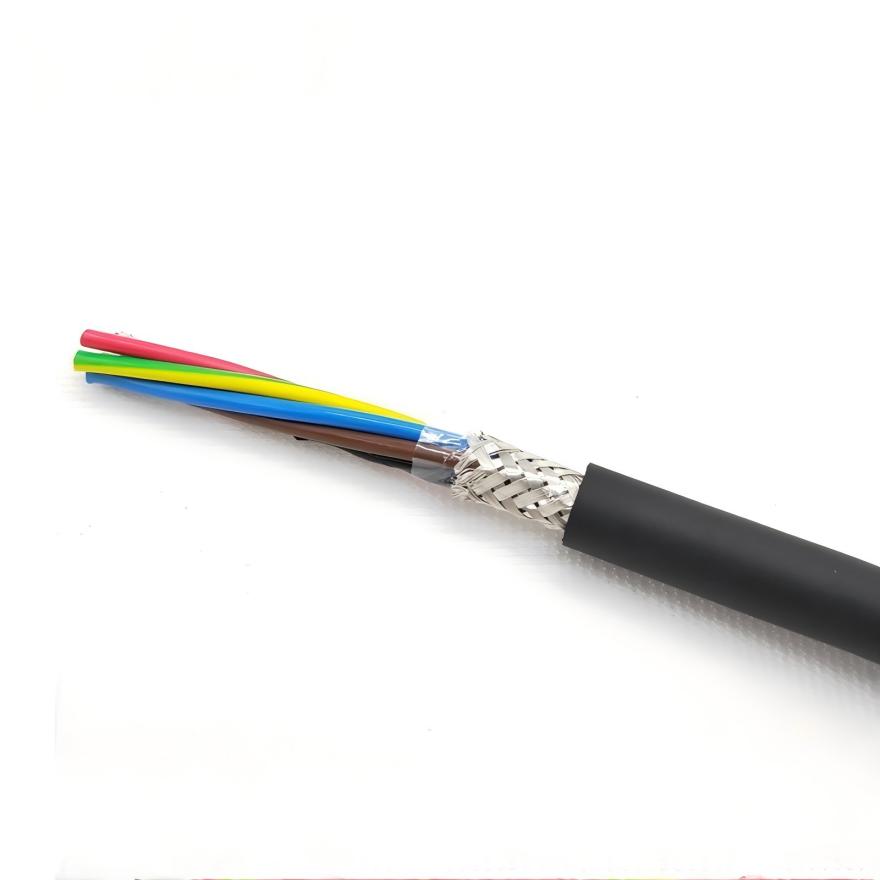

Improved Tinned Copper Wire Braid Shield
Minimum coverage 90%
Special PUR outer sheath
black (RAL 9005) matte
Linear Motor Power Cable Parameter |
||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 1 | LM-TP2002.04.0050 | 4X0.5 | 5.5 | Black |
| 2 | LM-TP2002.04.0075 | 4X0.75 | 6.5 | Black |
| 3 | LM-TP2002.04.0100 | 4X1 | 7.5 | Black |
| 4 | LM-TP2002.04.0150 | 4X1.5 | 8.5 | Black |
| 5 | LM-TP2002.04.0250 | 4X2.5 | 9.5 | Black |
Linear Motor Power Cable Parameter |
||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 6 | LM-YP2002.04.0075 | 4G 0.75 | 7.3 | Black |
Ultra-high-speed linear motor cable test standard |
||
| Drag chain bending test | Two rounds of winding test | 90 degree bending test |
| The test method is to take 2 meters of finished cable, the bending radius is 6 times the outer diameter of the cable, the moving stroke is 900mm, and the reciprocating movement is performed at a speed of 90 times/min. | Test method: take 5 meters of finished cable, according to the specified pulley diameter and weight weight, the pulley moves back and forth at a speed of 0.33 m/s, and the moving distance is more than 1.0 m. | Test method: take 2 meters of finished cable, the bending radius is 2.5 times the outer diameter of the cable, and bend it at a speed of 40 times per minute according to the weight specified in the standard. |
 |
 |
 |
| 1. The number of round trips exceeds 50.000.000 times without open circuit or short circuit. 2. The sheath is not broken | 1. The number of round trips exceeds 1,000,000 times without open circuit or short circuit. 2. The sheath is not broken. | 1. The number of round trips exceeds 1,000.000 times without open circuit or short circuit. 2. The sheath is not broken |
