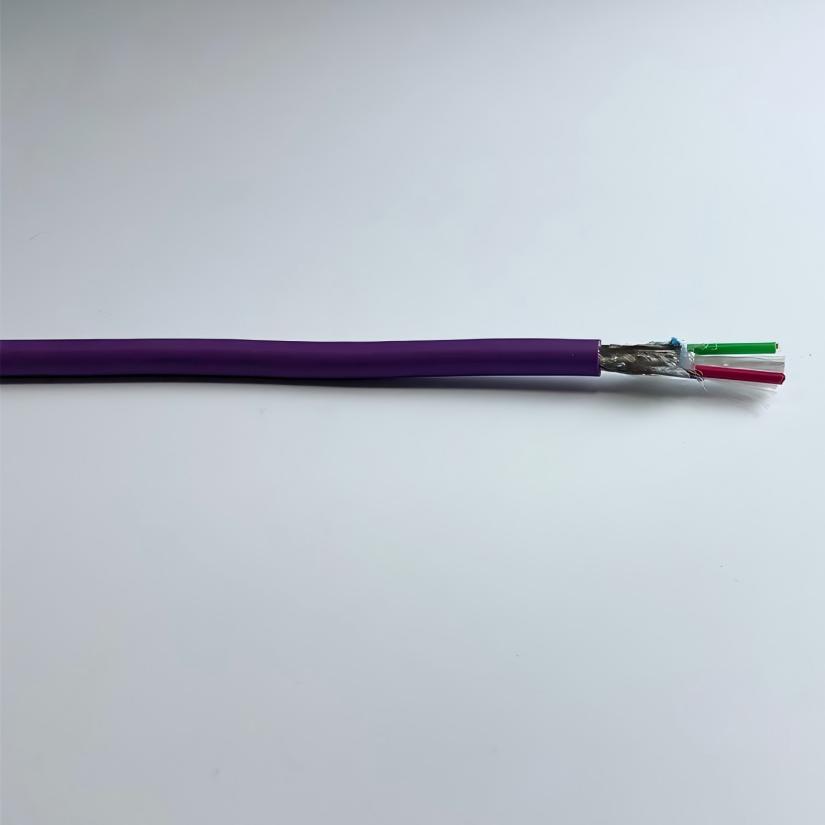

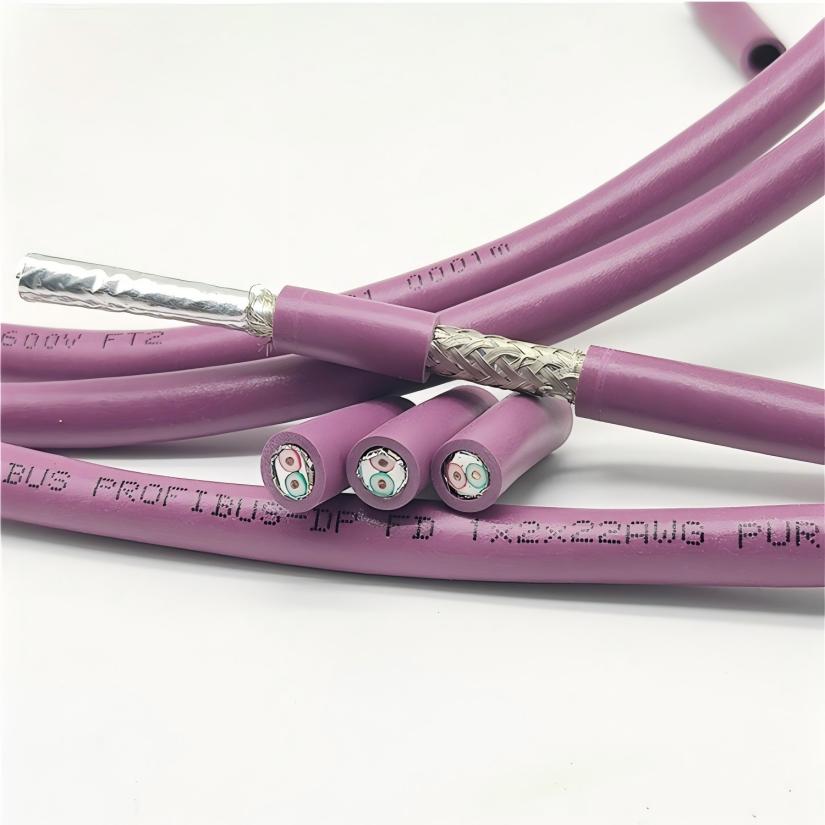

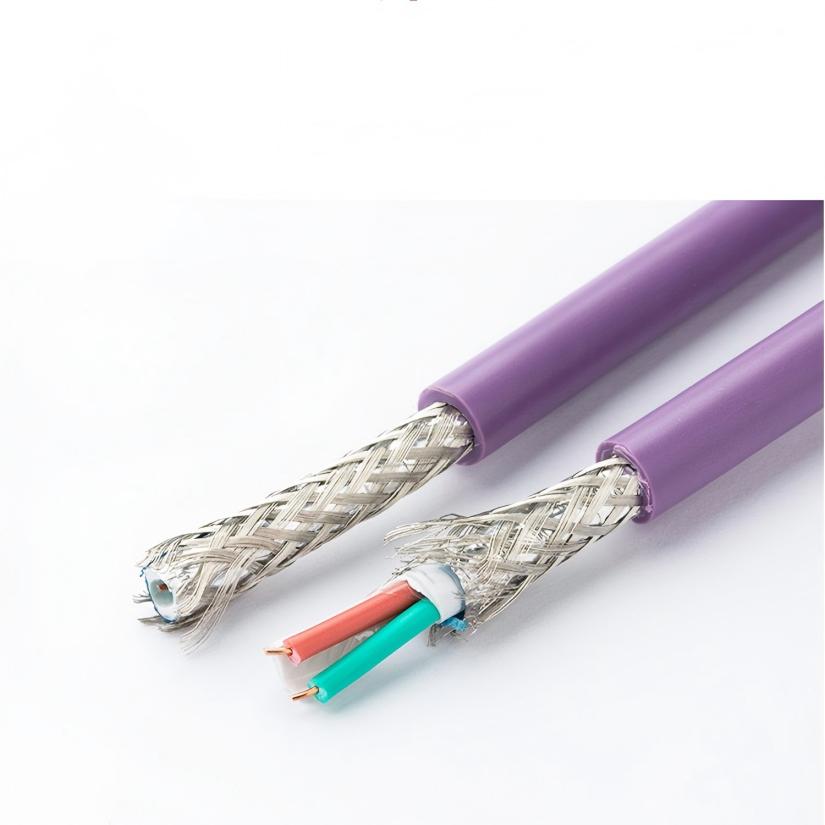

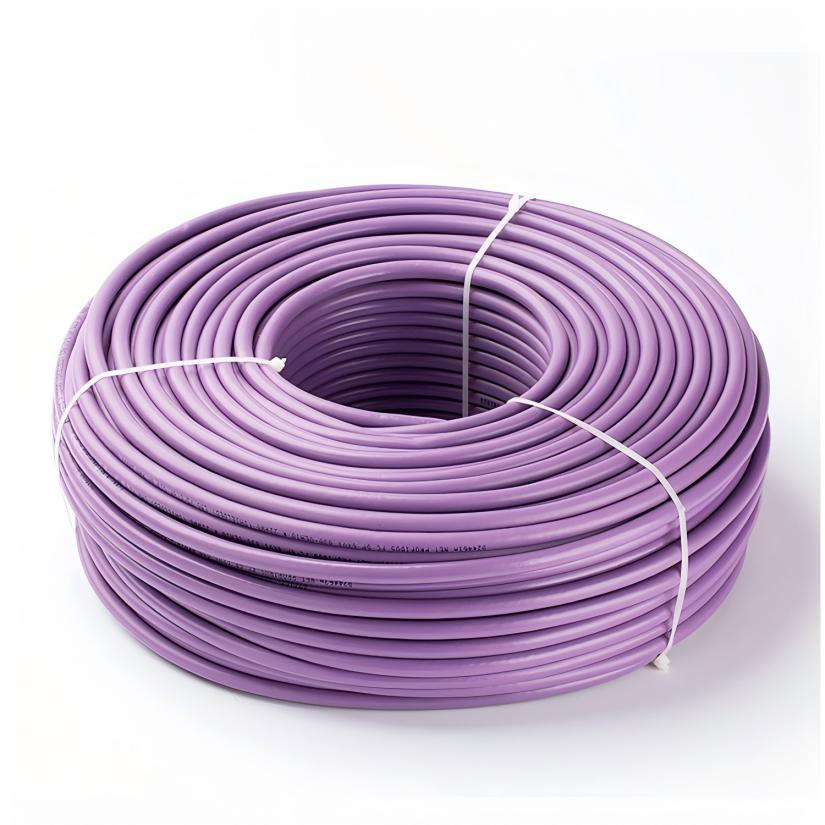

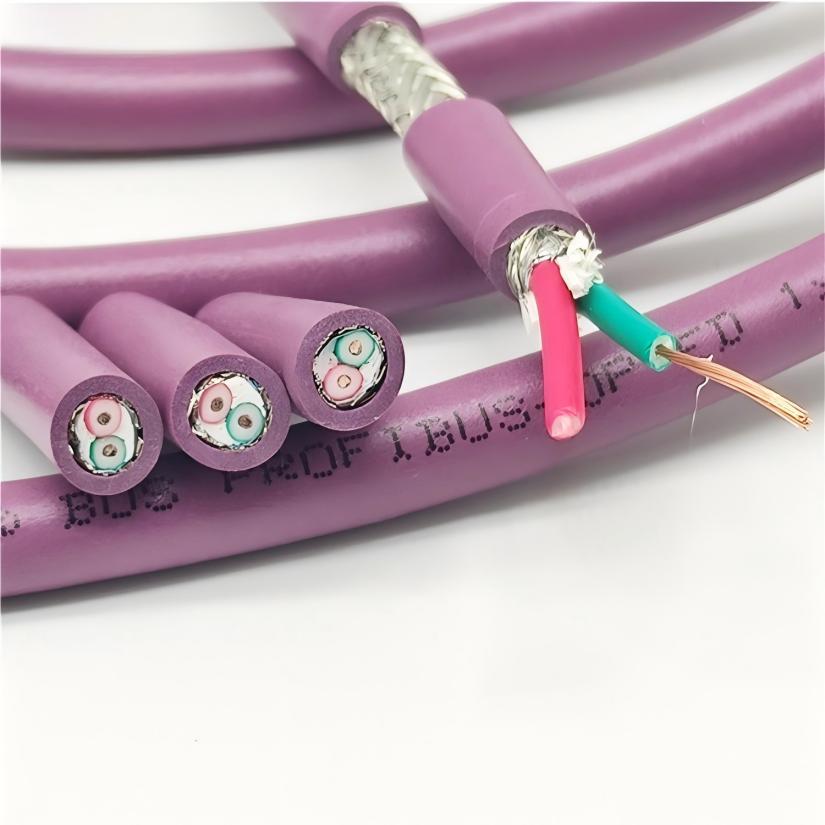

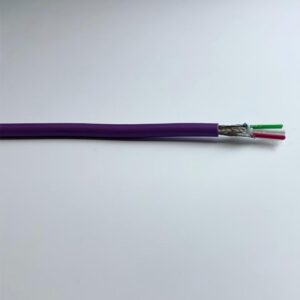

Highly Flexible PUR Communication PROFIBUS Bus Cables For Drag Chain
This high-flexibility bus cable is designed for data transmission in PROFIBUS bus systems, specifically for applications requiring high flexibility. It features a special structural design and modified outer jacket material, providing excellent resistance to wear and media. It can withstand long-term acceleration, deceleration, stretching, and compression stresses, as well as millions of cycles of periodic bending.
Technical Parameter
●Special PVC or PUR sheath, highly flexible.
● Complies with bus cable specifications.
● Temperature range: For mobile installation: -5°C to +70°C For fixed installation: -15°C to +80°C
● Nominal voltage: 50V
● Test voltage: 500V
● Insulation resistance: Minimum 20 MOhmxkm
● Minimum bending radius: For mobile installation: 14 times cable diameter For fixed installation: 7 times cable diameter \
● Complies with EU RoHS and Reach regulations
| PROFIBUS BUS CABLE ( 2 million times reliability tests for drag chain) | ||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 1 | BUS-HY02.02.0025 | 2×0.25 | 8 | Purple |
PUR (available) has oil resistance, high abrasion resistance, UV resistance, acid and alkali resistance, chemical corrosion resistance, and resistance to various lubricants.
PUR (available) is resistant to low temperature, especially strong, impact-resistant, and can be selected for hydrolysis resistance.
Special models with customized conductor cross-sectional area, material, shielding, different colored cores, and other specifications of the sheath can be customized according to requirements.
