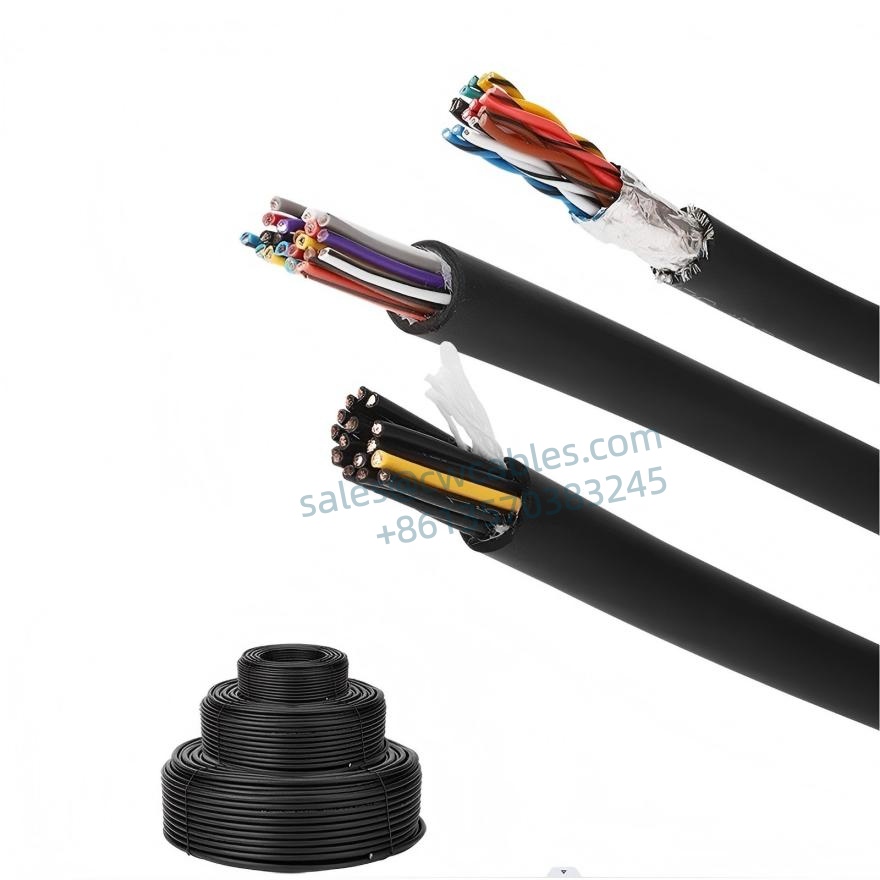

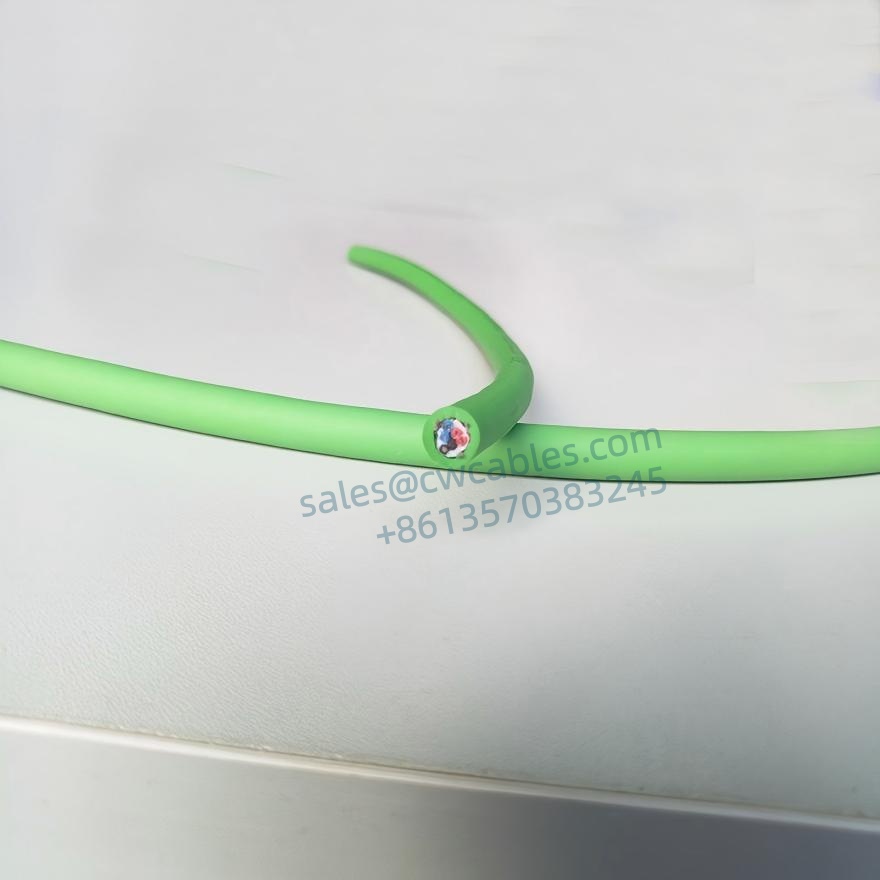

5 million times medium and high -speed sports data transmission TRVVPS Data Transmission Cables can transmit analog
and digital signals in devices with control processors, or as connecting cables between instruments and control devices.
The distance between the section can reduce the interference between the outer core cable.
Temperature range:
Mobile installation: -5 ℃ to+70 ℃
Fixed installation: -15 ℃ to+80 ℃
Minimum bending radius:
Mobile installation 7.5 × cable diameter
Fixed installation 6 × cable diameter
Used for the use of the drag chain system: 5 million cycles or above
Standard Voltage: UO/U 300/300V
Technical Parameter
|
Standard
|
Comply with UL20276 standard, thin wire diameter design
|
|||
|
Conductor
|
adopts high-quality tinned copper stranded copper wire
|
|||
|
Insulation material
|
Modified PVC
|
|||
|
Core structure
|
Small pitch single stranding
|
|||
|
Core recognition
|
Below 0.5m㎡ is marked with colored core wires; 0.5m㎡ above, a yellow-green ground wire + black core wire with white numbers
|
|||
|
Outer sheath
|
Modified PVC mate
|
|||
|
Color
|
black (other colors can be customized)
|
|||
|
Bending radius
|
Move in is more than 7.5 x d,
Fixed laying is more than 6 x d,
|
|||
|
Nominal voltage
|
Uo/U 300/300 V
|
|||
|
Test voltage
|
1500 V
|
|||
|
Application:
|
Widely used in machinery, instruments, industrial electronic equipment computers, information transmission systems, suitable for any two-way communication occasions
|
|||

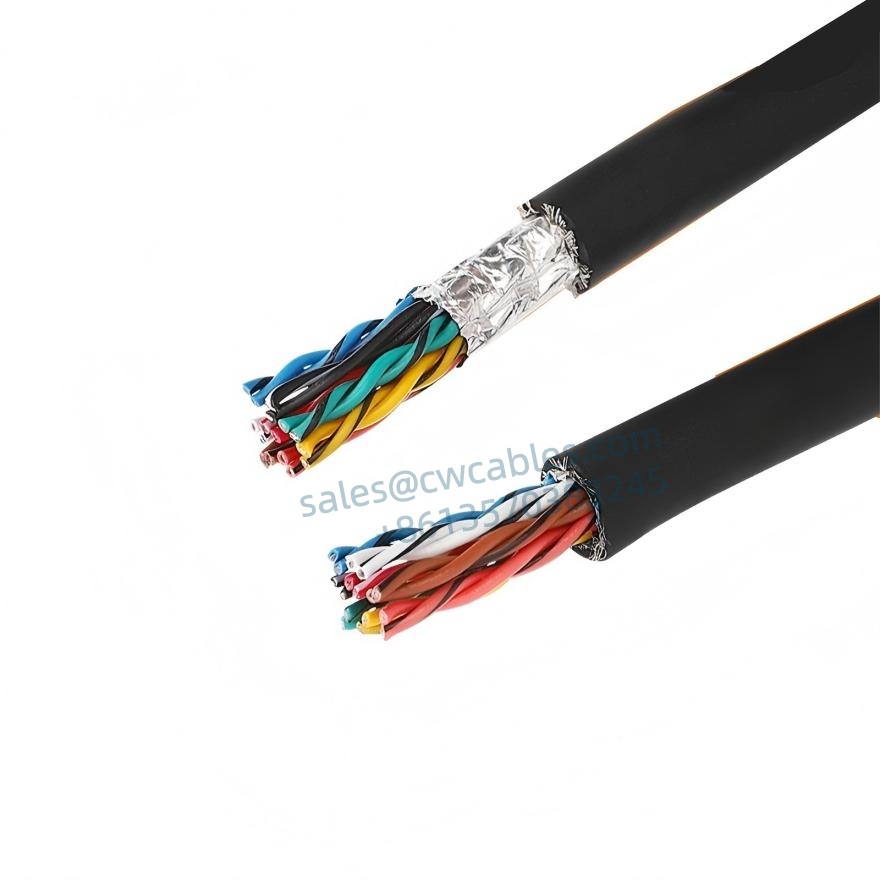

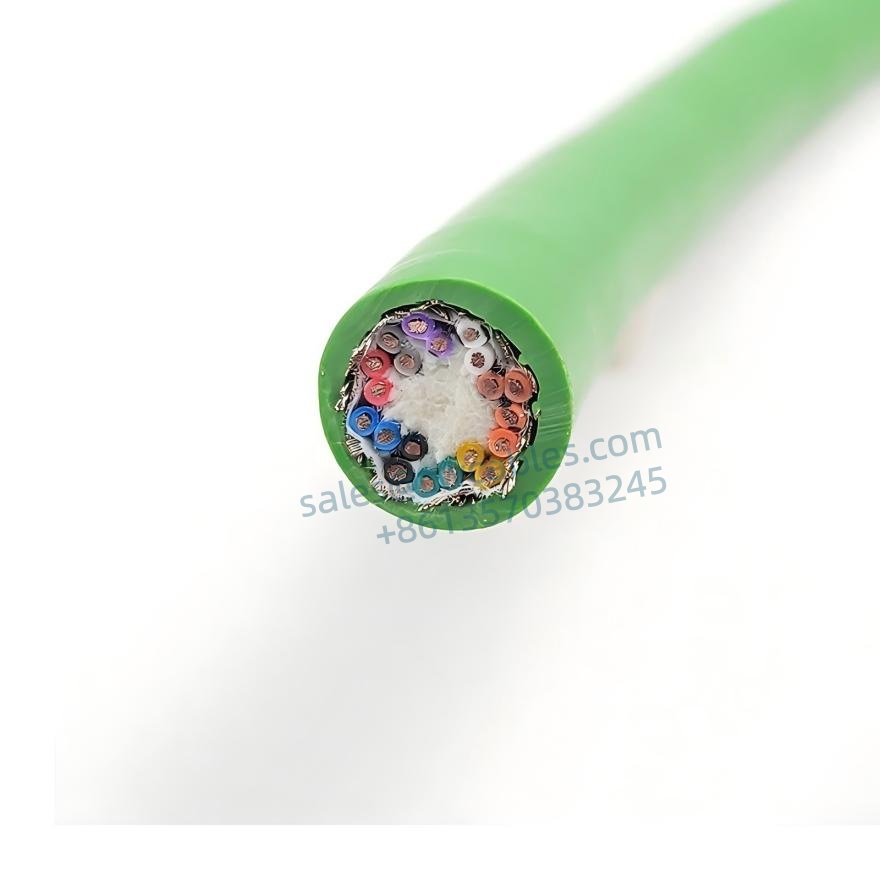

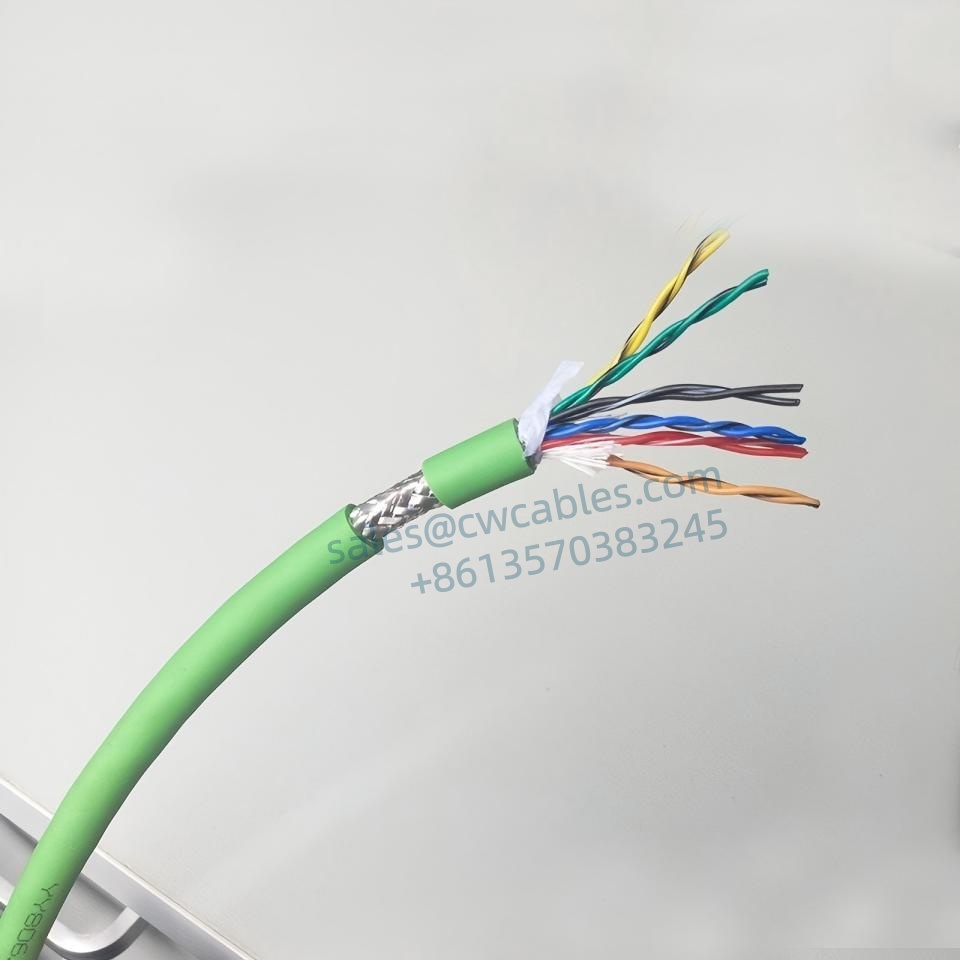

TRVVPS Data Transmission Cables Structure
1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor thin copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification (less than 0.5mm2)
4. Black core wire with continuous white digital code (0.5mm2 and above)
5. The wire core is stranded in layers with the best pitch
6. Improved tinned copper wire braided shield
7. The minimum comprehensive shielding rate is 80%
8. Special PVC outer sheath
9. Black (RAL 9005) matte
|
No.
|
Product Code
|
Cores Number and cross-sectional area
(NO.Xm㎡)
|
Approximate outer diameter （mm)
|
Outer sheath color
|
20℃ Conductor DC resistance
Ω/km
|
|
1
|
YY506.04.0014
|
2x2x0.14
|
5.5
|
Black
|
150
|
|
2
|
YY506.14.0014
|
7x2x0.14
|
7.8
|
Black
|
150
|
|
3
|
YY506.04.0020
|
2x2x0.2
|
6.0
|
Black
|
95
|
|
4
|
YY506.06.0020
|
3x2x0.2
|
6.4
|
Black
|
95
|
|
5
|
YY506.08.0020
|
4x2x0.2
|
7.0
|
Black
|
95
|
|
6
|
YY506.10.0020
|
5x2x0.2
|
7.5
|
Black
|
95
|
|
7
|
YY506.12.0020
|
6x2x0.2
|
8.2
|
Black
|
95
|
|
8
|
YY506.14.0020
|
7x2x0.2
|
8.5
|
Black
|
95
|
|
9
|
YY506.04.0020
|
2x2x0.3
|
6.2
|
Black
|
71.2
|
|
10
|
YY506.06.0030
|
3x2x0.3
|
6.6
|
Black
|
71.2
|
|
11
|
YY506.08.0030
|
4x2x0.3
|
7.5
|
Black
|
71.2
|
|
12
|
YY506.10.0030
|
5x2x0.3
|
7.8
|
Black
|
71.2
|
|
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters
|
|||||
