USB 2.0 CABLE High Flex Drag Chain Data Connection Industrial Camera Cable
This Industrial Camera Cable is designed for data transmission in industrial systems and is suitable for applications that require high flexibility. It features a special structural design and modified outer jacket material, providing excellent abrasion resistance and resistance to various environmental factors. It can withstand prolonged acceleration, deceleration, stretching, and compression stresses, as well as millions of cycles of periodic bending.
USB 2.0 CABLE High Flex Drag Chain Data Connection Industrial Camera Cable
Industrial Camera Cable Technical Parameter
● Special PVC sheath with high flexibility.
● Compliant with bus cable specifications.
● Temperature range: Mobile installation: -5°C to +70°C. Fixed installation: -15°C to +80°C.
● Nominal voltage: 30 V.
● Test voltage: 500V.
● Insulation resistance: minimum 20 MOhm xkm.
● Minimum bending radius: Mobile installation: 14 times the cable diameter. Fixed installation: 7 times the cable diameter.
● Compliance with EU RoHS and Reach regulations..

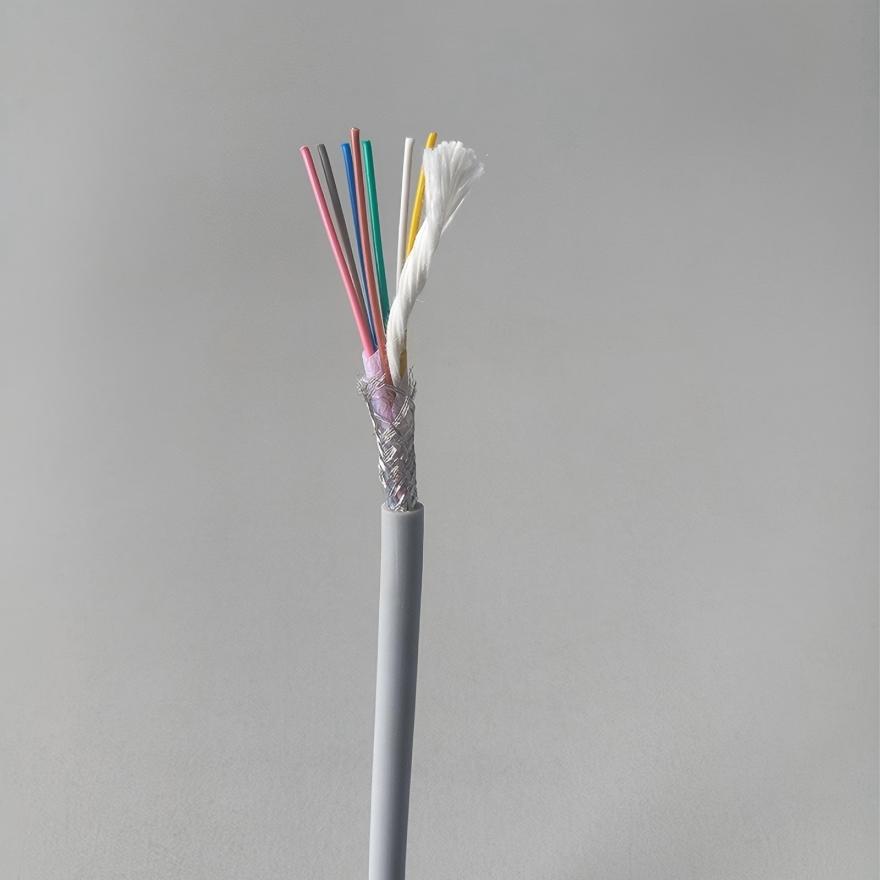

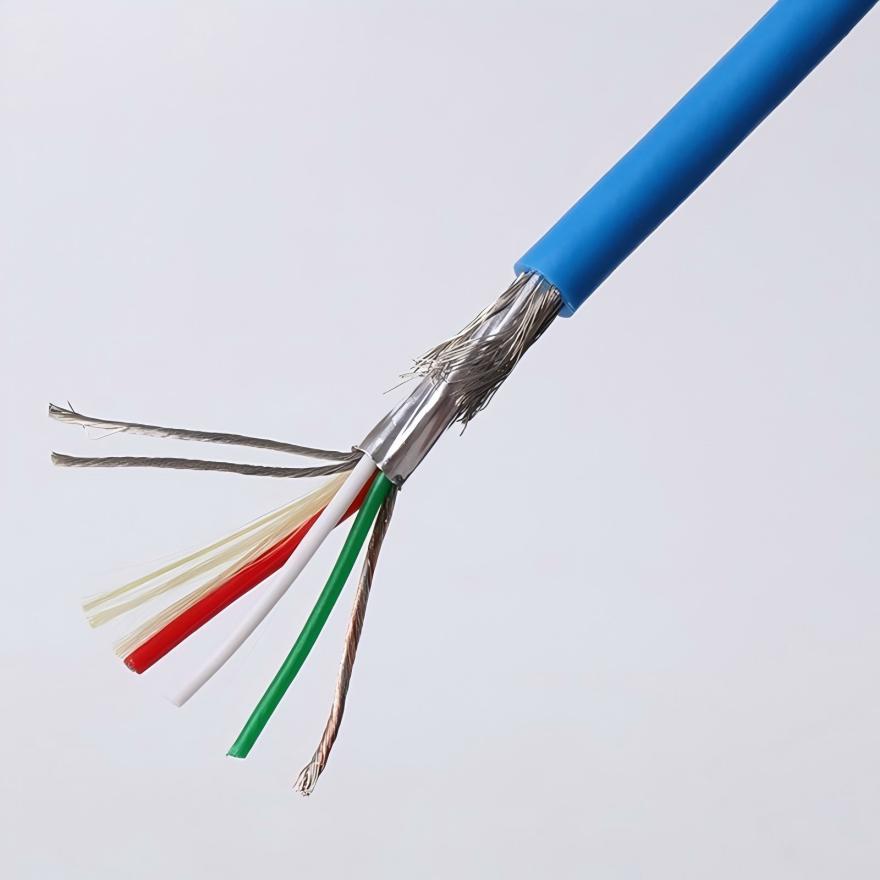

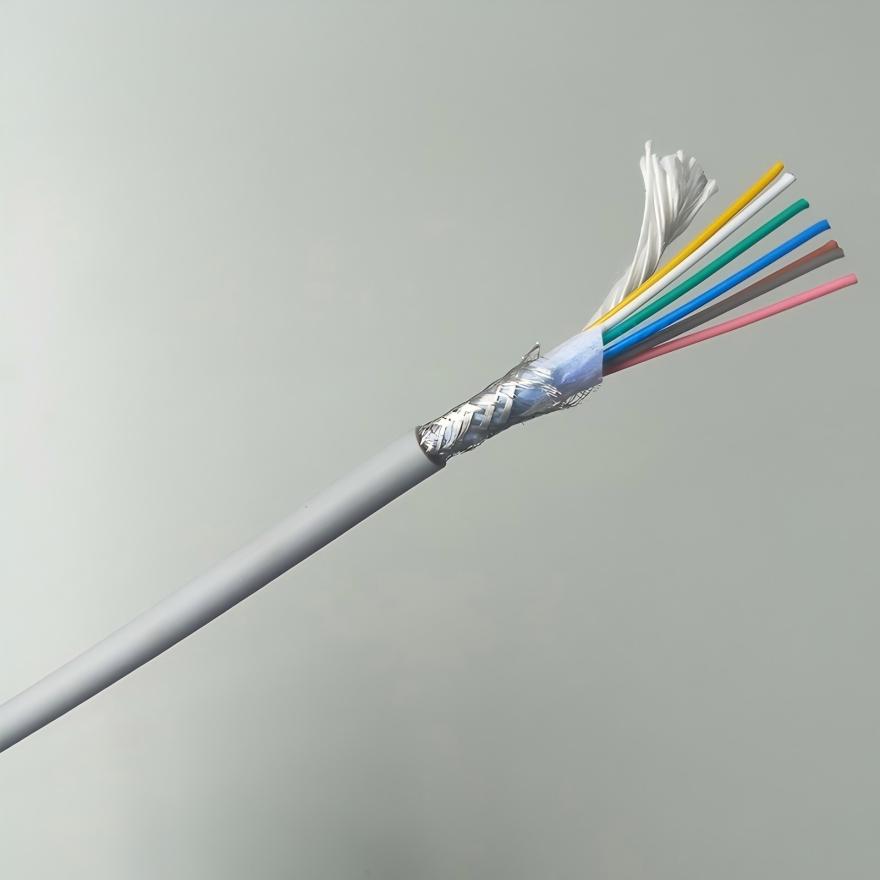

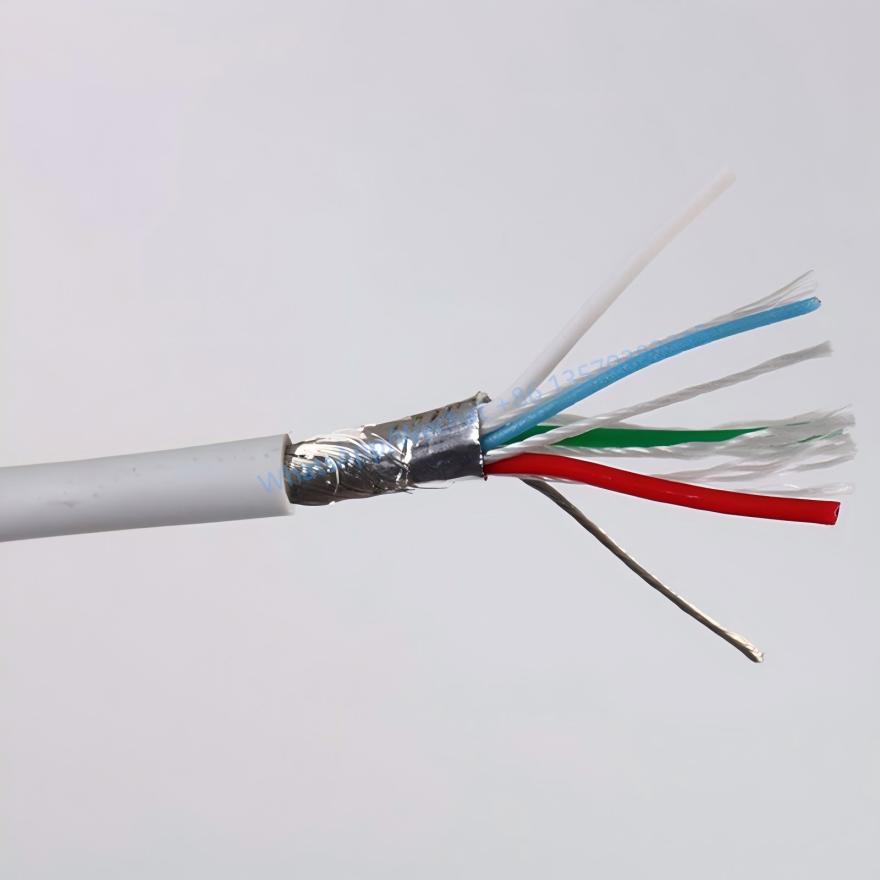

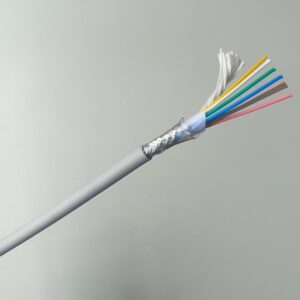

Industrial Camera Cable Structure
● Tin-plated copper or bare copper conductor, fine copper wire, compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6.
● Insulation complies with bus standards.
● Core wire identification complies with bus standards.
●Twisting method complies with bus standards.
● Enhanced tin-plated copper wire braid shielding.
● Minimum coverage rate of 85%.
● Special PVC outer sheath.
● Color: Black (RAL9001), matte finish.
| Industrial Camera Cable ( 5/10 million times reliability tests for drag chain) | ||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 1 | BUS-HY506.04.2826 | 2×0.08+2×0.14 | 3.7 | Black |
| 2 | BUS-FY1006.04.2826 | 2×0.08+2×0.14 | 3.7 | Black |
Customization of special models according to requirements is available, including cables with different conductor cross-sectional areas, materials, shielding, colors, and other specifications for the sheath.
