Ultra High Speed PVC/PUR/TPE Industrial Sensor Cable

Specially suitable for various sensors, fixed installations, or occasional mobile applications, this cable must meet high requirements in terms of mechanical, chemical, and thermal performance, as well as withstand bending cycles of over a million times.

Add to quote

Category: Sensor Cable Tag: PVC

Description

Ultra High Speed PVC/PUR/TPE Industrial Sensor Cable

This cable is particularly suitable for long-term, high-speed drag chain, bending, and high-strength applications for various high-precision sensors. The cable must meet the highest requirements in terms of mechanical, chemical, and thermal performance, enduring high-speed acceleration and deceleration, tensile and compressive stress, as well as over ten million cycles of periodic bending. It also needs to withstand high temperatures, metal chip splashing, oil resistance, and resistance to other chemicals.

Application

Factory automation: (1) Inductive proximity sensor (2) Photoelectric sensor (photoelectric switch) (3) Capacitive proximity sensor (4) Ultrasonic sensor (5) Rotary encoder (6) Metal proximity sensor (single/double sheet) (7) Inclination/acceleration sensor (8) Rope pull switch (9) Current sensor (10) Magnetic speed sensor (11) Laser rangefinder (12) Flowmeter (13) Magnetic proximity switch (14) Vibration sensor (15) Eddy current sensor (16) Radar sensor (17) Linear displacement sensor (18) Other small instruments and meters.

Process automation: (1) Safety light curtain (2) Process control sensors, etc.

Technical Parameter

● Special Teflon insulation, special PUR sheath with ultra-high strength and bending/twisting performance.

● Complies with TUV 2 PfG 2577 Class V requirements.

● Temperature range: Mobile installation: -20°C to +80°C. Fixed installation: -40°C to +90°C.

● Nominal voltage Uo/U 300/300V.

● Test voltage: 1500V.

● Insulation resistance: Minimum 100 MOhmxkm.

● Minimum bending radius: Mobile installation: 6 times the cable diameter. Fixed installation: 4 times the cable diameter.

● Compliance with EU RoHS and Reach regulations.

Cable Structure

●Tinned copper conductor, ultra-fine copper wire. Complies with DIN VDE 0295 Class 6 and IEC 60228 Class 6.

● Special fluororesin insulation.

● Core wires are color-coded.

● Core wires are twisted with optimal lay length.

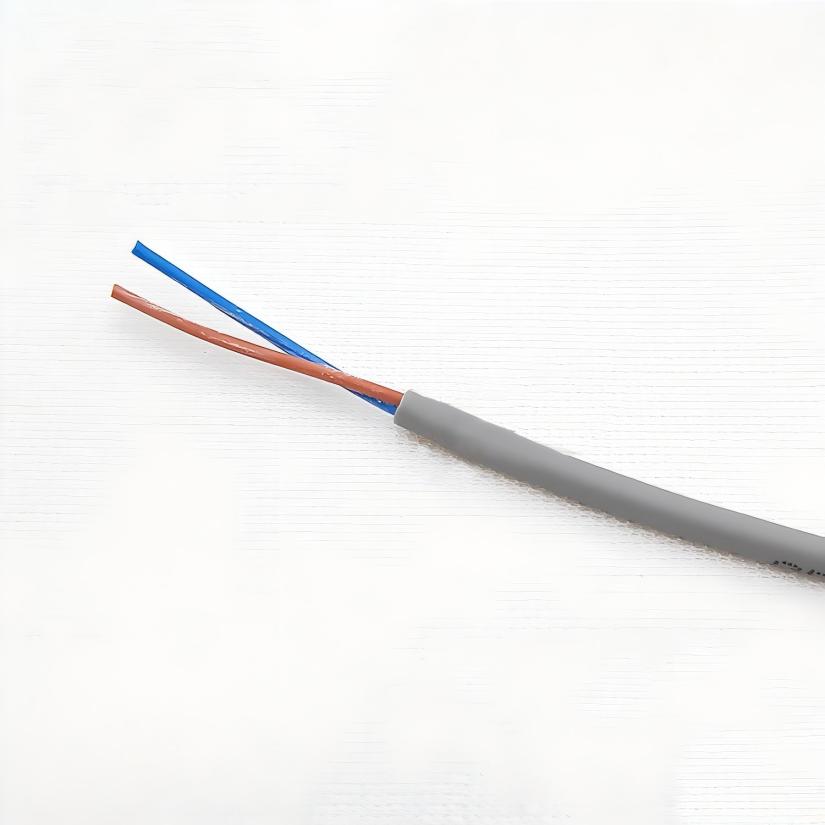

● Special PUR outer sheath. ● Gray color (RAL7001), matte finish.

ULTRA HIGH SPEED INDUSTRIAL SENSOR CABLE (MAXIMUM LOAD) ( 20 million times reliability tests for drag chain))
No.	Product Code	Cores Number and cross-sectional area	Approximate outer diameter （mm)	Outer sheath color
No.	Product Code	(NO.Xm㎡)	Approximate outer diameter （mm)	Outer sheath color
1	SEN-FP2001.02.0014	2×0.14	2.8	Grey
2	SEN-FP2001.03.0014	3×0.14	3.0	Grey
3	SEN-FP2001.04.0014	4×0.14	3.2	Grey
4	SEN-FP2001.02.0020	2×0.20	3.0	Grey
5	SEN-FP2001.03.0020	3×0.20	3.2	Grey
6	SEN-FP2001.04.0020	4×0.20	3.4	Grey

Customization of special models according to requirements is available, including cables with different conductor cross-sectional areas, materials, shielding, colors, and other specifications for the sheath.

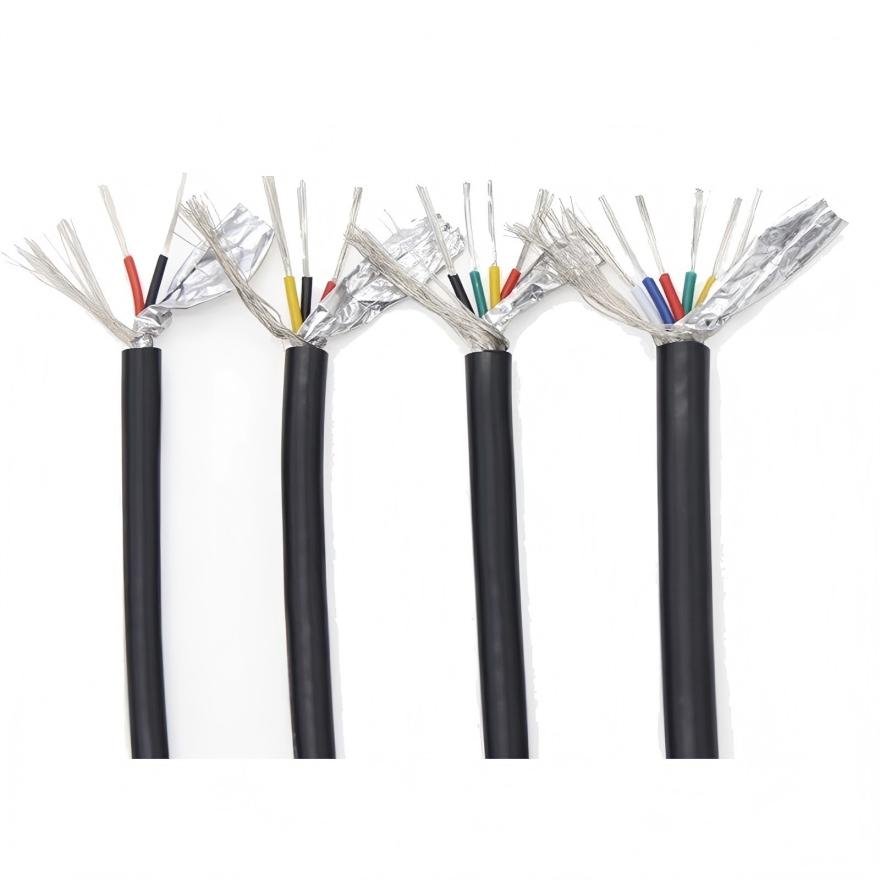

●When there is external electromagnetic interference, it is recommended to use shielded cables.
