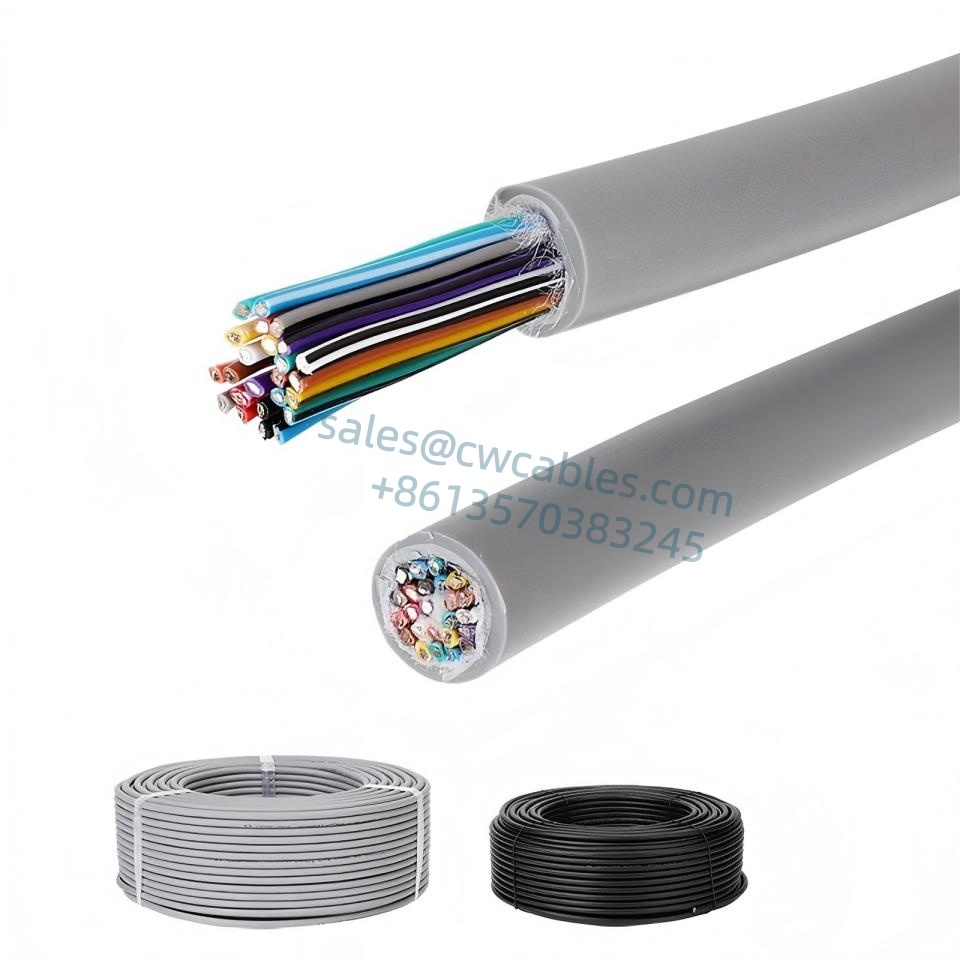

YY02 20X0.20mm²(24AWG) Screened Multicore Shielded Control Cable
MODEL | Cores Number and cross-sectional area(MM²) | WIRE COLOR | MOQ |
YY02 shield flexible cable | 0.14 | 50 colors According to the product catalog The first 50 colors specified. |
2.3.4.5.6.8.9.10.12.16.20.26 cores, minimum order quantity of one roll; 24-30 cores, minimum order quantity of 400 meters; Other specifications within 30 cores, minimum order quantity of 1000 meters; 30 cores and above, minimum order quantity of 3000 meters. |
0.2 | 2.3.4.5.6.8.10.12.14.16.20.24.26 cores: Minimum order quantity is one roll. For specifications other than 30 cores, the minimum order quantity is 1000 meters. For 30 cores and above, the minimum order quantity is 3000 meters. |
||
0.3 | 2.3.4.5.6.8.10.12.16.20.24.26.30 cores, minimum order quantity of one roll; Other specifications within 30 cores, minimum order quantity of 1000 meters; 30 cores and above, minimum order quantity of 3000 meters. |
||
0.5 | Yellow/Green core Black: with number |
6.8.10.12.16.20 cores, minimum order quantity of one roll; 24.26.30.36.40.50 cores, minimum order quantity of 400 meters; Other specifications within 50 cores, minimum order quantity of 1000 meters; 50 cores and above, minimum order quantity of 3000 meters. |
|
0.75 | Yellow/Green core Black: with number |
5.6.8.10.12.16.20.24.26.30.36.40 cores, minimum order quantity of 400 meters; Other specifications within 50 cores, minimum order quantity of 1000 meters; 50 cores and above, minimum order quantity of 3000 meters. |
|
1 | Yellow/Green core Black: with number |
MOQ 400M | |
1.5 | Yellow/Green core Black: with number |
Technical Parameter
YY02 FLEXIBLE CONTROL CABLE WITH SHIELDING (COLOR CORE) Parameter | ||||
No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter (mm) | Outer sheath color |
(NO.Xm㎡) | ||||
1 | YY02.02.0014 | 2×0.14 | 4 | Black |
2 | YY02.03.0014 | 3×0.14 | 4.2 | Black |
3 | YY02.04.0014 | 4×0.14 | 4.5 | Black |
4 | YY02.05.0014 | 5×0.14 | 4.8 | Black |
5 | YY02.06.0014 | 6×0.14 | 5.2 | Black |
6 | YY02.08.0014 | 8×0.14 | 5.5 | Black |
7 | YY02.09.0014 | 9×0.14 | 6 | Black |
8 | YY02.10.0014 | 10×0.14 | 6.4 | Black |
9 | YY02.12.0014 | 12×0.14 | 6.5 | Black |
10 | YY02.16.0014 | 16×0.14 | 7.2 | Black |
11 | YY02.20.0014 | 20×0.14 | 7.8 | Black |
12 | YY02.26.0014 | 26×0.14 | 8.8 | Black |
13 | YY02.02.0020 | 2×0.2 | 4.4 | Black |
14 | YY02.03.0020 | 3×0.2 | 4.6 | Black |
15 | YY02.04.0020 | 4×0.2 | 4.9 | Black |
16 | YY02.05.0020 | 5×0.2 | 5.2 | Black |
17 | YY02.06.0020 | 6×0.2 | 5.6 | Black |
18 | YY02.08.0020 | 8×0.2 | 6 | Black |
19 | YY02.10.0020 | 10×0.2 | 6.8 | Black |
20 | YY02.12.0020 | 12×0.2 | 7 | Black |
21 | YY02.16.0020 | 16×0.2 | 7.6 | Black |
22 | YY02.20.0020 | 20×0.2 | 8.5 | Black |
23 | YY02.02.0030 | 2×0.3 | 4.6 | Black |
24 | YY02.03.0030 | 3×0.3 | 4.8 | Black |
25 | YY02.04.0030 | 4×0.3 | 5.1 | Black |
26 | YY02.05.0030 | 5×0.3 | 5.5 | Black |
27 | YY02.06.0030 | 6×0.3 | 6 | Black |
28 | YY02.08.0030 | 8×0.3 | 6.4 | Black |
29 | YY02.10.0030 | 10×0.3 | 7.2 | Black |
30 | YY02.12.0030 | 12×0.3 | 7.5 | Black |
31 | YY02.16.0030 | 16×0.3 | 8.4 | Black |
32 | YY02.20.0030 | 20×0.3 | 9 | Black |
33 | YY02.24.0030 | 24×0.3 | 10 | Black |
34 | YY02.26.0030 | 26×0.3 | 10.2 | Black |
35 | YY02.30.0030 | 30×0.3 | 10.5 | Black |
● Special PVC sheathing, with good flexibility.
Special PVC sheathing, with excellent flexibility.
● Temperature range: Mobile installation: -5°C to +70°C Fixed installation: -15°C to +70°C
● Nominal voltage Uo/U: 300/300V
● Test voltage: 1500V
● Insulation resistance: Minimum 20 MOhmxkm
● Minimum bending radius: Mobile installation: 7.5 times the cable diameter Fixed installation: 6 times the cable diameter
● Compliant with EU RoHS and Reach regulations.

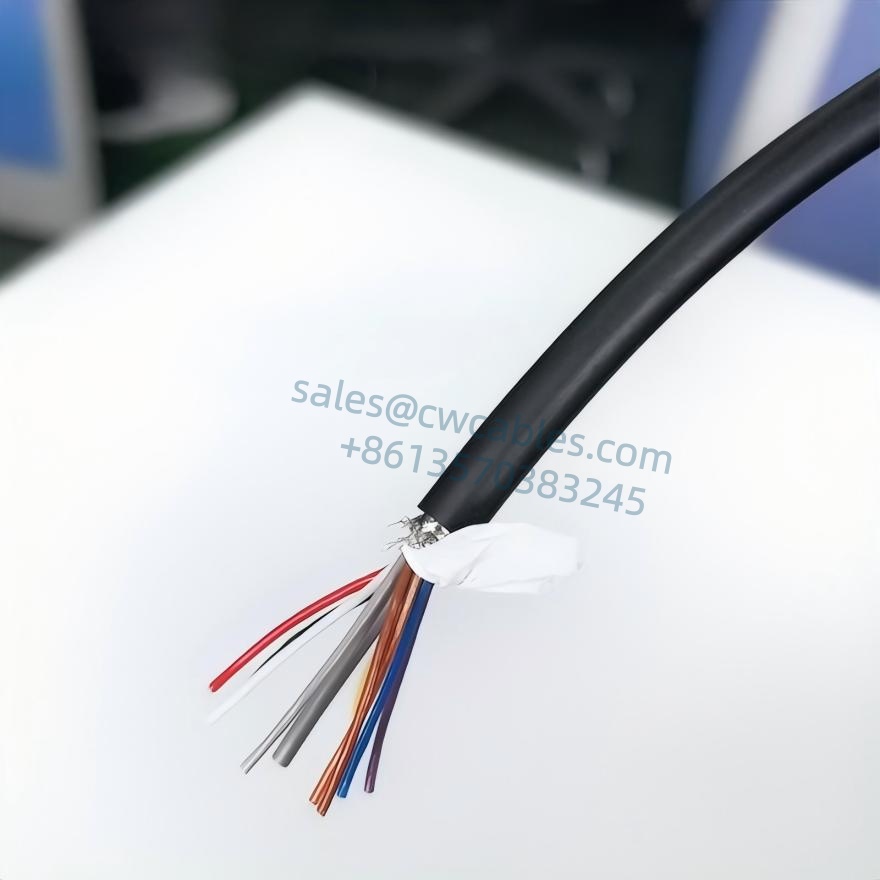

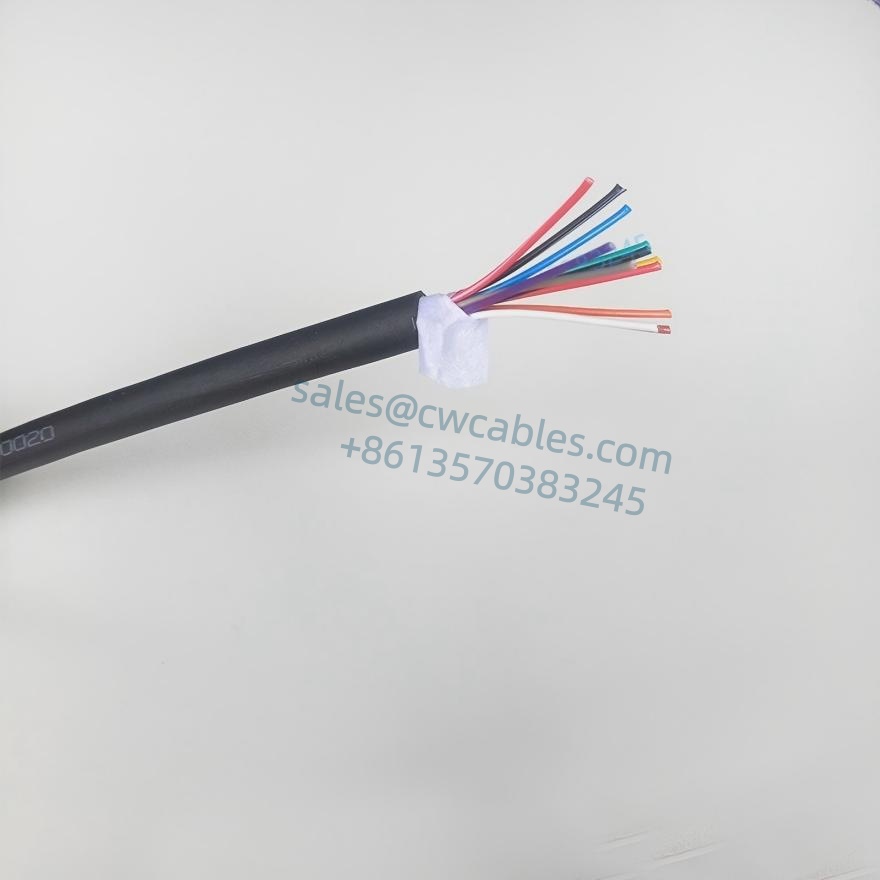

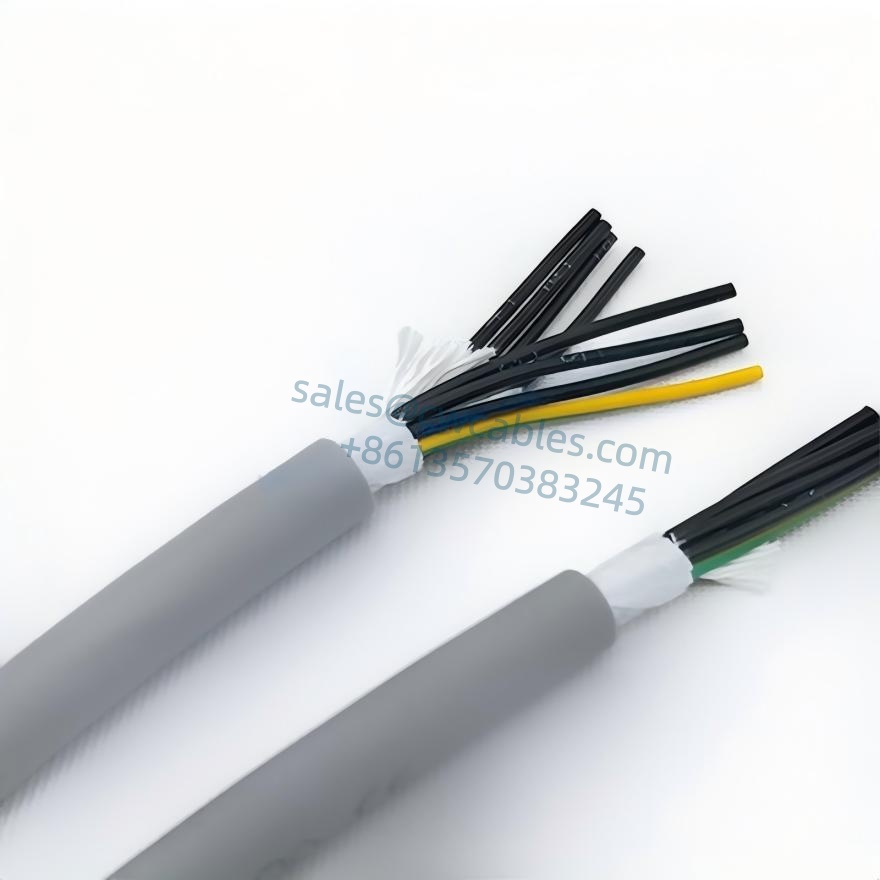

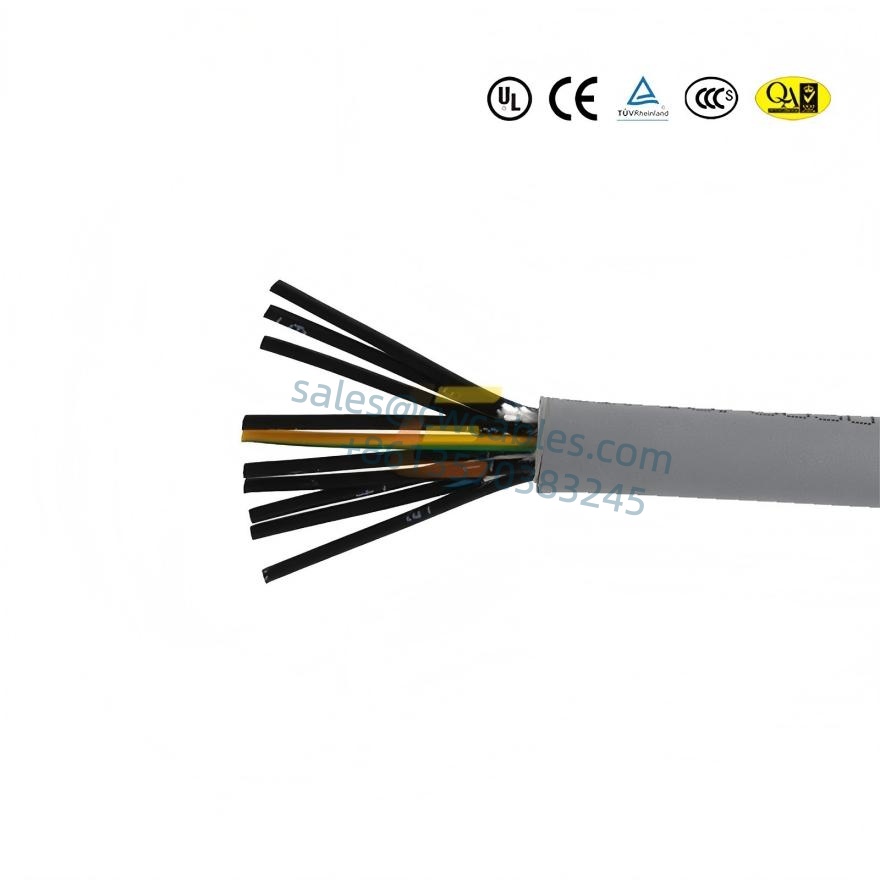

Screened Multicore Shielded Control Cable Structure
- Tinned copper conductor, fine copper wire. Compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6.
- ● Special PVC insulation
- ● Color-coded core identification
- ● Optimal pitch lay stranding of the cores
- ● Improved tinned copper wire braided shielding
- ● Minimum overall shielding coverage of 80%
- ● Special PVC outer sheath
- ● Black color (RAL9005), matte finish.
