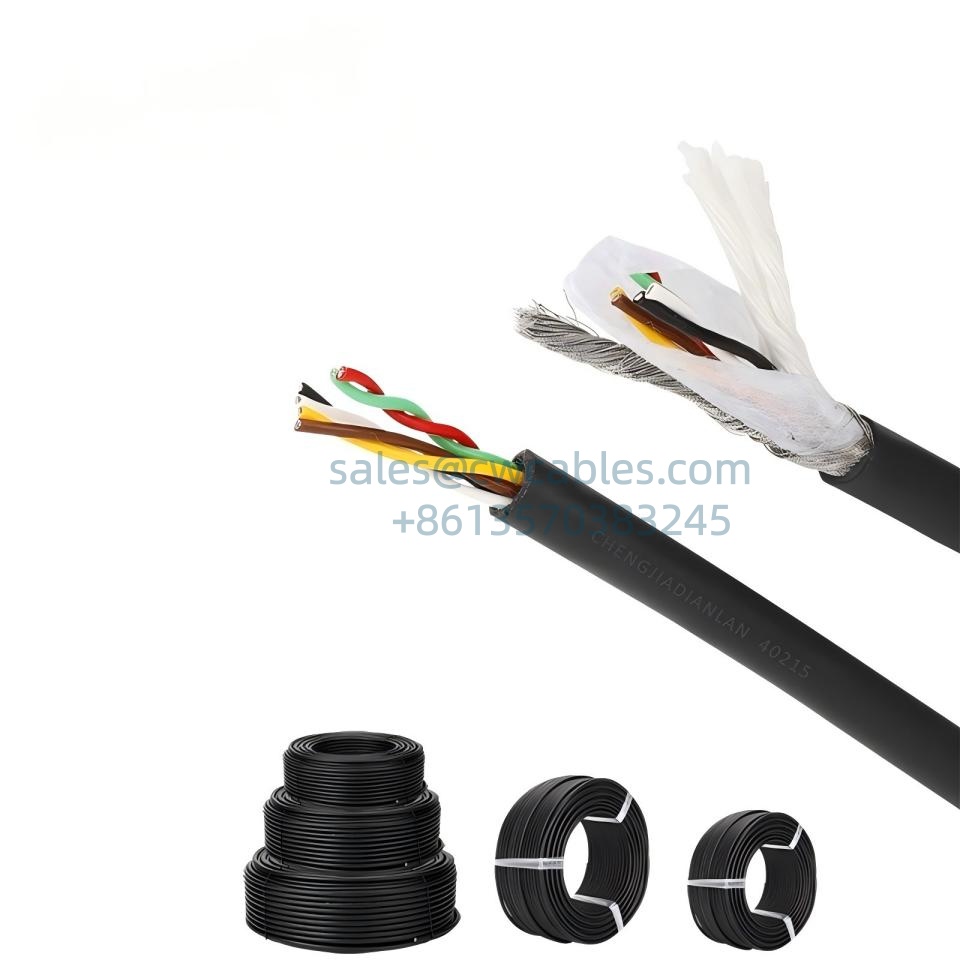

![LM-FP Super high speed linear motor drag chain cable](http://sc04.alicdn.com/kf/H78543837924c498c9de3b26b4f026f4ek/257605182/H78543837924c498c9de3b26b4f026f4ek.jpg)

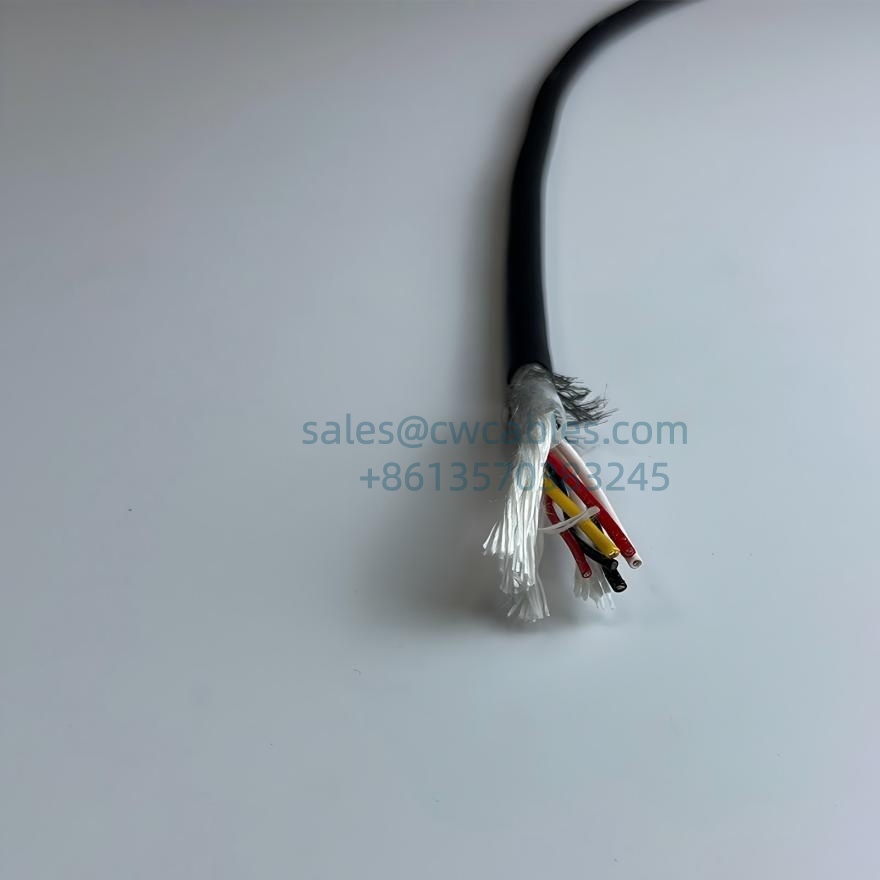

![LM-FP Super high speed linear motor drag chain cable](http://sc04.alicdn.com/kf/H370346eec1e94f63923ea13dc2e14c04H/257605182/H370346eec1e94f63923ea13dc2e14c04H.jpg)

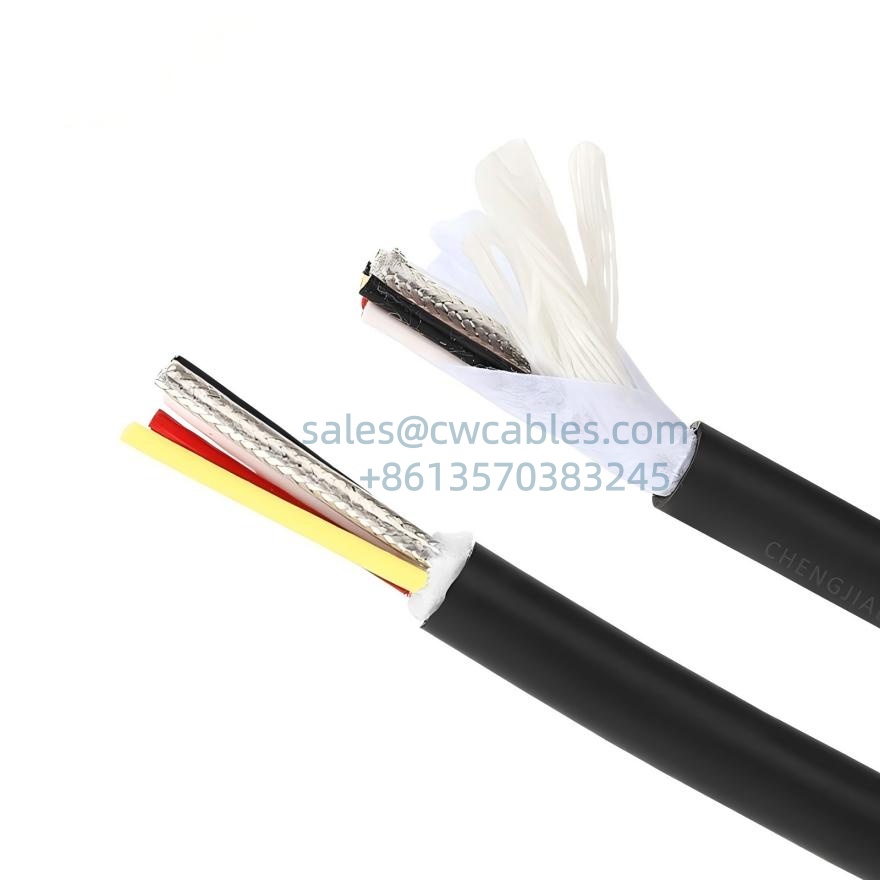

![LM-FP Super high speed linear motor drag chain cable](http://sc04.alicdn.com/kf/H03f34fdf0652415991612bcee37cbd659/257605182/H03f34fdf0652415991612bcee37cbd659.jpg)

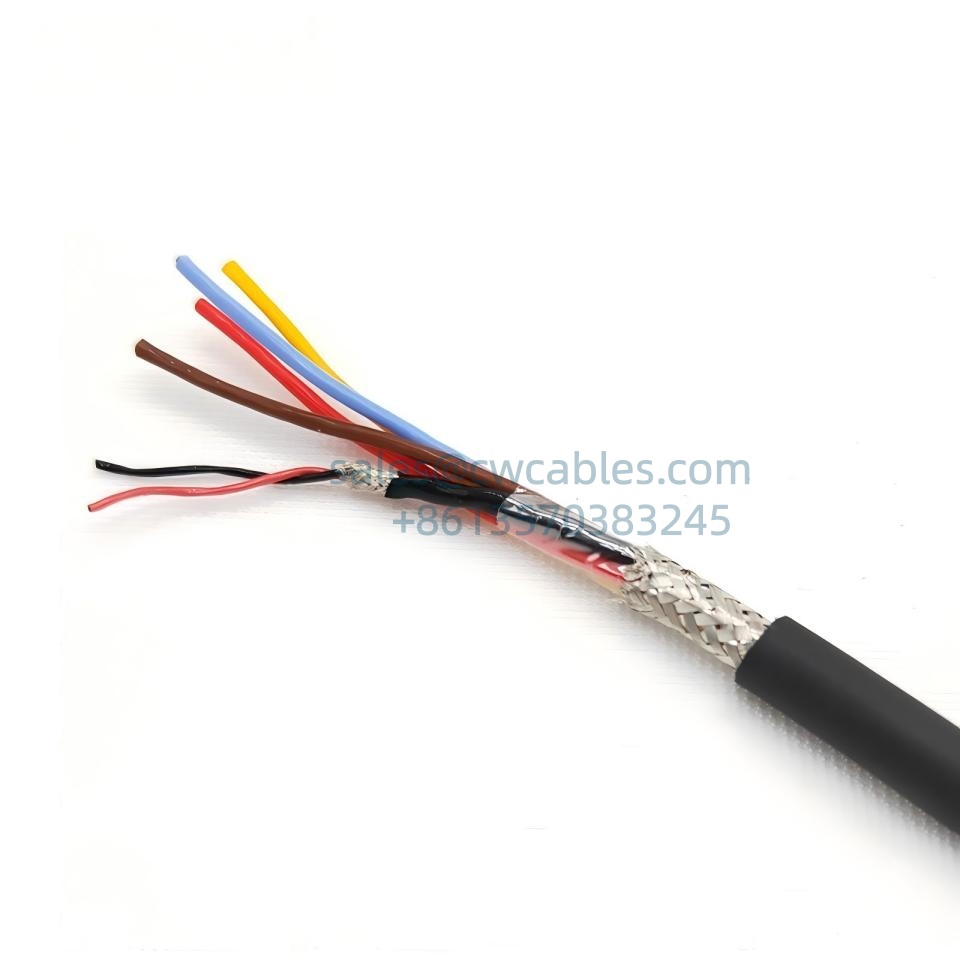

![LM-FP Super high speed linear motor drag chain cable](http://sc04.alicdn.com/kf/H6fc2e043973a4cb7a9c84eb98180d64fa/257605182/H6fc2e043973a4cb7a9c84eb98180d64fa.jpg)

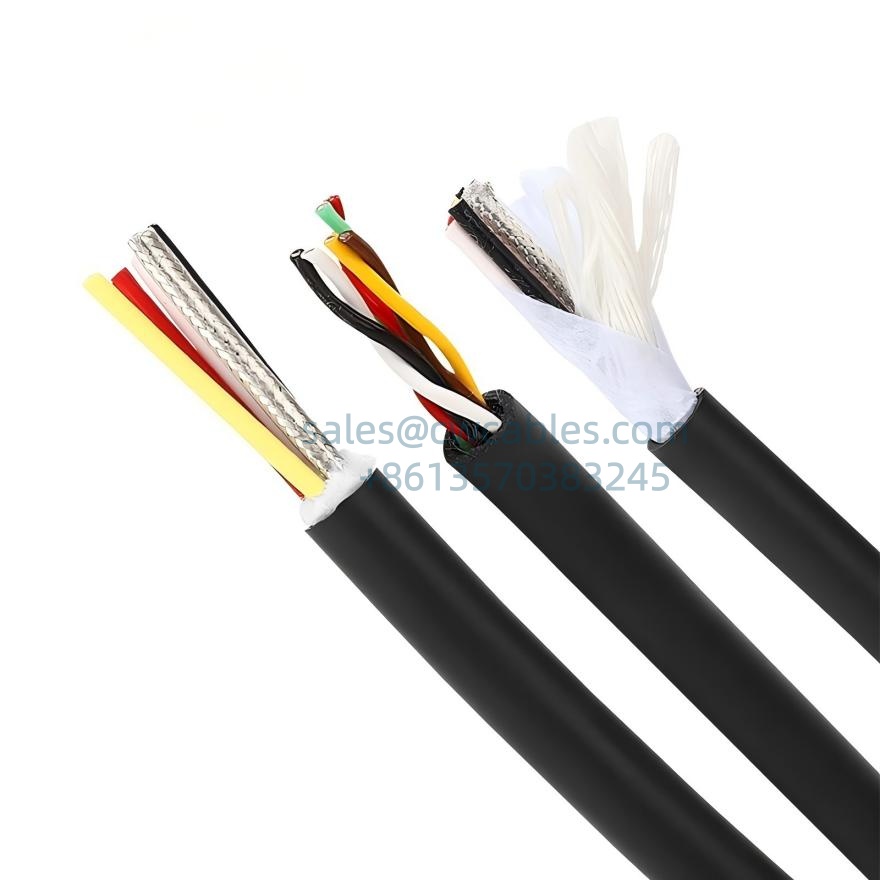

![LM-FP Super high speed linear motor drag chain cable](http://sc04.alicdn.com/kf/Hce2a86225f2f484597f0e213542e7c5bt/257605182/Hce2a86225f2f484597f0e213542e7c5bt.jpg)
The LM-FP Super high speed linear motor drag chain cable developed by Chengwen can be widely used in
high-speed linear cables, robots, manipulators, CNC machine tools, automation equipment, servos and
other fields. Since they were put on the market, they have been widely favored by customers. The first batch
of user feedback: Chengjia 50 million linear motor cables have been used for more than 4 years, and there
has been no disconnection in the line.
![LM-FP Super high speed linear motor drag chain cable](http://sc04.alicdn.com/kf/H986548124a9a47c394107b2b8f1a96d9l/257605182/H986548124a9a47c394107b2b8f1a96d9l.jpg)
![](http://sc04.alicdn.com/kf/H2f22ff97de4c44b087424a77f231d8590/257605182/H2f22ff97de4c44b087424a77f231d8590.jpg)
Technical Parameter
Outer sheath
|
Special Fluororesin insulation, special PUR sheath
|
|||
Feature
|
With ultra-high strength and bending and torsion performance
|
|||
Standard
|
Meet the requirements of TUV2 PfG 2577 Class V
|
|||
Temperature range:
|
Mobile installation -20°C to +80°c Fixed installation -40°C to +90° c
|
|||
Nominal voltage
|
Power supply Uo/U 300/500 V Data Uo/U300/300 V
|
|||
Test voltage
|
Power supply 2000 V Data 1500V
|
|||
Insulation resistance:
|
Minimum 100 MOhm x km
|
|||
Minimum bending radius:
|
Mobile installation 6×cable diameter Fixed installation 4x cable diameter
|
|||
Application:
|
Meet the requirements of EU RoHS and Reach regulations
|
Cable Structure
![](http://sc04.alicdn.com/kf/H795169d7127d4141b0de57148c2d1b68f/257605182/H795169d7127d4141b0de57148c2d1b68f.jpg)
Linear Motor Cable Structure
1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor ultra-fine copper wire, in line with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special fluororesin insulation
3. The color of the core wire is colored
4. The wire core is stranded in layers with the best pitch
5. Improved tinned copper wire braided shield
6. The minimum coverage rate is 90%
7. Special PUR outer sheath
8. Black (RAL 9005) matte
LM-FP Super high speed linear motor drag chain cable Parameter
No.
|
Product Code
|
Cores Number and cross-sectional area
(NO.Xm㎡)
|
Approximate outer diameter (mm)
|
Outer sheath color
|
20℃ Conductor DC resistance
Ω/km
|
1
|
LM-FP5002.06.2026
|
4X0.5+(2X0.14)
|
6.2
|
Black
|
39/150
|
2
|
LM-FP5002.06.1926
|
4X0.75+(2X0.14)
|
7.6
|
Black
|
26/150
|
3
|
LM-FP5002.04.0050
|
4X0.5
|
5.2
|
Black
|
39
|
4
|
LM-FP5002.04.0075
|
4X0.75
|
6.8
|
Black
|
26
|
