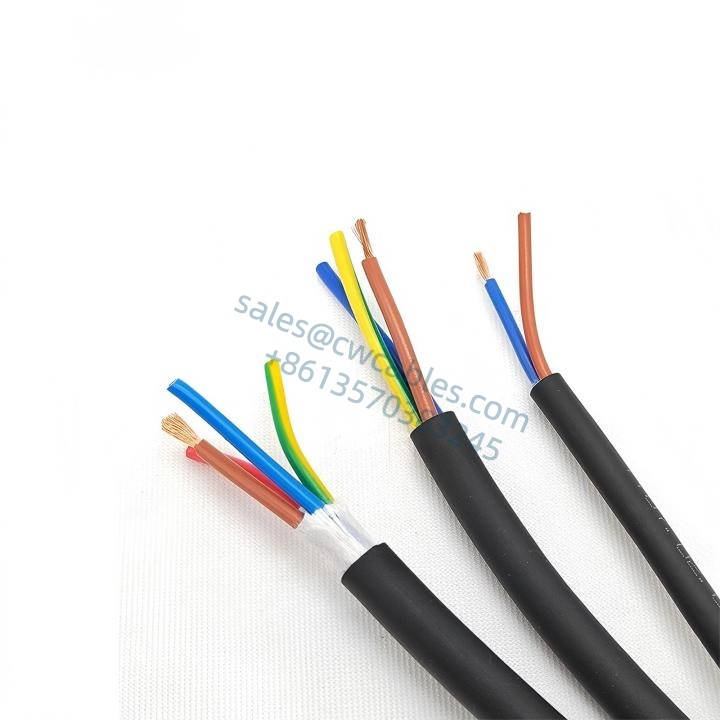

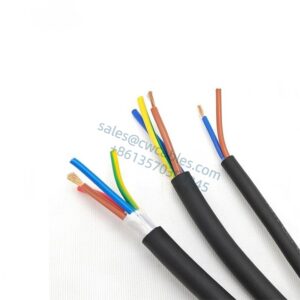

Applicable to various non-standard intelligent equipment such as machine tools, industrial wood machinery, mask
machines, manipulators, non-standard automation, laser equipment, stamping lines, robots, dispensers, etc.
Withstand long-term acceleration, deceleration, tensile and compressive stress, and high-speed periodic bending,
and always maintain high stability.
Technical Parameter
|
Conductor stranding
|
Stranding of multiple ultra-fine copper wires meets the standard of VDE0295, category 6, column 4
|
|||
|
Insulation resistance
|
minimum 20 M Ohm x Km
|
|||
|
Insulation material
|
Modified PVC
|
|||
|
Temperature range:
|
Mobile installation -5°C to +70°c Fixed installation -15°C to +80°c
|
|||
|
Core recognition
|
Color core
|
|||
|
Outer sheath
|
Modified PVC mate
|
|||
|
Color
|
black (other colors can be customized)
|
|||
|
Bending radius
|
Mobile installation 6×cable diameter Fixed installation 4x cable diameter
|
|||
|
Nominal voltage
|
Uo/U 300/500 V
|
|||
|
Test voltage
|
2000 V
|
|||
|
Application:
|
It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servo encoders/motors,
drag chain systems, laser equipment, electrical cabinets, industrial imaging and other fields. |
|||

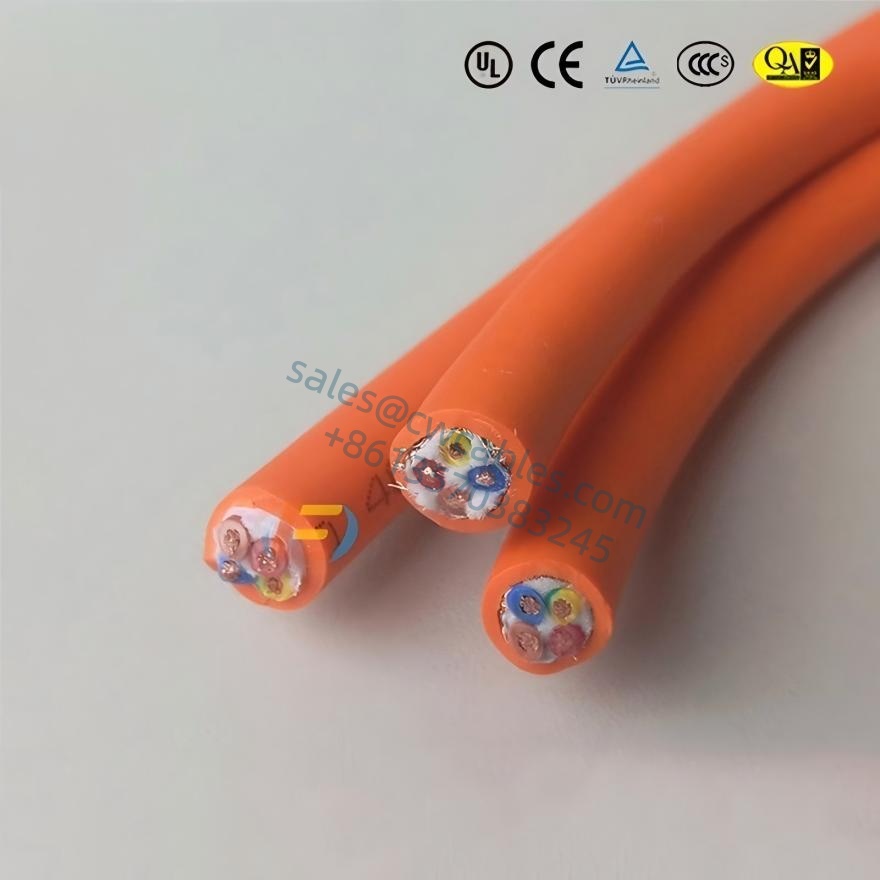

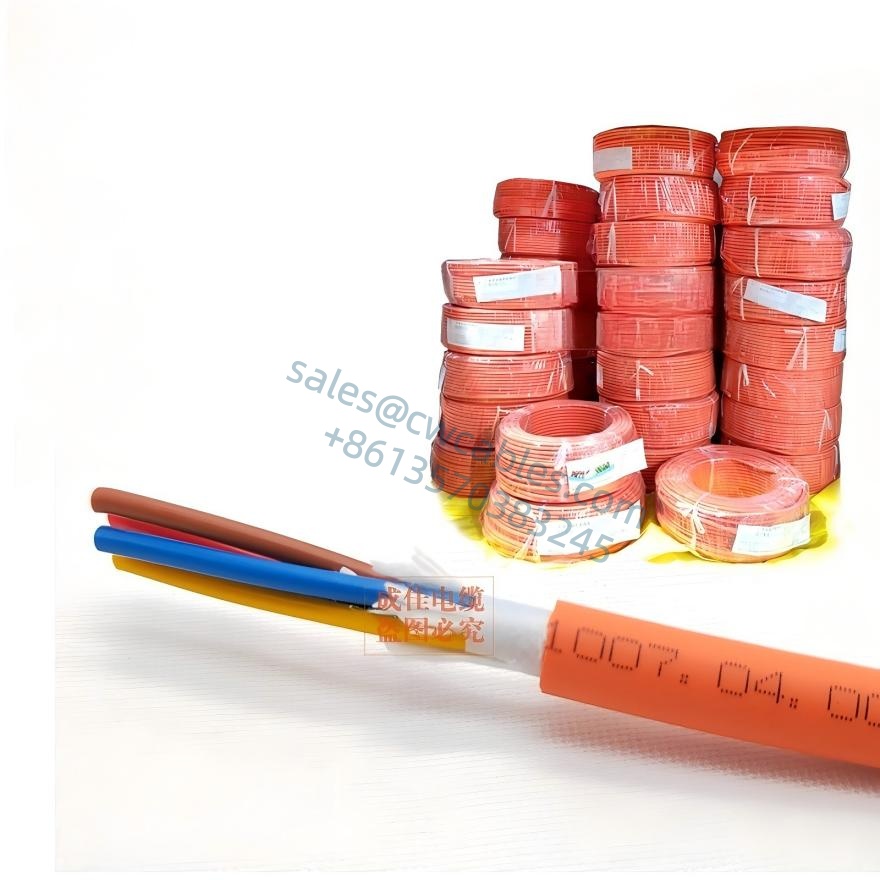

Cable Structure

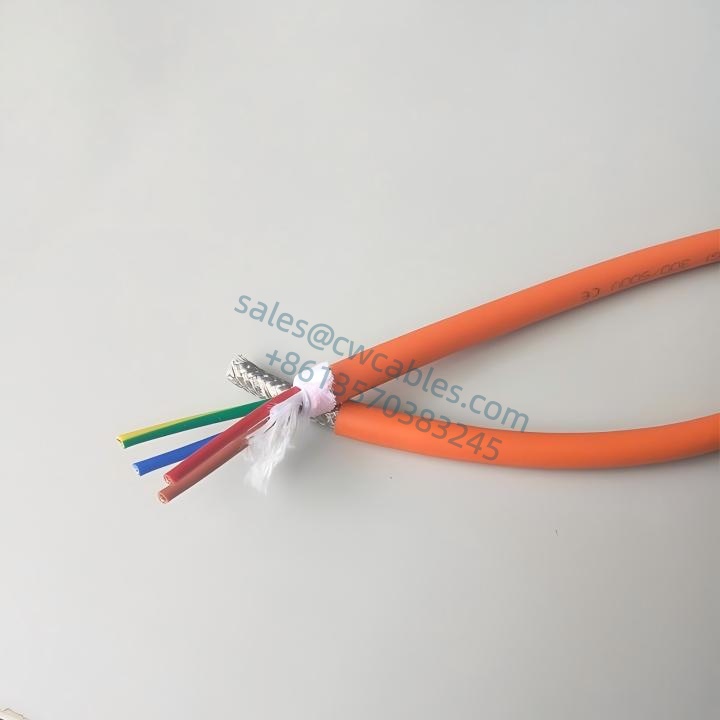

YY508 Power Supply Chain Industrial Motion Cables Structure
1. Bare copper conductor, ultra-fine copper wire Complies with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification
4. The wire core adopts the best pitch stratified stranded with yellow-green grounding wire (3 cores and above)
5. Improved tinned copper wire braided shield has a minimum coverage of 85%
6. Special PVC outer sheath
7. Orange (RAL 2003) matte
|
No.
|
Product Code
|
Cores Number and cross-sectional area
(NO.Xm㎡)
|
Approximate outer diameter （mm)
|
Outer sheath color
|
20℃ Conductor DC resistance
Ω/km
|
|
1
|
YY1008.04.0050
|
4G0.5
|
7.5
|
Orange
|
39
|
|
2
|
YY1008.04.0075
|
4G0.75
|
8.2
|
Orange
|
26
|
|
3
|
YY1008.04.0100
|
4G1.0
|
9
|
Orange
|
19.5
|
|
4
|
YY1008.04.0150
|
4G1.5
|
10
|
Orange
|
13.3
|
|
5
|
YY1008.04.0250
|
4G2.5
|
12.2
|
Orange
|
7.98
|
|
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters
|
|||||
