Applied to data transmission of CC-Link bus system, highly flexible application. With the special structure design
and modified outer covering material of Tongmin Hanbaliang, Cat 5e Ethernet High Flexible industrial bus cable
has high abrasion resistance and medium resistance, and can withstand long-term acceleration, deceleration,
tensile and compressive stress, and millions of cycles. Sexual bending.
Technical Parameter Cat 5e Ethernet High Flexible industrial bus cable
|
Outer sheath
|
Special PVC outer sheath
|
|||
|
Standard
|
Bare copper conductor, thin copper wire,
in line with DINVDE0295 and IEC 60228 standards
|
|||
|
Temperature range:
|
Mobile installation -5°C to +70°c
Fixed installation -15°C to +80° c
|
|||
|
Nominal voltage
|
50 V
|
|||
|
Test voltage
|
500V
|
|||
|
Insulation resistance:
|
Minimum 20 MOhm x km
|
|||
|
Minimum bending radius:
|
Mobile installation 14×cable diameter
Fixed installation 7x cable diameter
|
|||
|
Application:
|
Meet the requirements of EU RoHS and Reach regulations
|
|||

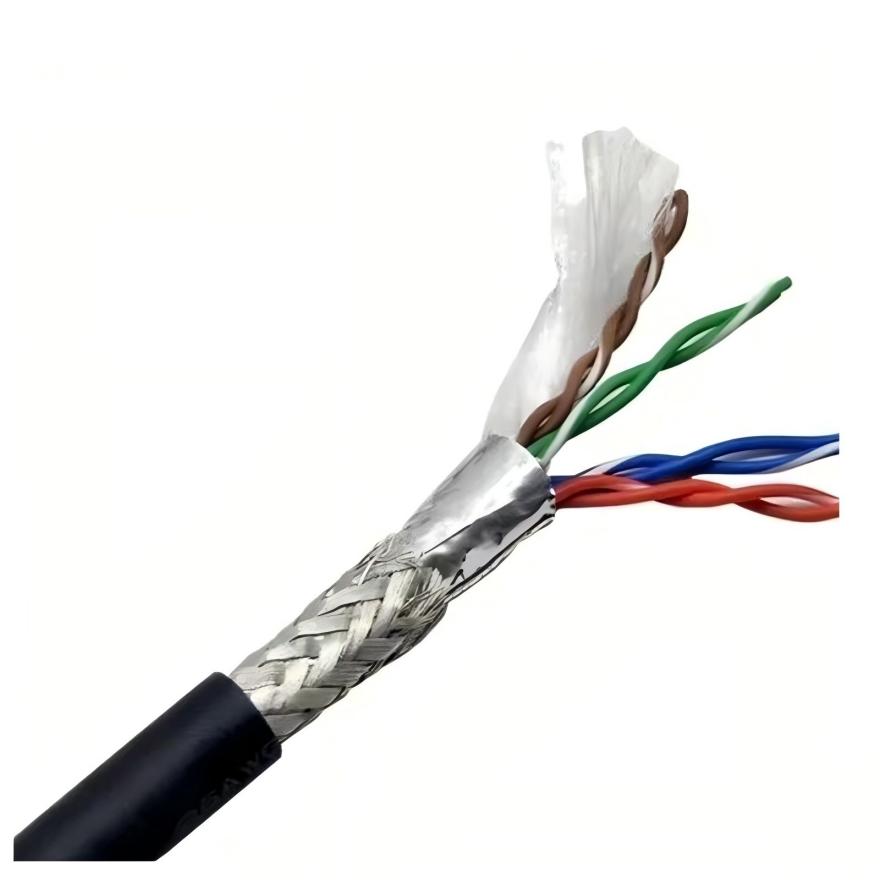

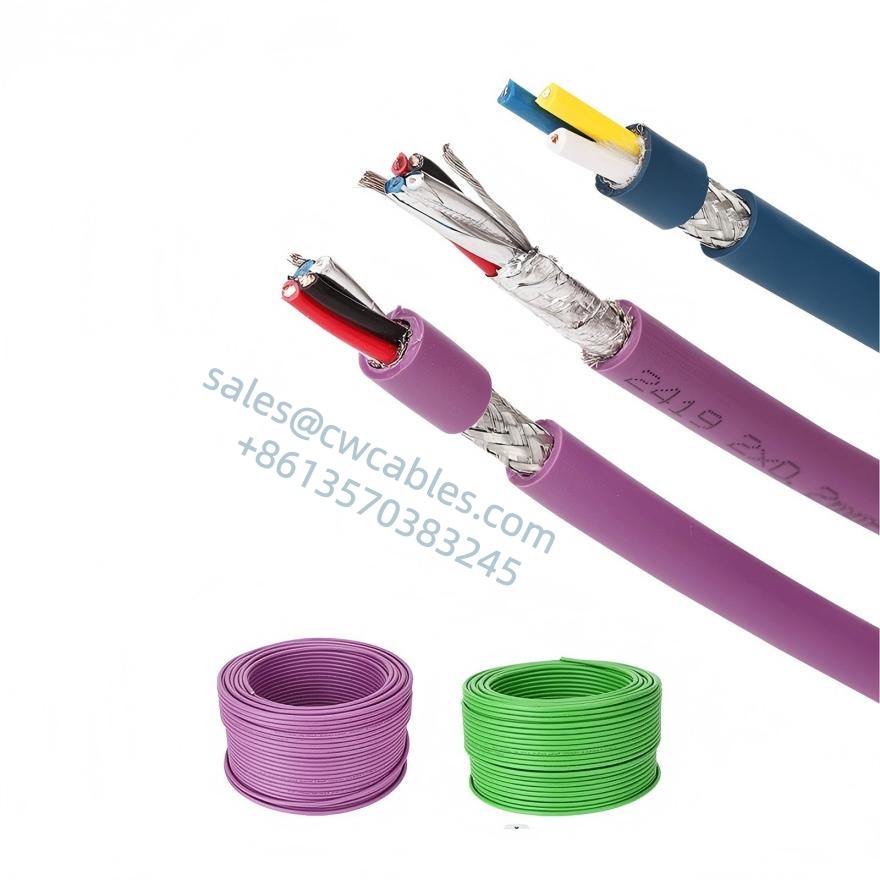

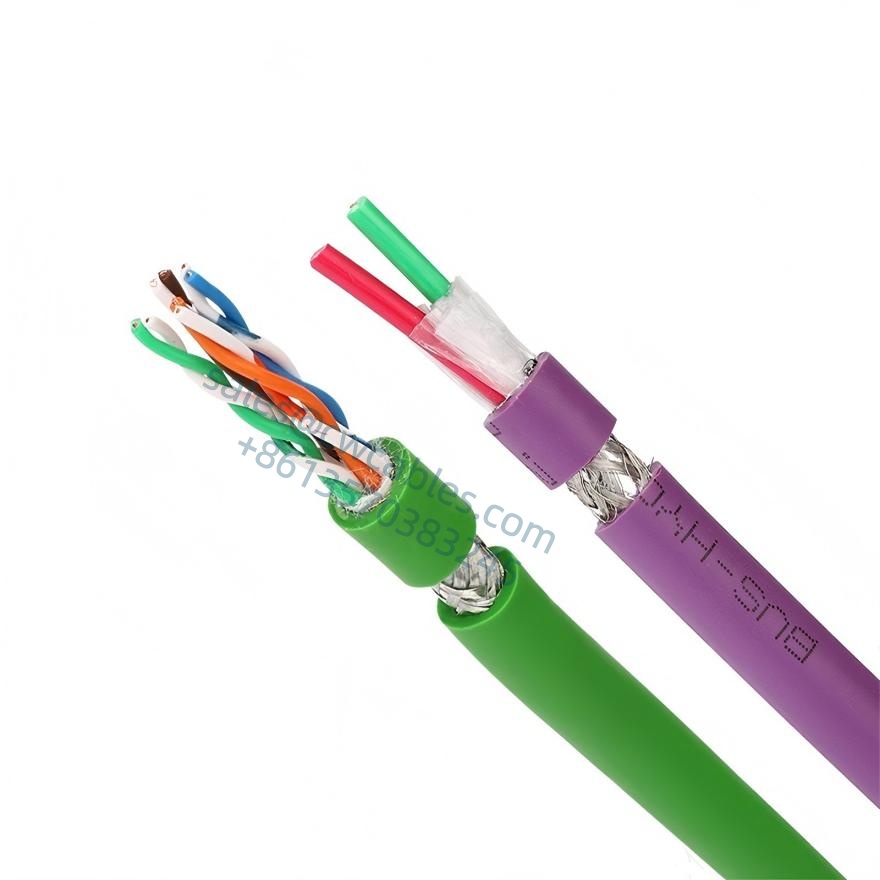

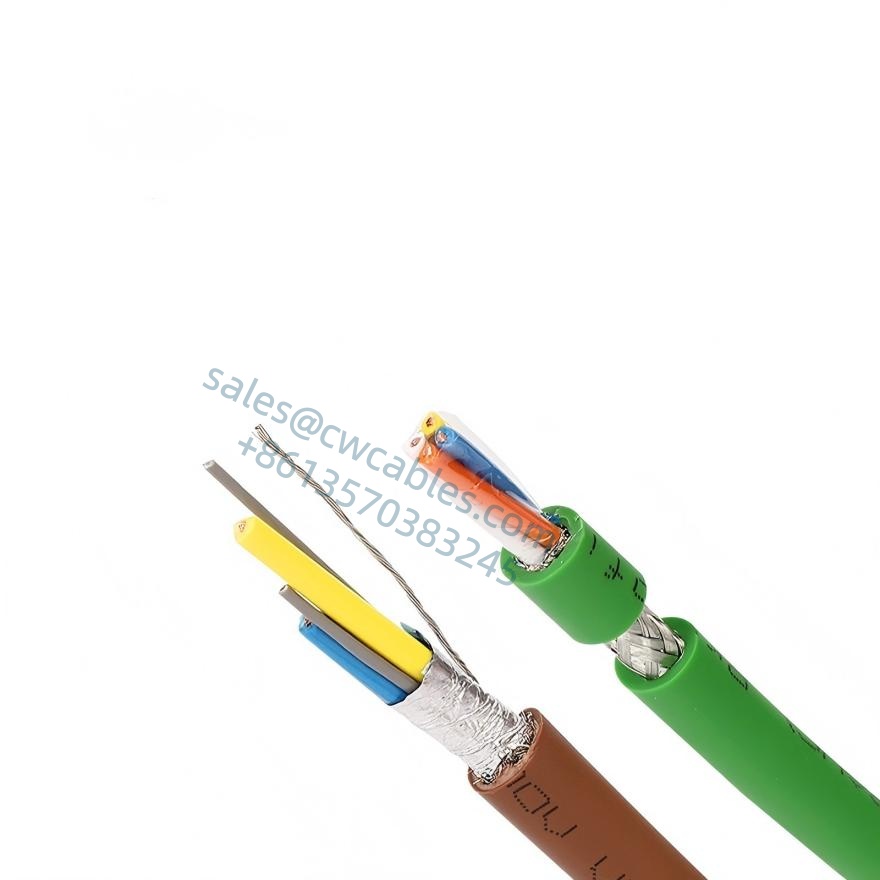

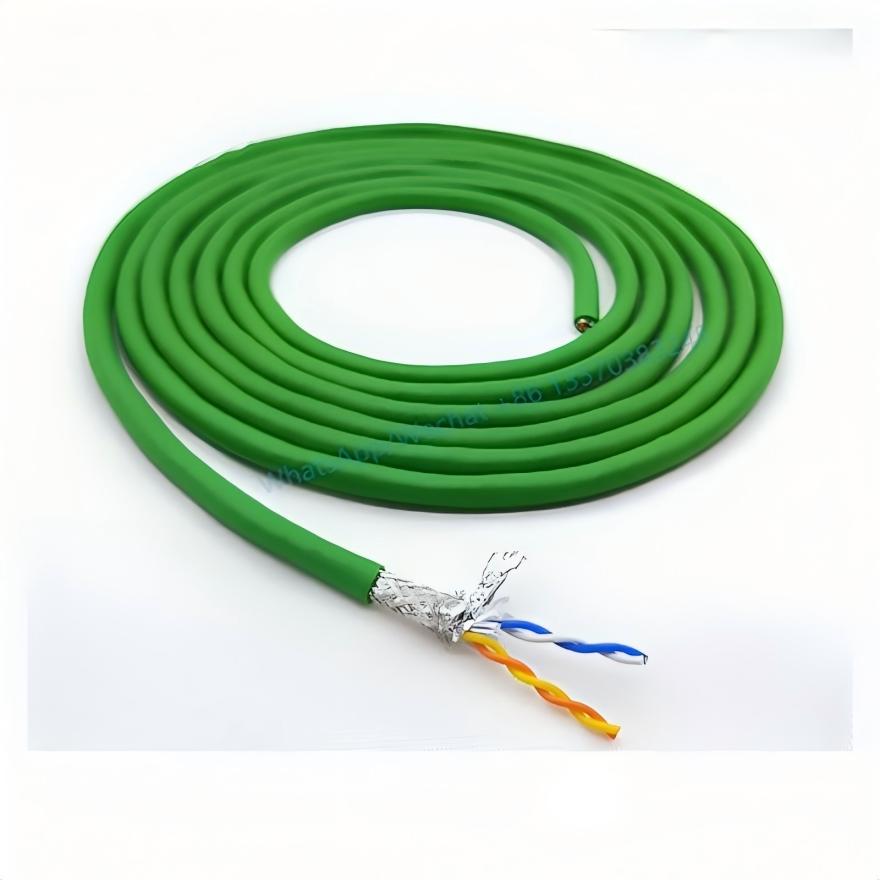

Cable Structure
Cat 5e Ethernet High Flexible Industrial Bus Cable Structure
1. Bare copper conductor, thin copper wire Complies with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Insulation complies with bus standards
3. The core line identification conforms to the bus standard
4The twisting method complies with the bus standard
5. Improved tinned copper wire braided shield 6.Minimum coverage rate 85%
7. Special PVC outer sheath 8. Blue or brown matte
Ethernet / CAT5e
|
No.
|
Product Code
|
Cores Number and cross-sectional area
(NO.Xm㎡)
|
Approximate outer diameter （mm)
|
Outer sheath color
|
Resistance
|
20℃ Conductor DC resistance
Ω/km
|
|
1
|
BUS-HY02.03.0050
|
3×0.50
|
7.9
|
Brown or blue
|
110
|
39
|
|
2
|
BUS-HY502.03.0050
|
3×0.50
|
9.0
|
blue
|
110
|
39
|
