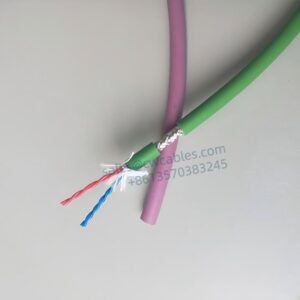

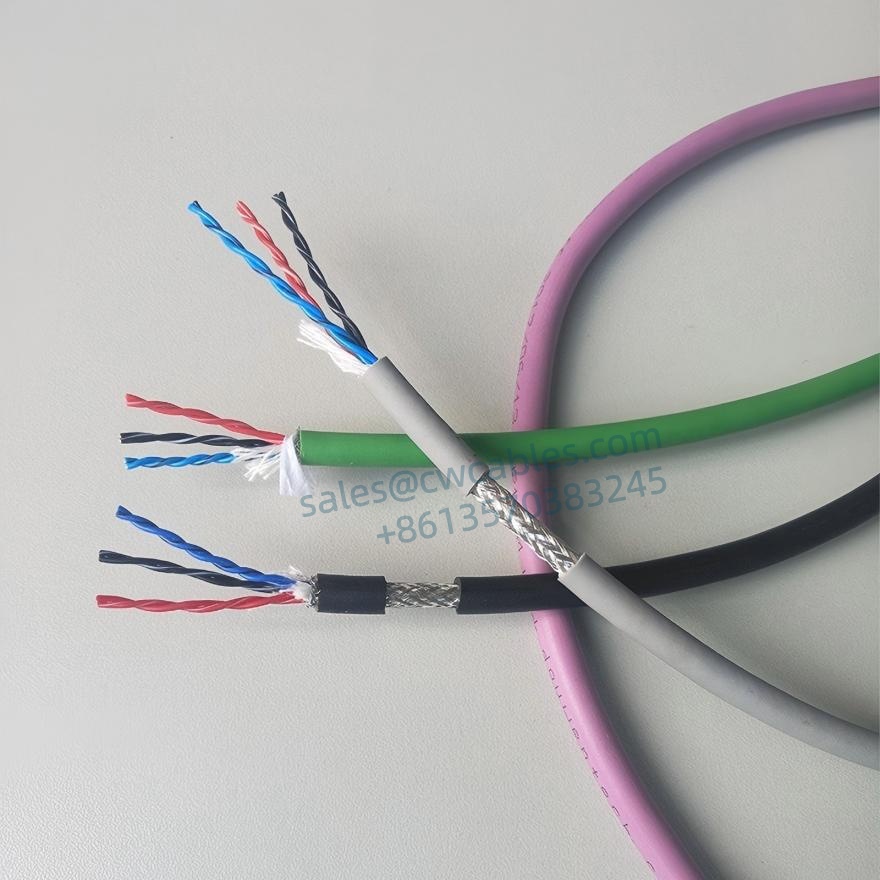

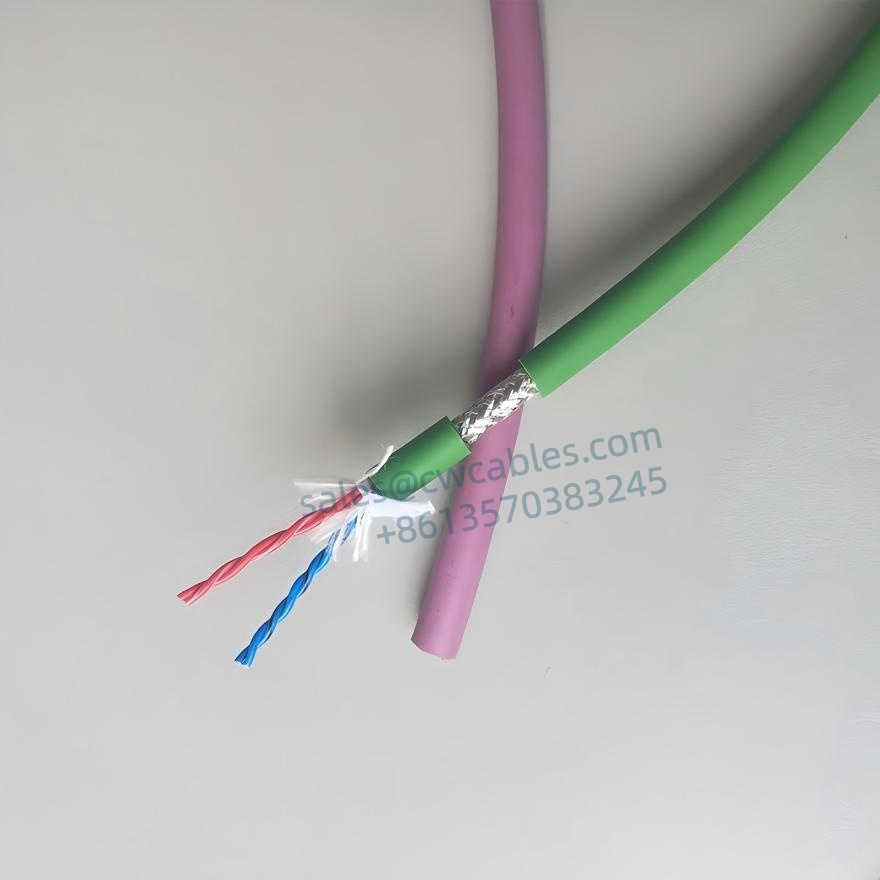

High Flexible Encoder Servo Motor Feedback Cable is particularly suitable for the continuous high -flexible drag chain curved
application of machinery and equipment and machine tools. This high -flexible cable uses special modified insulation materials
and external quilt materials. It has high abrasion resistance and medium resistance. And always maintain high stability.
Technical Parameter Twisted Pair Encoder Servo Cable
Special PVC protective, good flexibility
Temperature range: Move -5 ° C to+70 ° C
Fixed installation -15 ° C to+80 ° C
Named voltage UO/U 300/300 V
Test voltage 1500v
Insulation resistance:
Minimum 20 mohm x km
Minimum bending radius:
Movement of 7.5x insulation cable diameter
Fixed installation 6X cable diameter
Comply with EU ROHS, Reach regulations requirements

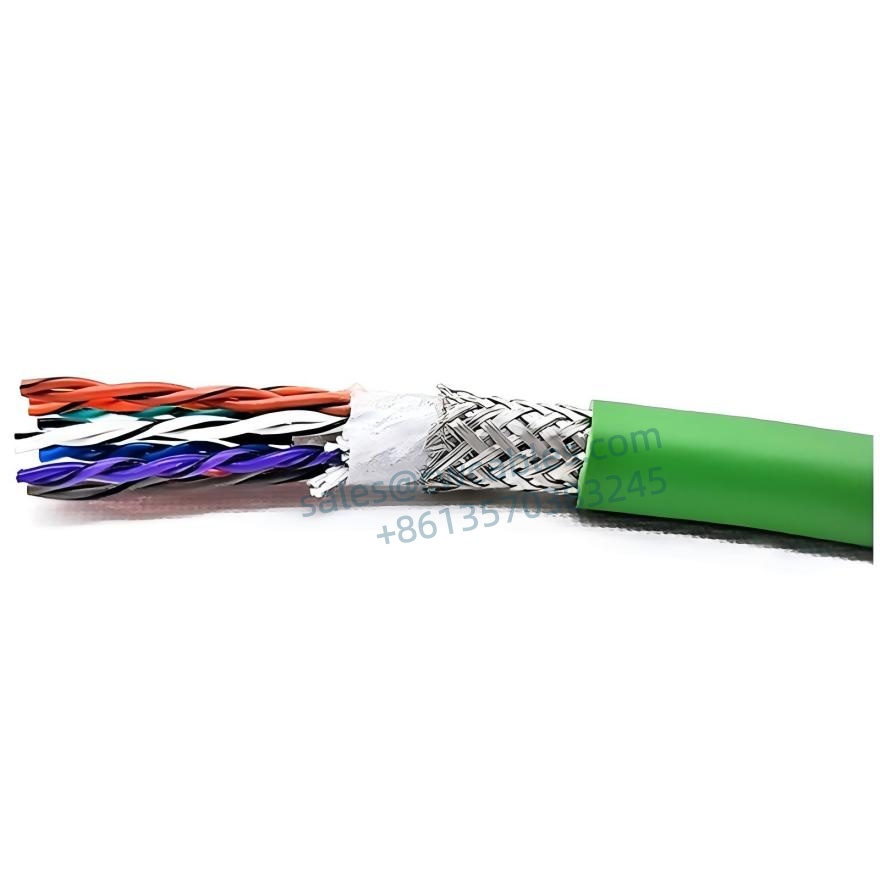

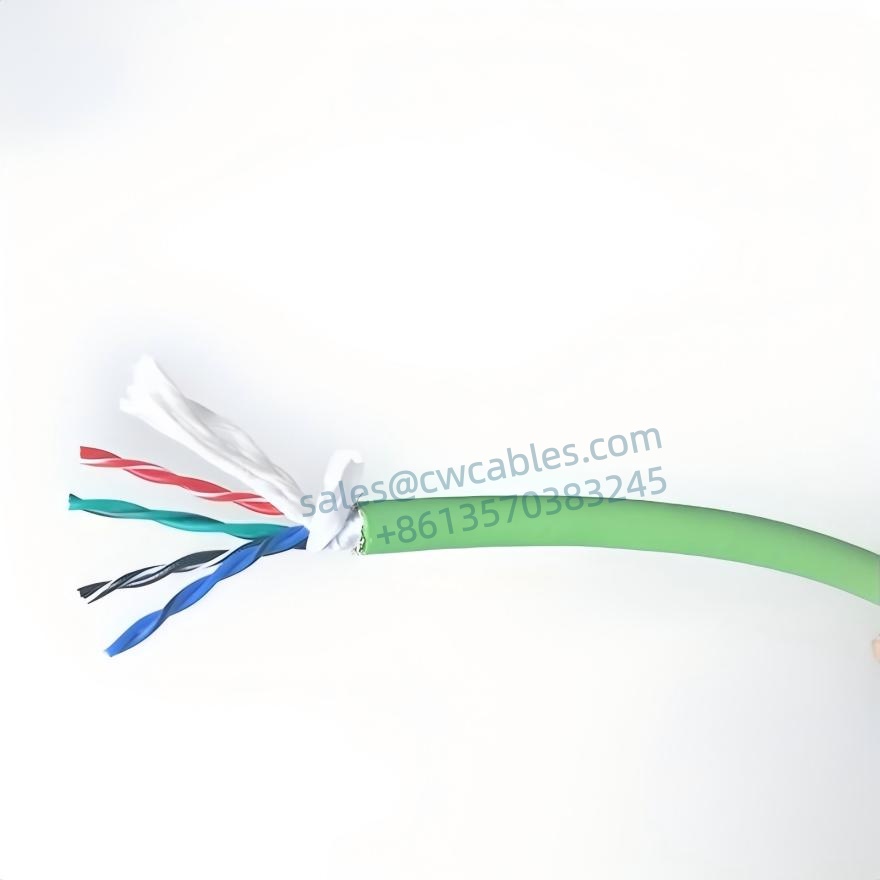

Flexible Motors Servo Drives Encoder Cable Structure
1.Tin -plated copper conductor, fine copper wire
2.Consistent with DIN VDE 0295 Category 6 and IEC 60228 Category 6
3.Special PVC insulation
4.Color core wire logo
5.The wire core uses the best section distance to lay layered twisted
6.Improved tin -plated copper wire woven shielding
7.Minimum comprehensive shielding rate 80%
8.Special PVC outer condom
9.Black (RAL9005) matte
2.Consistent with DIN VDE 0295 Category 6 and IEC 60228 Category 6
3.Special PVC insulation
4.Color core wire logo
5.The wire core uses the best section distance to lay layered twisted
6.Improved tin -plated copper wire woven shielding
7.Minimum comprehensive shielding rate 80%
8.Special PVC outer condom
9.Black (RAL9005) matte
Flexible Motors Servo Drives Encoder Cable Parameter |
||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 1 | MC-YY506,04.0014 | 2x2x0.14 | 5.9 | Black |
| 2 | MC-YY506.06.0014 | 3x2x0.14 | 5.9 | Black |
