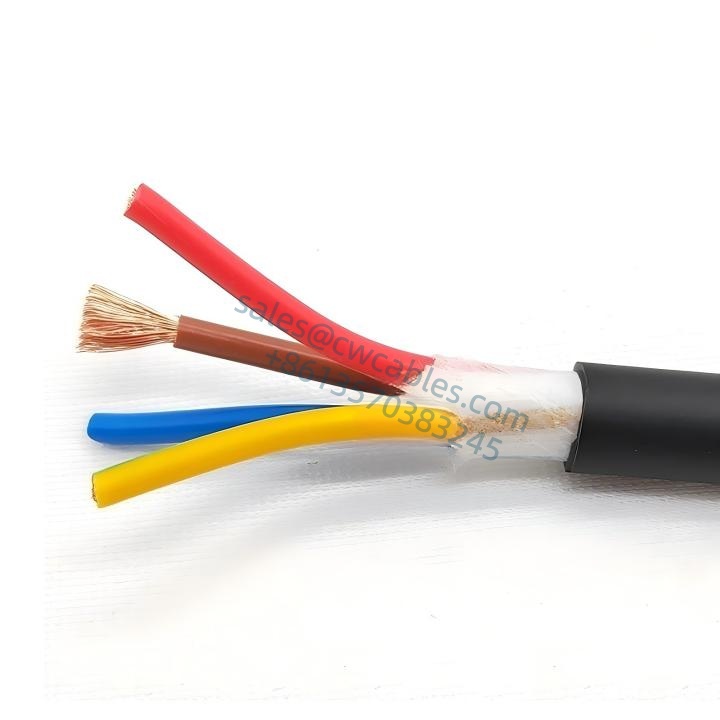

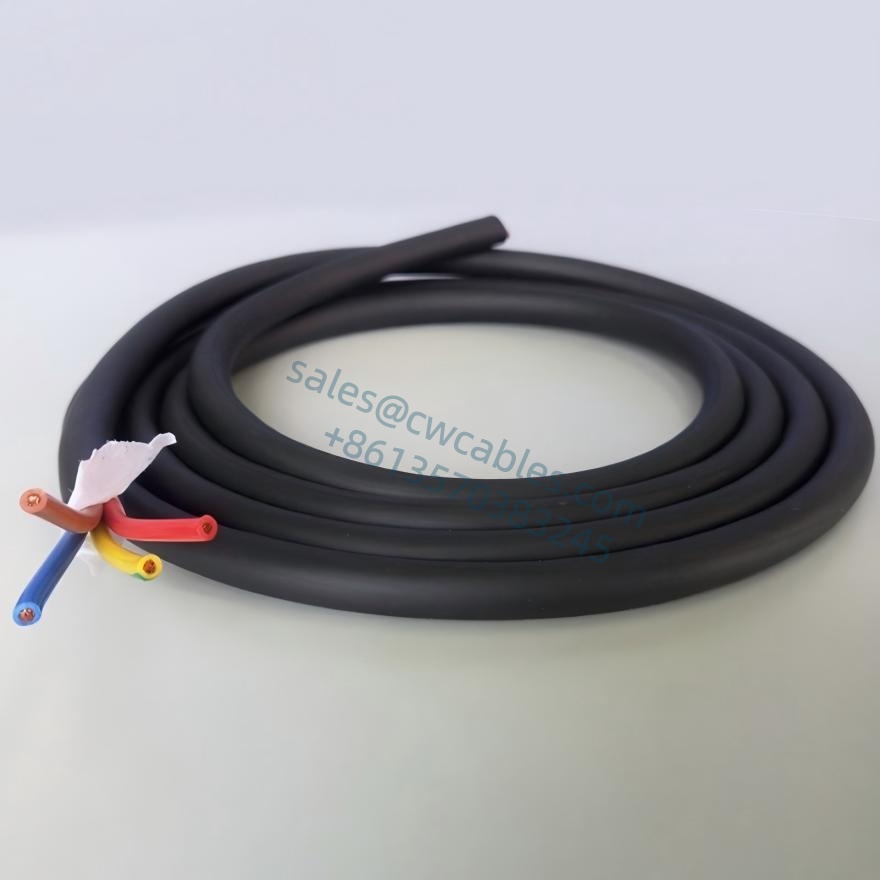

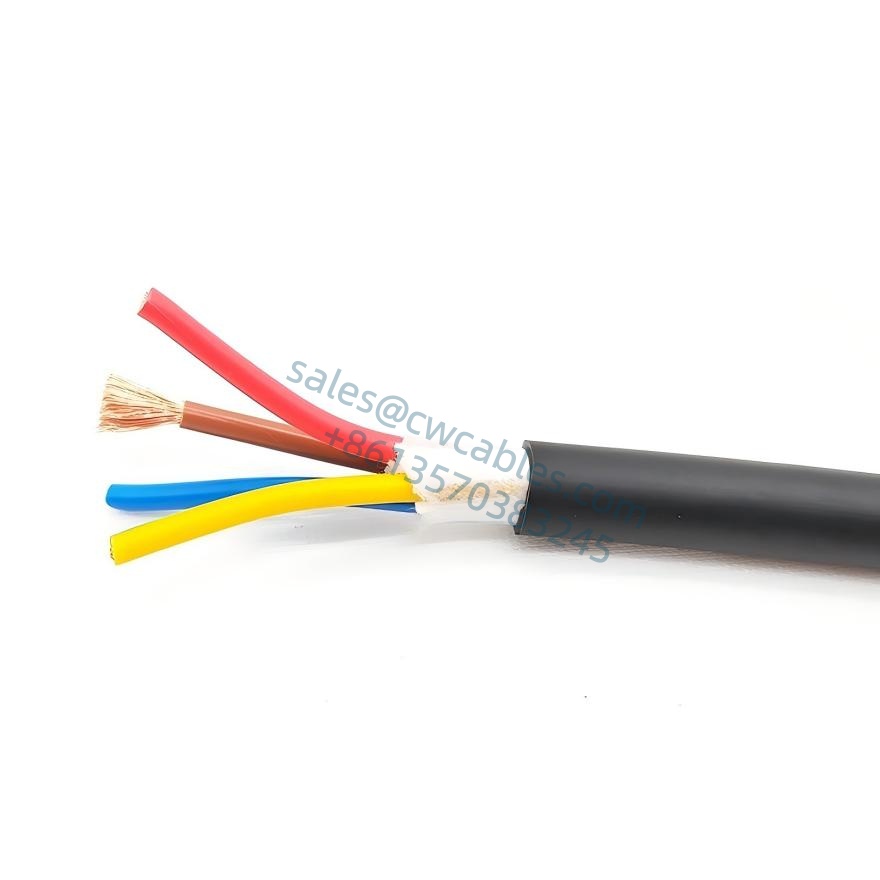

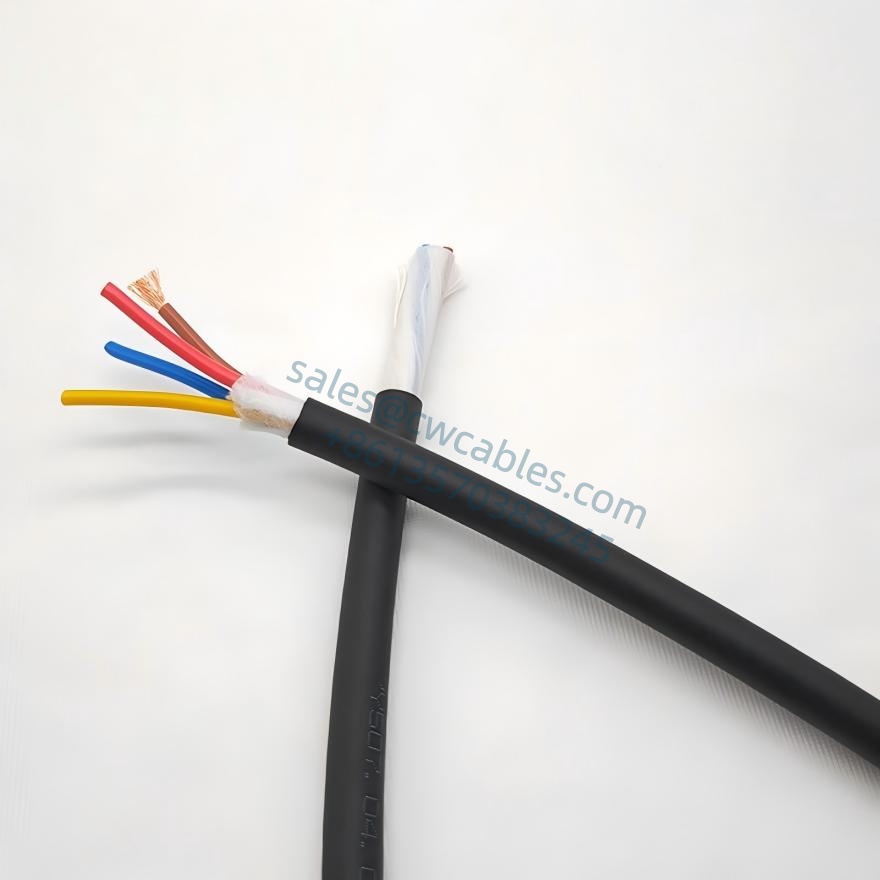

High Flexible Data Electrical Cabl is particularly suitable for the continuous high -flexible chain bending application of
machinery and equipment and machine tools. This high -flexible cable uses special modified insulation materials and
external quilt materials. It has high abrasion resistance and medium resistance. And always maintain high stability.
Technical Parameter Flexible Power Servo Cable
Special PVC protective, good flexibility
temperature range:
Mobile installation -5 ° C to+70 ° C
Fixed installation -15 ° C to+80 ° C
Named voltage UO/U 300/500 V
Test voltage 2000V
Insulation resistance: minimum 20mohmxkm
Minimum bending radius: Movement of 7.5X cable diameter
Fixed installation 6X cable diameter
Comply with EU ROHS, Reach regulations requirements
temperature range:
Mobile installation -5 ° C to+70 ° C
Fixed installation -15 ° C to+80 ° C
Named voltage UO/U 300/500 V
Test voltage 2000V
Insulation resistance: minimum 20mohmxkm
Minimum bending radius: Movement of 7.5X cable diameter
Fixed installation 6X cable diameter
Comply with EU ROHS, Reach regulations requirements
Structure
Bare copper conductor, fine copper wire
Condensing DIN VDE0295 Category 6 and IEC 60228 Category 6
Special PVC insulation
Color core wire logo
The core of the wire is used to yellow -green ground wire (3 cores and above)
Special PVC jacket black (RAL9005) matte
Condensing DIN VDE0295 Category 6 and IEC 60228 Category 6
Special PVC insulation
Color core wire logo
The core of the wire is used to yellow -green ground wire (3 cores and above)
Special PVC jacket black (RAL9005) matte
| UL2464 High Flexible Data Electrical Cable Parameter | ||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 1 | MC-YY507.04.0050 | 4Gx0.5 | 6.3 | Black |
| 2 | MC-YY507.06.2024 | 4Gx0.5+2×0.2 | 6.3 | Black |
| 3 | MC-YY507.04.0075 | 4Gx0.75 | 6.3 | Black |
One-stop procurement service provider:
complete varieties of ordinary, highly flexible, and ultra-high flexible cables
1. Flexible service robot cable: drag chain 50 million times, 3D torsion more than 20 million times;
2. Industrial robot body cable: 3D torsion 20 million times, 50 million times can be customized;
3. Special cable for linear motor: drag chain 50 million times, 100 million times can be ordered;
4. Ultra-high-speed drag chain cable: drag chain 20 million times, refer to German standard, full extrusion hard wire technology;
5. Ultra-high flexible drag chain cable: drag chain 10 million times, refer to Japanese standards, semi-extrusion flexible cord technology;
6. Highly flexible towline cable: 5~8 million times, refer to Japanese standards, semi-extrusion flexible cord technology;
7. Industrial flexible cable: 2 million low-speed movements, electrical cabinet, servo encoder, IO control wiring;
8. Data bus cable: CC-Link, DeviceNet, Profibus, Cat5e/6a Ethernet cable, etc.;
9. Medical cables: industrial endoscopes, B-ultrasound, medical lifting tables, imaging equipment, sensors, surgical robot cables, etc.;
10. In addition, precision sensor cables can be customized, as well as various high-demand, ultra-fine, chemical-resistant, and high-temperature-resistant special cables.
