Products Description
RO-FY Industrial Automation Continuous Flexibility Encoder Robot Cable is especially suitable for telescopic,
torsion, bending and high-strength applications of entertainment robots such as dancing robots, interactive robots,
and bionic robots in complex environments. This type of cable can withstand continuous and high-strength bending
and torsion mechanical stress, which is a guarantee robot Excellent choice for product reliability and long life.
Technical Parameter
|
Outer sheath
|
Special fluororesin insulation, special PUR sheath
|
|||
|
Feature
|
With ultra-high strength and bending and torsion performance
|
|||
|
Standard
|
Meet the requirements of TUV2 PfG 2577 Class V
|
|||
|
Temperature range:
|
Mobile installation -20°C to +80°c Fixed installation -40°C to +105° c
|
|||
|
Nominal voltage
|
Power supply Uo/U 300/500 V Data Uo/U300/300 V
|
|||
|
Test voltage
|
Power supply 2000 V Data 1500V
|
|||
|
Insulation resistance:
|
Minimum 100 MOhm x km
|
|||
|
Minimum bending radius:
|
Mobile installation 6×cable diameter Fixed installation 4x cable diameter
|
|||
|
Application:
|
Meet the requirements of EU RoHS and Reach regulations
|
|||

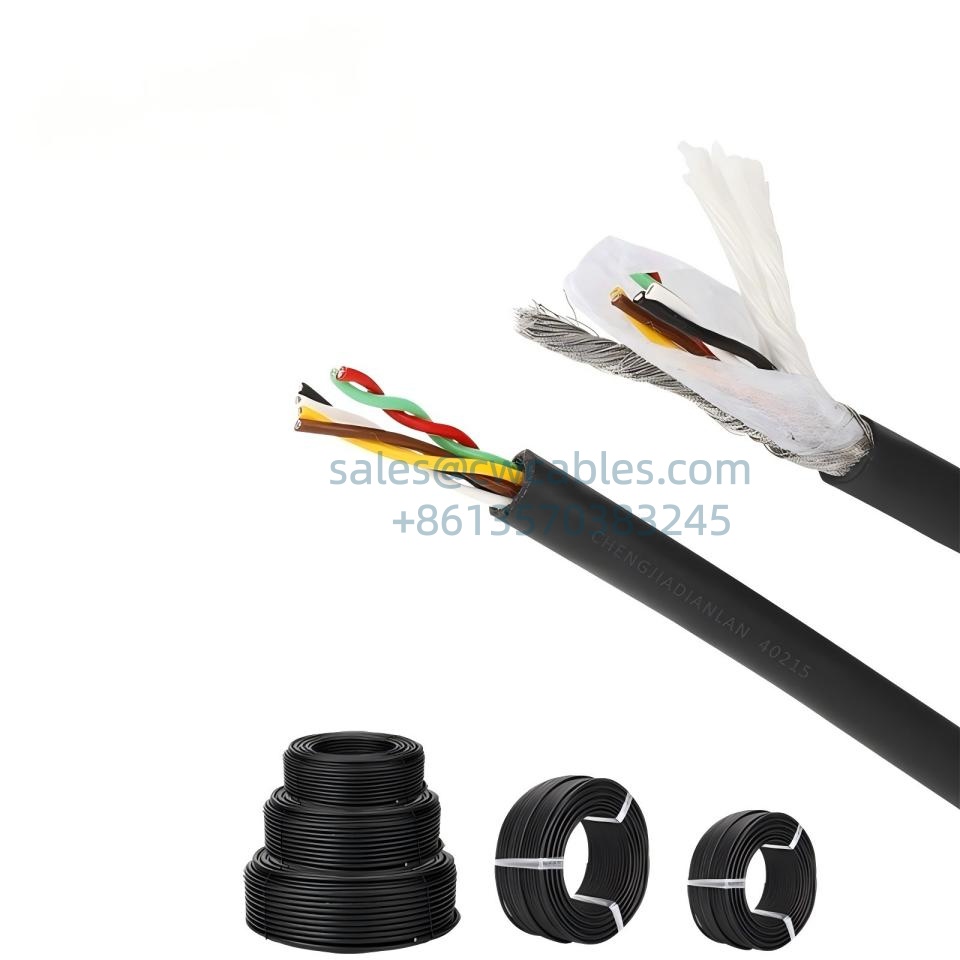

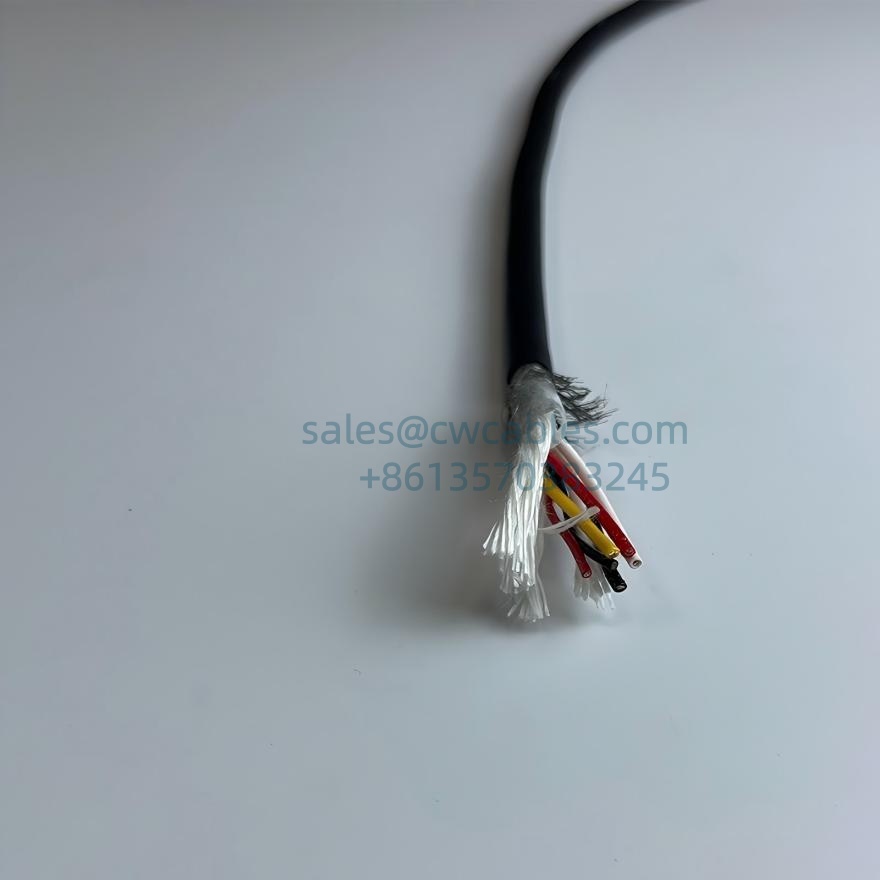

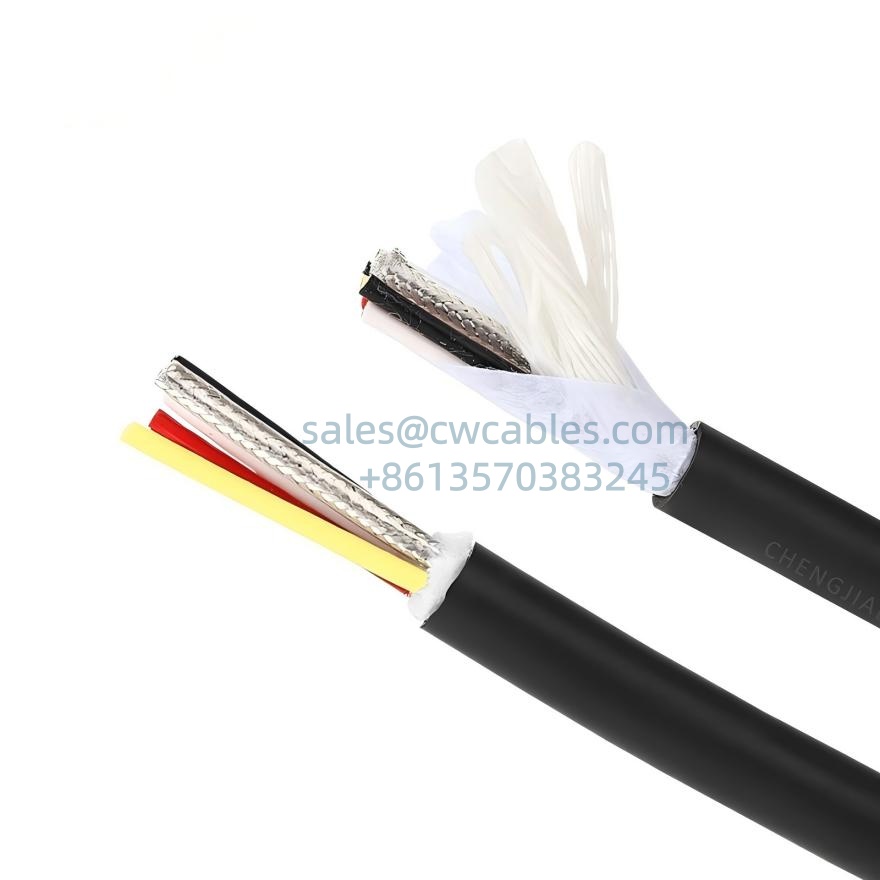

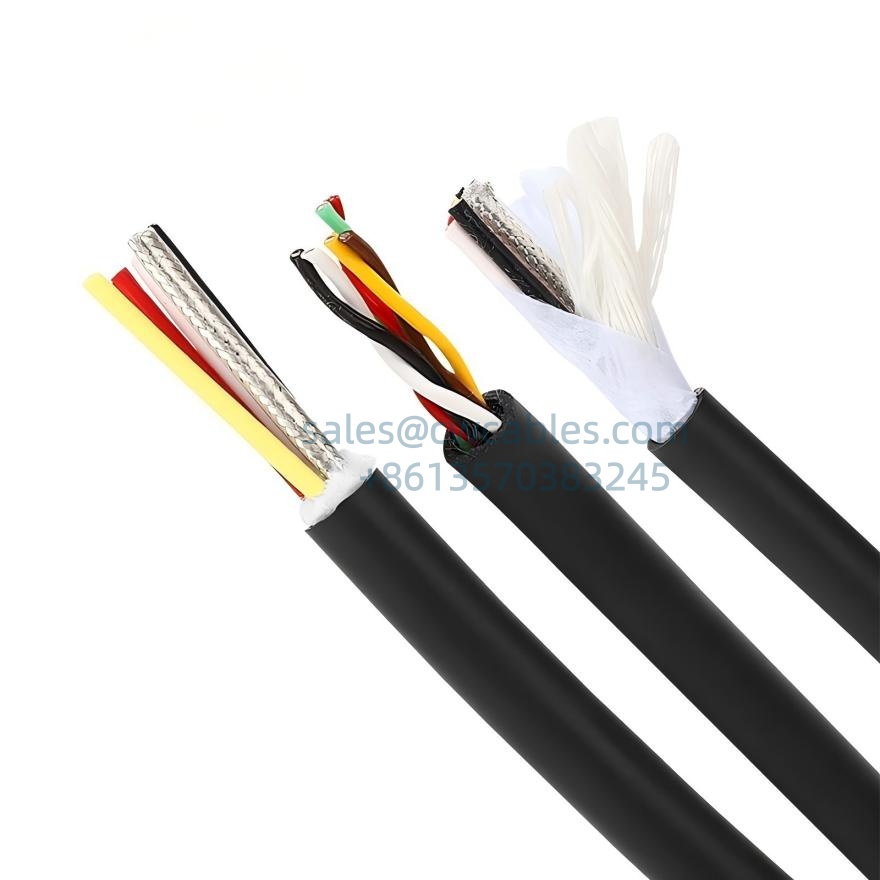

Robot Cable Structure
1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor ultra-fine copper wire, in line with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special fluororesin insulation
3. The color of the core wire is colored
4. The wire core is twisted with the best pitch
5. Improved tinned copper wire braided shield
6.Minimum coverage rate 85%
7. Special PVC outer sheath
8. Black (RAL 9005) matte
Power Cable Parameter
|
No.
|
Product Code
|
Cores Number and cross-sectional area
(NO.Xm㎡)
|
Approximate outer diameter （mm)
|
Outer sheath color
|
20℃ Conductor DC resistance
Ω/km
|
|
1
|
RO-FY5002.06.2024
|
4×0.5+(2×0.2)
|
7.0
|
Black
|
39/95
|
|
2
|
RO-FY5002.06.1922
|
4×0.75+(2×0.3)
|
8.0
|
Black
|
26/71.2
|
|
3
|
RO-FY5002.06.1522
|
4×1.5+(2×0.3)
|
9.2
|
Black
|
13.3/71.2
|
Data Cable Parameter
|
No.
|
Product Code
|
Cores Number and cross-sectional area
(NO.Xm㎡)
|
Approximate outer diameter （mm)
|
Outer sheath color
|
20℃ Conductor DC resistance
Ω/km
|
|
1
|
RO-FY5006.06.0020
|
3x2x0.2
|
5.5
|
Black
|
95
|
|
2
|
RO-FY5006.16.0020
|
8x2x0.2
|
8.6
|
Black
|
95
|
|
3
|
RO-FY5006.06.0030
|
3x2x0.3
|
6.2
|
Black
|
71.2
|
