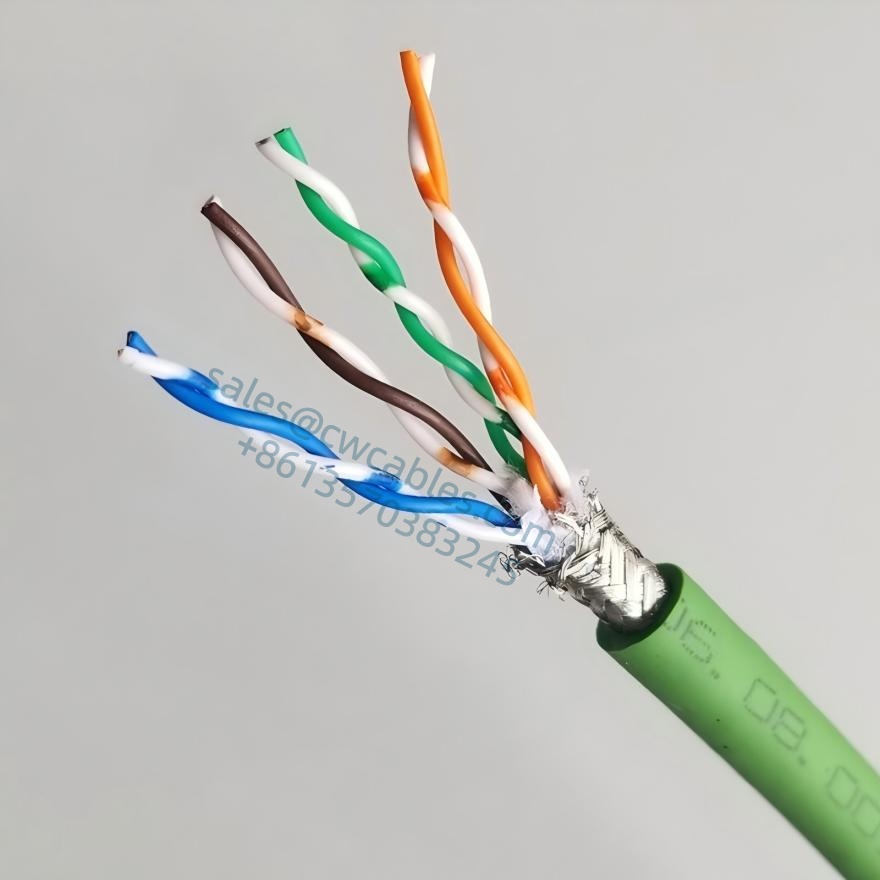

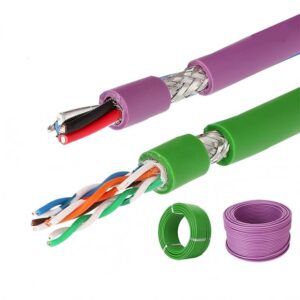

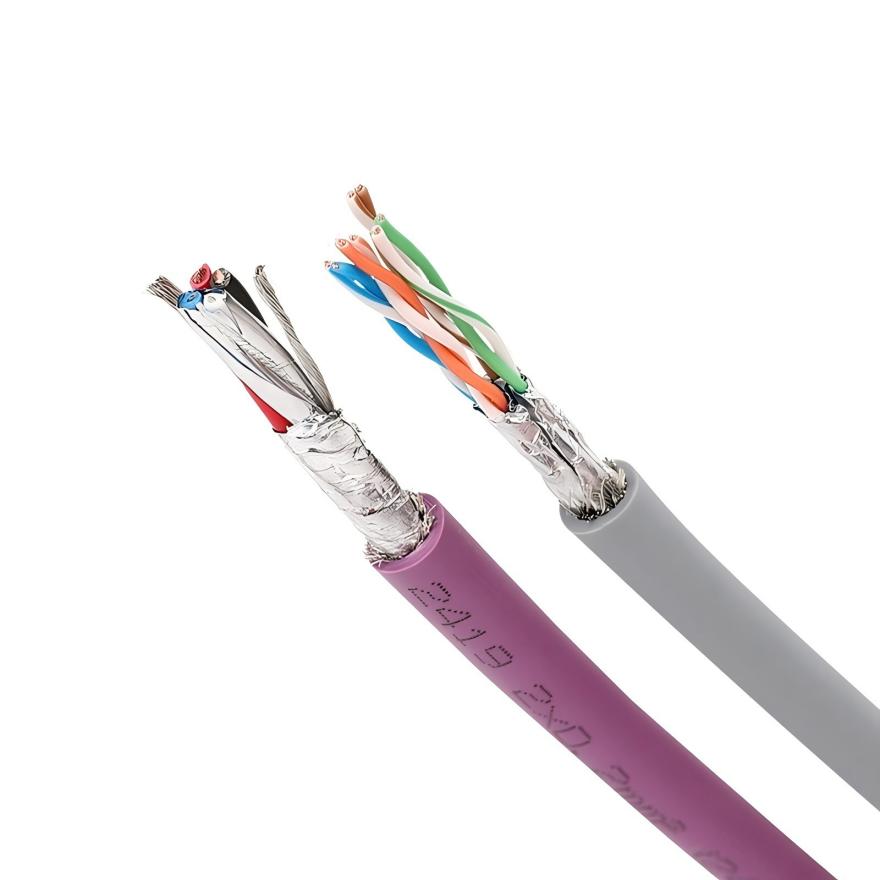

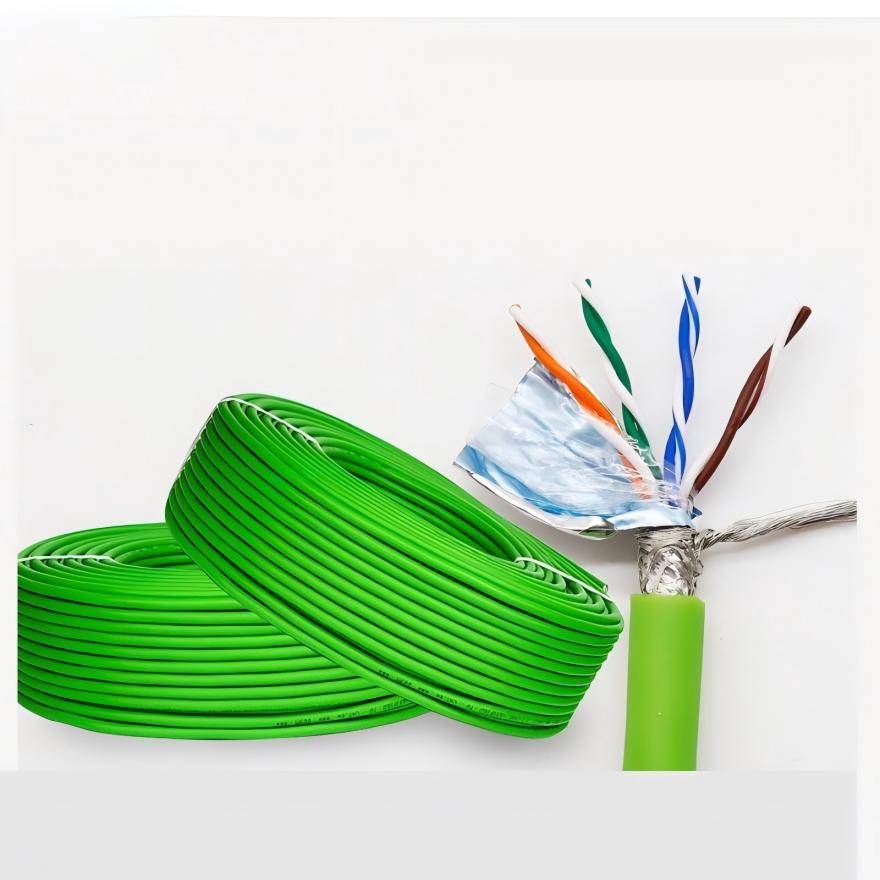

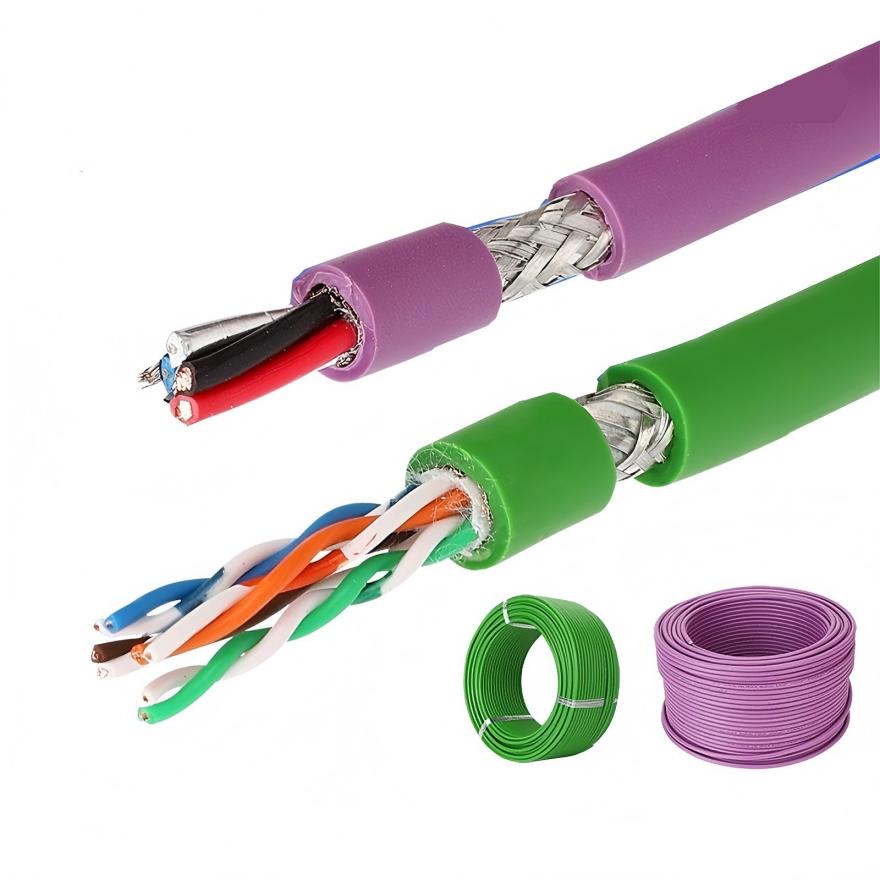

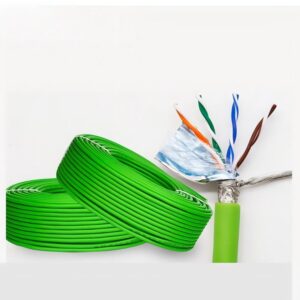

Data transmission Flexible Industrial Ethernet Cable is used in Ethernet/IP, Ethercat, and other derivative bus systems, fixed
installation and occasional mobile use. The bus cable uses special structural design and modified materials, which has high
abrasion resistance and medium resistance.
Technical Parameter Flexible Industrial Ethernet Cable
Special PVC sheath.
Comply with the Bulls Cable Specification
Temperature range: Move installation -5 ° C to+70 ° C
Fixed installation -15 ° C to+70 ° C
Voltage 30V
Test voltage 500V
Insulation resistance:
Minimum 20mohm xkm
Minimum bending radius: Movement of 14X cable diameter
Fixed installation 7X cable diameter
Comply with EU ROHS and Reach regulations.
Comply with the Bulls Cable Specification
Temperature range: Move installation -5 ° C to+70 ° C
Fixed installation -15 ° C to+70 ° C
Voltage 30V
Test voltage 500V
Insulation resistance:
Minimum 20mohm xkm
Minimum bending radius: Movement of 14X cable diameter
Fixed installation 7X cable diameter
Comply with EU ROHS and Reach regulations.
Single or twisted nude copper conductor,
Comply with Dinvde0295 and IEC 60228 standards
Insulation meets bus standards
Core line identification meets bus standards
The twisted method meets the bus standard
Improved tin -plated copper wire woven shielding
Minimum comprehensive shielding rate 80%
Special PVC outer condom
Purple (RAL4001) matte
Gray (RAL7001) matte
Comply with Dinvde0295 and IEC 60228 standards
Insulation meets bus standards
Core line identification meets bus standards
The twisted method meets the bus standard
Improved tin -plated copper wire woven shielding
Minimum comprehensive shielding rate 80%
Special PVC outer condom
Purple (RAL4001) matte
Gray (RAL7001) matte
| Ethernet/CAT5e Parameter | ||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 1 | BUS-HY06.08.0014 | 4x2x0.14 | 6.5 | Black purple green blue |
| Ethernet/CAT6A Parameter | ||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 1 | BUS-HY06.08.0014 | 4x2x0.14 | 7 | Black purple green blue |
| Ethernet/CAT7 Parameter | ||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 1 | BUS-HY06.08.0012 | 4x2x0.12 | 7 | Black grey |
