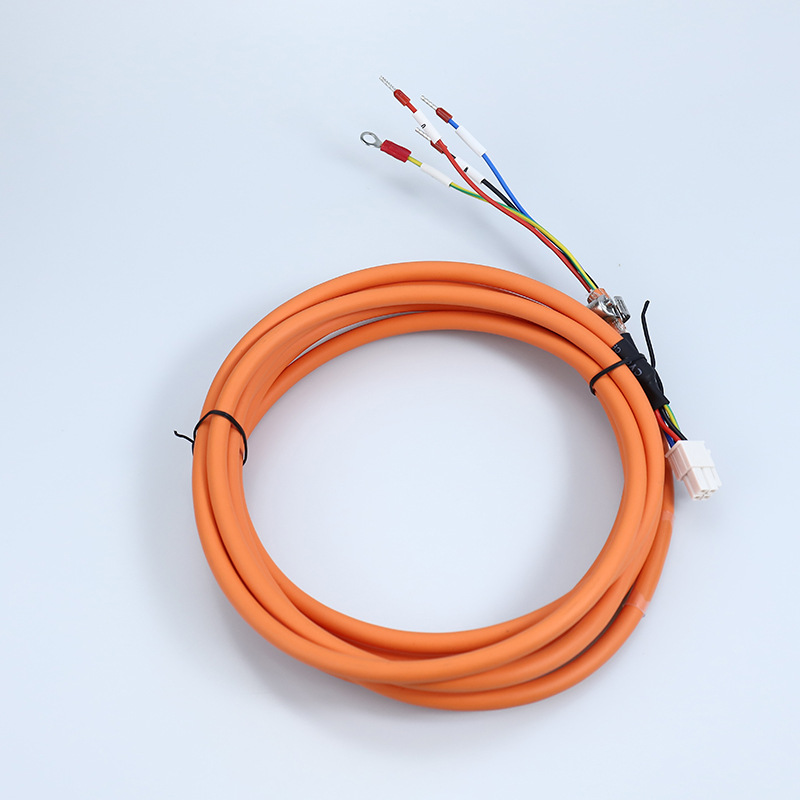

AC Servo Motor Power Cable with shield for servo motors and servo drives（10 million cycle times)
Compatible with servo motors from leading manufacturers. Designed for heavy-load power cables in drag chains, this solution is ideal for pick-and-place machines, assembly lines, production equipment, and all machinery requiring power connections within drag chains or moving parts. Especially suited for damp environments in machine tools and transmission lines.
(Note: ‘G’ variant includes yellow/green ground wire).
Technical data
AC Servo Motor Power Cable with shield

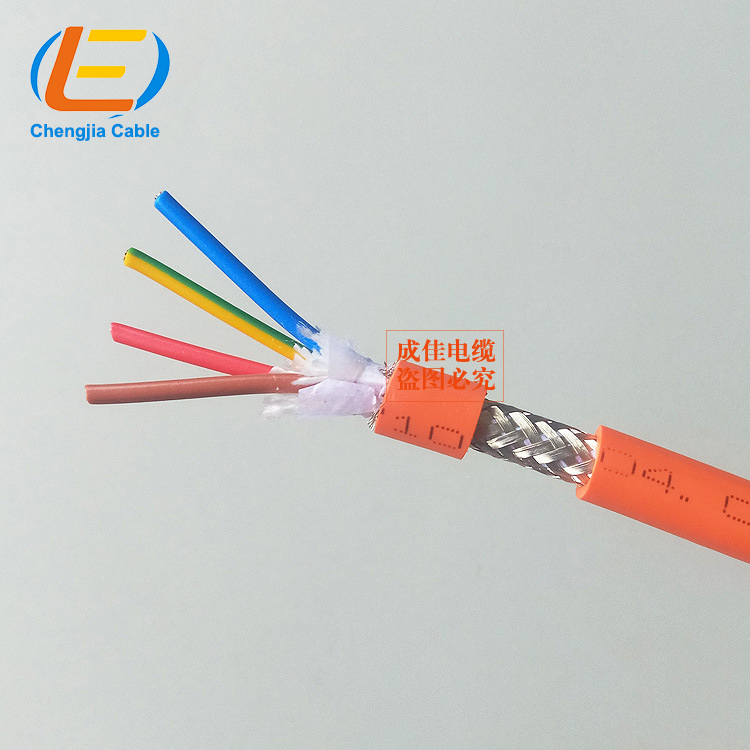

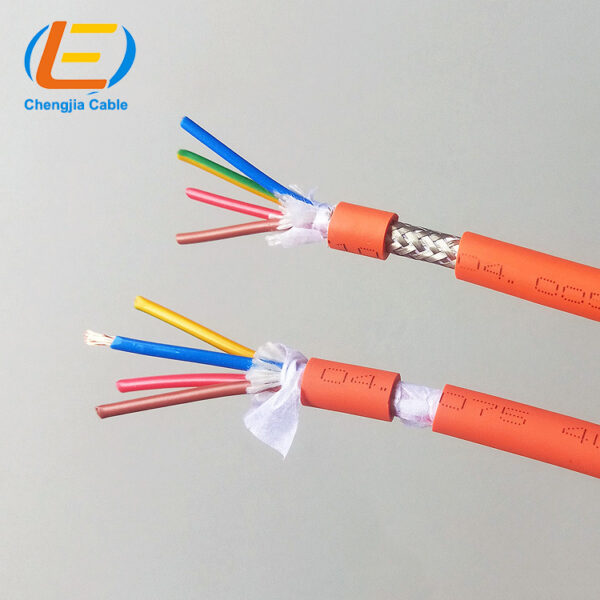

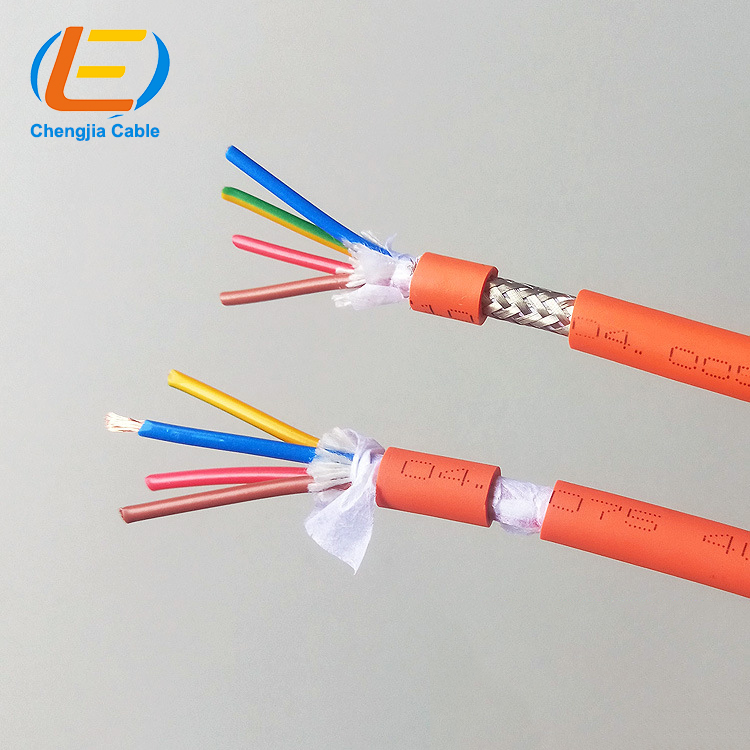

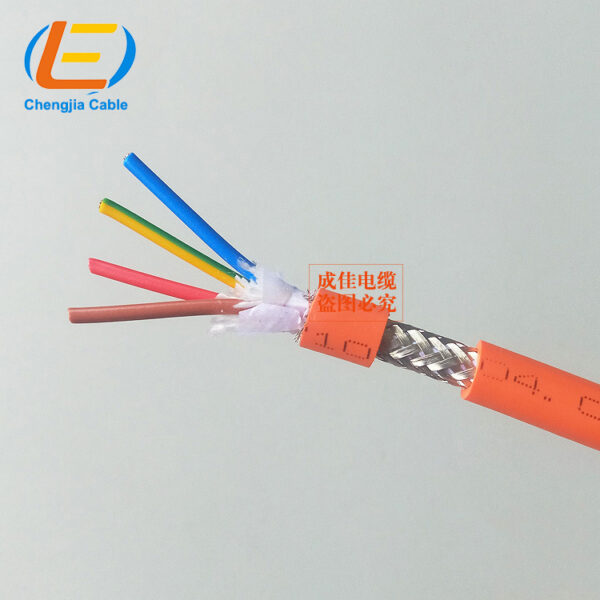

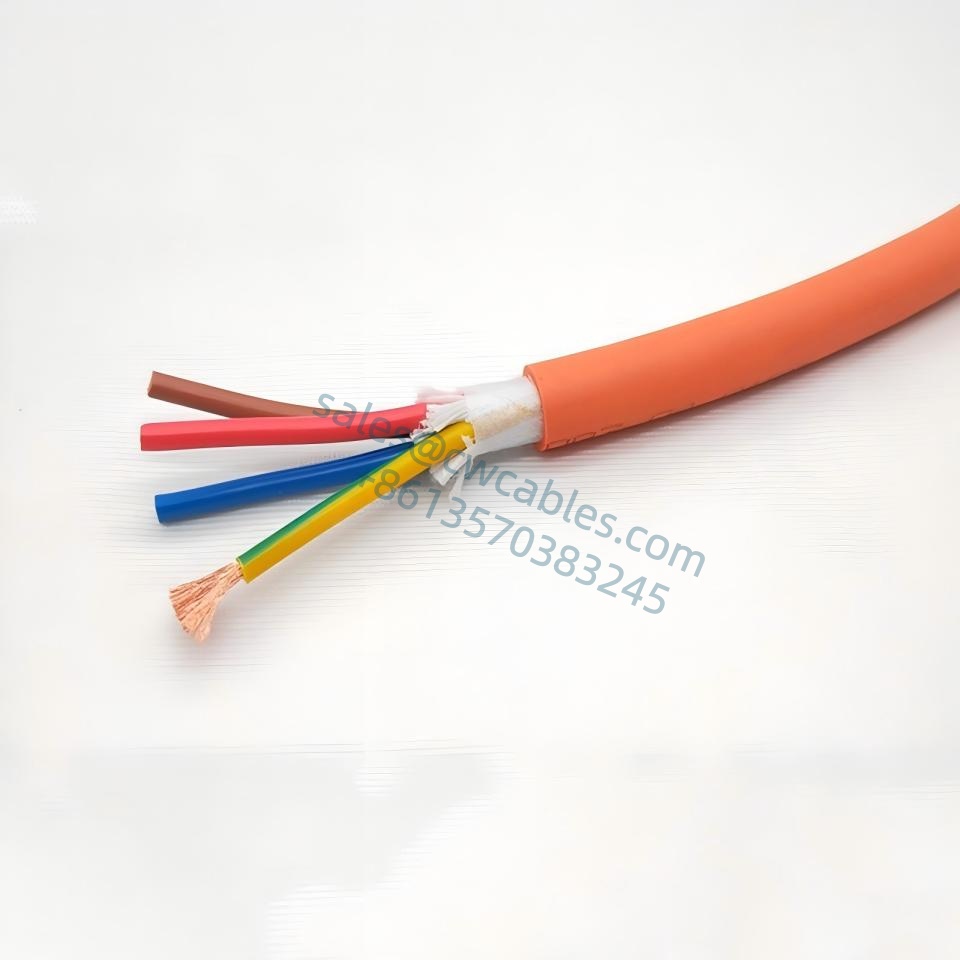

AC Servo Motor Power Cable with shield Structure:
● 0.08mm² Bare copper conductor, ultra-fine copper wire
●Compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6
●Special PVC insulation

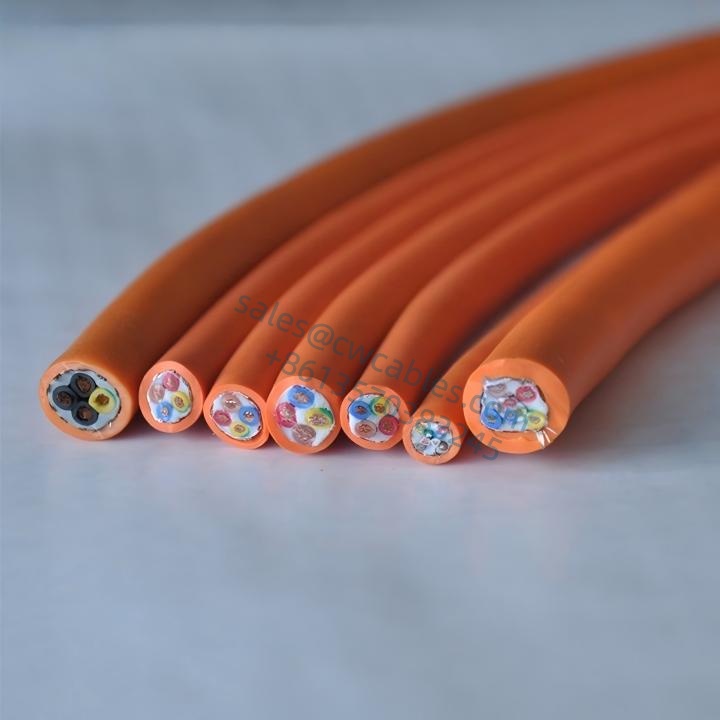

●Color-coded cores
●Optimal pitch concentric stranded cores
●With yellow-green grounding wire (3 cores and above)

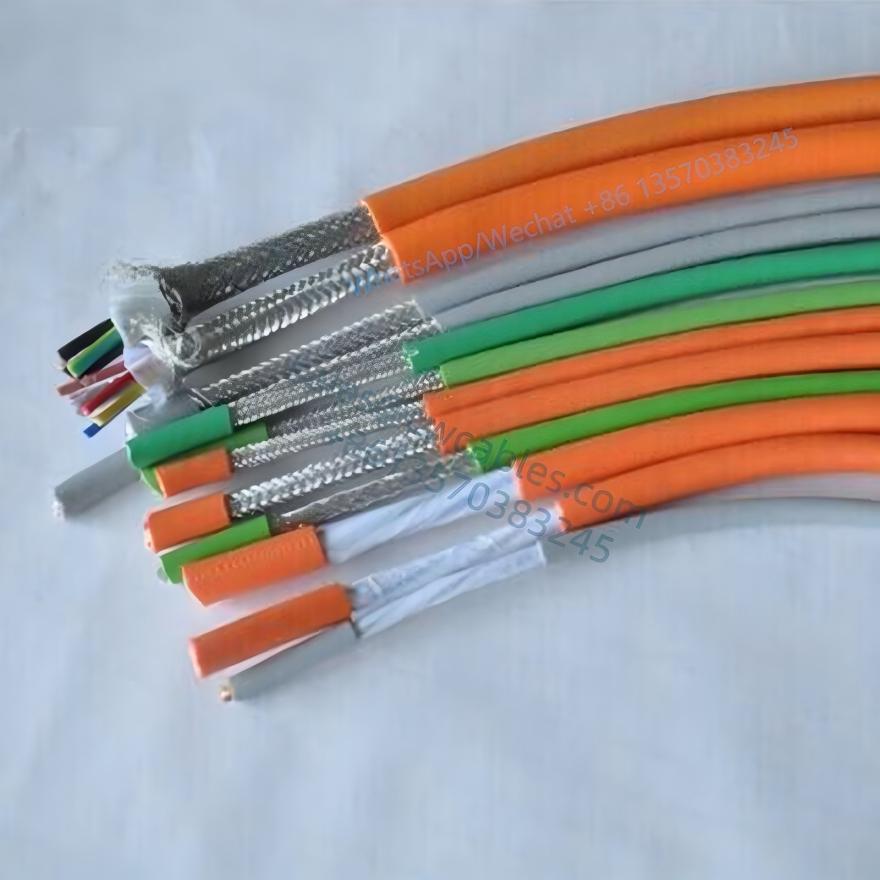

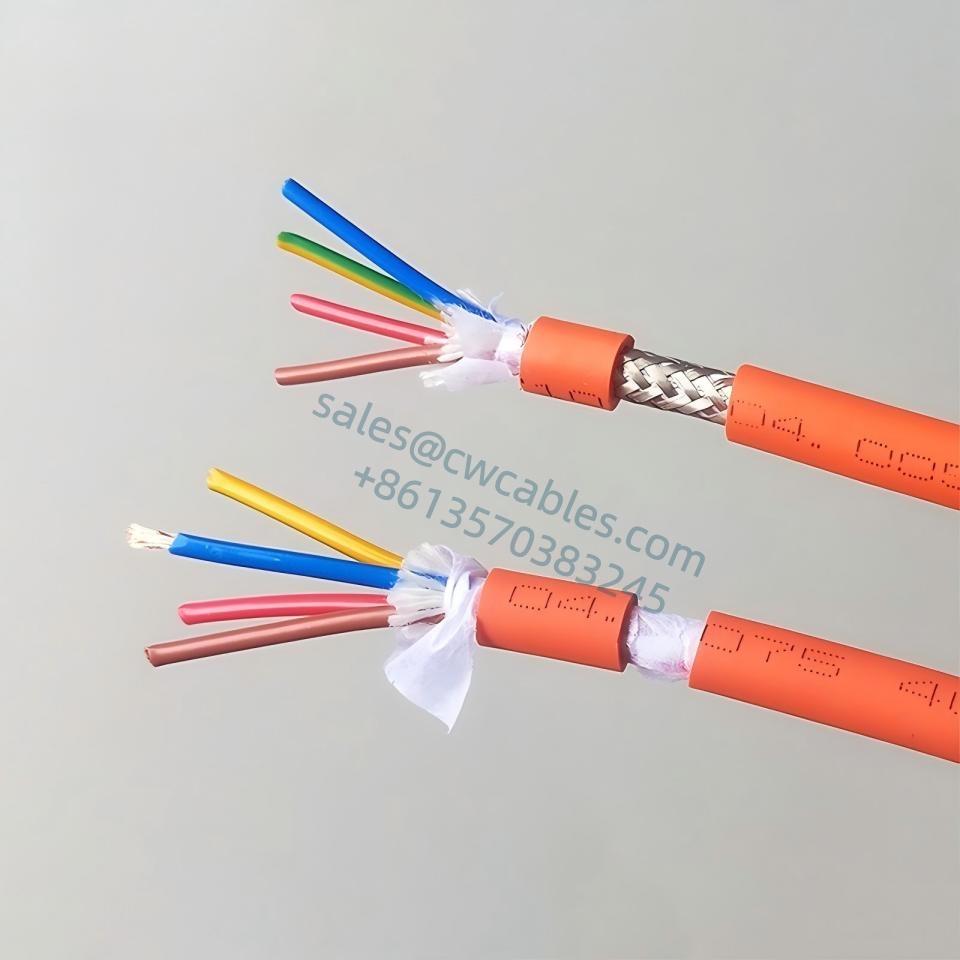

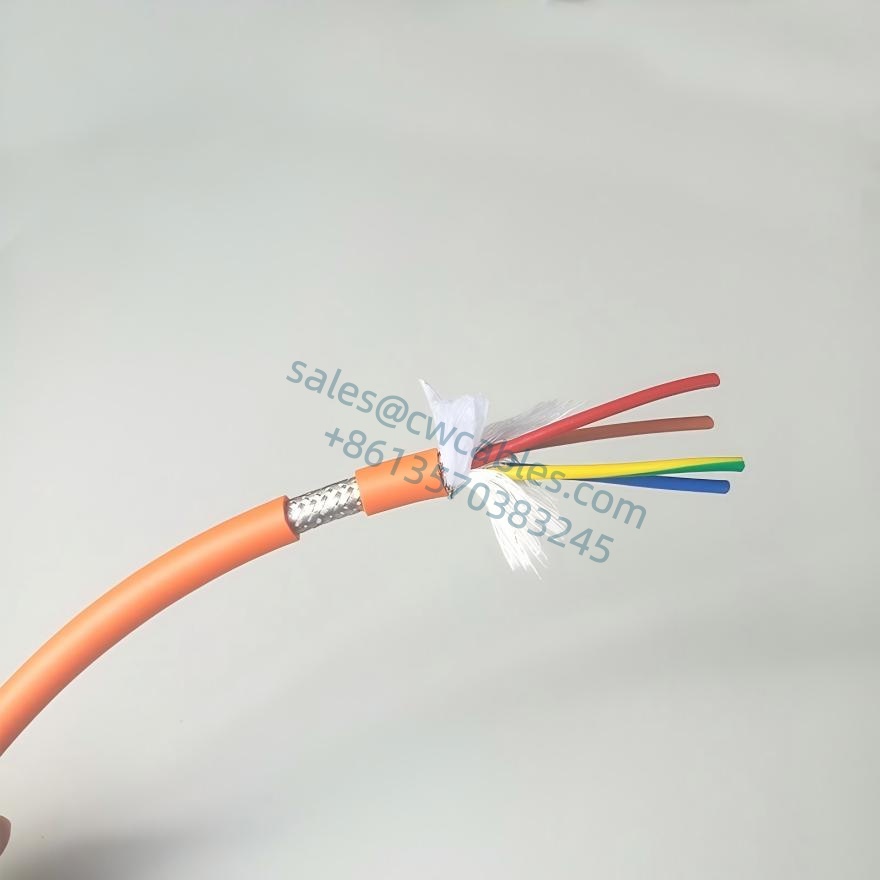

●Improved tinned copper wire braiding shield
●Minimum coverage rate of 90%
● Grey, black, orange or color can be customized according to customer requirements.

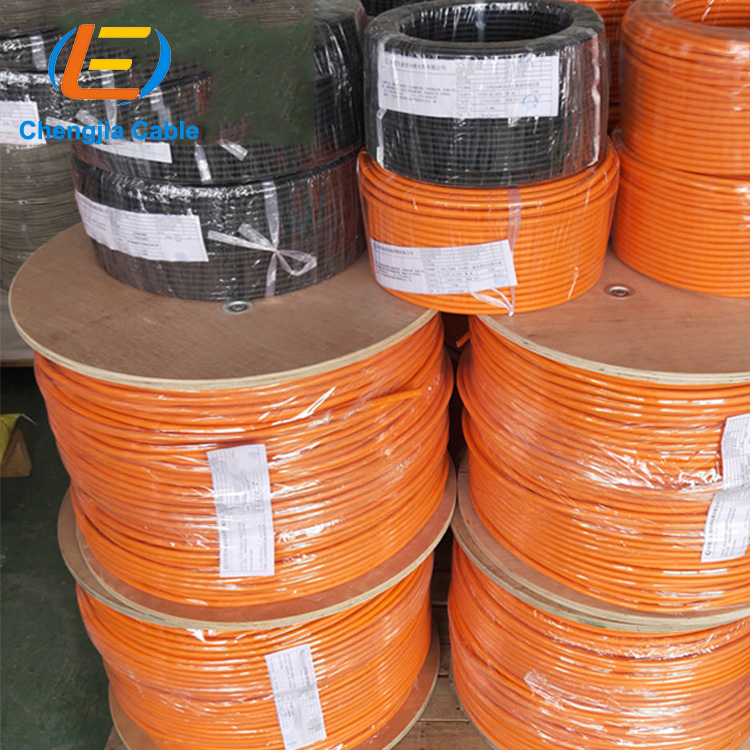

| Servo Motor Shielded Cable MOQ 1 ROLL | |||||||||||
| Product | Item | Model | Specification | OD | Color | 6.5~6.9 9 |
7~7.49 | 7.5~7.9 9 |
8~8.49 | 8.5~8.9 9 |
Mark |
| Ultra High Servo Motor Shielded Cable (10 million times reliability tests for drag chain) | 1 | YY1008.02.0050 | 2*0.5mm2 | 5.6 | Black/orange | 2.28 | 2.37 | 2.47 | 2.56 | 2.66 | China standard core wire colors: blue, brown, red, yellow/green |
| 2 | YY1008.04.0050 | 4*0.5mm2 | 6.5 | Black/orange | 3.58 | 3.72 | 3.87 | 4.02 | 4.17 | ||
| 3 | YY1008.04.0075 | 4*0.75mm2 | 7.2 | Black/orange | 5.32 | 5.55 | 5.77 | 5.99 | 6.21 | ||
| 4 | YY1008.04.0100 | 4*1.0mm2 | 7.8 | Black/orange | 6.60 | 6.87 | 7.15 | 7.42 | 7.70 | ||
| 5 | YY1008.04.0150 | 4*1.5mm2 | 9 | Black/orange | 9.23 | 9.61 | 10.00 | 10.38 | 10.76 | ||
| 6 | YY1008.04.0250 | 4*2.5mm2 | 11 | Black/orange | 14.61 | 15.22 | 15.82 | 16.43 | 17.04 | ||
| 7 | L-YY1008.02.0050 | 2*0.5mm2 | 5.6 | Black/orange | 2.28 | 2.37 | 2.47 | 2.56 | 2.66 | UL standard core wire colors: black, white, red, yellow/green | |
| 8 | L-YY1008.04.0050 | 4*0.5mm2 | 6.5 | Black/orange | 3.58 | 3.72 | 3.87 | 4.02 | 4.17 | ||
| 9 | L-YY1008.04.0075 | 4*0.75mm2 | 7.2 | Black/orange | 5.32 | 5.55 | 5.77 | 5.99 | 6.21 | ||
| 10 | L-YY1008.04.0150 | 4*1.5mm2 | 9 | Black/orange | 9.23 | 9.61 | 10.00 | 10.38 | 10.76 | ||
| 11 | L-YY1008.04.0250 | 4*2.5mm2 | 11 | Black/orange | 14.61 | 15.22 | 15.82 | 16.43 | 17.04 | ||
| 12 | MC-YY3008.04.0050 | 4*0.5mm2 | 6.3 | Black | 4.39 | 4.57 | 4.75 | 4.94 | 5.12 | Gecko head power cord, UL printed, core Wire colors black, white, red, yellow/green |
|
| 13 | MC-YY3008.06.2024 | 4*0.5+2*0.2 | 6.3 | Black | 5.17 | 5.38 | 5.60 | 5.81 | 6.03 | ||
