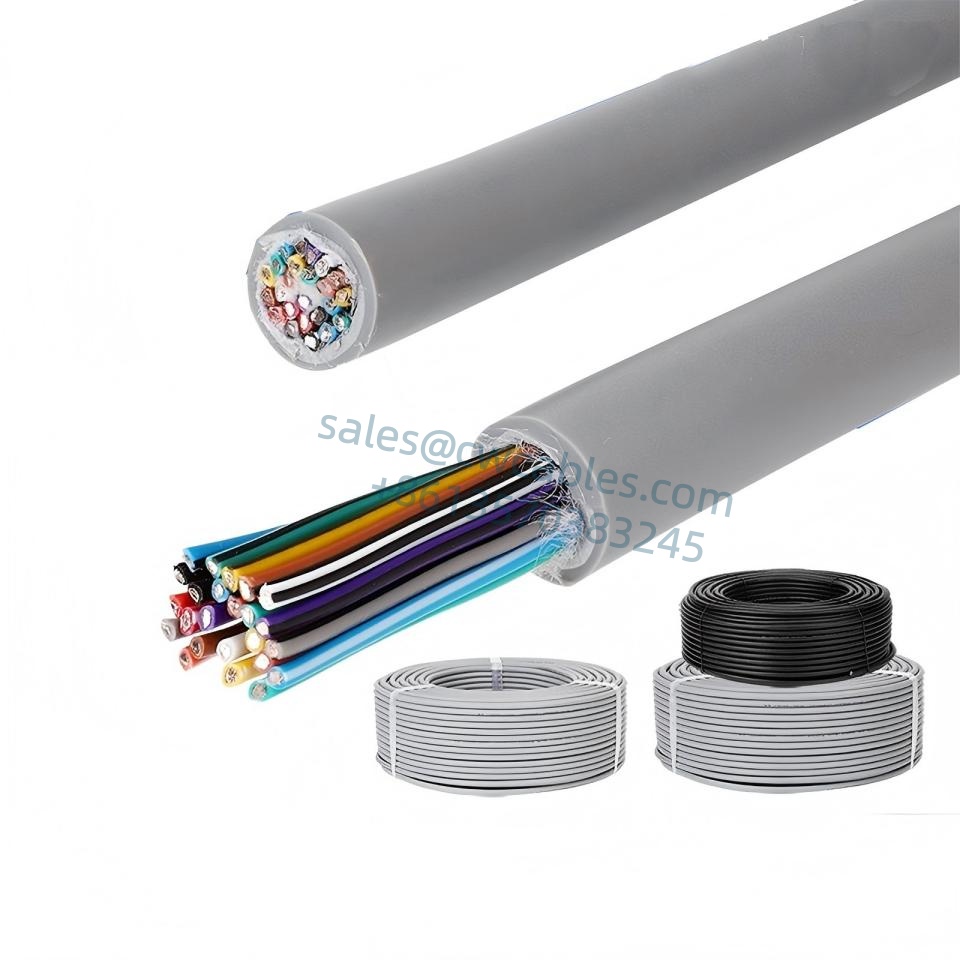

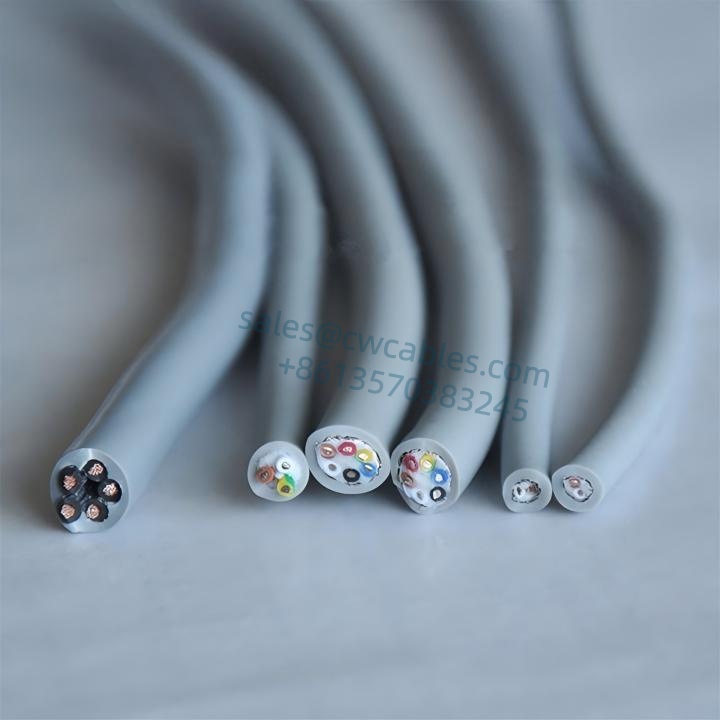

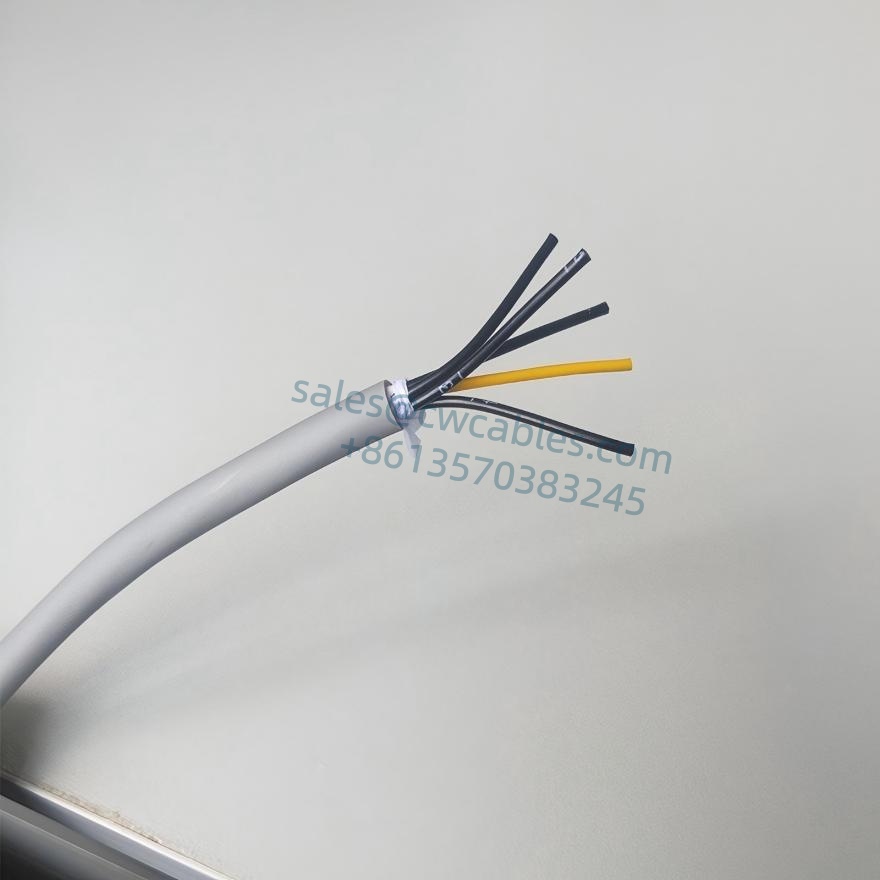

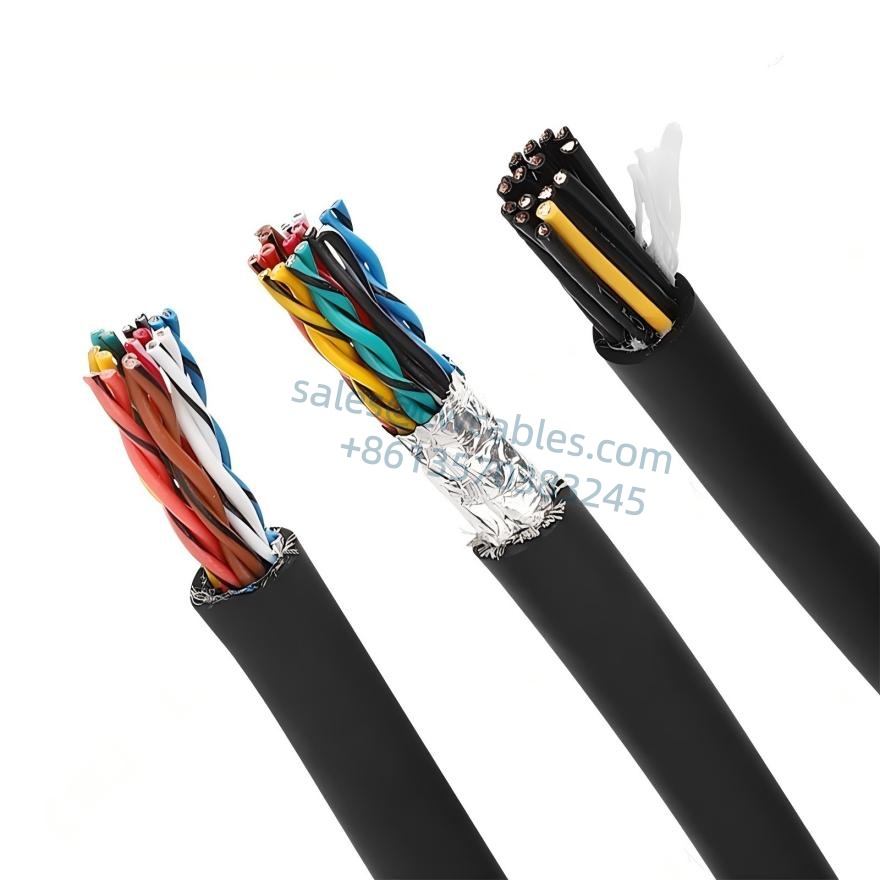

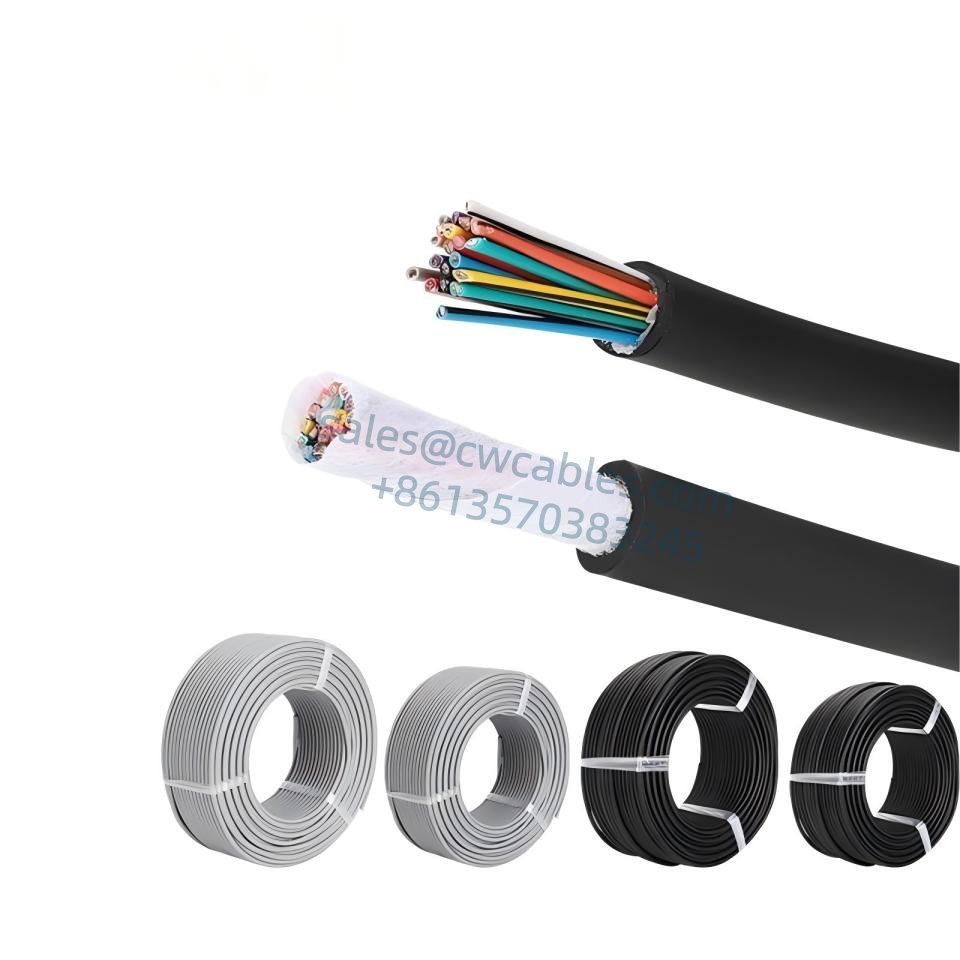

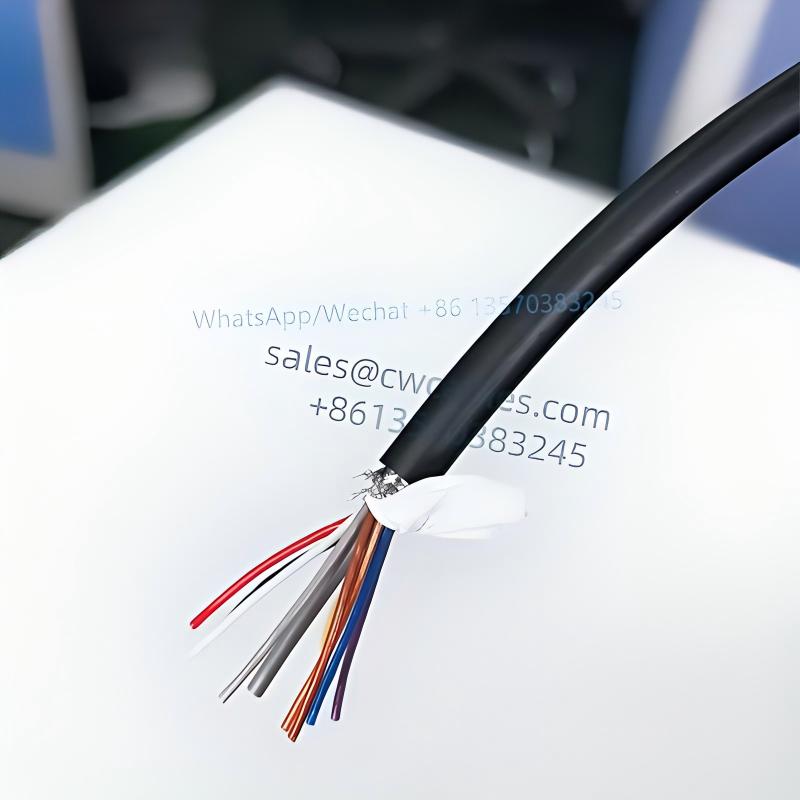

105 Degree Ultra High Flex UL2517 PVC Cable Multicore Cable with Shielding Drag Chain
This cable is particularly suitable for continuous and high-flexing applications in drag chains for mechanical equipment and machine tools. The highly flexible cable uses special modified insulation and outer jacket materials with high resistance to wear and chemicals, making it capable of withstanding long-term acceleration, deceleration, stretching and compression stresses, as well as more than five million cycles of periodic bending while maintaining high stability.
105 Degree Ultra High Flex UL2517 PVC Cable Multicore Cable with Shielding Drag Chain
| UL2517 105 DEGREE ULTRA HIGH FLEX POWER CABLE (AMERICAN CORE WIRE) (30 million times reliability tests for drag chain) | ||||
| No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
| (NO.Xm㎡) | ||||
| 1 | MC-YY3007.04.0050 | 4Gx0.5 | 6.3 | Black |
| 2 | MC-YY3007.06,2024 | 4Gx0.5+2×0.2 | 6.3 | Black |
| 3 | MC-YY3007.04.0075 | 4Gx0.75 | 6.3 | Black |
Ul2464 Drag Chain Power Cable Technical Parameter
●Special PVC sheath with ultra-high flexibility.
●Temperature range: Mobile installation: -5°C to +80°C. Fixed installation: -15°C to +105°C.
●Nominal voltage Uo/U 300/500V.
●Test voltage: 2000V.
●Insulation resistance: Minimum 20 MOhmxkm.
●Minimum bending radius: Mobile installation: 6x cable diameter. Fixed installation: 4x cable diameter.
●Compliance with EU RoHS and Reach regulations
Ul2464 Drag Chain Power Cable Structure
●Bare copper conductor, ultra-fine copper wire in accordance with DIN VDE 0295 Class 6 and IEC 60228 Class 6.
●Special PVC insulation.
●Color-coded core wire identification.
●Optimum lay-up with twisted layers of conductors.
●With yellow-green grounding wire (for 3 cores and above).
●Special PVC outer sheath. ●Matte black (RAL2003).
