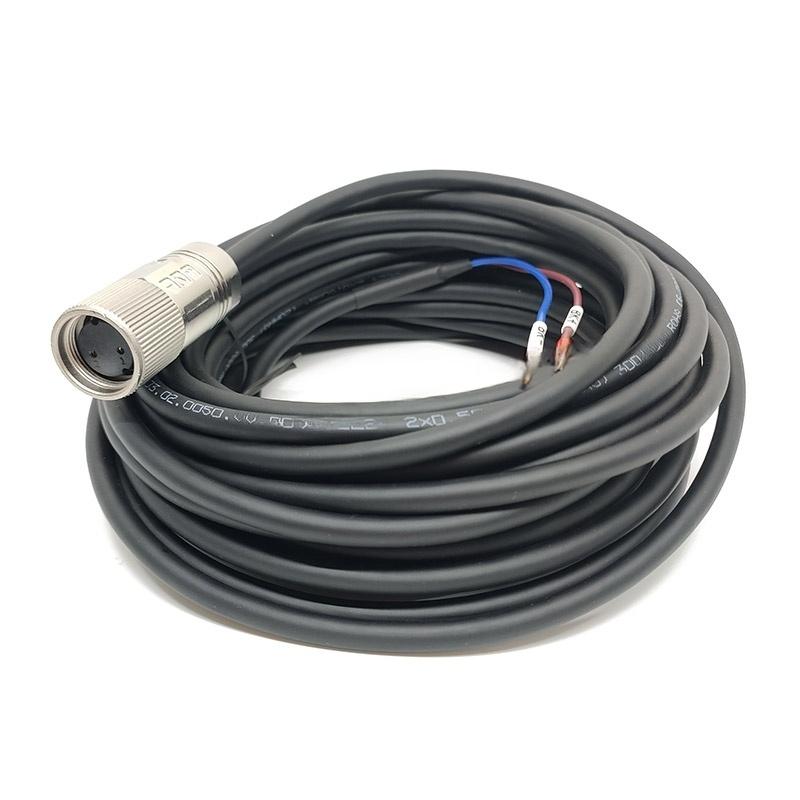

Siemens Power Cable 6FX3002-5BL03
Siemens Power Cable 6FX3002-5BL03
SIMODRIVE Servo Motor Power Cable | SINUMERIK Compatible | Drag Chain Rated | Multiple Length Options
📌 Product Overview
The Siemens 6FX3002-5BL03 power cable is a high-performance motor cable engineered specifically for Siemens SIMODRIVE servo motor systems and SINUMERIK CNC controllers. This cable reliably delivers high current from the drive to the motor in both stationary installations and continuous-motion applications including CNC machine tools, industrial robotics, and automated production lines. Featuring high-density braided shielding and fine-stranded conductors, this cable guarantees stable, noise-immune power delivery even under constant flexing and electrically harsh factory environments.
⚙️ Technical Specifications
🌡️ Operating Temperature Range
Flexing / Moving
| Installation Mode | Standard PVC Jacket | Heat/Cold-Resistant PVC |
|---|---|---|
| Fixed / Stationary | -10°C to +80°C | -40°C to +105°C |
| -5°C to +80°C | -15°C to +105°C |
📐 Minimum Bending Radius
| Installation Condition | Bending Radius (× Cable OD) |
|---|---|
| Fixed / Static Installation | 6 |
| Travel distance < 10 m | 7.5 |
| Travel distance ≥ 10 m | 10 |
📏 Available Lengths & Ordering Codes
| Length (meters) | Ordering Code (Suffix) | Siemens Part Number |
|---|---|---|
| 3 meters | -1AD0 | 6FX3002-5BL03-1AD0 |
| 5 meters | -1AF0 | 6FX3002-5BL03-1AF0 |
| 7 meters | -1BH0 | 6FX3002-5BL03-1BH0 |
| 10 meters | -1BA0 | 6FX3002-5BL03-1BA0 |
| 15 meters | -1BF0 | 6FX3002-5BL03-1BF0 |
| 20 meters | -1CA0 | 6FX3002-5BL03-1CA0 |
🌟 Key Features & Benefits
High-density tinned copper braid blocks electromagnetic interference, ensuring clean power delivery to SIMODRIVE motors and preventing drive faults.
Engineered to withstand millions of bending cycles in cable carrier systems — eliminates power interruptions from conductor fatigue.
Upgraded heat/cold-resistant PVC enables continuous operation from -40°C to +105°C for harsh industrial environments.
Available in standard lengths from 3 to 20 meters (1AD0, 1AF0, 1BH0, 1BA0, 1BF0, 1CA0). Custom lengths available on request.
Meets VDE 0295 Class 5/6 standards, delivering superior flexibility and extended dynamic flex life.
Direct functional replacement for original Siemens 6FX3002-5BL03 series cables — same specifications, lower cost, faster delivery.
🏭 Typical Applications
- Siemens SINUMERIK 808D, 828D, 840D CNC systems
- Siemens SIMODRIVE 611, S120, V60, V80 servo motor power supply
- CNC machine tools (milling machines, lathes, routers, laser cutters, plasma tables)
- Industrial articulated robots, SCARA arms, and collaborative robots
- Automated production and assembly lines with drag chain cable tracks
- High-speed packaging equipment and pick-and-place systems
- Automated guided vehicles (AGVs) requiring continuous flexing
- Material handling systems and conveyor automation
• 6FX3002-5BL03-1AD0 = 3 meters
• 6FX3002-5BL03-1AF0 = 5 meters
• 6FX3002-5BL03-1BH0 = 7 meters
• 6FX3002-5BL03-1BA0 = 10 meters
• 6FX3002-5BL03-1BF0 = 15 meters
• 6FX3002-5BL03-1CA0 = 20 meters
✅ Why Choose Our 6FX3002-5BL03 Series?
This Siemens-compatible power cable surpasses generic alternatives by strictly adhering to VDE 0295 / IEC 60228 fine stranding standards and incorporating a true high-density tinned copper braided shield — not merely a foil wrapper. The result is superior power transmission efficiency, exceptional noise immunity, and significantly longer mechanical service life in demanding flexing applications. Available in multiple pre-configured lengths (3m, 5m, 7m, 10m, 15m, 20m) or fully customizable to your specifications. Each cable undergoes 100% testing for continuity, insulation resistance, and shield effectiveness before shipment.
📜 Standards & Certifications
- ✓ VDE 0295 / IEC 60228 (fine copper stranding)
- ✓ RoHS & REACH compliant (environmentally responsible)
- ✓ CE marking available upon request
- ✓ Oil, coolant, and abrasion resistance with TPU jacket option
- ✓ UL AWM styles possible for specific constructions
📞 Need a quote or custom power harness assembly?
Rapid quotations • 3–7 day lead time • Free technical consultation
Complete power harness services: custom connectors, overmolding, and 100% load testing. All standard lengths in stock. Custom lengths available.
