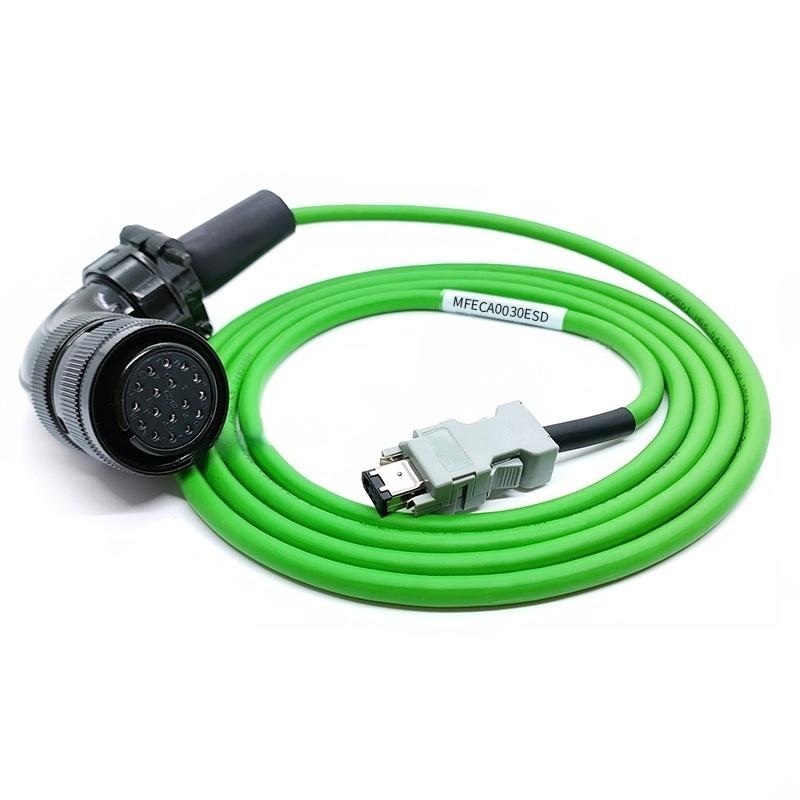

Panasonic Encoder Cable MFEC A00**ESD
High-Flex Servo Encoder Feedback Cable | Drag Chain Rated | Industrial Automation Grade
Panasonic Encoder Cable MFEC A00**ESD
High-Flex Servo Encoder Feedback Cable | Drag Chain Rated | Industrial Automation Grade
📌 Product Summary
Specifically designed for Panasonic MINAS servo systems, this encoder feedback cable (model MFEC A00**ESD) delivers clean, reliable signal transmission in demanding factory automation settings. Suited for both stationary wiring and continuous flexing motion in cable carriers, it excels in robotics, CNC machining centers, and high-speed automated equipment where precision feedback is critical.
⚙️ Technical Details
🌡️ Temperature Capabilities
| Mounting Scenario | Standard PVC Jacket | Heat/Cold-Resistant PVC |
|---|---|---|
| Fixed / Static Installation | -10°C to +80°C | -40°C to +105°C |
| Moving / Flexing Operation | -5°C to +80°C | -15°C to +105°C |
📐 Bend Radius Recommendations
| Installation Condition | Minimum Bending Radius |
|---|---|
| Permanent / Non-moving setup | 6 × outer diameter of cable |
| Reciprocating travel (distance < 10 m) | 7.5 × outer diameter of cable |
| Long-stroke flexing (distance ≥ 10 m) | 10 × outer diameter of cable |
🌟 What Makes This Cable Exceptional
High-density tinned copper braid locks out electrical noise, preserving encoder signal purity even near variable-frequency drives.
Built to endure millions of bending cycles in drag chains — no premature conductor breakage.
With upgraded PVC, functions from -40°C to +105°C for harsh industrial settings.
The “**” in MFEC A00**ESD = length in meters. Order precise lengths — reduce waste and cost.
Fine copper wires meet VDE 0295 Class 5/6, guaranteeing flexibility and long flex life.
Direct functional replacement for original Panasonic encoder cables at factory-direct pricing.
🏭 Typical Deployment
- Panasonic MINAS servo motor encoder feedback (A5 / A6 / A7 series compatible)
- Industrial articulated robots and SCARA arms
- CNC machine tools, routers, and laser profiling systems
- Drag chain cable management on automated production lines
- High-speed pick-and-place and packaging machinery
- Semiconductor fabrication and PCB assembly robots
✅ Why Source This MFEC A00**ESD From Us?
Not all encoder cables are created equal. Our version of the MFEC A00**ESD uses genuine VDE 0295 fine copper strands, a true high-coverage tinned copper braid (not just aluminum foil), and a flex-rated jacket compound proven in拖链 applications. You get original-equivalent electrical performance and mechanical durability — at a fraction of the brand-name cost. Every batch undergoes 100% continuity, insulation resistance, and shield effectiveness testing.
📜 Standards & Certifications
- ✓ VDE 0295 / IEC 60228 (fine copper stranding)
- ✓ RoHS & REACH compliant
- ✓ CE marking (available on request)
- ✓ UL AWM styles possible for certain jacket options
📞 Ready to order or need engineering support?
Fast quotes • 3–7 day lead time • Free technical consultation
We also offer complete wiring harness assembly — connectors, braiding, overmolding, and 100% functional testing.
