📋 Product Overview

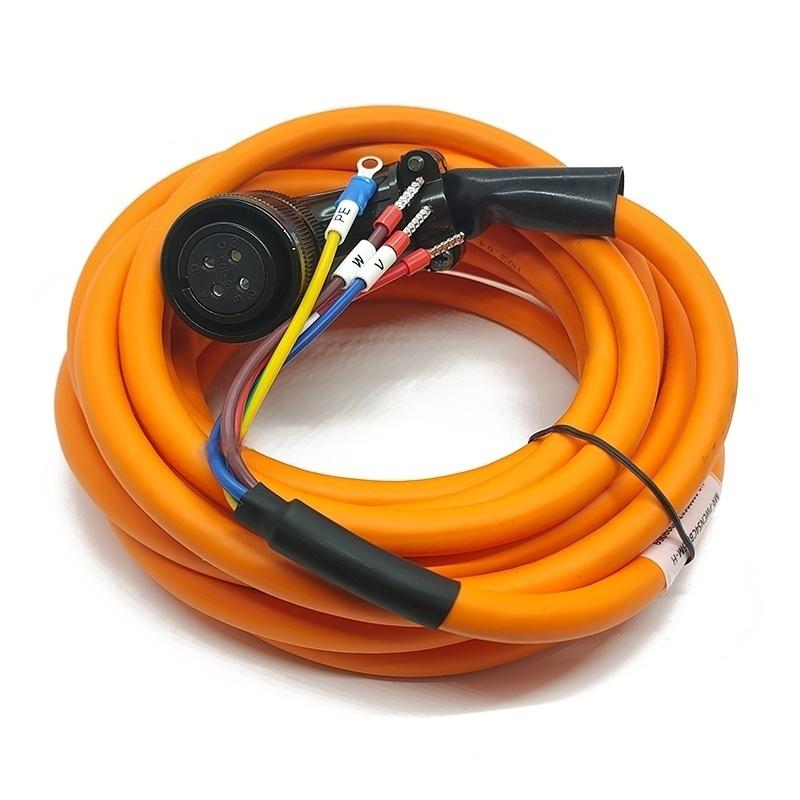

The Mitsubishi Power Cable MR-PWCNS4CBL*M-A1-H is a premium industrial power cable specifically engineered for Mitsubishi servo drive and motor systems. Designed for reliable power transmission in demanding automation environments, this cable supports both fixed installation and drag chain (flexible) installation, making it the ideal choice for robotics, CNC machinery, factory automation, and motion control applications.
🔧 Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | Mitsubishi MR-PWCNS4CBL*M-A1-H |
| Connector Type | Domestic brand (customizable upon request) |
| Wiring Method | Soldering |
| Conductor Stranding | Compliant with VDE 0295 / IEC 60228 (high flexibility class) |
| Shielding | High-density tinned copper braided shielding (≥85% optical coverage) |
| Sheath Material | PVC or TPU (optional, based on application requirements) |
| Sheath Color Options | Black RAL9005, Orange RAL2003, Green RAL6018 |
| Cable Type Options | Standard cable or Drag chain cable (continuous flex) |
🌡️ Operating Temperature Range
| Installation Type | Standard PVC | Heat & Cold Resistant PVC |
|---|---|---|
| Fixed Installation | -10°C to +80°C | -40°C to +105°C |
| Moving / Flexible Installation | -5°C to +80°C | -15°C to +105°C |
📐 Minimum Bending Radius
| Installation Type | Bending Radius (R) |
|---|---|
| Fixed Installation | 6 × cable outer diameter |
| Flexible Installation (travel distance < 10m) | 7.5 × cable outer diameter |
| Flexible Installation (travel distance ≥ 10m) | 10 × cable outer diameter |
⭐ Features & Benefits
- High-density tinned copper braided shielding – Provides exceptional EMI/RFI protection, ensuring stable power delivery even in electrically noisy environments.
- VDE 0295 / IEC 60228 compliant fine copper strands – Delivers superior flexibility and long-term bending durability.
- Drag chain rated (chain-flex design) – Engineered for millions of continuous bending cycles in cable carrier systems.
- Ultra-wide temperature range – From -40°C to +105°C with cold/heat-resistant PVC option.
- Fully customizable lengths – The “*M” in the model denotes length in meters; order exactly what you need.
- Choice of sheath materials – PVC for general purpose, TPU for superior abrasion and oil resistance.
- Color-coded options – Black, Orange, or Green sheath for easy line identification in complex machinery.
- Cost-effective OEM alternative – Direct functional equivalent to original Mitsubishi MR-PWCNS4CBL series at competitive pricing.
🏭 Typical Applications
- Mitsubishi servo motor power connections (MELSERVO J4 / J3 / J2 series compatible)
- Industrial robotics and automated assembly lines
- CNC machine tools and machining centers
- Drag chain cable track systems (continuous flexing)
- Packaging machinery and material handling equipment
- Factory automation (FA) lines requiring high-flex power cables
- Semiconductor manufacturing equipment
- Lithium battery and new energy production lines
✅ Why Choose Our MR-PWCNS4CBL*M-A1-H?
This power cable serves as a high-performance, cost-effective alternative to original Mitsubishi power cables. Unlike many generic options, our cable maintains strict adherence to VDE 0295 / IEC 60228 Class 6 stranding standards, ensuring superior flexibility and longer service life in dynamic applications. With dual insulation choices (PVC/TPU), high-density braided shielding, and drag chain certification, it delivers reliable power transmission even under continuous motion, tight bending, and extreme temperatures ranging from -40°C to +105°C.
Every cable undergoes rigorous electrical and mechanical testing before shipment, ensuring performance that meets or exceeds original specifications.
📞 Ready to order or need technical support?
We offer custom lengths, fast lead times (3-7 days), and competitive OEM/ODM wiring harness services for all Mitsubishi, Yaskawa, and industrial servo cable products.
