Servo Motor Shield Power Cable（2 million cycle times)
-
Suitable for assembly and pick-and-place equipment
-
Especially suitable for machine tools and transmission lines in damp areas
-
Applicable to virtually all assembly lines and production line equipment
-
Designed for use in power drag chains or with mechanically moving parts
-
Suitable for both indoor and outdoor environments
-
Suitable for EMC-sensitive environments
Common specifications:
4×0.5mm², 4×0.75mm², 4x1mm², 4×1.5mm², 4×2.5mm², 4x4mm²
Dados técnicos

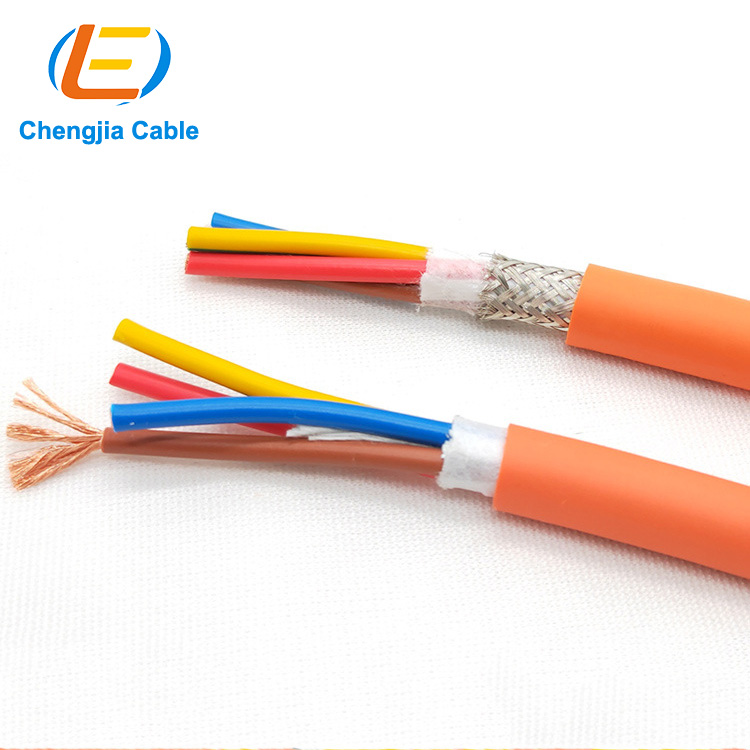

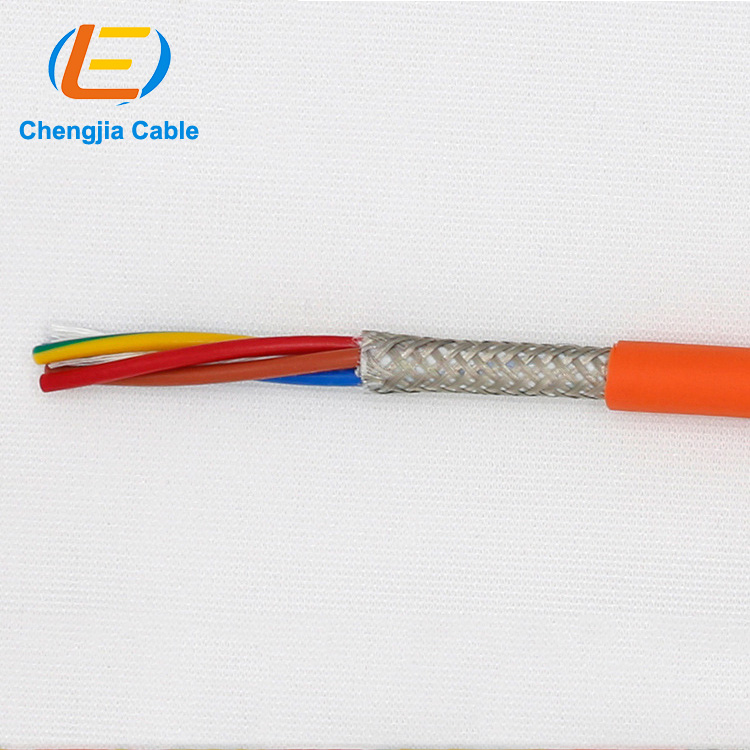

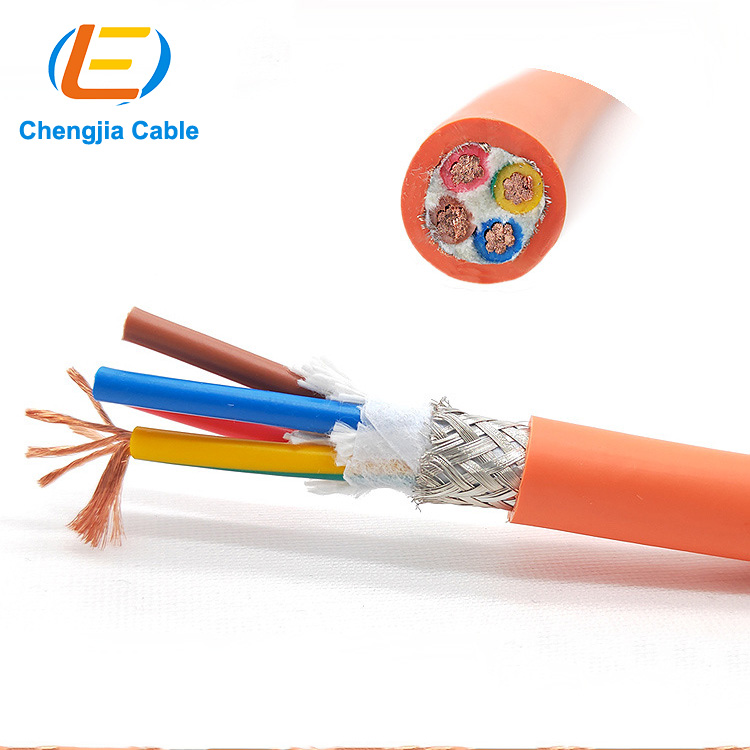

Structure:
●Bare copper conductor, fine copper wire Complies with DIN VDE 0295 Class 6 and IEC 60228 Class 6
●Isolamento especial de PVC
●Color-coded core wire identification
●Core wires twisted with optimal lay length stratification
●Yellow-green ground wire (for 3 cores and above)
●Improved tinned copper wire braiding shield
●Minimum overall shielding coverage of 80%
●Bainha externa especial de PVC
●Black color (RAL9005) matte finish
| produtos | Item | Model | Specification | OD | Cor | Mark |
| Flexible servo power cable with shield (2 million times reliability tests for drag chain) | 1 | YY08.02.0050 | 2*0.5mm2 | 5.6 | Preto | China standard core wire colors: blue, brown, red, yellow/green |
| 2 | YY08.04.0050 | 4*0.5mm2 | 6,5 | Preto | ||
| 3 | YY08.04.0075 | 4*0.75mm2 | 7.2 | Preto | ||
| 4 | YY08.04.0100 | 4*1.0mm2 | 7,8 | Preto | ||
| 5 | YY08.04.0150 | 4*1.5mm2 | 9 | Preto | ||
| 6 | YY08.04.0250 | 4*2.5mm2 | 11 | Preto | ||
| 7 | L-YY08.02.0050 | 2*0.5mm2 | 5.6 | Preto | UL standard core wire colors: black, white, red, yellow/green | |
| 8 | L-YY08.04.0050 | 4*0.5mm2 | 6,5 | Preto | ||
| 9 | L-YY08.04.0075 | 4*0.75mm2 | 7.2 | Preto | ||
| 10 | YY08.04.0130 | 4*1.3mm2 | 8.3 | Preto | ||
| 11 | YY08.04.0200 | 4*2.0mm2 | 10 | Preto | ||
| 12 | MC-YY08.04.0050 | 4*0.5mm2 | 6.3 | Preto | Gecko head power cord, UL printed, core Wire colors black, white, red, yellow/green |
|
| 13 | MC-YY08.06.2024 | 4*0.5+2*0.2 | 6.3 | Preto |
