YY06 Twisted Pair Encoder Servo Cable – 80% Double-Layer Shielding for Reliable Data Transmission
Double-Layer Shielding
Compatível com UL20276
1M+ Bending Cycles
Cost-Effective

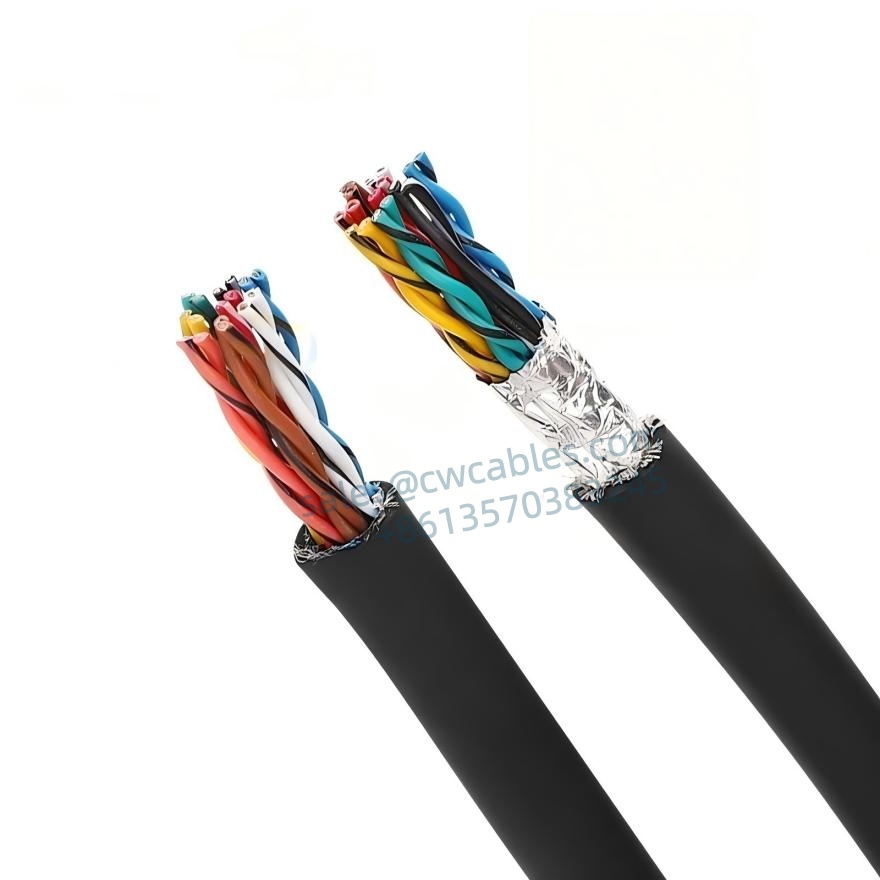

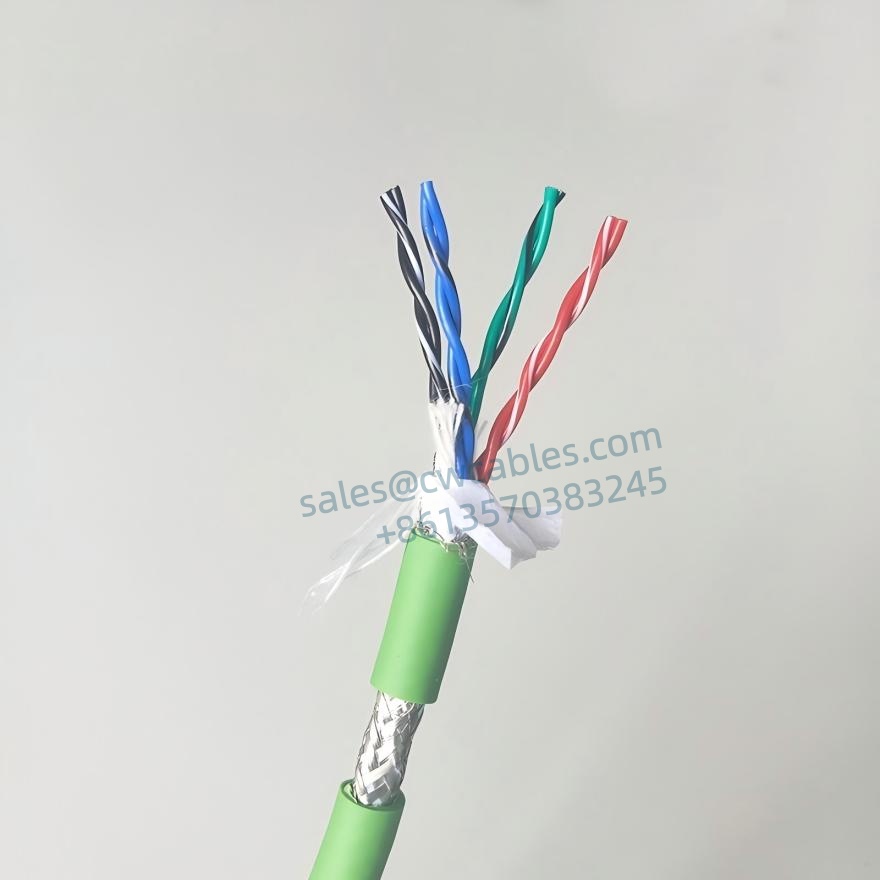

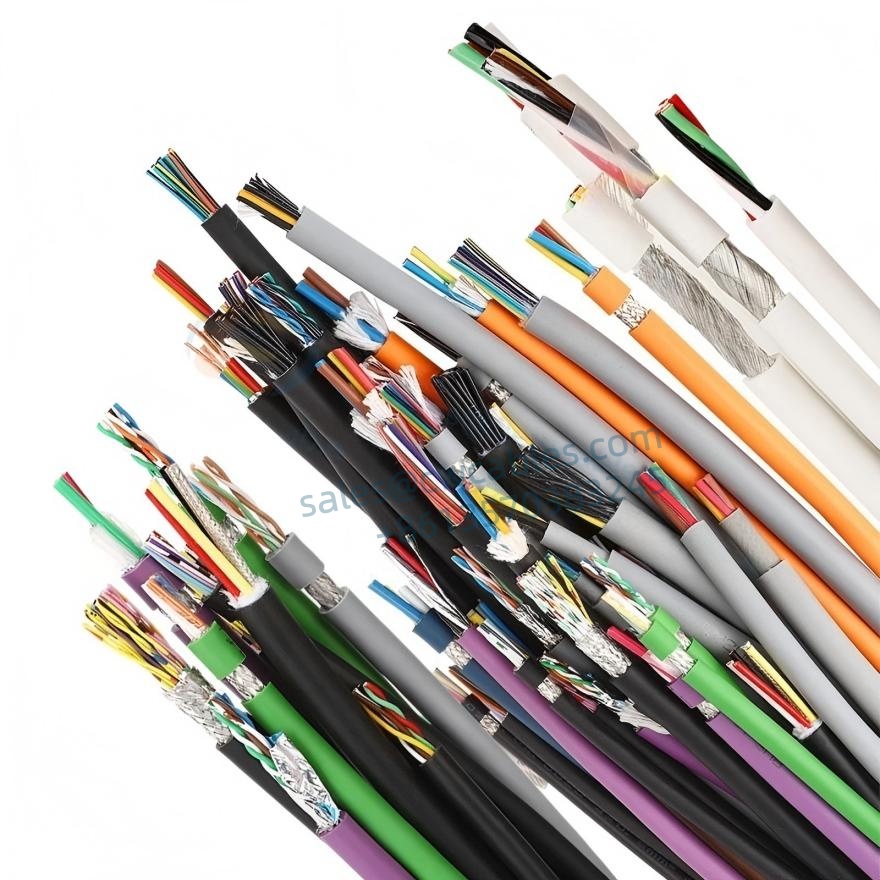

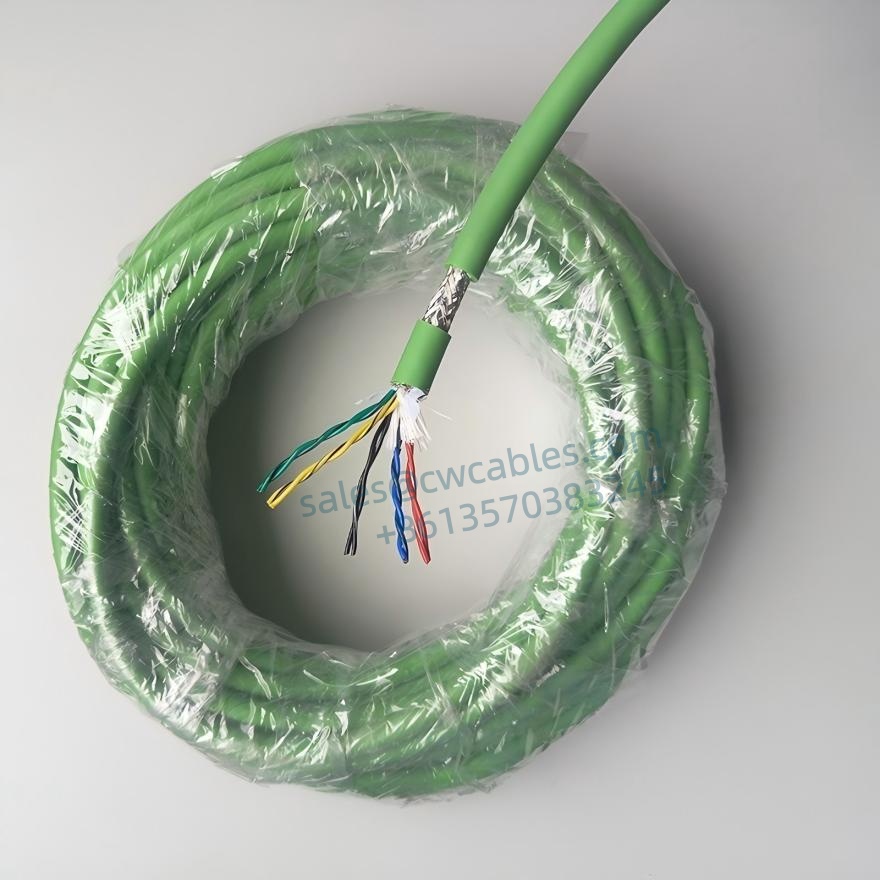

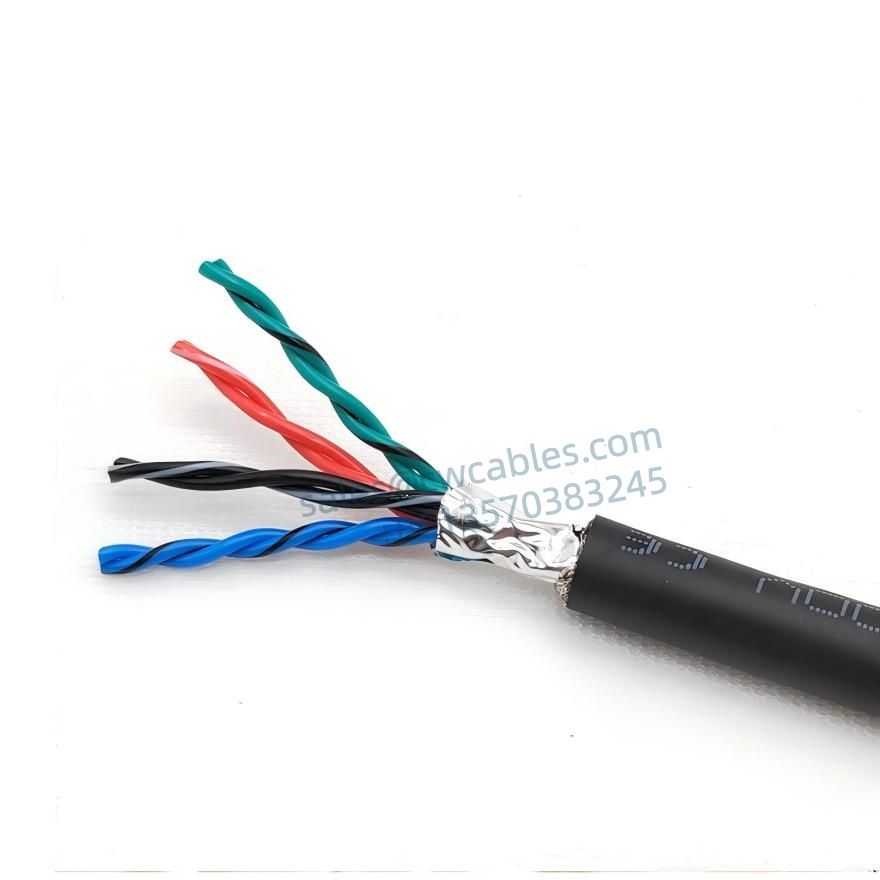

Twisted Pair Encoder Servo Cable Gallery
Twisted Pair Encoder Servo Cable Description
Cabo servo codificador de par trançado YY06 is a low-speed motion data transmission cable designed for long life and cost-effectiveness. The modified PVC material provides excellent wear resistance and stability, making it suitable for indoor applications.
Sheath Color: Black (RAL 9005) – Other colors available upon request (non-inventory products require customization).
Key Advantages: Fast delivery, cost-effective, long service life.
Technical Parameters – Twisted Pair Encoder Servo Cable
| Parâmetro | Especificação |
|---|---|
| Padrões e Conformidade | |
| Padrão | Em conformidade com o padrão UL20276, design de diâmetro de fio fino |
| Construção Elétrica | |
| Condutor | Fio trançado de cobre estanhado de alta qualidade |
| Material de isolamento | PVC modificado |
| Estrutura Central | Small pitch single stranding / Twisted pair |
| Reconhecimento de núcleo (<0,5 mm²) | Fios centrais coloridos |
| Reconhecimento de núcleo (≥0,5 mm²) | Fio terra amarelo-verde + fio central preto com números brancos |
| Tipo de blindagem | Double-layer: Tinned copper braid + Aluminum foil |
| Cobertura de blindagem | Minimum 80% |
| Propriedades Mecânicas | |
| Material da bainha externa | PVC modificado |
| Cor da bainha | Black (RAL 9005) – Other colors customizable |
| Bending Radius (Moving) | ≥7.5 × cable outer diameter |
| Bending Radius (Fixed) | ≥6 × cable outer diameter |
| Ciclo de vida de flexão | 1 million+ periodic bends |
| Propriedades Elétricas | |
| Tensão Nominal | Uo/U 300/300 V |
| Tensão de teste | 1500V |
| Formulários | |
| Aplicativo | Fixed installation of mechanical equipment and machine tools, occasional mobile applications. Encoder and servo systems, analog/digital signal transmission in control processors, instrument and control device connections. |
Twisted Pair Encoder Servo Cable – Construction Details
1. Condutor: Cobre estanhado (menos de 0,5 mm²) ou cobre nu (0,5 mm² e superior) – Fio de cobre ultrafino, compatível com DIN VDE0295 Classe 6 e IEC 60228 Classe 6
2. Special PVC insulation for excellent electrical properties
3. Color core wire identification (for less than 0.5mm²)
4. Black core wire with continuous white digital code (for 0.5mm² and above)
5. Wire core stranded in layers with optimal pitch for signal integrity
6. Double-layer shielding: Improved tinned copper wire braided shield + Aluminum foil
7. Minimum comprehensive shielding coverage: 80%
8. Special PVC outer sheath – Black (RAL 9005) matte finish
9. Abrasion-resistant and wear-resistant design for long service life
YY06 Encoder Servo Cable – Model Specifications
Complete list of YY06 series twisted pair encoder servo cables. Quantidade mínima: 1 metro. Bainha externa PUR disponível em 400m MOQ.
0.14mm² Series – Twisted Pair Construction
| Não. | Código do produto | Cores × Pairs × mm² | Aprox. Diâmetro Externo (mm) | Cor da bainha | Resistência CC de 20°C (Ω/km) |
|---|---|---|---|---|---|
| 1 | AA06.04.0014 | 2×2×0.14 | 5.5 | Preto | 150 |
| 2 | AA06.06.0014 | 3×2×0.14 | 5.6 | Preto | 150 |
| 3 | AA06.08.0014 | 4×2×0.14 | 6.2 | Preto | 150 |
| 4 | AA06.10.0014 | 5×2×0.14 | 6.8 | Preto | 150 |
| 5 | AA06.12.0014 | 6×2×0.14 | 7,0 | Preto | 150 |
| 6 | AA06.14.0014 | 7×2×0.14 | 7,5 | Preto | 150 |
| 7 | AA06.16.0014 | 8×2×0.14 | 7,8 | Preto | 150 |
| 8 | AA06.20.0014 | 10×2×0.14 | 8,5 | Preto | 150 |
| 9 | AA06.26.0014 | 13×2×0.14 | 9.3 | Preto | 150 |
0.20mm² Series – Twisted Pair Construction
| Não. | Código do produto | Cores × Pairs × mm² | Aprox. Diâmetro Externo (mm) | Cor da bainha | Resistência CC de 20°C (Ω/km) |
|---|---|---|---|---|---|
| 10 | AA06.04.0020 | 2×2×0.2 | 5.6 | Preto | 95 |
| 11 | AA06.06.0020 | 3×2×0.2 | 6,0 | Preto | 95 |
| 12 | AA06.08.0020 | 4×2×0.2 | 6.8 | Preto | 95 |
| 13 | AA06.10.0020 | 5×2×0.2 | 7.2 | Preto | 95 |
| 14 | AA06.12.0020 | 6×2×0.2 | 7.6 | Preto | 95 |
| 15 | AA06.14.0020 | 7×2×0.2 | 8,0 | Preto | 95 |
| 16 | AA06.16.0020 | 8×2×0.2 | 8,5 | Preto | 95 |
| 17 | AA06.20.0020 | 10×2×0.2 | 9.2 | Preto | 95 |
0.30mm² Series – Twisted Pair Construction
| Não. | Código do produto | Cores × Pairs × mm² | Aprox. Diâmetro Externo (mm) | Cor da bainha | Resistência CC de 20°C (Ω/km) |
|---|---|---|---|---|---|
| 18 | AA06.04.0030 | 2×2×0.3 | 6.2 | Preto | 71,2 |
| 19 | AA06.06.0030 | 3×2×0.3 | 6.6 | Preto | 71,2 |
| 20 | AA06.08.0030 | 4×2×0.3 | 7.3 | Preto | 71,2 |
| 21 | AA06.10.0030 | 5×2×0.3 | 7,8 | Preto | 71,2 |
Configurações Adicionais Disponíveis
Configurações personalizadas disponíveis mediante solicitação, incluindo:
- Non-twisted multi-core series: 2-50 cores in 0.14mm², 0.2mm², 0.3mm², 0.5mm²
- Twisted pair series: 1×2, 2×2, 3×2, 4×2, 5×2, 6×2, 7×2, 8×2, 10×2, 12×2, 13×2, 16×2, 20×2 pairs
- Cores da bainha: Custom colors available (non-inventory, requires customization)
- Bainha externa PUR: Resistência química e à abrasão aprimorada (MOQ 400m)
Double-Layer Shielding Technology
🔒 Tinned Copper Braid Shield – Provides excellent EMI/RFI protection, reduces oxidation, ensures long-term reliability
🔒 Aluminum Foil Layer – Adds additional shielding effectiveness, particularly for high-frequency interference
🔒 80% Minimum Coverage – Reduces interference during use, ensures clean signal transmission
🔒 Reduced Oxidation – Tinned copper construction prevents corrosion and maintains conductivity
📦 Informações para pedidos:
- MOQ: 1 metro para bainha de PVC padrão
- Bainha externa PUR: MOQ 400 metros
- Custom sheath colors (non-black): Requires customization (non-inventory)
- Custom lengths, packaging, and conductor sizes available upon request
- Fast delivery and cost-effective pricing
