YY1001 TRVV Ultra High Flexible Control Drag Chain Cable – 20M+ Bending Cycles for High-Speed Automation
RoHS Compliant
Ultra Alta Flexível
Drag Chain Rated
TRVV Ultra high flexible control drag chain cables Description
YY1001 TRVV Ultra High Flexible Control Drag Chain Cables are engineered for the most demanding motion control applications. These cables are specifically designed for mechanical equipment, machine tools, high-load systems, and high-flexible high-speed drag chain bending environments.
Key performance highlights:
- Ultra-high flexibility – Uses specially modified insulation and outer sheath materials
- Durabilidade excepcional – Withstands long-term acceleration, deceleration, stretching, and compression stress
- Industry-leading cycle life – Supports 10 million to over 20 million periodic bending cycles while maintaining high stability
- High abrasion & medium resistance – Ideal for harsh industrial environments
Whether you’re operating high-speed pick-and-place systems, CNC machine tools, or automated production lines, the TRVV cable delivers reliable performance under continuous flexing.

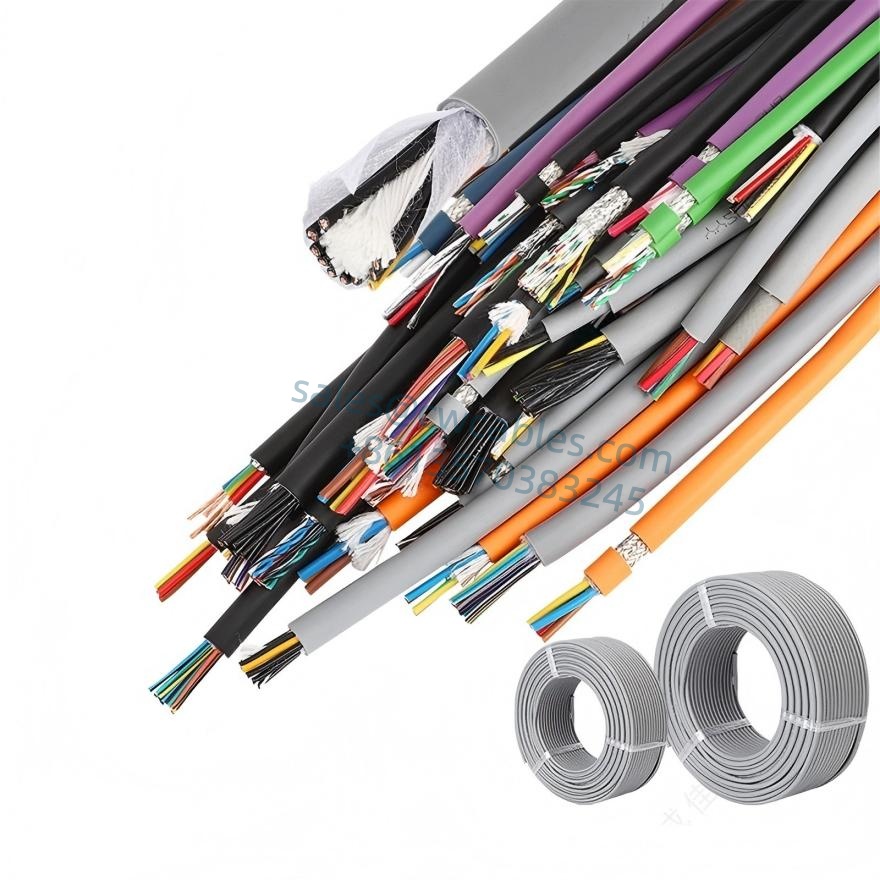

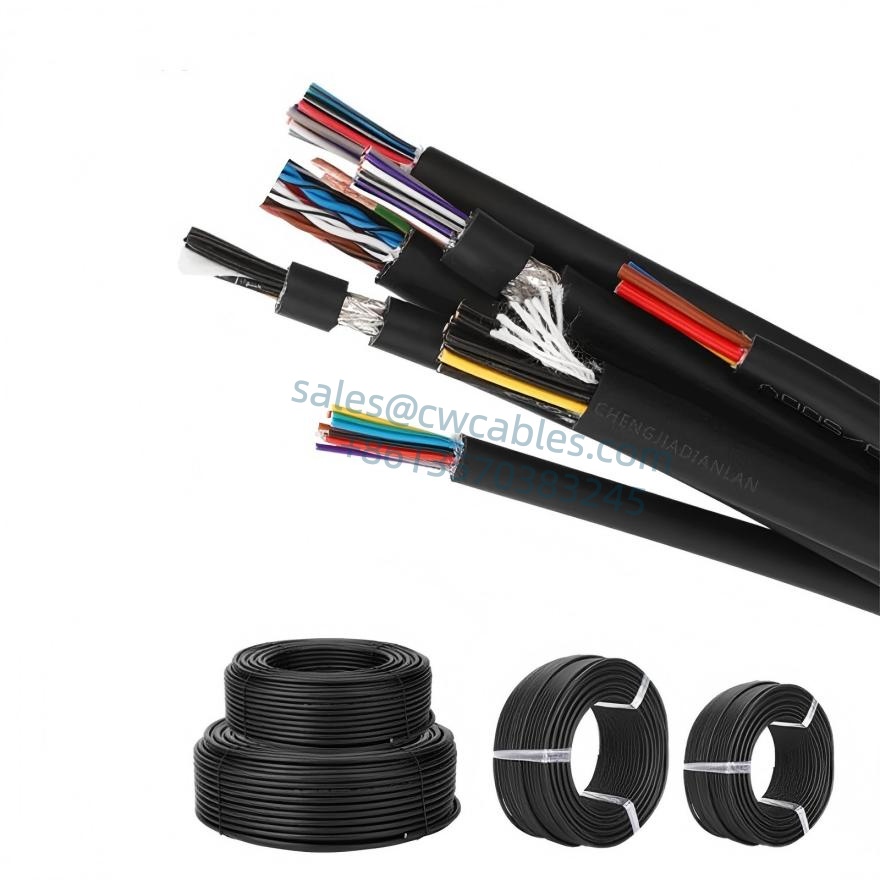

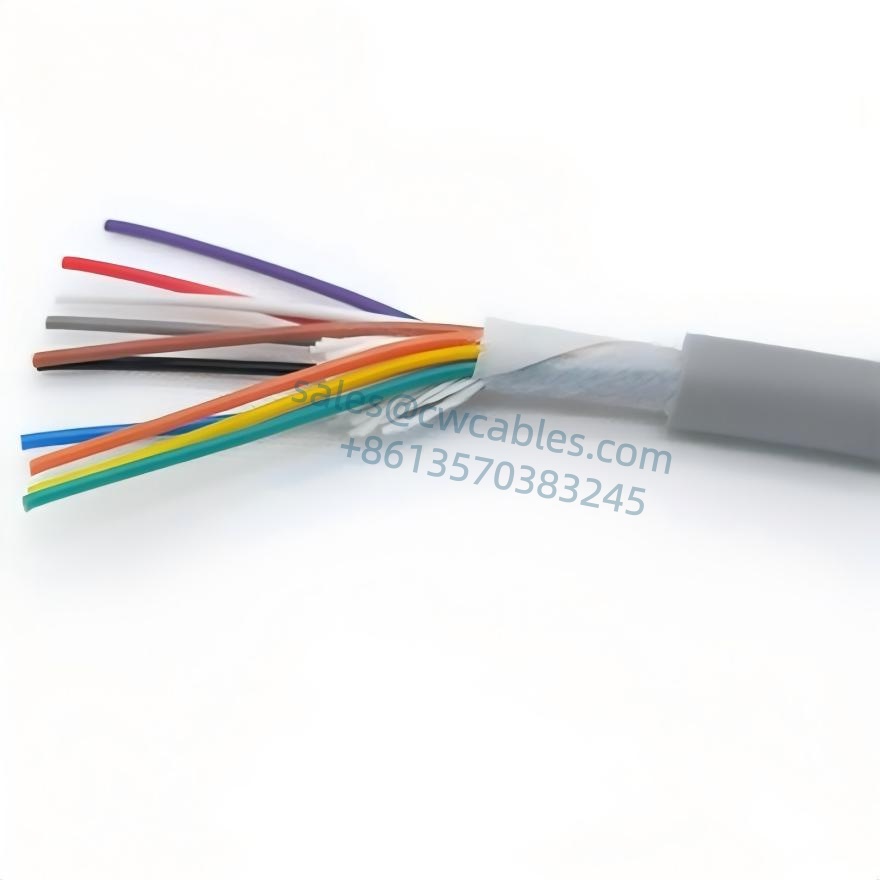

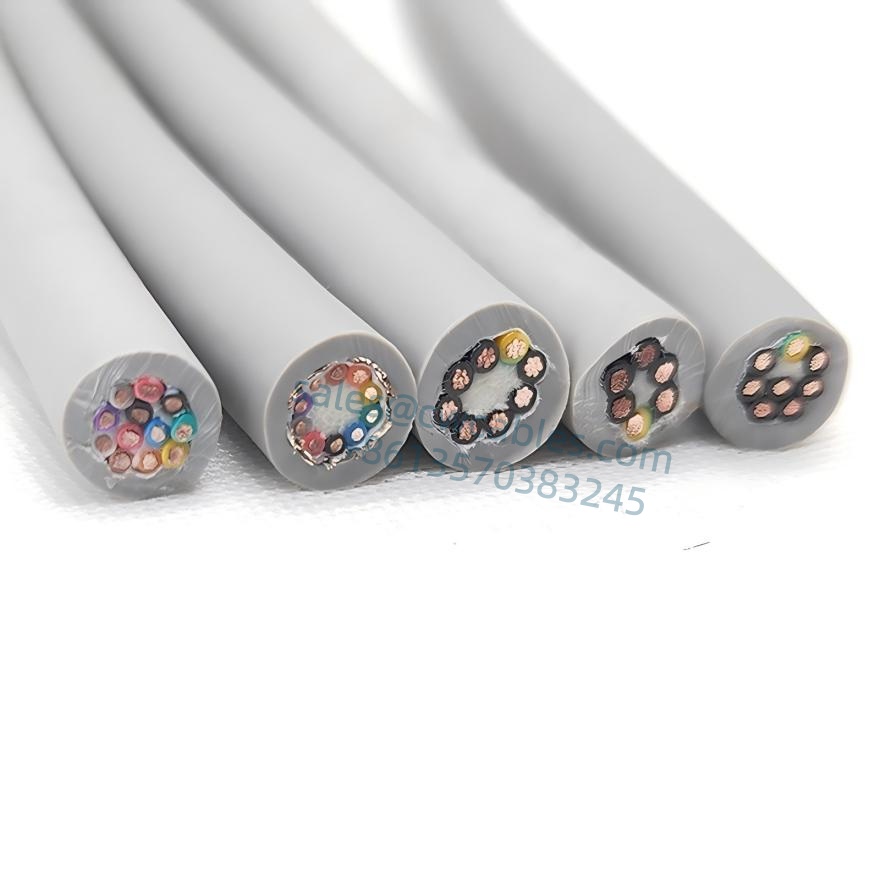

TRVV Ultra high flexible control drag chain cables Gallery
TRVV Ultra High Flexible Control Drag Chain Cables – Key Features
✓ Ultra-high flexibility – Optimized for continuous high-speed drag chain bending
✓ Modified PVC insulation & sheath – Enhanced durability and oil resistance
✓ Tinned copper conductor – High-quality stranded copper for reliable signal transmission
✓ Short twisted pitch design – Reduces signal interference and improves flexibility
✓ Temperature resistant – Mobile: -5°C to +70°C / Fixed: -15°C to +80°C
✓ Abrasion & media resistant – Suitable for harsh industrial environments
✓ RoHS & REACH compliant – Environmentally friendly materials
Packaging Information
| Packaging Type | Details |
|---|---|
| Standard Packaging | Plastic reel + carton box |
| Custom Packaging | Available upon request |
| Labeling | Product code, specification, length mark |
Technical Parameters of TRVV Ultra high flexible control drag chain cables
| Parâmetro | Especificação |
|---|---|
| Padrão | Cumpra os regulamentos RoHS e REACH da UE |
| Condutor | High-quality tinned copper stranded wire, ultra-fine copper wire |
| Conductor Standard | DIN VDE0295 Class 6 / IEC 60228 Class 6 |
| Material de isolamento | PVC especial com alta flexibilidade |
| Faixa de temperatura (móvel) | -5°C a +70°C |
| Faixa de temperatura (fixa) | -15°C a +80°C |
| Resistência de Isolamento | Minimum 20 MOhm × km |
| Bainha Externa | Modified PVC, Gray (RAL 7001) matte |
| Raio de curvatura mínimo (móvel) | 7,5 × diâmetro do cabo |
| Raio de curvatura mínimo (fixo) | 6 × diâmetro do cabo |
| Tensão Nominal | Uo/U 300/300 V |
| Tensão de teste | 1500V |
| Ciclo de vida de flexão | 10 million to 20+ million cycles |
| Aplicativo | Continuous ultra-high flexibility and high-speed drag chain bending for mechanical equipment, machine tools, high-load automation systems |
TRVV Ultra high flexible control drag chain cables – Construction Details
1. Bare copper conductor, ultra-fine copper wire – Compliant with DIN VDE0295 Class 6 and IEC 60228 Class 6
2. Special PVC insulation for high flexibility and electrical performance
3. Core identification: Black core wire with continuous white digital code; Yellow-green ground wire on outer layer (3 cores and above)
4. Núcleo de fio trançado em camadas com passo ideal para máxima flexibilidade
5. Revestimento externo especial em PVC – acabamento fosco cinza (RAL 7001)
6. Abrasion-resistant and oil-resistant design for drag chain environments
TRVV Ultra high flexible control drag chain cablesModels & Specifications
Complete model list for YY1001 TRVV ultra high flexible control drag chain cables:
| Model Code | Núcleos × mm² | Aprox. Diâmetro Externo (mm) | Cor da bainha | Bending Radius (Mobile) | Temp. Range (°C) |
|---|---|---|---|---|---|
| TRVV-2×0.14 | 2×0,14 | 4,0 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-3×0.14 | 3×0,14 | 4.2 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-4×0.14 | 4×0,14 | 4,5 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-5×0.14 | 5×0,14 | 4.8 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-6×0.14 | 6×0,14 | 5.2 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-8×0.14 | 8×0,14 | 5.5 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-10×0.14 | 10×0,14 | 6.4 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-12×0.14 | 12×0,14 | 6,5 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-16×0.14 | 16×0,14 | 7.2 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-20×0.14 | 20×0,14 | 7,8 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-2×0.2 | 2×0,2 | 4.4 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-3×0.2 | 3×0,2 | 4.6 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-4×0.2 | 4×0,2 | 4.9 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-5×0.2 | 5×0,2 | 5.2 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-6×0.2 | 6×0,2 | 5.6 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-8×0.2 | 8×0,2 | 6,0 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-10×0.2 | 10×0,2 | 6.8 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-12×0.2 | 12×0,2 | 7,0 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-16×0.2 | 16×0,2 | 7.6 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-20×0.2 | 20×0,2 | 8,5 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-2×0.3 | 2×0,3 | 4.6 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-3×0.3 | 3×0,3 | 4.8 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-4×0.3 | 4×0,3 | 5.1 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-5×0.3 | 5×0,3 | 5.5 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-6×0.3 | 6×0,3 | 6,0 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-8×0.3 | 8×0,3 | 6.4 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-10×0.3 | 10×0,3 | 7.2 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-12×0.3 | 12×0,3 | 7,5 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-16×0.3 | 16×0,3 | 8.4 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
| TRVV-20×0.3 | 20×0,3 | 9,0 | Gray (RAL 7001) | 7.5×D | -5 to +70 |
