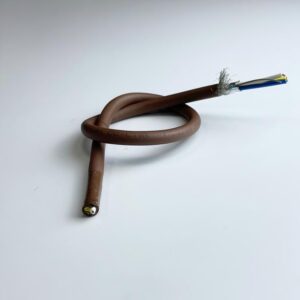

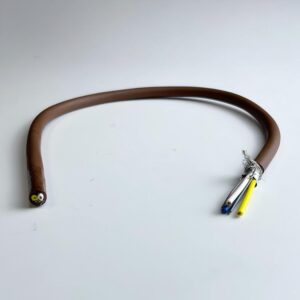

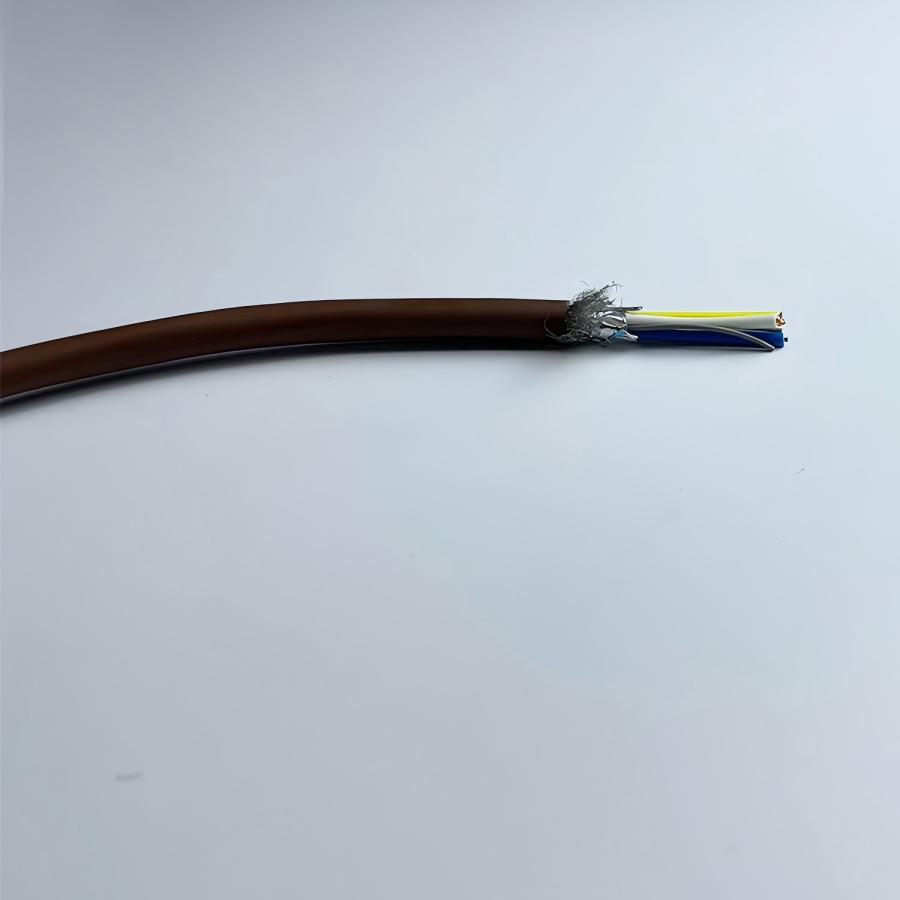

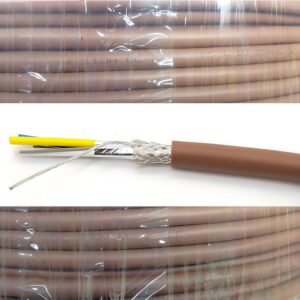

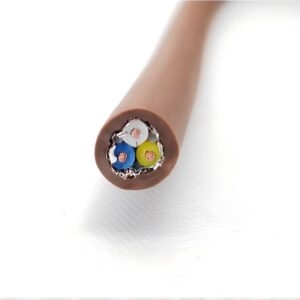

CC-Link Network Robot FieldLink Cable 3XAWG20 PVC/TPU Sheath
This high-flexibility bus cable is designed for data transmission in CC-Link bus systems, specifically for applications requiring high flexibility. It features a special structural design and modified outer jacket material, providing excellent resistance to wear and media. It can withstand long-term acceleration, deceleration, stretching, and compression stresses, as well as millions of cycles of periodic bending.
Parâmetro técnico
● Special PVC sheath, highly flexible.
● Está em conformidade com as especificações do cabo de barramento.
● Temperature range: For mobile installation: -5°C to +70°C For fixed installation: -15°C to +80°C
● Nominal voltage: 50V
● Test voltage: 500V
● Insulation resistance: Minimum 20 MOhm x km
● Minim um bending radius: For mobile installation: 14 times cable diameter For fixed installation: 7 times cable diameter
● Complies with EU RoHS and Reach regulations
| CC-LINK BUS CABLE ( 2/5 million times reliability tests for drag chain) | ||||
| Não. | Código do produto | Número de núcleos e área transversal | Diâmetro externo aproximado (mm) | Cor da bainha externa |
| (NO.Xm㎡) | ||||
| 1 | BUS-HY02.03.0050 | 3×0.50 | 7.9 | Brown |
| 2 | BUS-HY502.03.0050 | 3×0.50 | 9,0 | Blue |
PUR (available) has oil resistance, high abrasion resistance, UV resistance, acid and alkali resistance, chemical corrosion resistance, and resistance to various lubricants.
PUR (available) is resistant to low temperature, especially strong, impact-resistant, and can be selected for hydrolysis resistance.
Special models with customized conductor cross-sectional area, material, shielding, different colored cores, and other specifications of the sheath can be customized according to requirements.
