YY2001 Ultra High Flexible Ultra High Speed Drag Chain TRVV Towline Cable Bending Resistance
Explanation of cable load capacity:

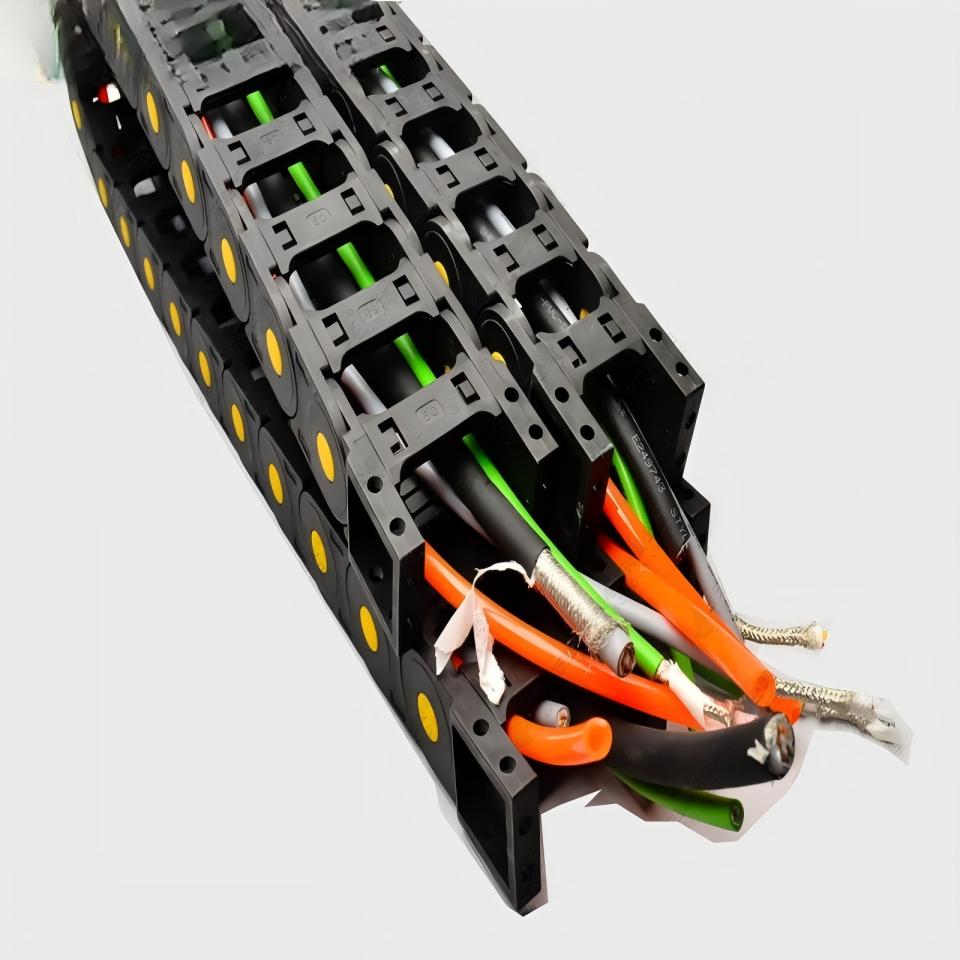

In long-travel drag chain applications, due to the weight of the cable itself and the stress generated during high-speed movement of the drag chain, as well as the limited freedom of cable installation in long-travel drag chains, the cable itself needs to withstand significant tensile forces. The longer the travel distance of the drag chain, the greater the forces applied, thus requiring higher load capacity for the cable
High Load: Suitable for applications with drag chain travel distances up to 100 meters, with high load capacity. Examples include the 20 million cycle YY2001, YY2002, YY2006 series with PVC sheathing.
Very High Load: Suitable for applications with drag chain travel distances up to 200 meters, with extremely high load capacity. Examples include the 20 million cycle YP2001, YP2002, YP2006 series with PUR sheathing.
애플리케이션
● The conductor is made up of ultra-fine copper wires (less than 0.08mm) twisted together, while conductors above 0.5mm are grouped together.
● The cable adopts a compacted structure, resulting in a relatively firm feel compared to a wrapped structure.
● It has good rigidity and strong load capacity. It is wear-resistant and moderately oil-resistant.
● Under normal installation and usage conditions, the service life can exceed 20 million cycles, making it suitable for use in high-speed motion drag chains.
It is particularly well-suited for use in large equipment such as CNC machines where high-speed bending in drag chains is required.
기술 데이터
● Special PVC sheath with special structure, featuring ultra-high flexibility.
● Complies with TUV 2 PfG 2577 Class II requirements.
● Temperature range: For mobile installation: -5°C to +70°C. For fixed installation: -15°C to +80°C.
● Nominal voltage Uo/U 300/300V.
● Test voltage: 1500V.
● Insulation resistance: Minimum 20 MOhmxkm.
● Minimum bending radius:For mobile installation: 6 times the cable diameter. For fixed installation: 4 times the cable diameter.
● Complies with EU RoHS and Reach regulations.
●Oil resistance: Medium oil resistance
● EU RoHS 및 Reach 규정을 준수합니다.
● Flame retardant, compliant with IEC 60332-1、CEI 20-35、FT1、VW-1

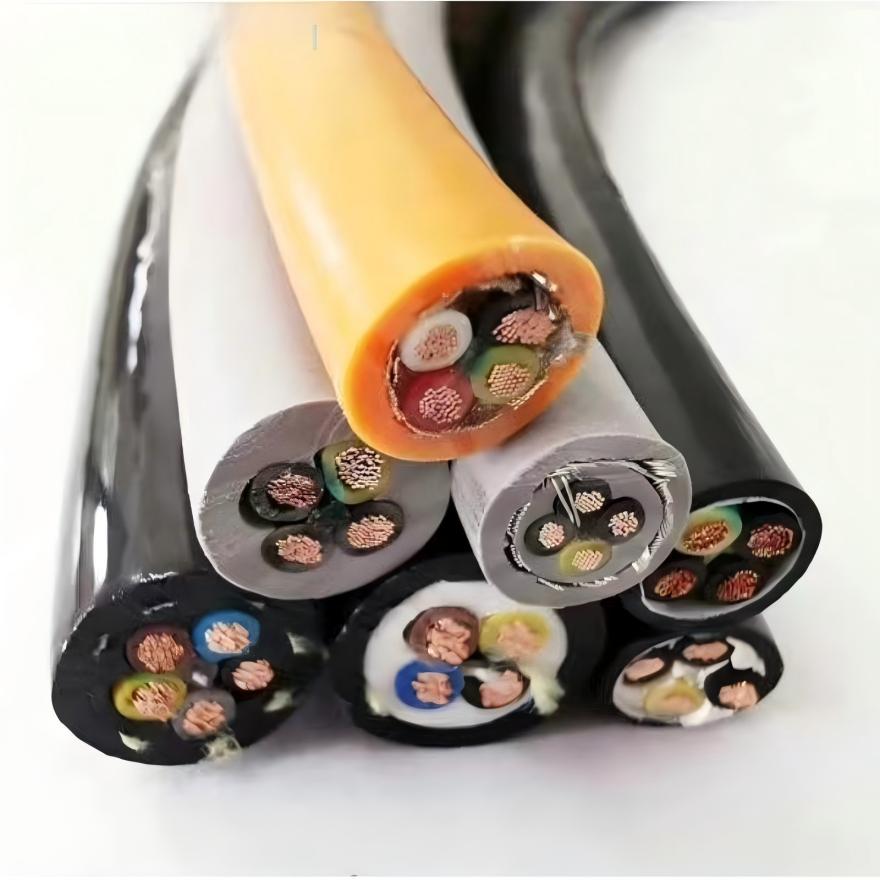

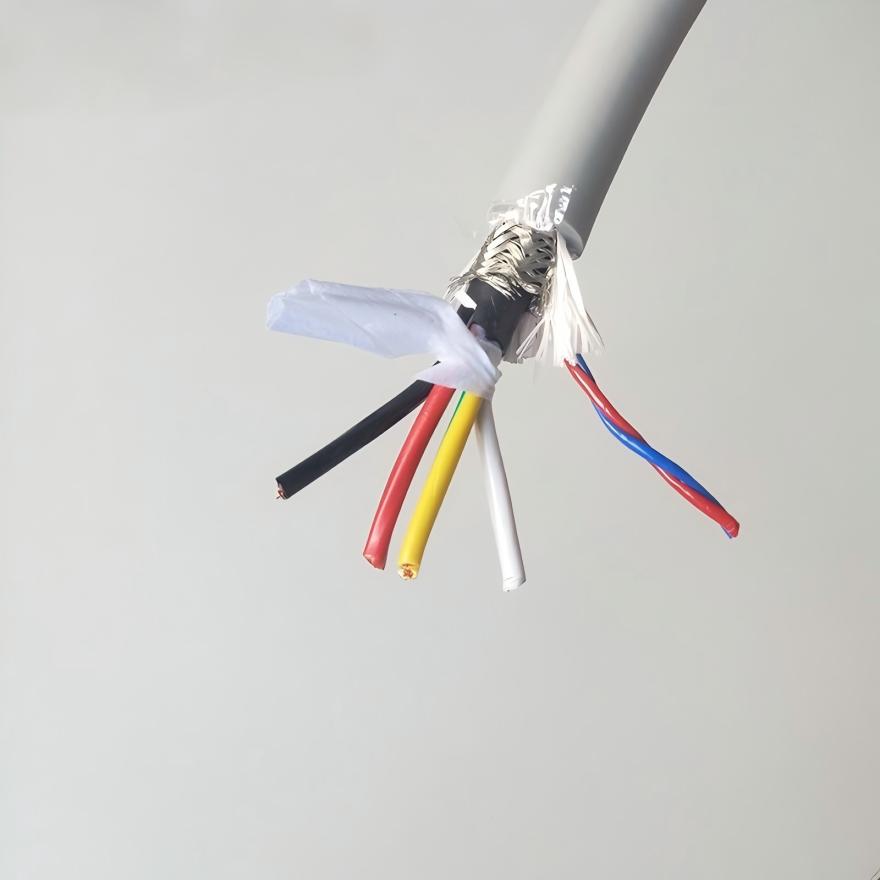

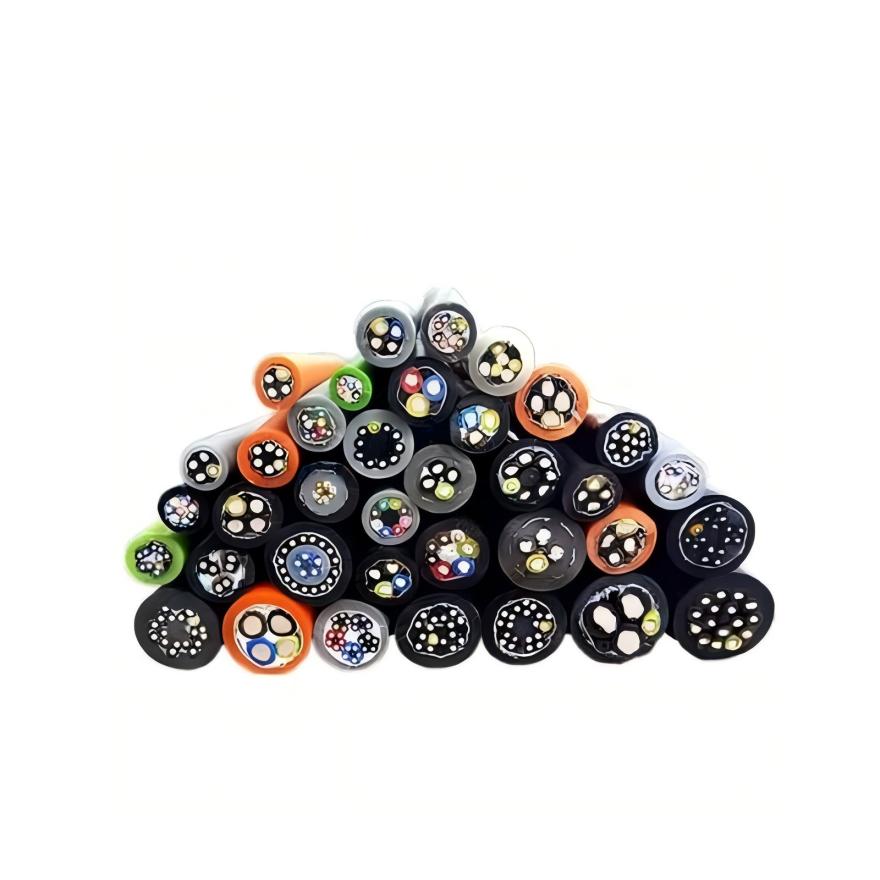

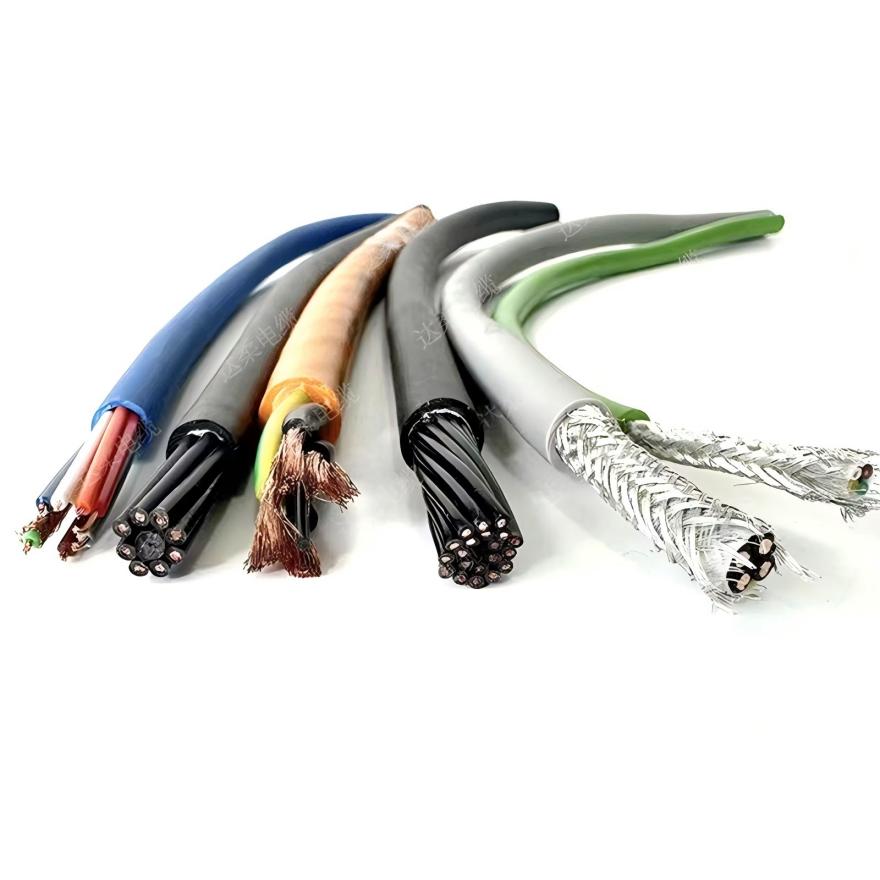

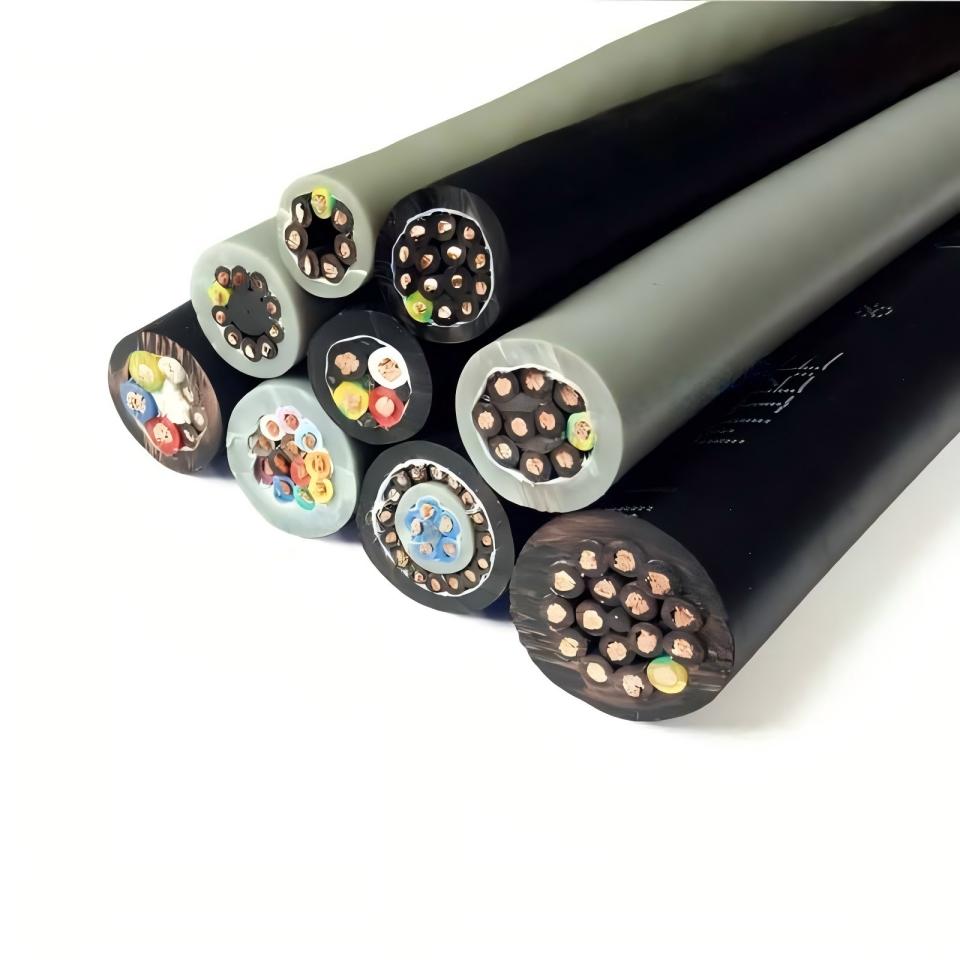

케이블 구조
● Tinned copper (below 0.5mm²) or bare copper (0.5mm² and above) conductors, ultra-fine copper wire, compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6.
●특수 PVC 단열재.
●Color-coded cores (below 0.5mm²).
●Black cores with continuous white numeric marking (0.5mm² and above), with yellow-green grounding wire on the outer layer (3 cores and above).
●Optimal pitch twisted cores (12 cores and above), layered twisted below 12 cores.
● Low viscosity, oil-resistant PVC-based composite material
● Grey or color can be customized according to customer requirements.
YY2001 ULTRA HIGH FLEXIBLE ULTRA HIGH SPEED DRAG CHAIN CONTROL CABLE(HIGHLOAD) ( 20 million times reliability tests for drag chain) | ||||
아니요. | 제품 코드 | 코어 수 및 단면적 | 대략적인 외경(mm) | 외피 색상 |
(NO.Xm㎡) | ||||
1 | YY2001.02.0050 | 2×0.5 | 5.2 | 회색 |
2 | YY2001.04.0050 | 4G0.5 | 5.8 | 회색 |
삼 | YY2001.05.0050 | 5G0.5 | 6.3 | 회색 |
4 | YY2001.07.0050 | 7G0.5 | 7.3 | 회색 |
5 | YY2001.12.0050 | 12G0.5 | 10.7 | 회색 |
6 | YY2001.18,0050 | 18G0.5 | 12.8 | 회색 |
7 | YY2001.04.0075 | 4G0.75 | 6.5 | 회색 |
8 | YY2001.07.0075 | 7G0.75 | 8.3 | 회색 |
G=는 황록색 접지선을 나타냅니다. 더 많은 사양이나 특별한 맞춤형 제품에 대해서는 당사 제품 컨설턴트에게 문의하십시오.
It is recommended to split the high-speed drag chain cable with 20 cores or more into two separate cables.
For the cables ordered by the coil above, the minimum order quantity for cables with PUR sheath type is 400 meters.
