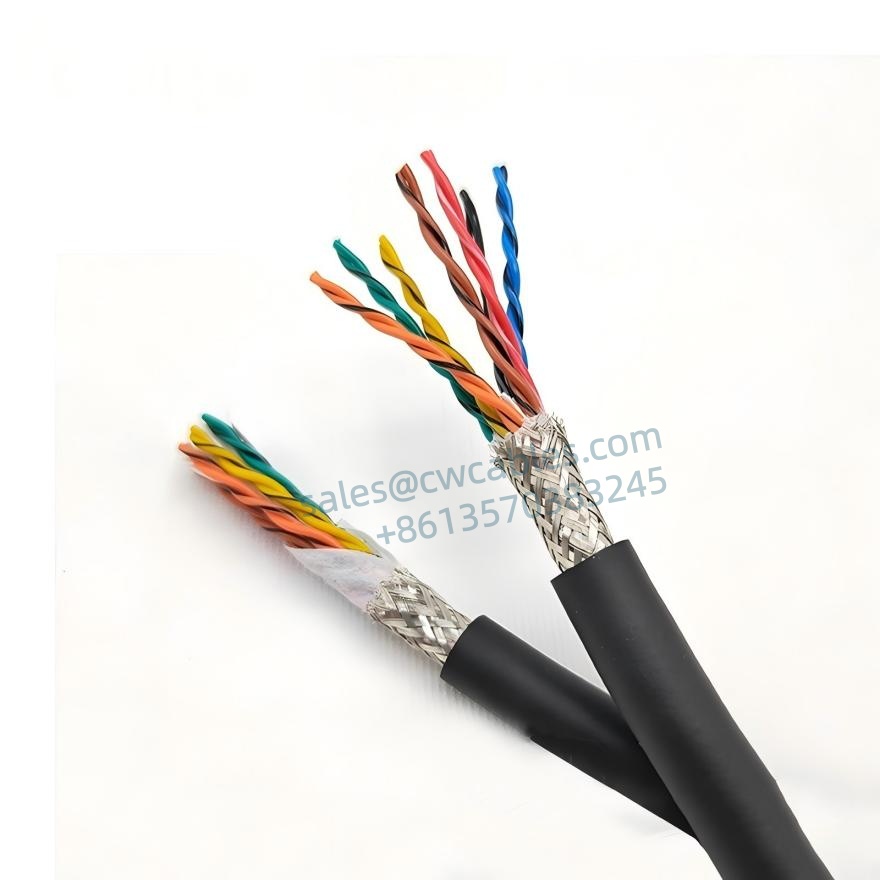

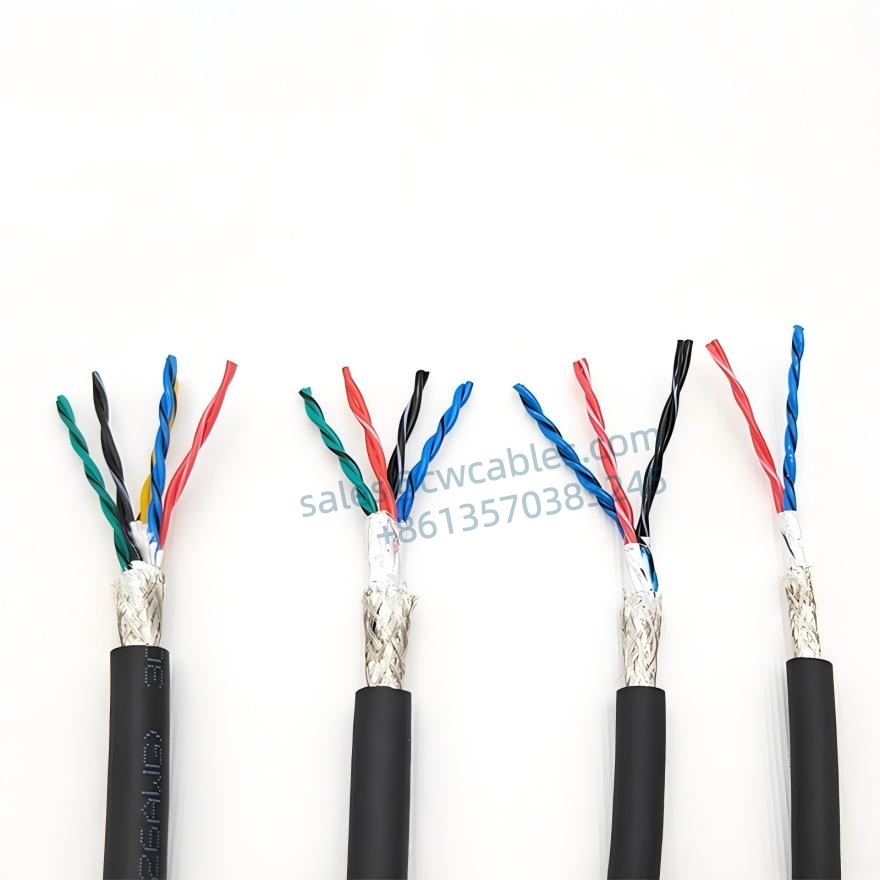

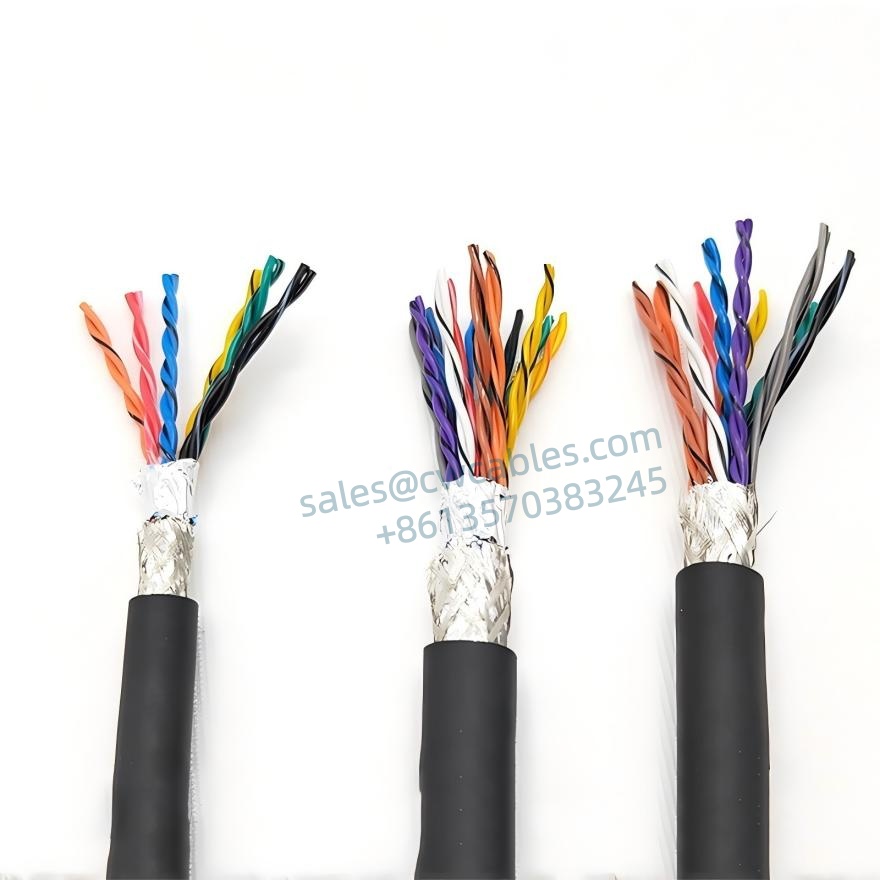

YY06 3X2X0.20mm²(24AWG) 차폐 3쌍 연선 데이터 케이블
This Shielded 3 Pair Twisted Data Cable is particularly suitable for fixed installations or occasional mobile applications in mechanical equipment and machine tools.
It is made with specially modified insulation and sheath materials, providing excellent resistance to abrasion and chemicals. It can withstand frequent bending and
movement while maintaining stable and reliable performance.
| 모델 | 심수 및 단면적(MM²) | 와이어 색상 | MOQ |
| YY06 FLEXIBLE DATA CABLE | 0.14 | 30 colors, According to the product catalog, The first 30 colors specified by the color regulations. |
For the specifications of 2P, 3P, 4P, 5P, 6P, 7P, 8P, and 10P, the minimum order quantity is one roll, which is 1000 meters. For other specifications within 15P, the minimum order quantity is 1000 meters. For specifications above 15P, the minimum order quantity is 3000 meters. |
| 0.2 | For the specifications of 2P, 3P, 4P, 5P, 6P, 7P, 8P, and 10P, the minimum order quantity is one roll, which is 1000 meters. For other specifications within 15P, the minimum order quantity is 1000 meters. For specifications above 15P, the minimum order quantity is 3000 meters. |
||
| 0.3 | For specifications 1P, 2P, 3P, 4P, 5P, 6P, 7P, 8P, 10P, and 13P, the minimum order quantity is one roll. For other specs within 15P, the minimum order quantity is 1000 meters. For specs above 15P, the minimum order quantity is 3000 meters |
||
| 0.5 | For specifications 2P, 3P, and 4P, the minimum order quantity is one roll. For specifications 5P, 6P, 7P, 8P, and 10P, the minimum order quantity is 400 meters. For other specs within 15P, the minimum order quantity is 1000 meters. For specs above 15P, the minimum order quantity is 3000 meters |
기술적인 매개변수
| YY06 FLEXIBLE DATA CABLE Parameter | ||||
| 아니요. | 제품 코드 | 코어 수 및 단면적 | 대략적인 외경(mm) | 외피 색상 |
| (NO.Xm㎡) | ||||
| 1 | YY06.04.0014 | 2x2x0.14 | 5.2 | 검은색 |
| 2 | YY06.06.0014 | 3x2x0.14 | 5.6 | 검은색 |
| 삼 | YY06.08.0014 | 4x2x0.14 | 6.5 | 검은색 |
| 4 | YY06.10.0014 | 5x2x0.14 | 6.8 | 검은색 |
| 5 | YY06.12.0014 | 6x2x0.14 | 7.2 | 검은색 |
| 6 | YY06.14.0014 | 7x2x0.14 | 7.6 | 검은색 |
| 7 | YY06.16.0014 | 8x2x0.14 | 8.0 | 검은색 |
| 8 | YY06.20.0014 | 10x2x0.14 | 8.6 | 검은색 |
| 9 | YY06.26.0014 | 13x2x0.14 | 9.5 | 검은색 |
| 10 | YY06.04.0020 | 2x2x0.2 | 5.8 | 검은색 |
| 11 | YY06.06.0020 | 3x2x0.2 | 6.0 | 검은색 |
| 12 | YY06.08.0020 | 4x2x0.2 | 6.8 | 검은색 |
| 13 | YY06.10.0020 | 5x2x0.2 | 7.2 | 검은색 |
| 14 | YY06.12.0020 | 6x2x0.2 | 7.6 | 검은색 |
| 15 | YY06.14.0020 | 7x2x0.2 | 8.0 | 검은색 |
| 16 | YY06.16.0020 | 8x2x0.2 | 8.5 | 검은색 |
| 17 | YY06.20.0020 | 10x2x0.2 | 9.2 | 검은색 |
| 18 | YY06.02.0030 | 1x2x0.3 | 4.6 | 검은색 |
| 19 | YY06.04.0030 | 2x2x0.3 | 6.2 | 검은색 |
| 20 | YY06.06.0030 | 3x2x0.3 | 6.6 | 검은색 |
| 21 | YY06.08.0030 | 4x2x0.3 | 7.5 | 검은색 |
| 22 | YY06.10.0030 | 5x2x0.3 | 7.8 | 검은색 |
| 23 | YY06.12.0030 | 6x2x0.3 | 8.2 | 검은색 |
| 24 | YY06.14.0030 | 7x2x0.3 | 8.8 | 검은색 |
| 25 | YY06.16.0030 | 8x2x0.3 | 9.2 | 검은색 |
| 26 | YY06.20.0030 | 10x2x0.3 | 10.0 | 검은색 |
| 27 | YY06.26.0030 | 13x2x0.3 | 11.0 | 검은색 |
| 28 | YY06.04.0050 | 2x2x0.5 | 7.2 | 검은색 |
| 29 | YY06.06.0050 | 3x2x0.5 | 7.6 | 검은색 |
| 30 | YY06.08.0050 | 4x2x0.5 | 8.6 | 검은색 |
Special PVC sheath, with good flexibility
●Temperature range: Mobile installation -5°C to +70°C
Fixed installation-15°C to +70°C
●Nominal voltage Uo/U 300/300V
●Test voltage 1500V
●Insulation resistance: Minimum 20 MOhmxkm
●Minimum bending radius: Mobile installation 7.5x cable diameter
고정 설치 6x 케이블 직경
●Complies with EU RoHS, Reach regulatory requirements.

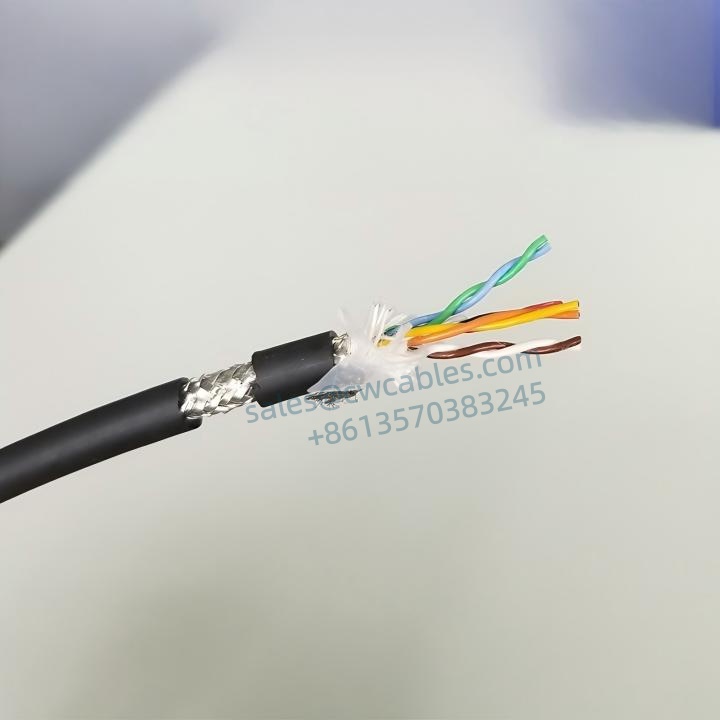

YY06 3X2X0.20mm²(24AWG) Shielded 3 Pair Twisted Data Cable Structure
Tinned copper conductor (below 0.5mm²) or bare copper conductor (0.5mm² and above) Fine copper wire,
compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6
●특수 PVC 단열재
●Colored core wire identification (below 0.5mm²)
●Black core wire with continuous white numeric coding (0.5mm² and above)
●Optimal lay length for stranded wire cores
●Improved tinned copper wire braided shielding
●Minimum comprehensive shielding rate of 80%
●Special PVC outer sheath
●Black (RAL9005), matte finish”
