서보 모터 인코더 케이블 와이드 시스템 호환성:
• 국내 브랜드: 혁신, Leadshine, Xinje, HC Servo, Invt, Kinco
• 국제 브랜드: 야스카와, 미츠비시, 파나소닉, 후지전기, 지멘스, 슈나이더 일렉트릭
Servo Motor Encoder Cable Application
This servo motor encoder cable is suitable for electrical connections between a frequency converter (VFD) and a servo motor. It supports fixed installation without tensile strain, as well as occasional bending scenarios with infrequent movement. It operates reliably in dry or damp environments and can withstand moderate mechanical stress. The outer sheath is made of polyvinyl chloride (PVC), offering good acid and alkali resistance, as well as limited oil resistance. Provided that the applicable temperature range requirements are met, it can also be used in outdoor environments.
Servo Motor Encoder Cable Series
-

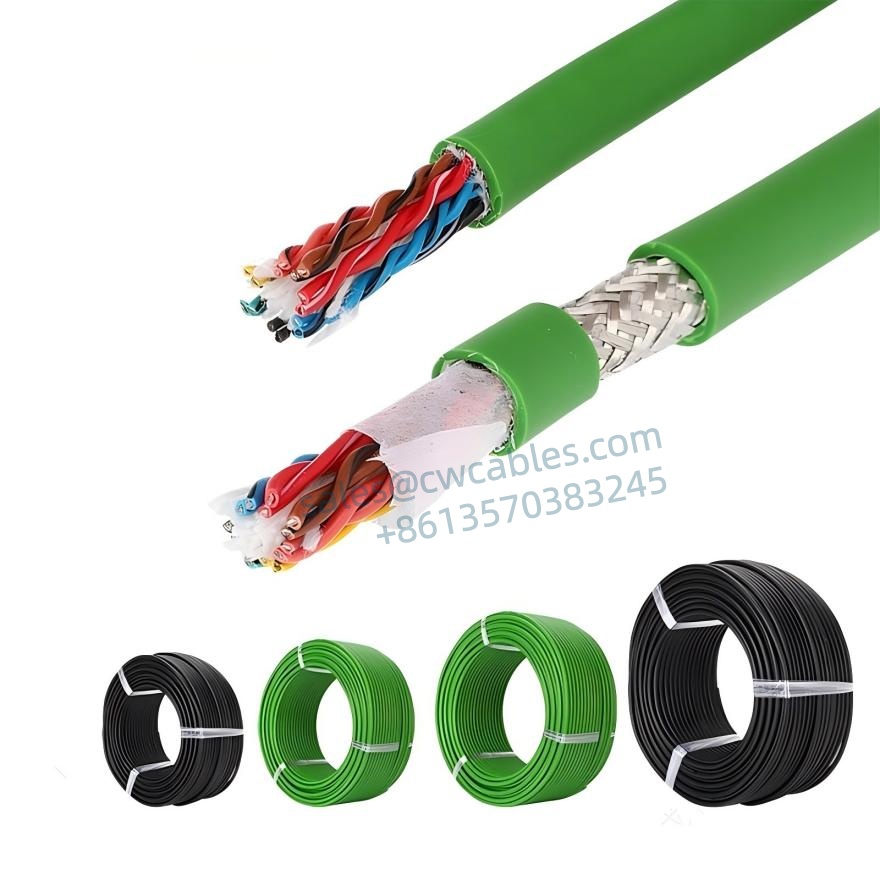

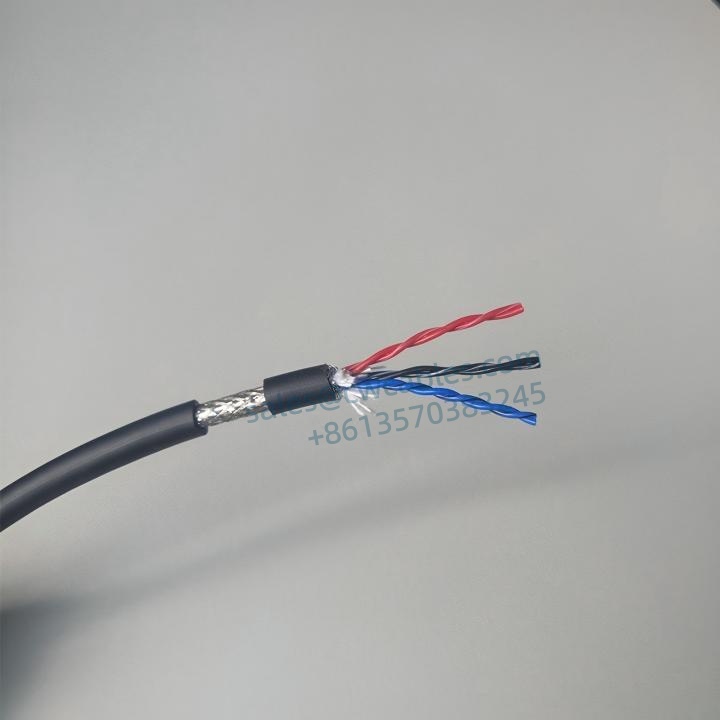

Optimized Braid Shielding Structure: Fully shielded design with an optimized braid angle, achieving approx. 70% wire coverage and approx. 90% optical coverage.
-
Optimized Stranding: Precisely matched stranding lay length and direction for enhanced signal transmission stability.
-
High-Pressure Formed Outer Sheath: Ensures long-term structural stability and resistance to deformation.
-
Common Cross-Section Specifications:
-
2×2×0.14 mm², 3×2×0.14 mm², 4×2×0.14 mm², 5×2×0.14 mm², 7×2×0.14 mm², 8×2×0.14 mm²
-
2×2×0.2 mm², 3×2×0.2 mm², 4×2×0.2 mm², 5×2×0.2 mm², 7×2×0.2 mm², 8×2×0.2 mm²
-
2×2×0.3 mm², 3×2×0.3 mm², 4×2×0.3 mm², 5×2×0.3 mm², 7×2×0.3 mm², 8×2×0.3 mm²
-
