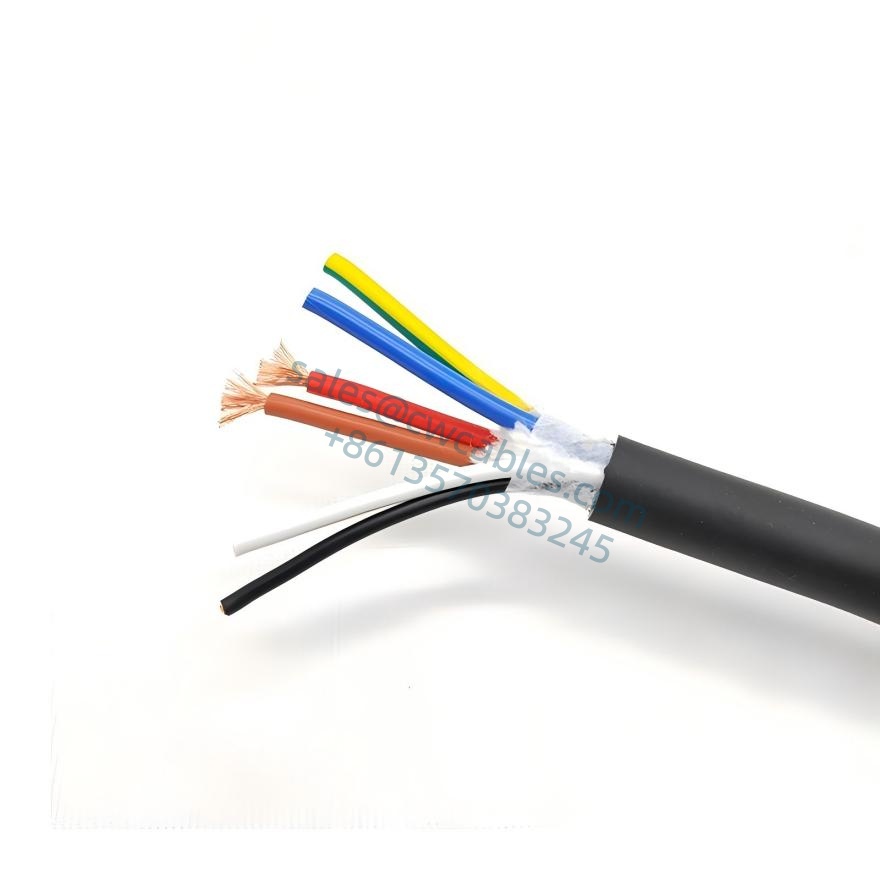

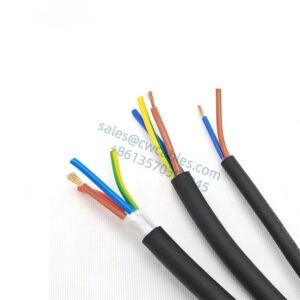

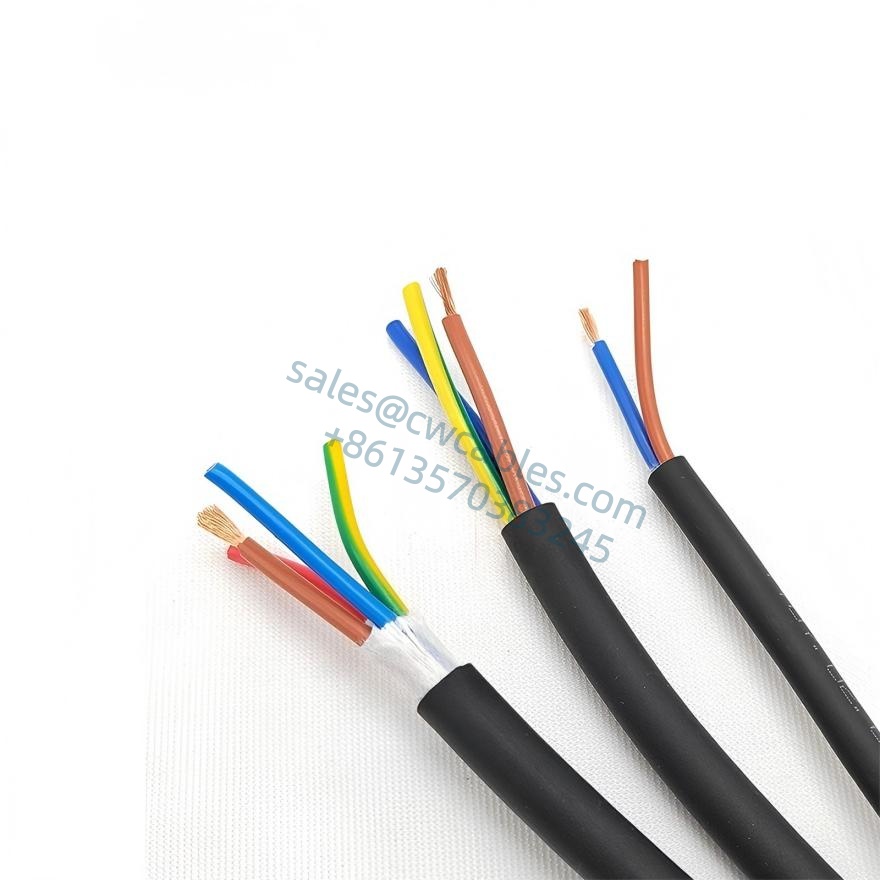

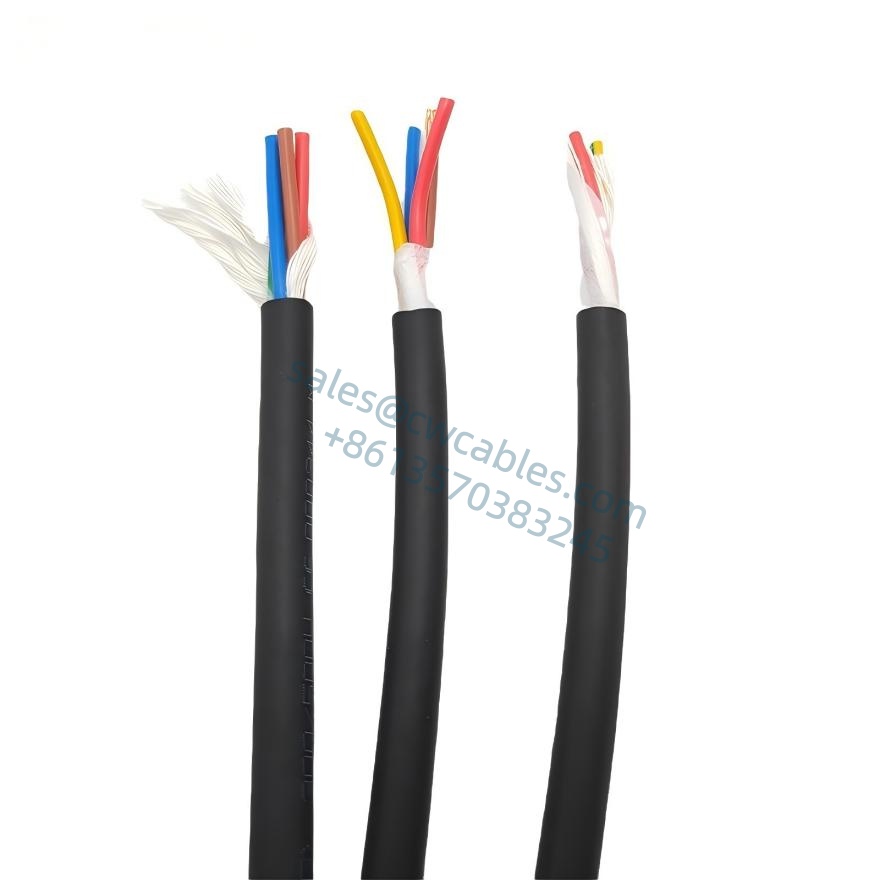

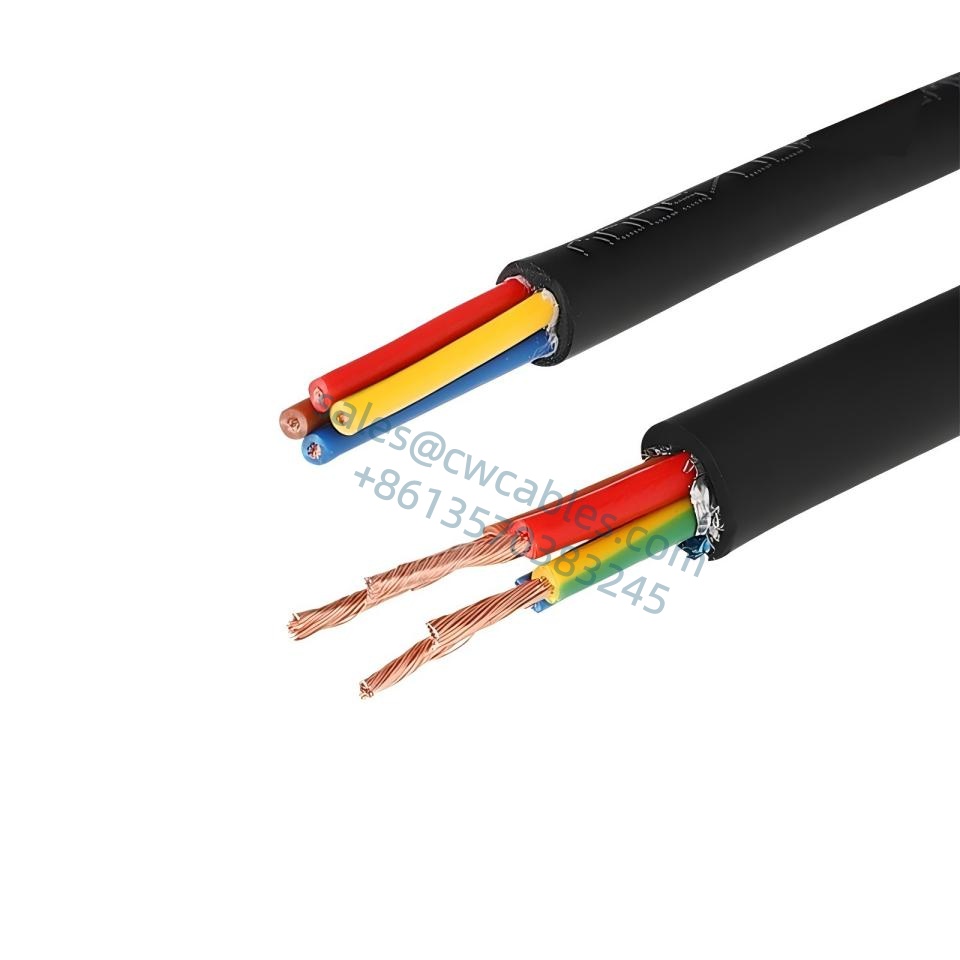

Ul2464 80도 데이터 전송 다중 전도체 전원 케이블
This Multiconductor Power Cable is particularly suitable for the fixed installation or occasional mobile applications of mechanical equipment and machine tools. The cable utilizes specially modified insulation and sheath materials, providing abrasion resistance, media resistance, and the ability to withstand over a million cycles of bending while maintaining stability
| UL2464 80 DEGREE FLEX POWER CABLE(AMERICAN CORE WIRE) (2 million times reliability tests for drag chain) | ||||
| 아니요. | 제품 코드 | 코어 수 및 단면적 | 대략적인 외경(mm) | 외피 색상 |
| (NO.Xm㎡) | ||||
| 1 | MC-YY07.04.0050 | 4G0.5 | 6.3 | 검은색 |
| 2 | MC-YY2024.07.06 | 4G0.5+2×0.2 | 6.3 | 검은색 |
| 삼 | MC-YY07.04.0075 | 4G0.75 | 6.3 | 검은색 |
유연한 전력 산업용 케이블 비차폐 기술 매개변수
● Special PVC sheath with good flexibility.
● Temperature range: Mobile installation: -5°C to +70°C. Fixed installation: -15°C to +80°C.
● Nominal voltage Uo/U 300/500V.
● Test voltage: 2000V.
● Insulation resistance: Minimum 20 MOhmxkm.
● Minimum bending radius: Mobile installation: 7.5x cable diameter. Fixed installation: 6x cable diameter.
● Compliance with EU RoHS and Reach regulations.

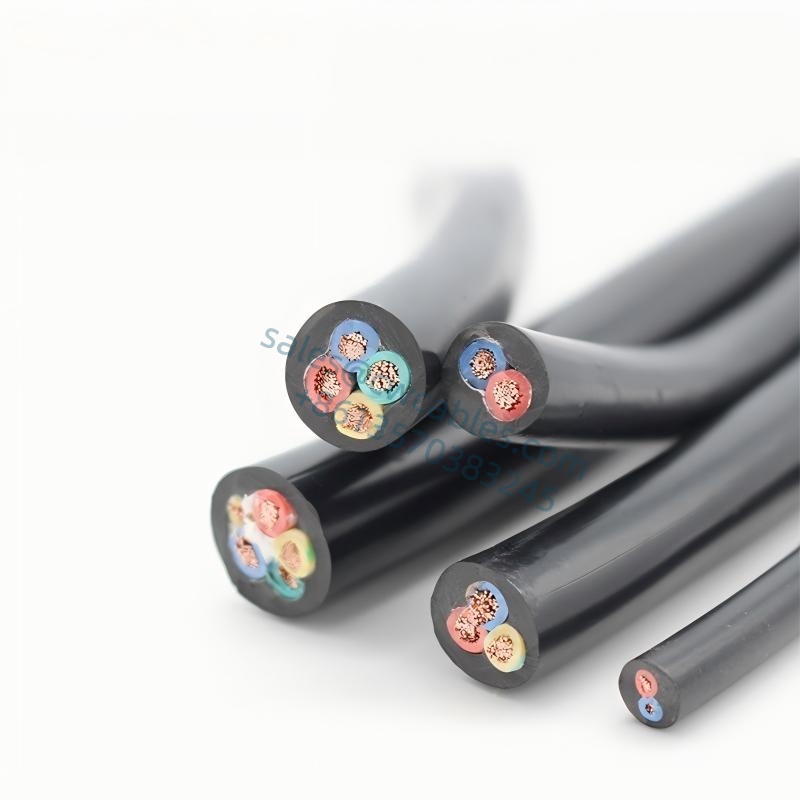

유연한 전력 산업용 케이블 비차폐 구조
● Bare copper conductor, fine copper wire in accordance with DIN VDE 0295 Class 6 and IEC standards.
● Special PVC insulation.
● Color-coded core wire identification.
● Optimum lay-up with twisted layers of conductors.
● Includes yellow-green grounding wire (for 3 cores and above).
● 특수 PVC 외피.
● 무광 마감 처리된 검정색(RAL 9005).
