Ul20276 80도 플렉스 인코더 데이터 및 통신 케이블
This flexible cable is particularly suitable for the fixed installation or occasional mobile applications of mechanical equipment and machine tools. The cable utilizes specially modified insulation and sheath materials, providing abrasion resistance, media resistance, and the ability to withstand over a million cycles of bending while maintaining stability.
| UL2464 80 DEGREE FLEX POWER CABLE(AMERICAN CORE WIRE) (2 million times reliability tests for drag chain) | ||||
| 아니요. | 제품 코드 | 코어 수 및 단면적 | 대략적인 외경(mm) | 외피 색상 |
| (NO.Xm㎡) | ||||
| 1 | MC-YY06.04.0014 | 2x2x0.14 | 5.9 | 검은색 |
| 2 | MC-YY06.06.0014 | 3x2x0.14 | 5.9 | 검은색 |
Encoder Data and Communication Cables Technical Parameter
● Special PVC sheath with good flexibility.
● Temperature range: Mobile installation: -5°C to +70°C. Fixed installation: -15°C to +80°C.
● Nominal voltage Uo/U 300/300V.
● Test voltage: 1500V.
● Insulation resistance: Minimum 20 MOhmxkm.
● Minimum bending radius: Mobile installation: 7.5x cable diameter. Fixed installation: 6x cable diameter.
● EU RoHS 및 Reach 규정을 준수합니다.

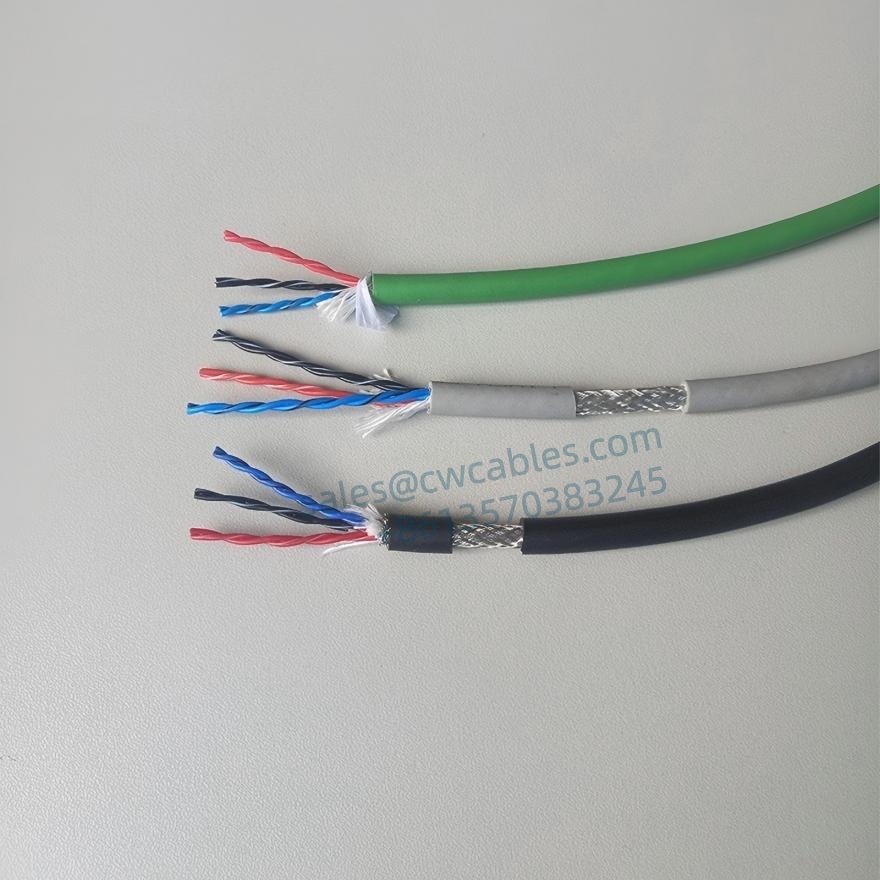

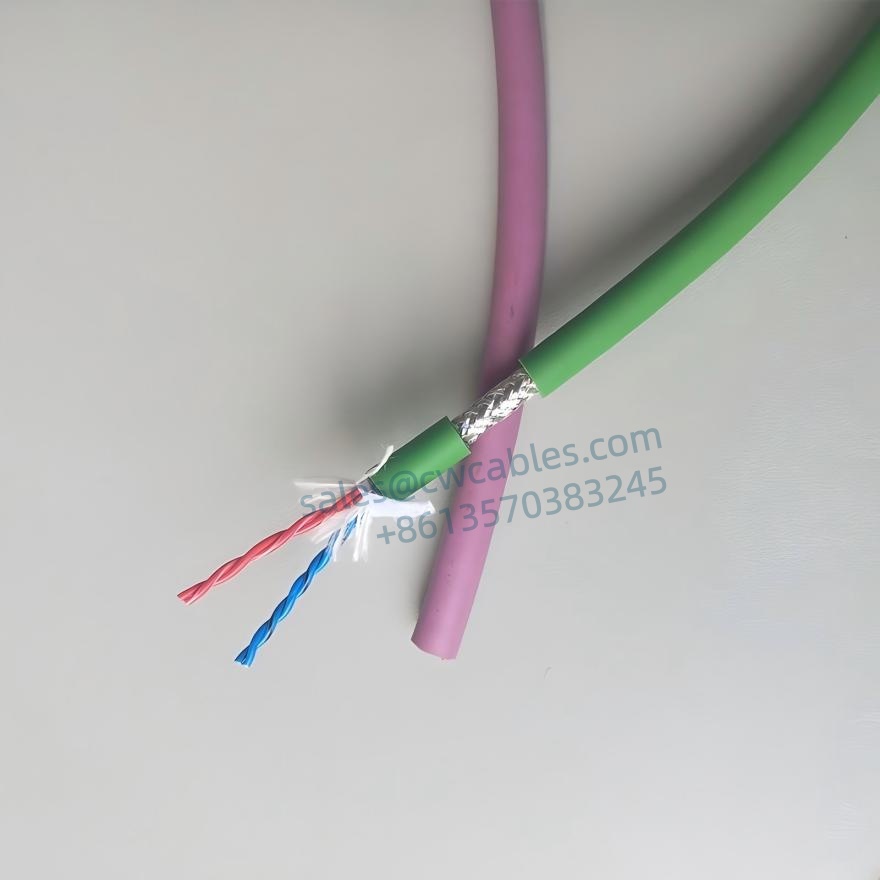

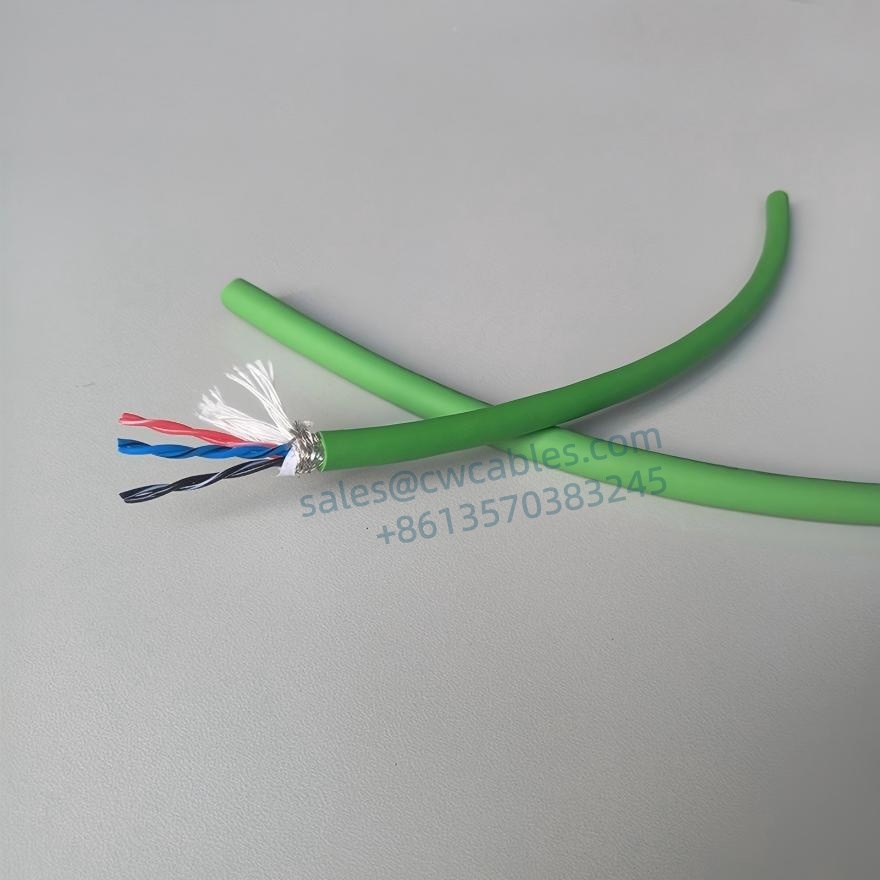

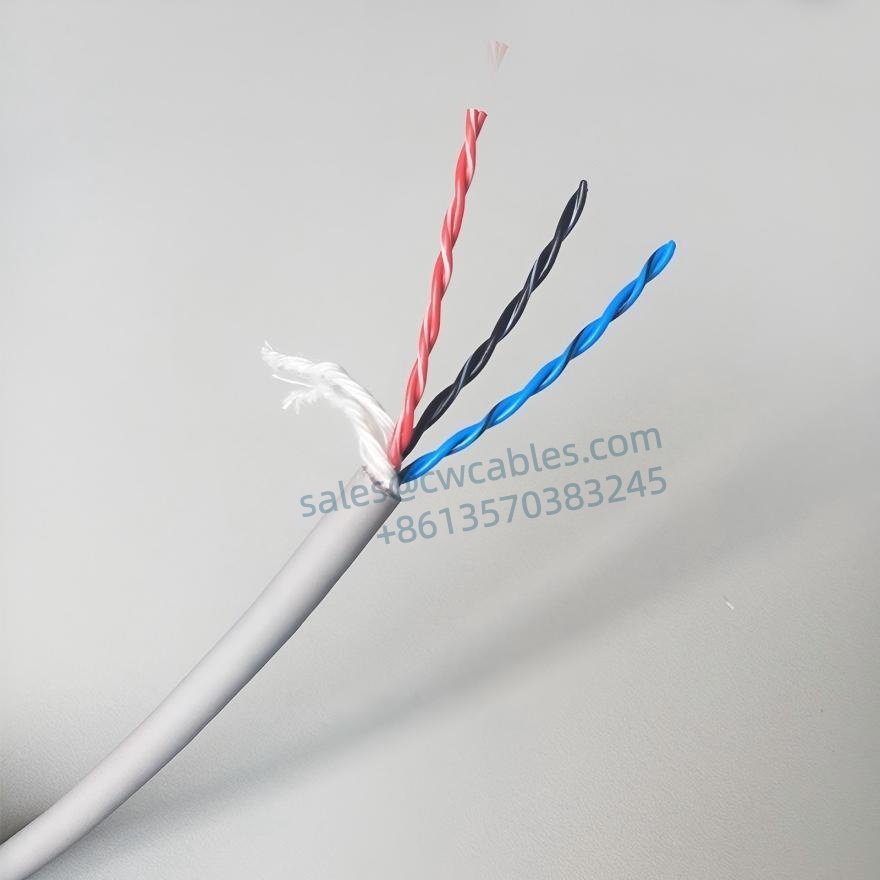

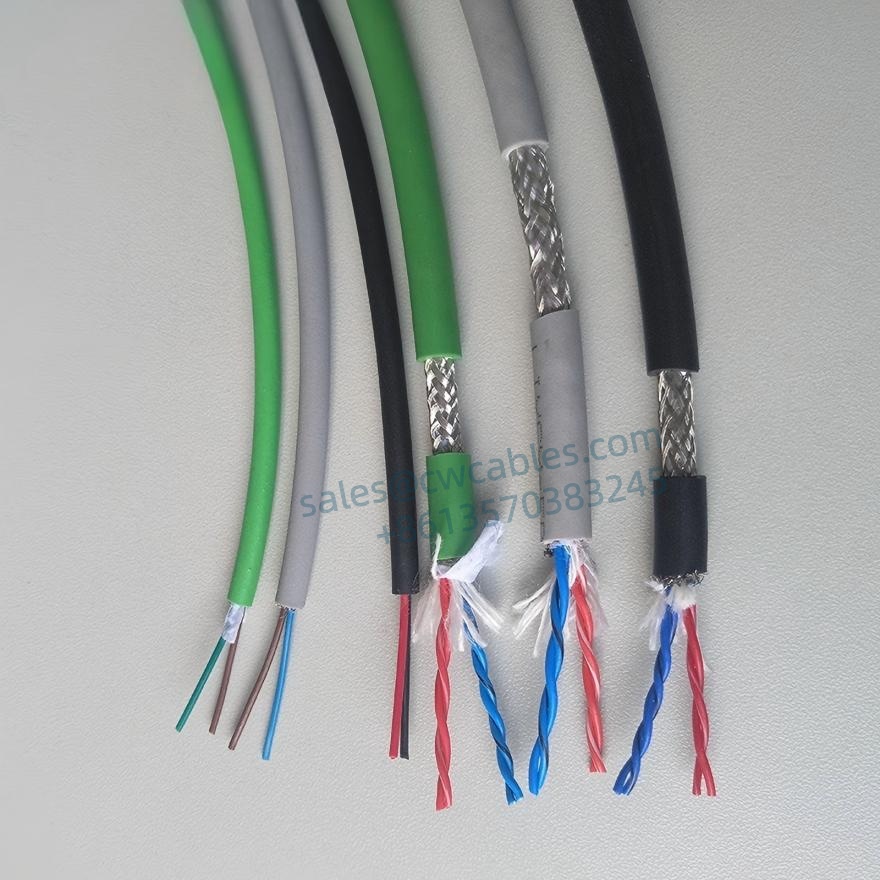

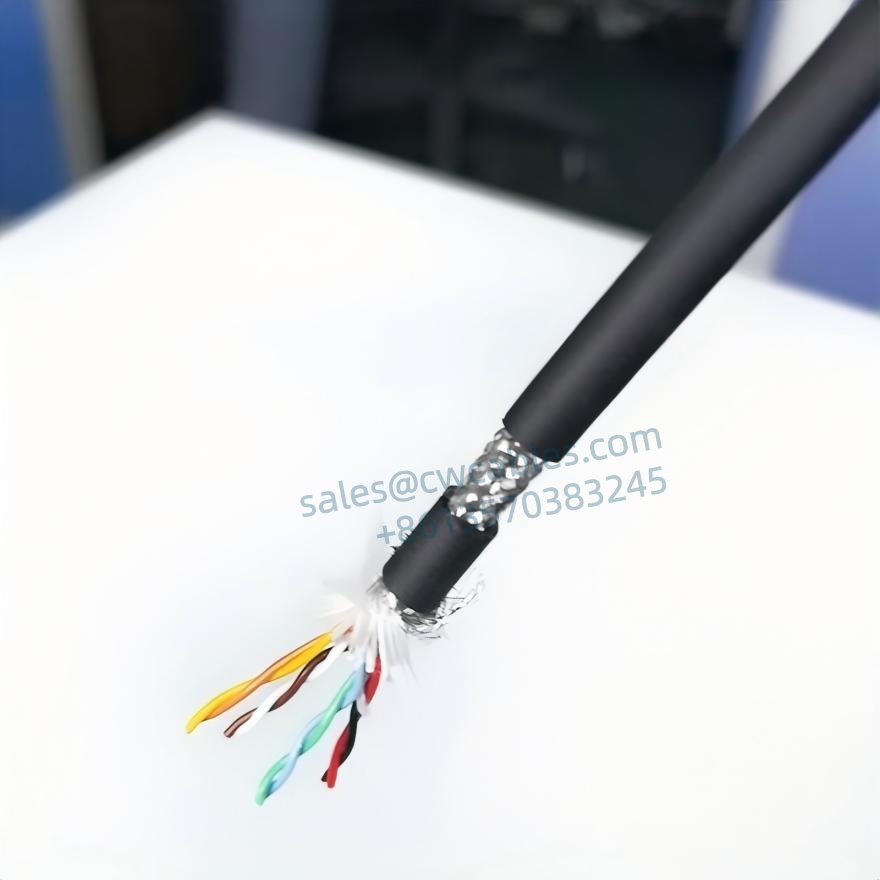

Encoder Data and Communication Cables Structure
●Tinned copper conductor, fine copper wire in accordance with DIN VDE 0295 Class 6 and IEC 60228 Class 6.
●특수 PVC 단열재.
●색상으로 구분된 심선 식별.
● 꼬인 도체 층으로 최적의 레이업.
●Enhanced tinned copper wire braided shield.
●Minimum overall shield coverage 80%.
●Special PVC outer sheath.
●Black color (RAL 9005) with a matte finish.
