애플리케이션
● It adopts a wrapped structure, and the conductor is made by twisting 0.08mm ultra-fine copper wires into groups, ensuring superb flexibility.
● It features a tin-plated copper wire braided shield layer to minimize signal interference.
● Suitable for extremely harsh industrial environments and places with corrosive coolant and lubricating oil, exhibiting excellent oil resistance and wear resistance.
● 미생물, 가수분해, 화학적 부식, 자외선 및 저온에 대한 저항성이 우수합니다.
● Can be used indoors and outdoors in dry or humid conditions, especially suitable for industrial environments.
● Under normal usage conditions, it generally has a service life of more than 10 million cycles, suitable for use in high-speed motion drag chains.
● Mainly used for power transmission in industrial automation, electromechanical equipment, machine tools, logistics equipment, and servo systems operating in harsh environments.
기술 데이터
●특수 PUR 외장, 유연성이 뛰어남
●온도 범위: 이동식 설치: -20°C ~ +80°C 고정 설치: -40°C ~ +90°C
●최대 오버헤드/슬라이딩 속도: 5m/s, 3m/s
●최대 가속도: 50m/s
● Test voltage: 2000V \
● 절연 저항: 최소 20 MOhmxkm
● 최소 곡률 반경: 모바일 설치: 6 x 케이블 직경 고정 설치: 4 x 케이블 직경
●Oil resistance: completely oil-resistant
● EU RoHS 및 Reach 규정을 준수합니다.
● 난연성, IEC 60332-1-2, CEI 20-35, FT1, VW-1을 준수합니다.

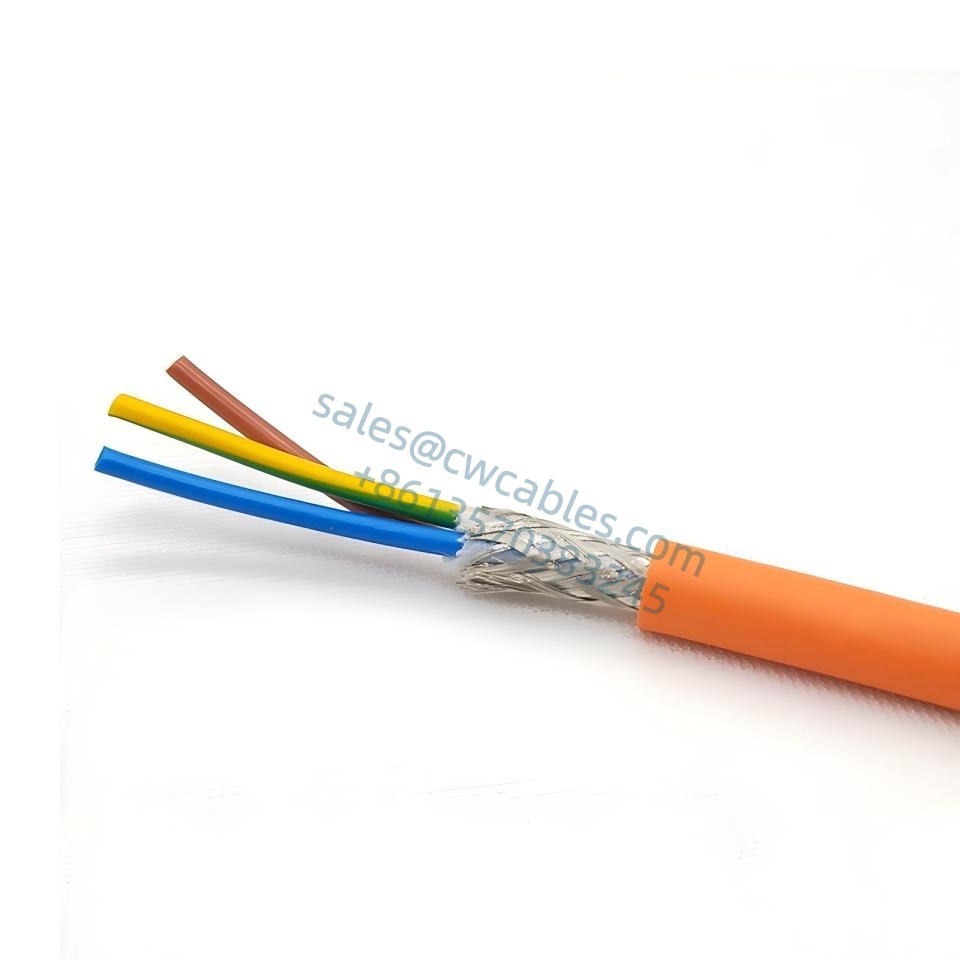

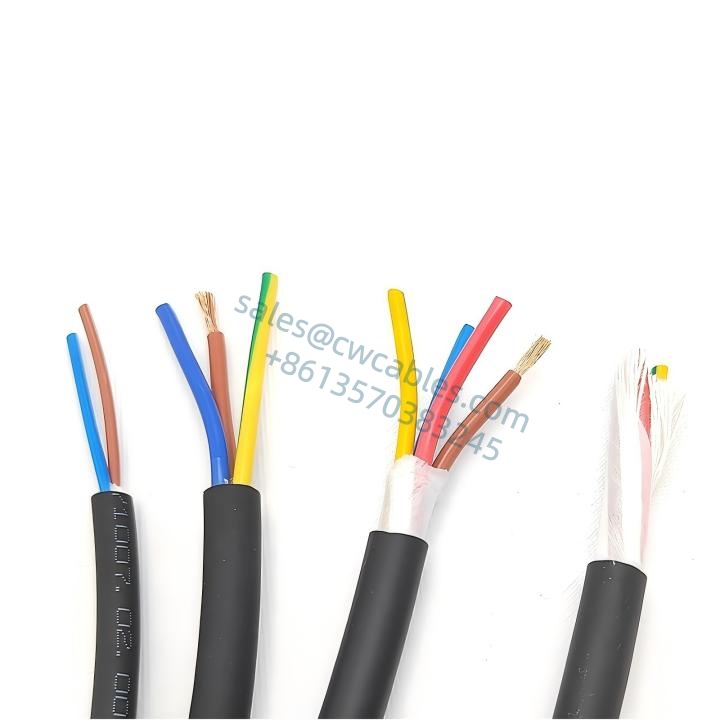

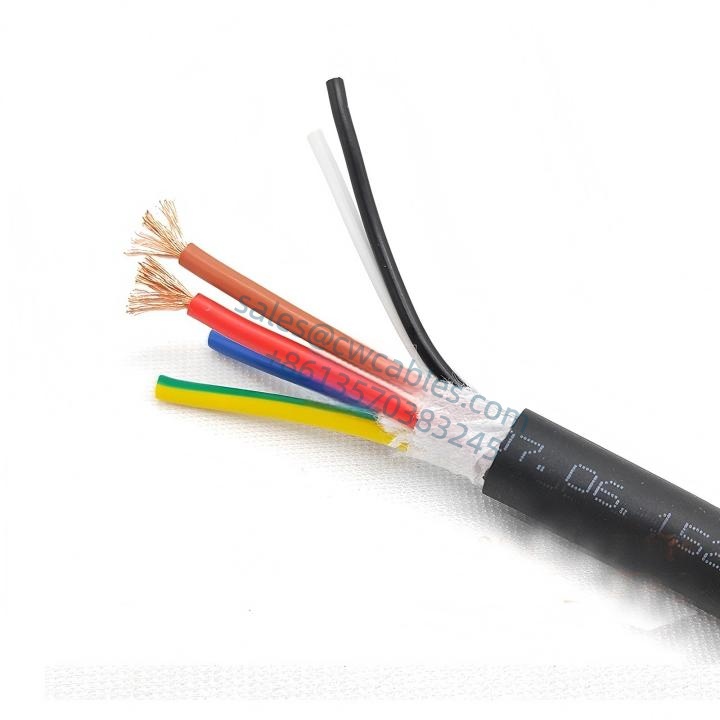

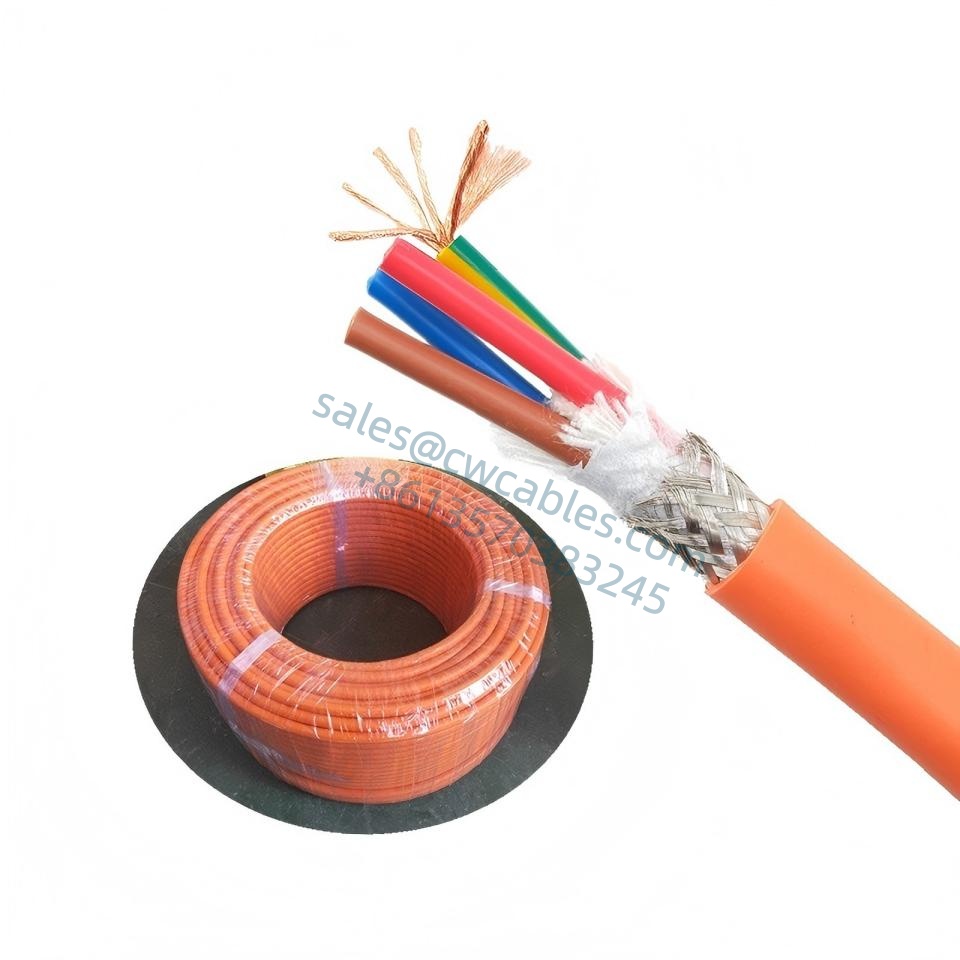

케이블 구조
● 0.08mm² Bare copper conductor, ultra-fine copper wire
●DIN VDE 0295 클래스 6 및 IEC 60228 클래스 6을 준수합니다.
●특수 PVC 단열재
●Color-coded cores
●Optimal pitch concentric stranded cores
●With yellow-green grounding wire (3 cores and above)

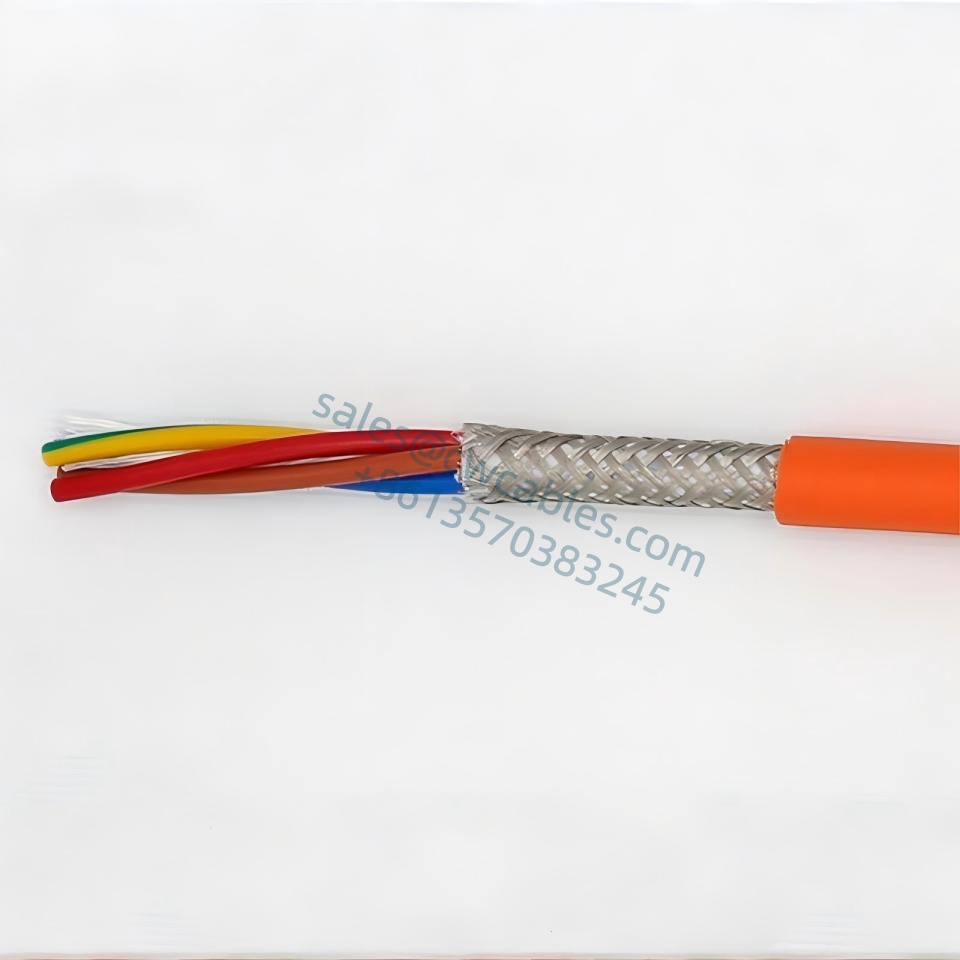

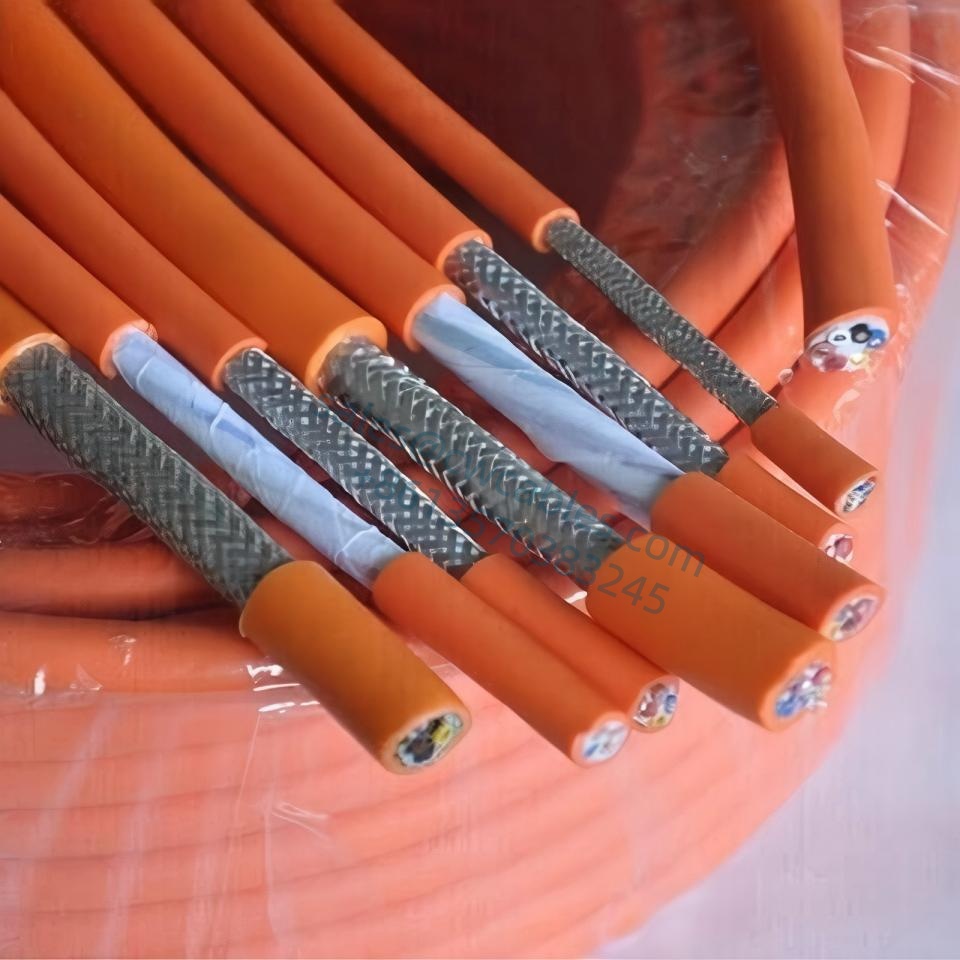

●Improved tinned copper wire braiding shield
●Minimum coverage rate of 90%
● 저마찰, 내마모성, 내저온성, 내유성 PUR 복합소재입니다.
● Black, orange or color can be customized according to customer requirements.
YP1008 ULTRA HIGH FLEXIBLE PUR DRAG CHAIN POWER CABLE WITH SHIELD ( 10 million times reliability tests for drag chain) | ||||
아니요. | 제품 코드 | 코어 수 및 단면적 | 대략적인 외경(mm) | 외피 색상 |
(NO.Xm㎡) | ||||
1 | YP1008.03.0050 | 3G0.5 | 7.0 | Orange, Black |
2 | YP1008.04.0050 | 4G0.5 | 7.5 | Orange, Black |
삼 | YP1008.04.0075 | 4G0.75 | 8.2 | Orange, Black |
4 | YP1008.04.0100 | 4G1.0 | 9.0 | Orange, Black |
5 | YP1008.04.0150 | 4G1.5 | 10.0 | Orange, Black |
6 | YP1008.04.0250 | 4G2.5 | 12.2 | Orange, Black |
