High flexible servo power cable applied to servo motors and drive systems from leading manufacturers such as: Inovance, Leadshine, Xinje, HC Servo, Invt, Kinco, Yaskawa, Mitsubishi, Panasonic, Fuji Electric, Siemens, and Schneider Electric.
| 제품 | 목 | 모델 | 사양 | 의 | 색상 | 표시 |
| High Flexible servo power cable (5 million times reliability tests for drag chain) | 1 | YY507.02.0050 | 2*0.5mm2 | 5.6 | 블랙/오렌지 | Standard core wire colors: blue, brown, red, yellow/green |
| 2 | YY507.04.0050 | 4*0.5mm2 | 6.5 | 블랙/오렌지 | ||
| 삼 | YY507.04.0075 | 4*0.75mm2 | 7.2 | 블랙/오렌지 | ||
| 4 | YY507.04.0100 | 4*1.0mm2 | 7.8 | 블랙/오렌지 | ||
| 5 | YY507.04.0150 | 4*1.5mm2 | 9 | 블랙/오렌지 | ||
| 6 | YY507.04.0250 | 4*2.5mm2 | 11 | 블랙/오렌지 | ||
| 7 | L-YY507.02.0050 | 2*0.5mm2 | 5.6 | 검은색 | UL 표준 코어 와이어 색상 : 검은 색, 흰색, 빨간색, 노란색/녹색 | |
| 8 | L-YY507.04.0050 | 4*0.5mm2 | 6.5 | 검은색 | ||
| 9 | L-YY507.04.0075 | 4*0.75mm2 | 7.2 | 검은색 | ||
| 10 | YY507.04.0130 | 4*1.3mm2 | 8.3 | 검은색 | ||
| 11 | YY507.04.0200 | 4*2.0mm2 | 10 | 검은색 | ||
| 12 | MC-YY507.04.0050 | 4*0.5mm2 | 6.3 | 검은색 | Gecko head power cord, UL printed text, core wire colors: black, white, red, yellow/green. | |
| 13 | MC-YY507.06.2024 | 4*0.5+2*0.2 | 6.3 | 검은색 |
기술 데이터
●Special PVC sheath with high flexibility
●Temperature range: Mobile installation: -5°C to +70°C Fixed installation: -15°C to +80°C
●정격 전압 Uo/U: 300/500V
● 테스트 전압 : 2000V
●절연 저항: 킬로미터당 최소 20MOhms
●최소 곡률 반경: 이동식 설치: 케이블 직경 7.5배 고정 설치: 케이블 직경 6배
●EU RoHS 및 Reach 규정을 준수합니다.

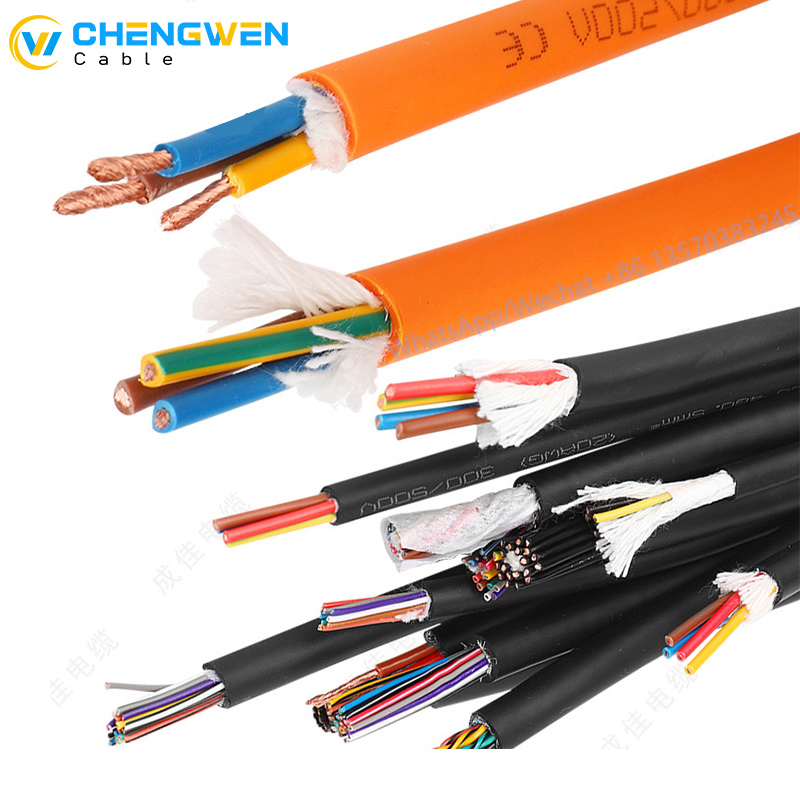

High flexible servo power cable Structure
●순연동 도체, 미세한 구리선 DIN VDE 0295 클래스 6 및 IEC 60228 클래스 6을 준수합니다.
●특수 PVC 단열재
●색상으로 구분된 코어 식별 코어에 대한 최적의 피치 트위스트 층
●황록색 접지선 포함(3심 이상)
●Special PVC outer sheath ●Grey,orange, black, or color can be customized according to customer requirements.
| 제품 | 목 | 모델 | 사양 | 의 | 색상 | 표시 |
| Flexible Servo Encoder Cable | 1 | YY06.04.0014 | 2Px26AWG | 5.2 | 검은색 | / |
| 2 | YY06.06.0014 | 3Px26AWG | 5.6 | 검은색 | ||
| 삼 | YY06.14.0014 | 7Px26AWG | 7.6 | 검은색 | ||
| 4 | YY06.04.0020 | 2Px24AWG | 5.8 | 검은색 | ||
| 5 | YY06.06.0020 | 3Px24AWG | 6 | 검은색 | ||
| 6 | YY06.08.0020 | 4Px24AWG | 6.8 | 검은색 | ||
| 7 | MC-YO06.04.0014 | 2Px26AWG | 5.9 | 검은색 | Gecko-head coded cable, with UL printing, core wire colors: Black & Brown, Red & Orange, Blue & Violet. | |
| 8 | MC-YO06.06.0014 | 3Px26AWG | 5.9 | 검은색 |
