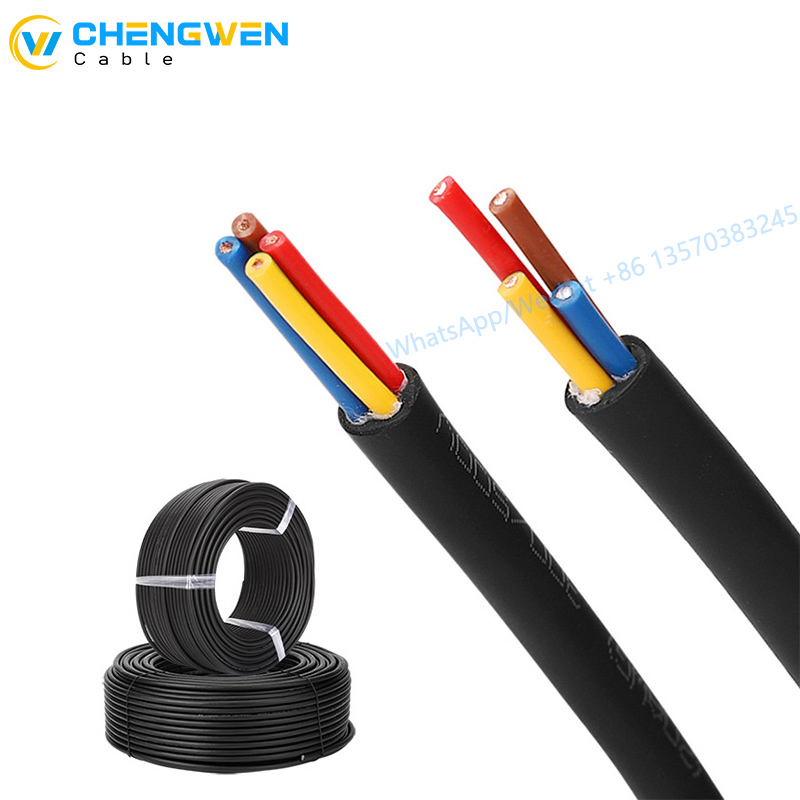

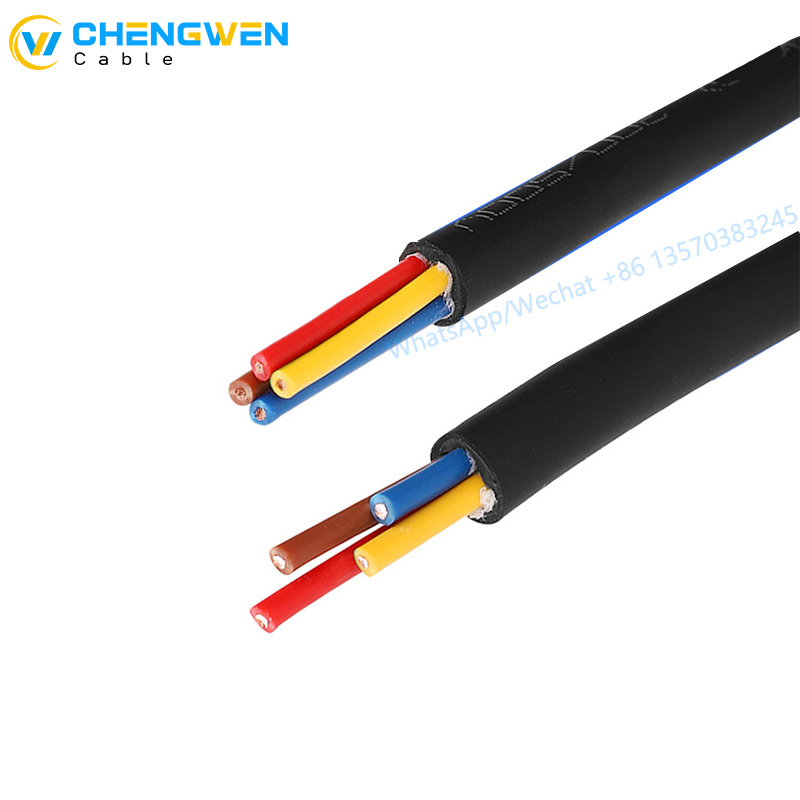

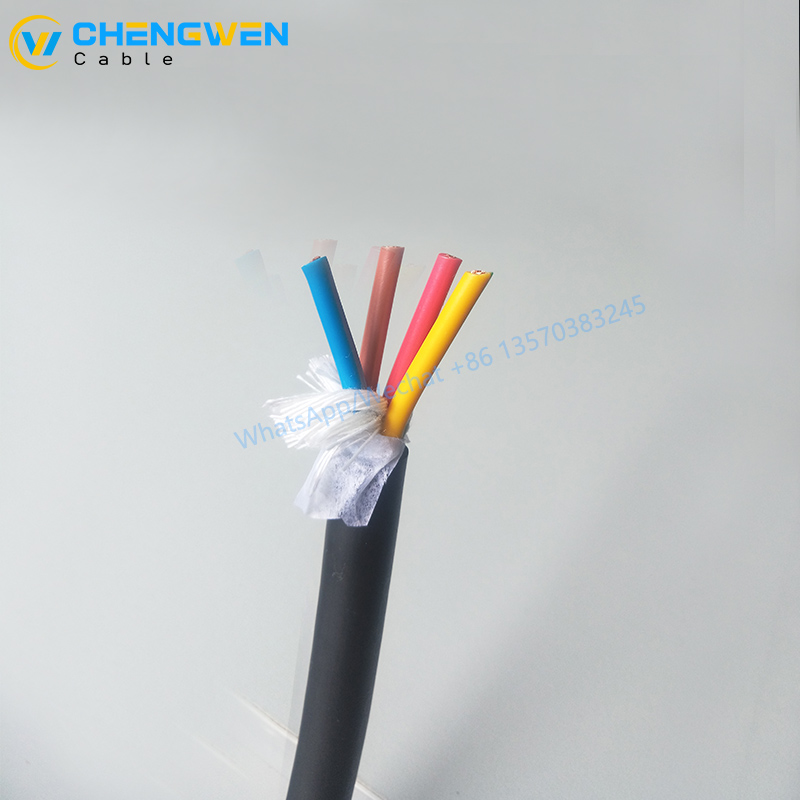

Flexible servo power cable applied to servo motors and drive systems from leading manufacturers such as: Inovance, Leadshine, Xinje, HC Servo, Invt, Kinco, Yaskawa, Mitsubishi, Panasonic, Fuji Electric, Siemens, and Schneider Electric.
●Special PVC sheath, with good flexibility.
●Temperature range:Mobile installation: -5°C to +70°C Fixed installation: -15°C to +70°C
●공칭 전압 Uo/U: 300/500V
● 테스트 전압 : 2000V
●Insulation resistance: Minimum 20 MOhmxkm Minimum bending radius: Mobile installation: 7.5 x cable diameter Fixed installation: 6 x cable diameter
●EU RoHS 및 Reach 규정을 준수합니다.
서보 모터 전원 케이블 특징:
●Bare copper conductor, fine copper wire, in accordance with DIN VDE 0295 Class 6 and IEC 60228 Class 6.
●특수 PVC 단열재.
●Color-coded core wire identification. Optimal pitch twisted layer for the wire cores. With yellow-green grounding wire (3 cores and above).
●특수 PVC 외피.
●Black color (RAL 9005), matte finish.
| 제품 | 목 | 모델 | 사양 | 의 | 색상 | 표시 |
| Flexible servo power cable | 1 | YY07.02.0050 | 2*0.5mm² | 5.6 | 검은색 | Standard core wire colors: blue, brown, red, yellow/green |
| 2 | YY07.04.0050 | 4*0.5mm² | 6.5 | 검은색 | ||
| 삼 | YY07.04.0075 | 4*0.75mm² | 7.2 | 검은색 | ||
| 4 | YY07.04.0100 | 4*1.0mm² | 7.8 | 검은색 | ||
| 5 | YY07.04.0150 | 4*1.5mm² | 9 | 검은색 | ||
| 6 | YY07.04.0250 | 4*2.5mm² | 11 | 검은색 | ||
| 7 | L-YY07.02.0050 | 2*0.5mm² | 5.6 | 검은색 | UL 표준 코어 와이어 색상 : 검은 색, 흰색, 빨간색, 노란색/녹색 | |
| 8 | L-YY07.04.0050 | 4*0.5mm² | 6.5 | 검은색 | ||
| 9 | L-YY07.04.0075 | 4*0.75mm² | 7.2 | 검은색 | ||
| 10 | YY07.04.0130 | 4*1.3mm² | 8.3 | 검은색 | ||
| 11 | YY07.04.0200 | 4*2.0mm² | 10 | 검은색 | ||
| 12 | MC-YY07.04.0050 | 4*0.5mm² | 6.3 | 검은색 | Gecko head power cord, UL printed text, core wire colors: black, white, red, yellow/green. | |
| 13 | MC-YY2024.07.06 | 4*0.5+2*0.2mm² | 6.3 | 검은색 |
