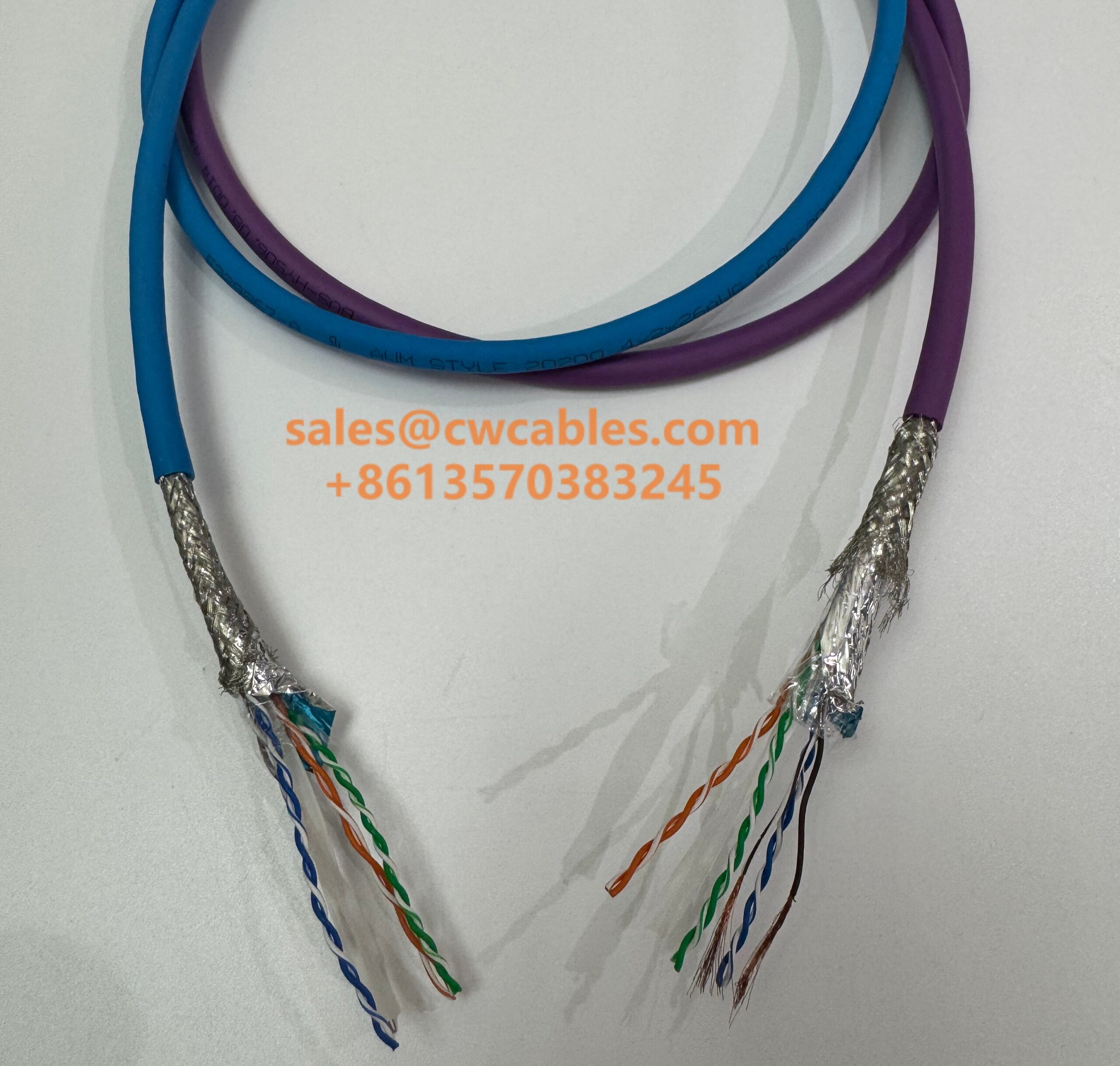

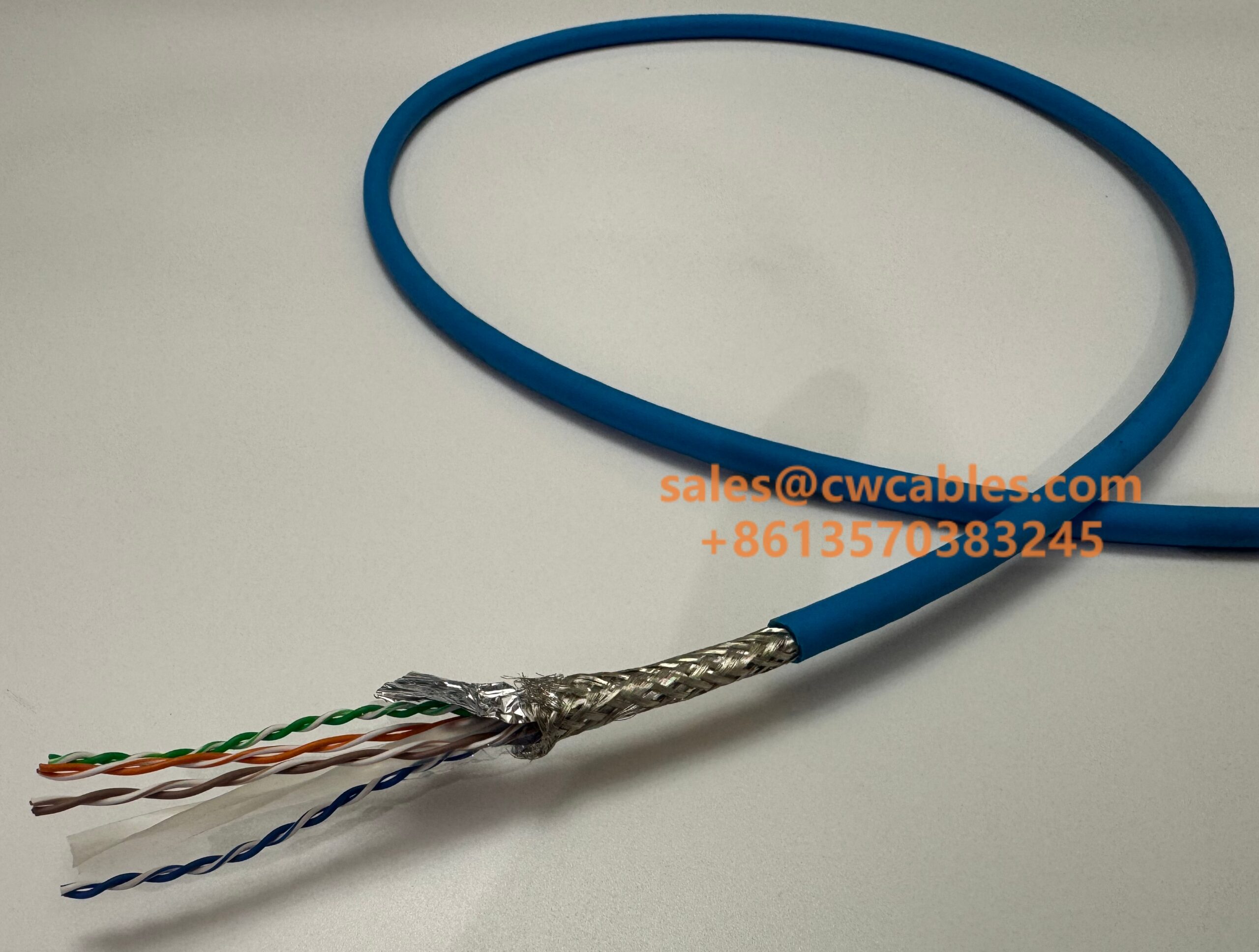

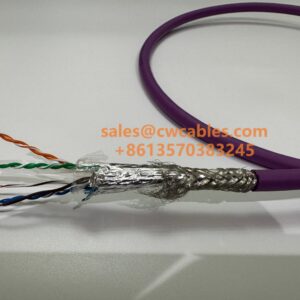

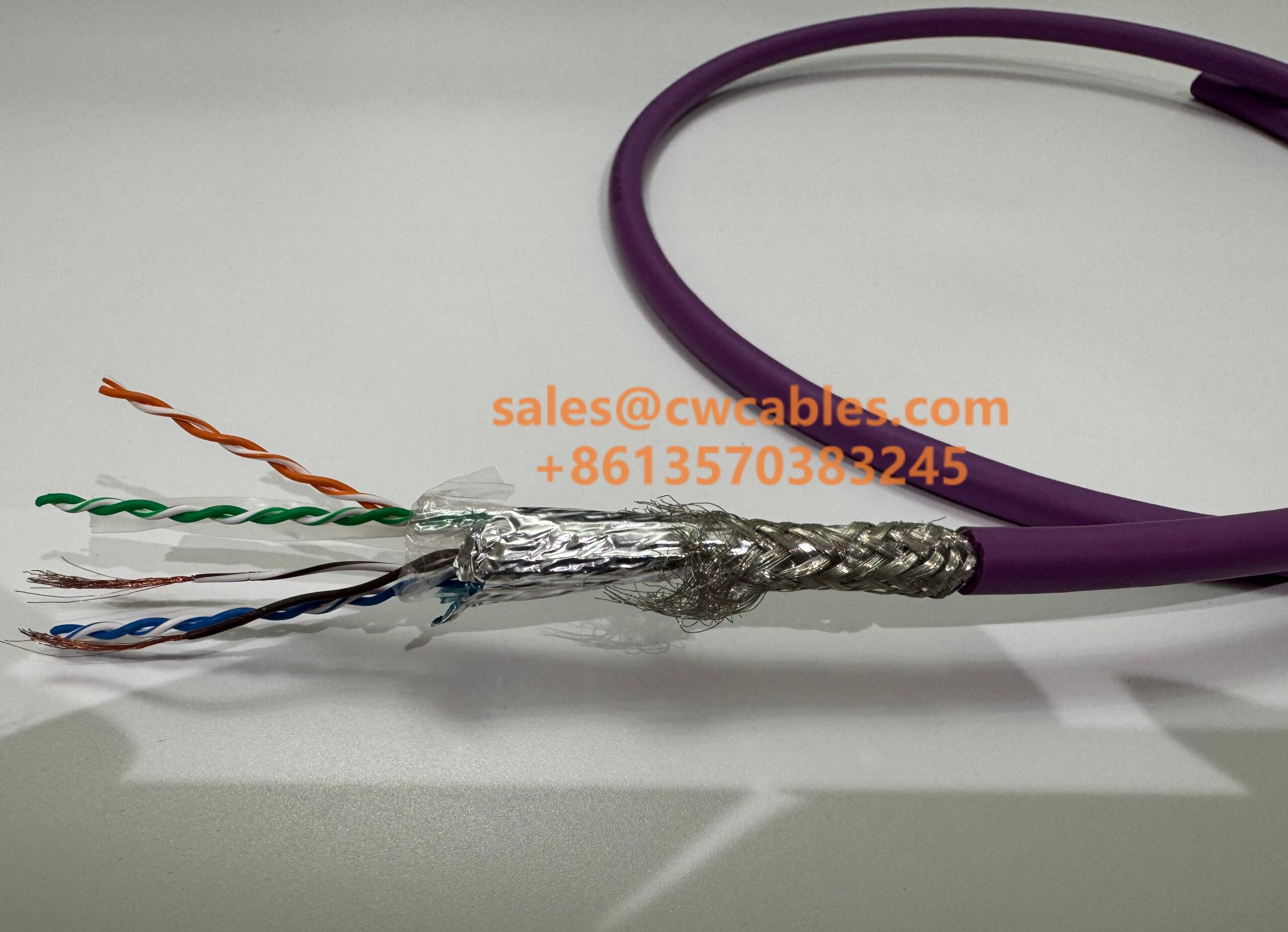

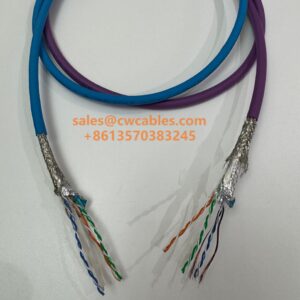

Industrial Ethernet CAT6A SF/UTP Flexible Cable

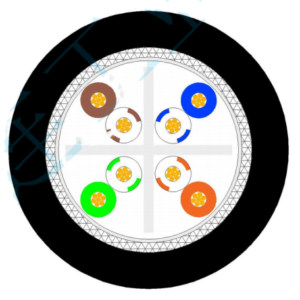

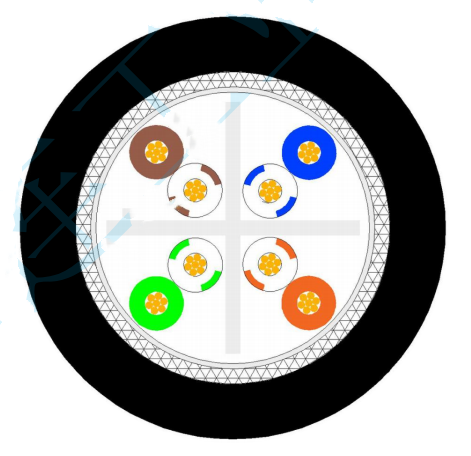

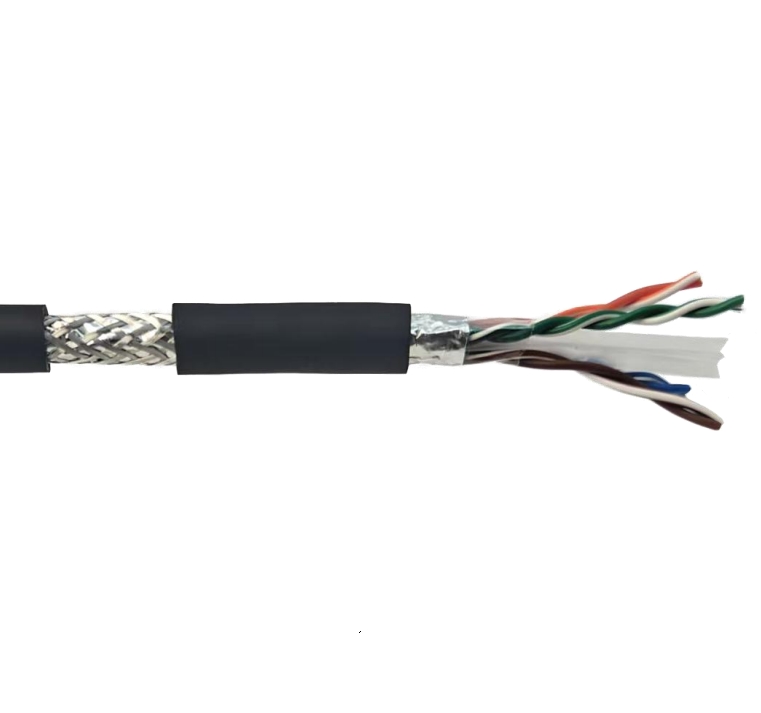

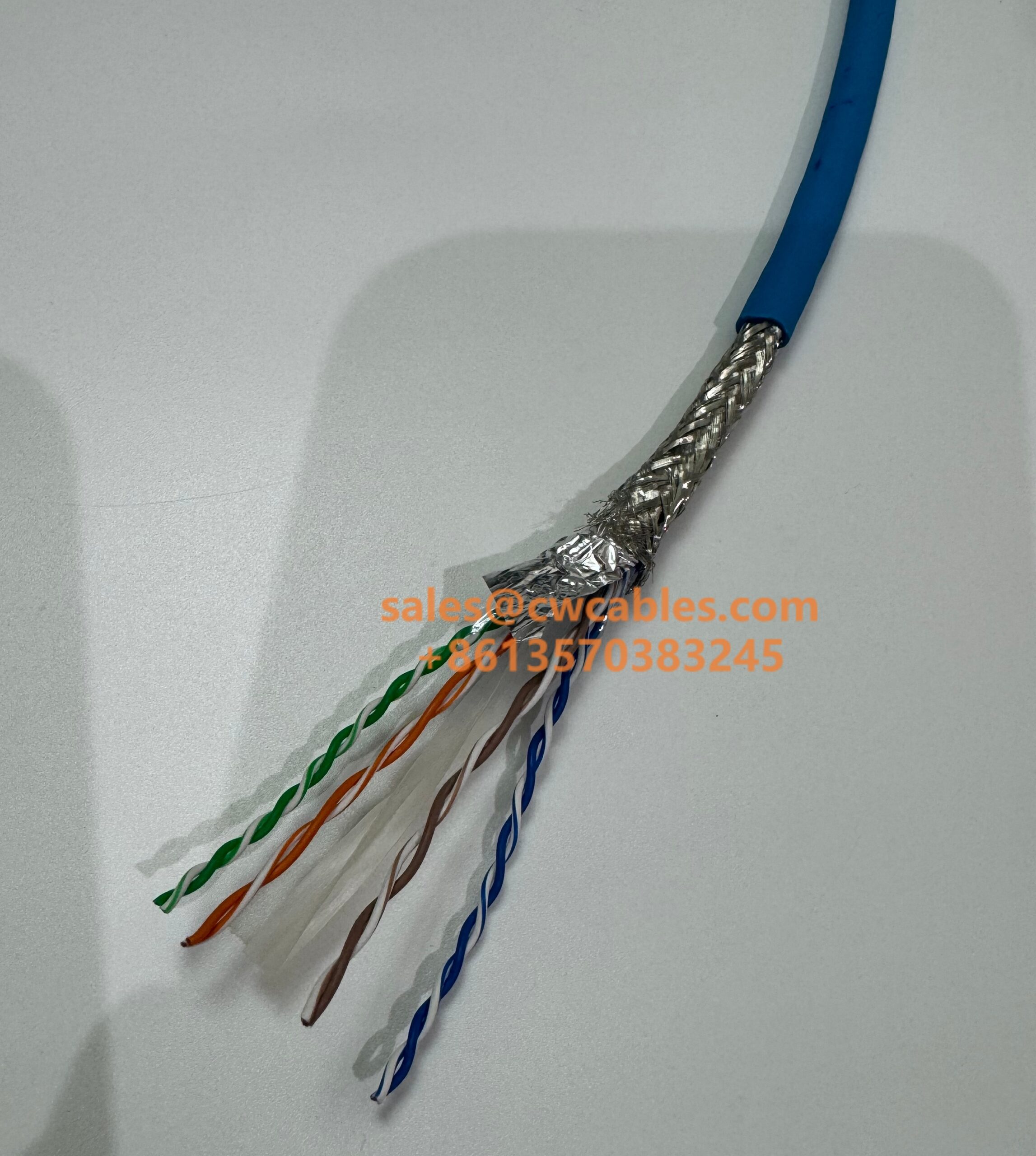

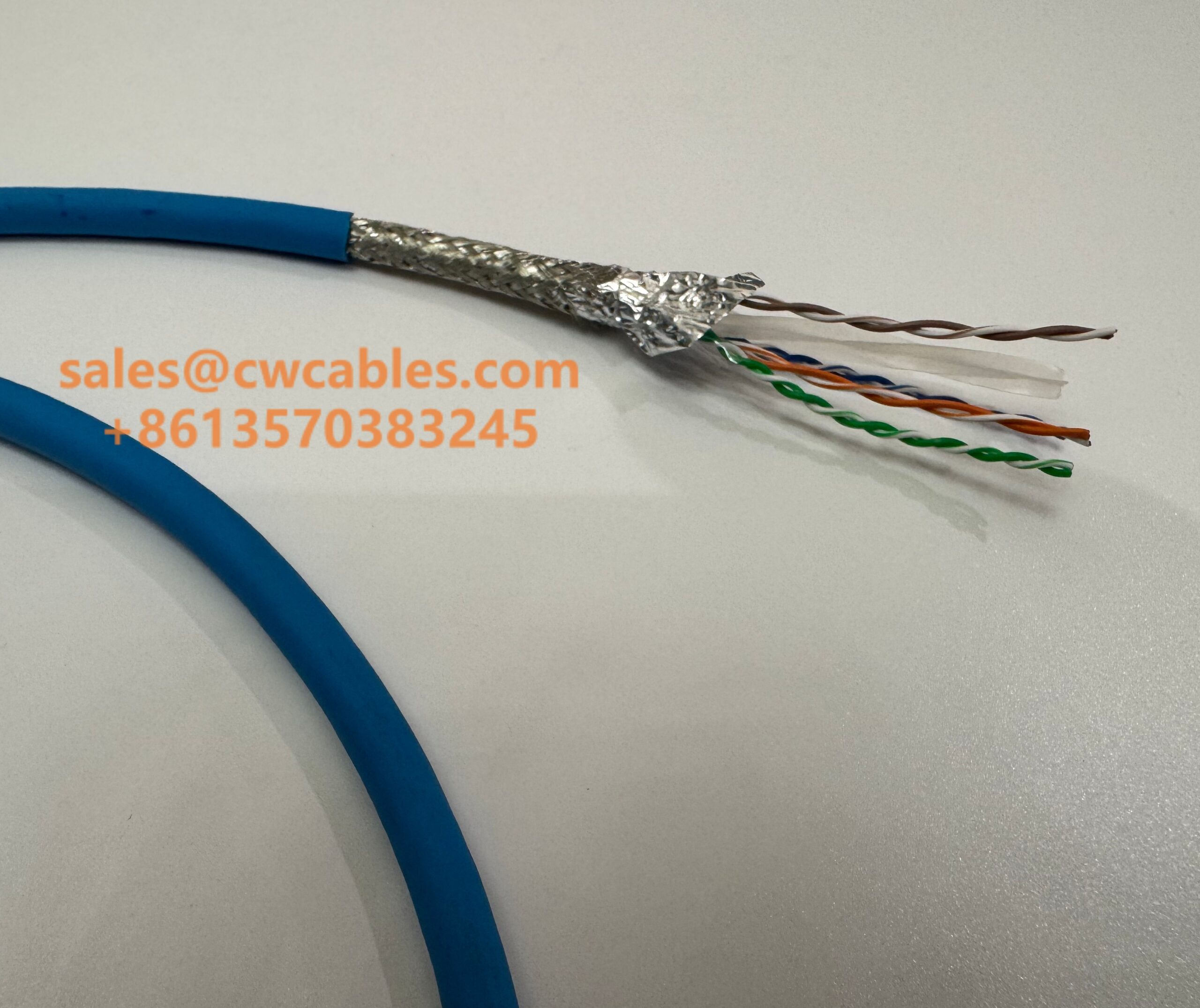

1. Product Structure
| 목 | 사양 |
|---|---|
| 지휘자 | Stranded bare copper wire, compliant with IEC 60228 & DIN VDE 0295 conductor standards |
| 격리 | PE (Polyethylene); Pair coloring: Brown/White-Brown, Blue/White-Blue, Orange/White-Orange, Green/White-Green |
| Filler | PE cross skeleton |
| 차폐 | Aluminum foil wrapping + tinned copper wire braided composite shielding; Total shielding coverage ≥65% |
| 칼집 | Industrial high-flexibility PVC; Black matte (similar to RAL 9005) or green matte (similar to RAL 6018) |
2. Technical Parameters
| 목 | 사양 |
|---|---|
| Rated Voltage | 30V |
| 테스트 전압 | 500V |
| Characteristic Impedance | 100±15Ω |
| 온도 범위 | Fixed installation: -20~+80℃; Moving in drag chain: -15~+70℃ |
| 굽힘 반경 | Fixed installation: 6 × Cable Outer Diameter; Moving in drag chain: 14 × Cable Outer Diameter |
| Drag Chain Performance | ≥2 million cycles (moving speed ≤1.5m/s) |
| Torsion Performance | ≥500,000 cycles (Cable length L≥600mm, ±90° torsion, 30 cycles/min) |
| 내유성 | Excellent oil resistance property |
| Flame Retardancy | Compliant with UL 1581 FT2 / IEC 60332-1-2 standards |
| Environmental Compliance | Lead-free, compliant with EU 2011/65/EU (RoHS-II) environmental directive |
3. Application Scenarios
| Application Category | 세부 |
|---|---|
| Industrial Bus Communication | Suitable for EtherCAT and EtherNet/IP applications |
| 고속 데이터 전송 | Supports Industrial Ethernet transmission from 100Mbit/s to 10Gbit/s |
| Wiring Conditions | Fixed installation, medium-low speed intermittent drag chain applications |
| Functional Requirements | Industrial scenarios with wear resistance and flame retardancy demands |
