애플리케이션
● It adopts a wrapped structure, and the conductor is made of ultra-fine copper wire with a diameter of 0.08mm twisted into groups, providing a soft feel and good elasticity.
● It is suitable for extremely harsh industrial environments and places with corrosive coolant and lubricating oil, exhibiting excellent oil resistance and abrasion resistance.
● It has good resistance to microorganisms, hydrolysis, chemical corrosion, UV radiation, and low temperatures.
● It can be used indoors and outdoors in dry or humid conditions, especially suitable for industrial environments.
● Under normal usage conditions, it generally has a service life of more than 10 million cycles. Suitable for use in high-speed motion drag chains
● Mainly used for power transmission in industrial automation, electromechanical equipment, machine tools, logistics equipment, and servo systems operating in harsh environments.
기술 데이터
●특수 PUR 외장, 유연성이 뛰어남
●온도 범위: 이동식 설치: -20°C ~ +80°C 고정 설치: -40°C ~ +90°C
●최대 오버헤드/슬라이딩 속도: 5m/s, 3m/s
●최대 가속도: 50m/s
● Test voltage: 2000V
● Insulation resistance:Minimum 20 MOhmxkm
● Minimum bending radius: Mobile installation: 6 x cable diameter Fixed installation: 4 x cable diameter
●Oil resistance: completely oil-resistant
● EU RoHS 및 Reach 규정을 준수합니다.
● Flame retardant, compliant with IEC 60332-1-2, CEI 20-35, FT1, VW-1.

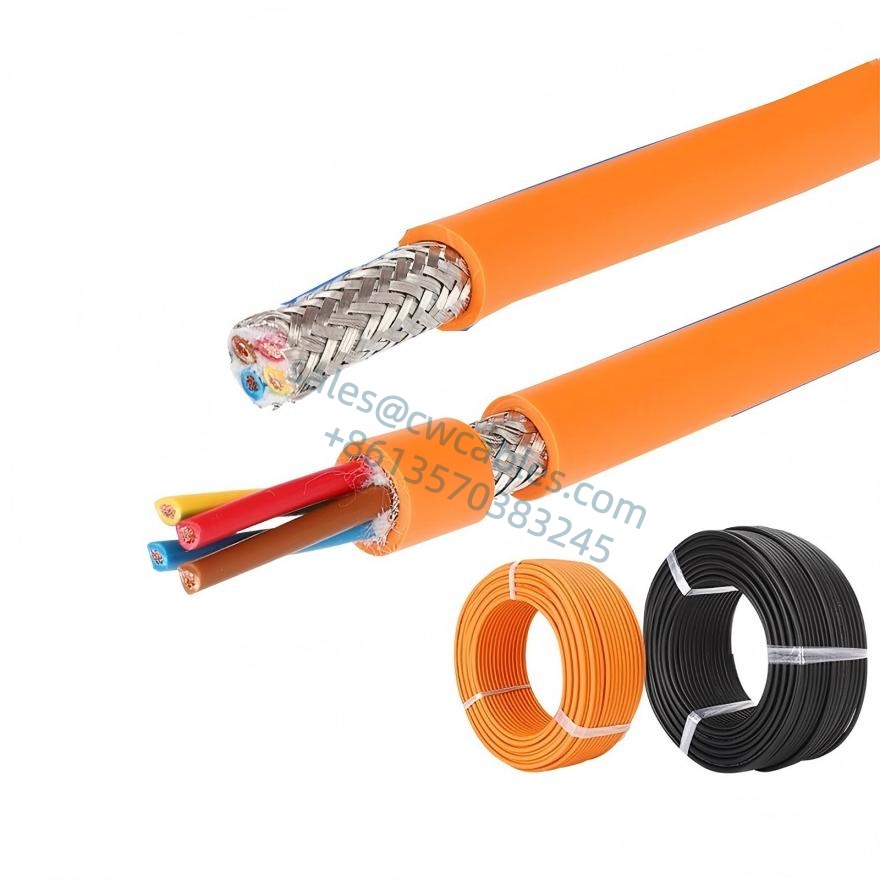

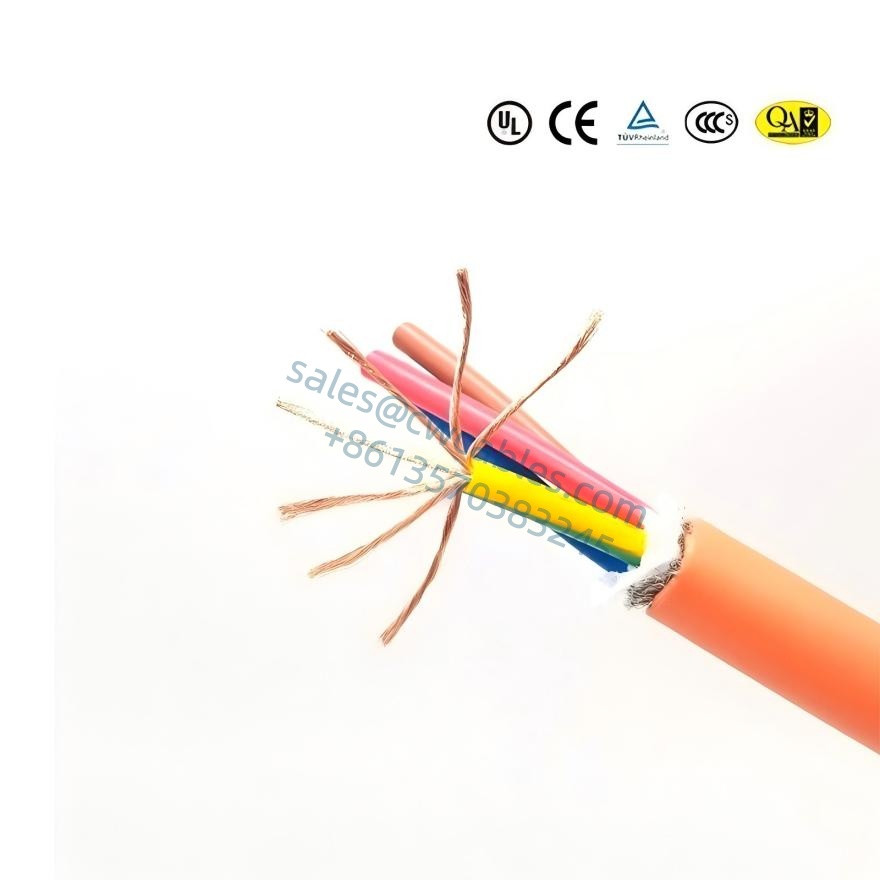

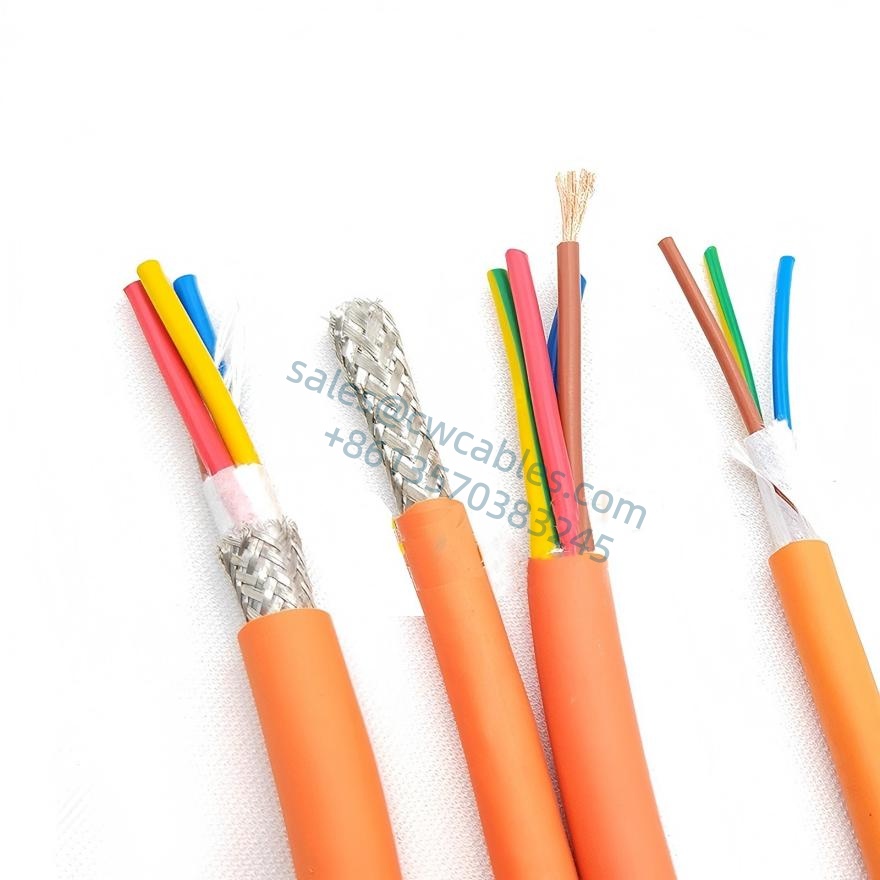

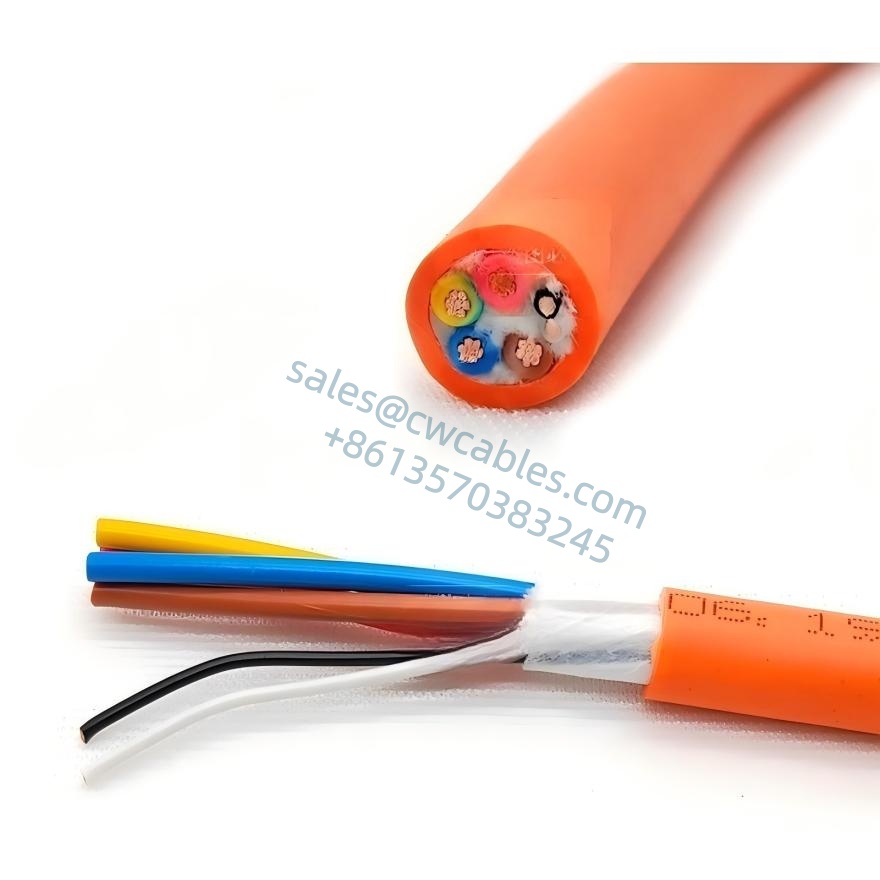

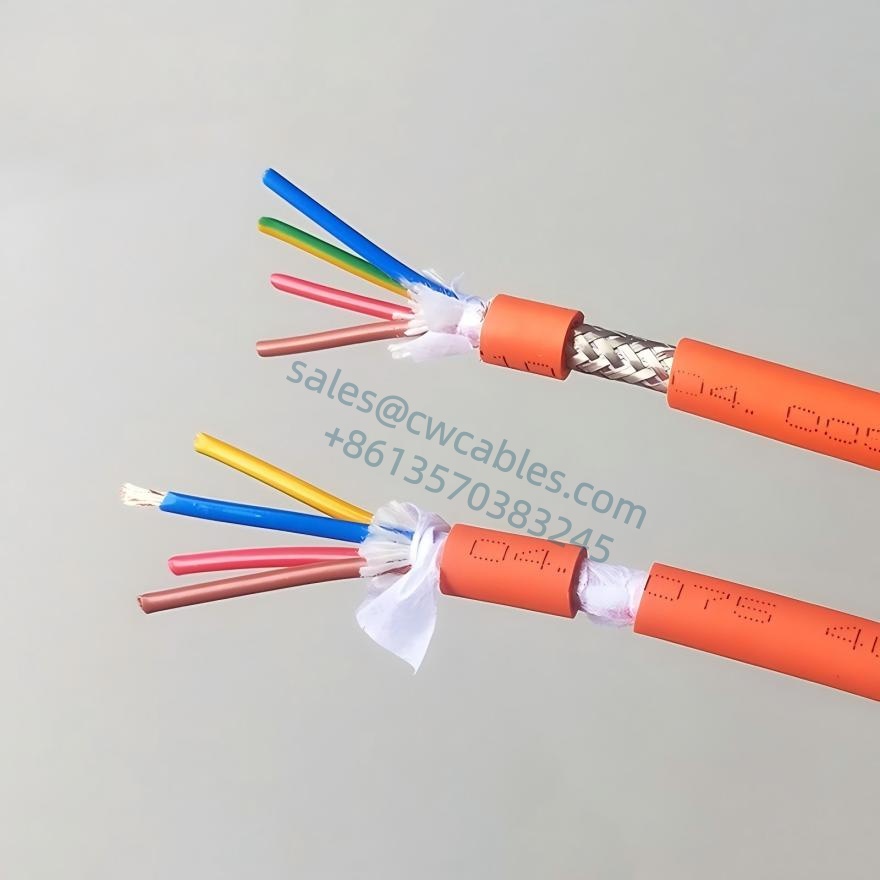

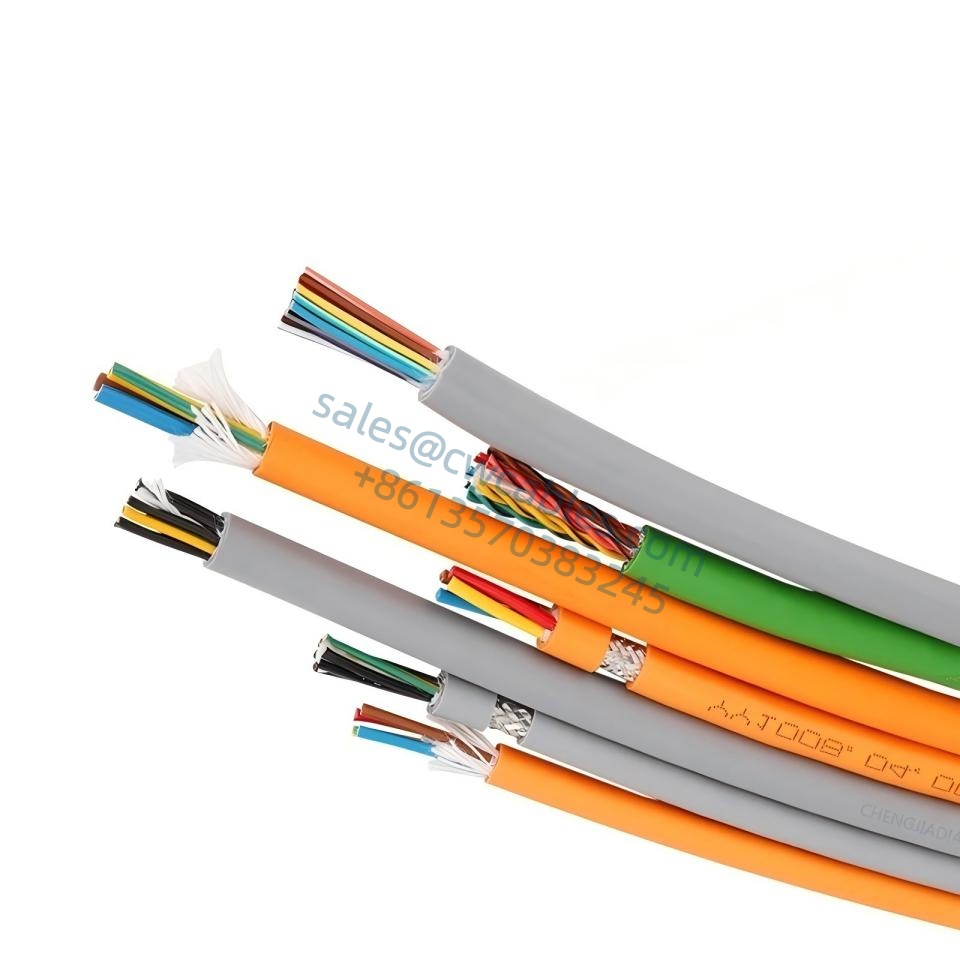

Cable Structure
● 0.08mm² Bare copper conductor, ultra-fine copper wire
● Compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6
●특수 PVC 단열재
●Color-coded cores
●Optimal pitch concentric stranded cores
●With yellow-green grounding wire (3 cores and above)
● Low friction, wear-resistant, low-temperature resistant, and oil-resistant PUR composite material.
● Orange, black, or color can be customized according to customer requirements.
| YP1007 ULTRA HIGH FLEXIBLE PUR DRAG CHAIN POWER CABLE ( 10 million times reliability tests for drag chain) | ||||
| 아니요. | 제품 코드 | 코어 수 및 단면적 | 대략적인 외경(mm) | 외피 색상 |
| (NO.Xm㎡) | ||||
| 1 | YP1007.02.0050 | 2×0.5 | 6.2 | Orange, Black |
| 2 | YP1007.03.0050 | 3G0.5 | 6.5 | 검은색 |
| 삼 | YP1007.04.0050 | 4G0.5 | 7.0 | Orange, Black |
| 4 | YP1007.02.0075 | 2×0.75 | 6.8 | 검은색 |
| 5 | YP1007.03.0075 | 3G0.75 | 7.2 | 검은색 |
| 6 | YP1007.04.0075 | 4G0.75 | 7.8 | Orange, Black |
| 7 | YP1007.02.0100 | 2×1.0 | 7.5 | 검은색 |
| 8 | YP1007.03.0100 | 3G1.0 | 7.8 | 검은색 |
| 9 | YP1007.04.0100 | 4G1.0 | 8.6 | Orange, Black |
| 10 | YP1007.03.0150 | 3G1.5 | 8.8 | 검은색 |
| 11 | YP1007.04.0150 | 4G1.5 | 9.6 | Orange, Black |
| 12 | YP1007.03.0250 | 3G2.5 | 10.8 | 검은색 |
| 13 | YP1007.04.0250 | 4G2.5 | 11.6 | Orange, Black |
| 14 | YP1007.04.0400 | 4G4.0 | 14.0 | Orange, Black |
| 15 | YP1007.04.0600 | 4G6.0 | 16.0 | Orange |
| 16 | YP1007.06.2022 | 4G0.5+2×0.3 | 7.5 | Orange |
| 17 | YP1007.06.1922 | 4G0.75+2×0.3 | 8.2 | Orange, Black |
High-flexible drag chain cable testing standards
(10 million times reliability tests for drag chain)
