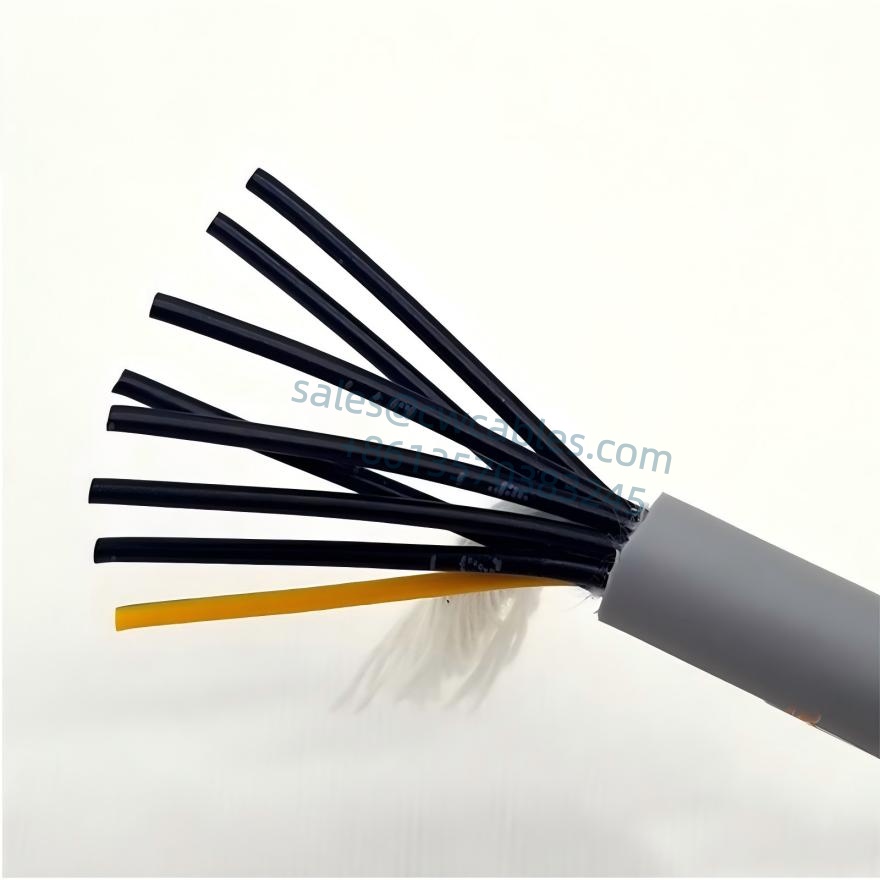

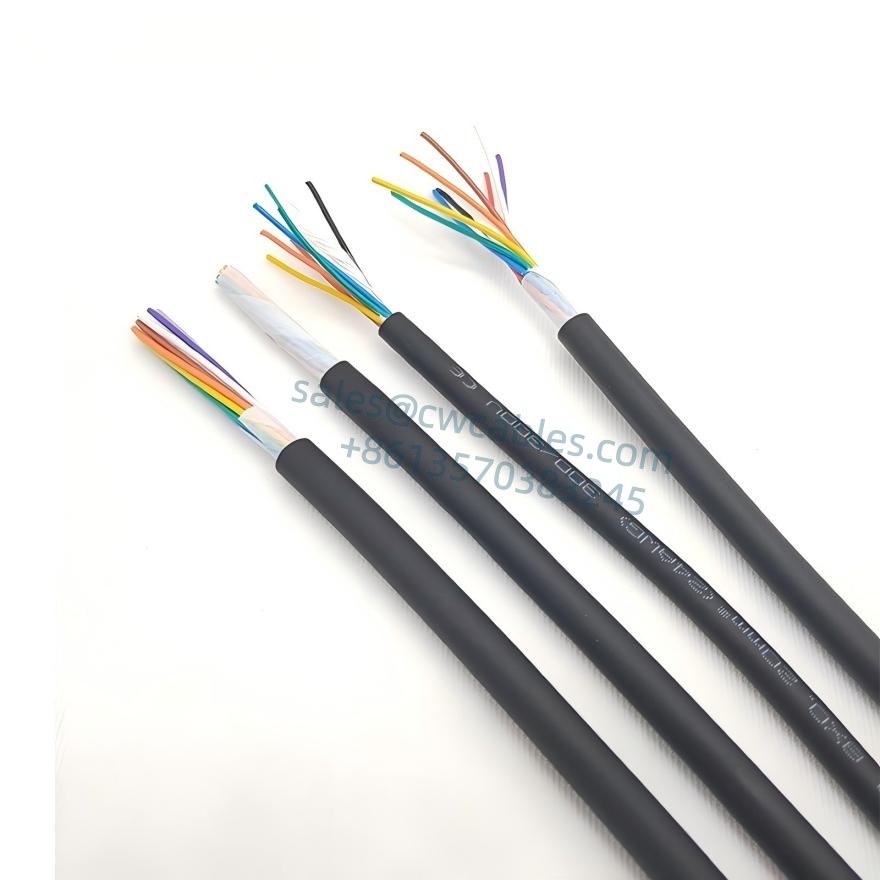

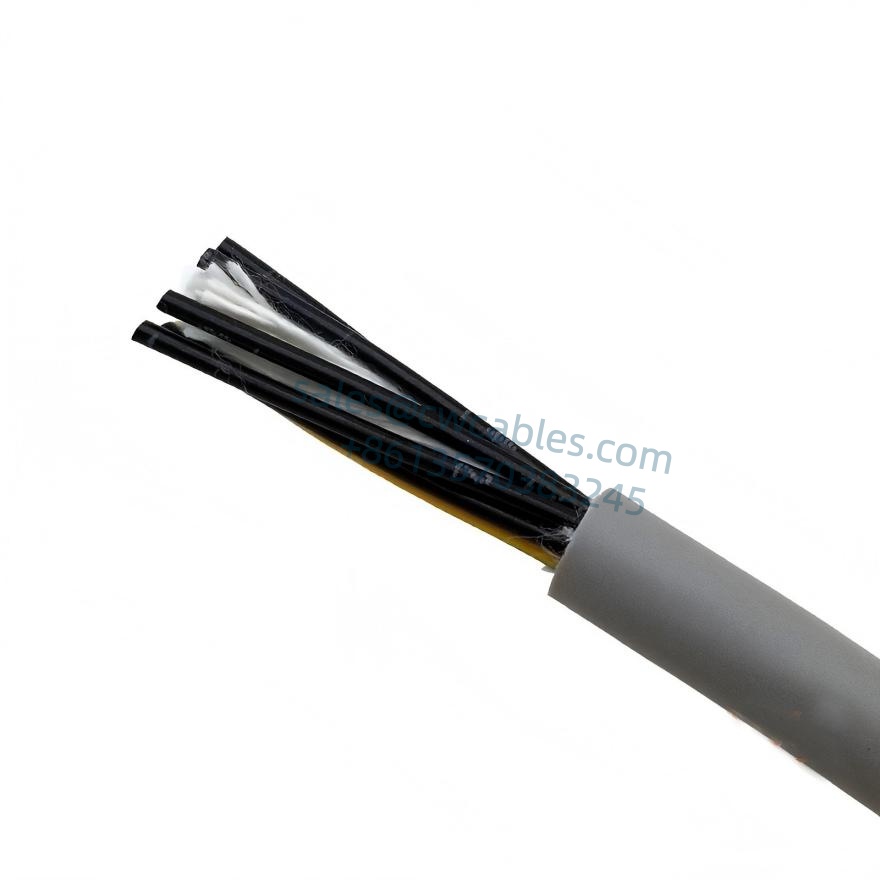

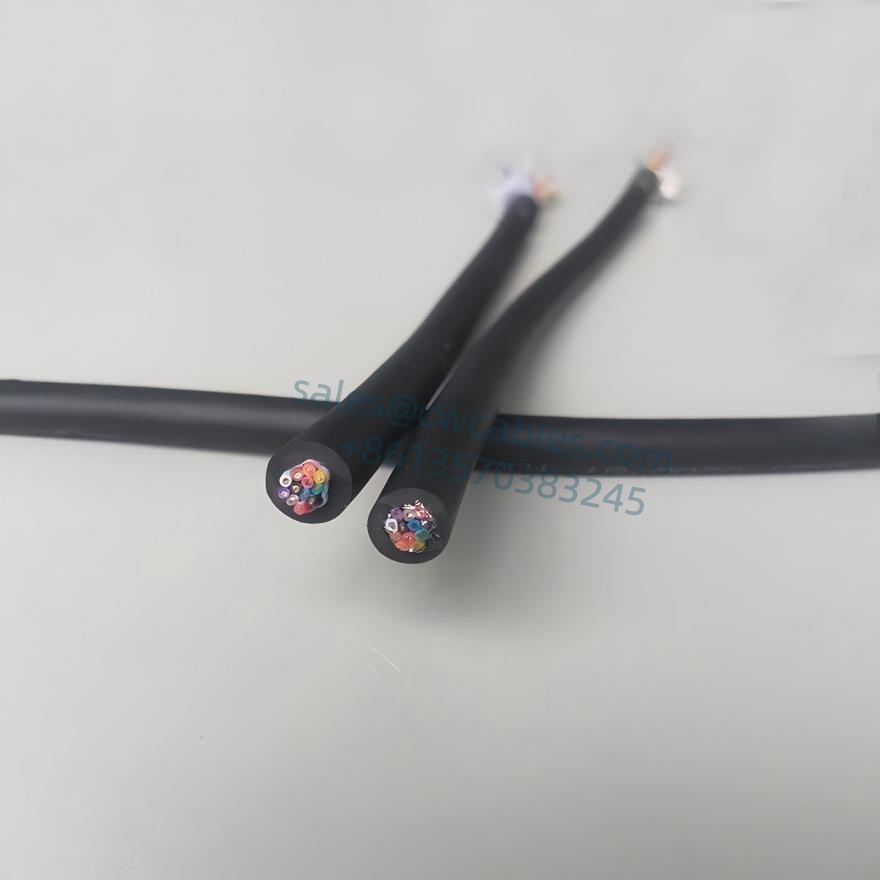

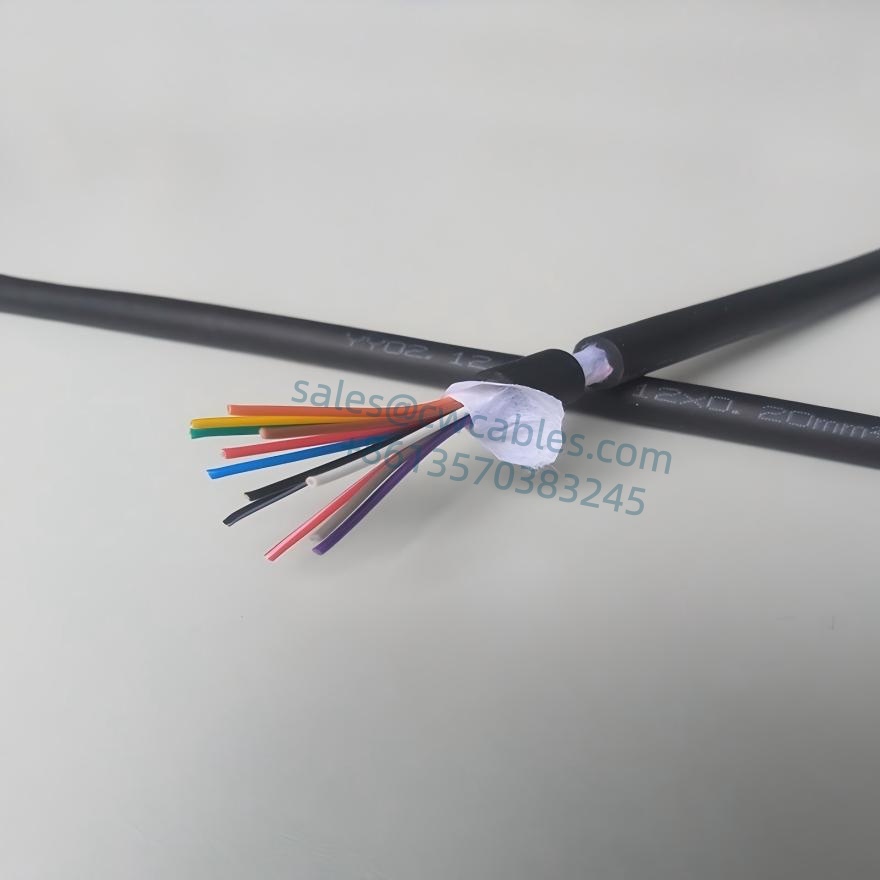

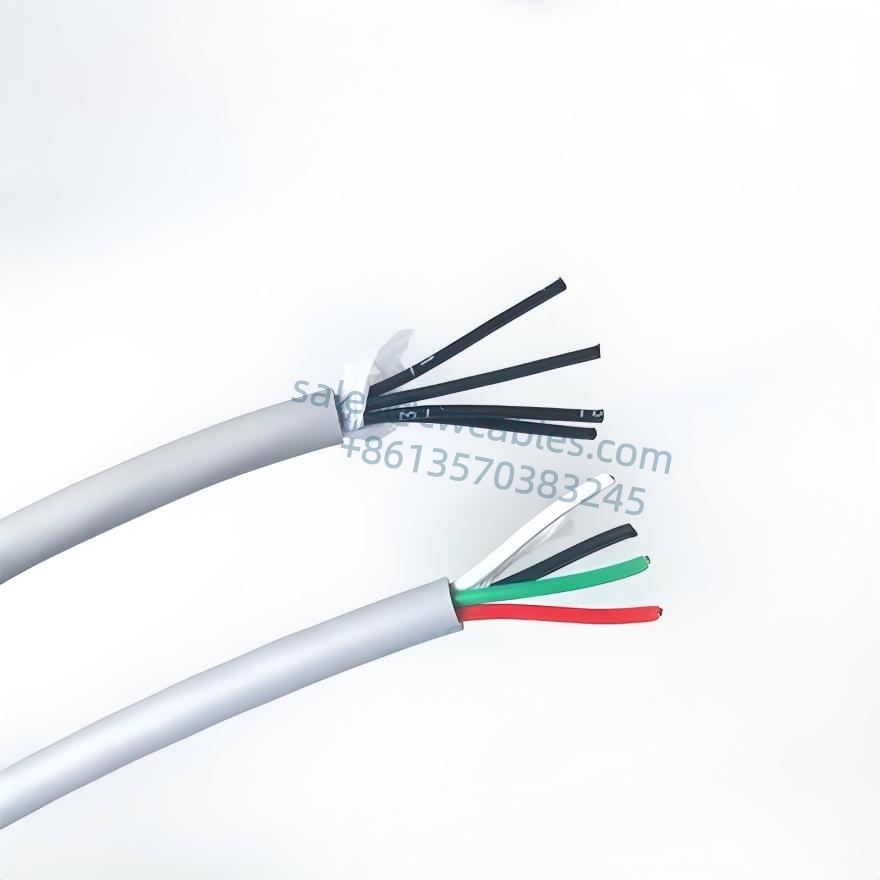

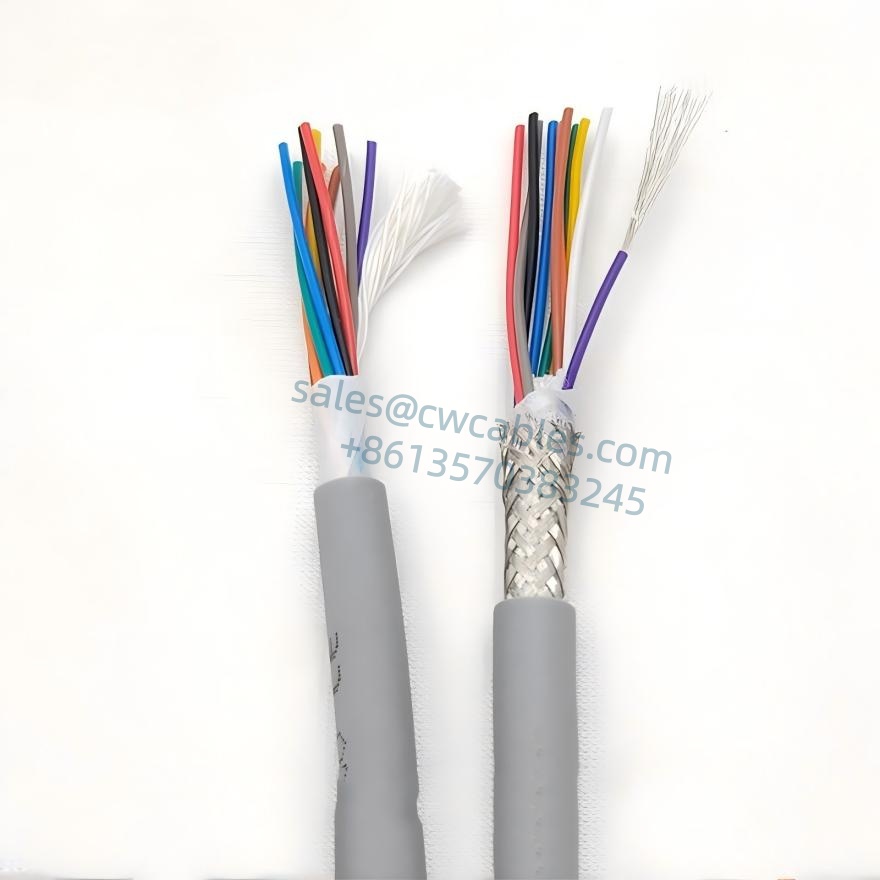

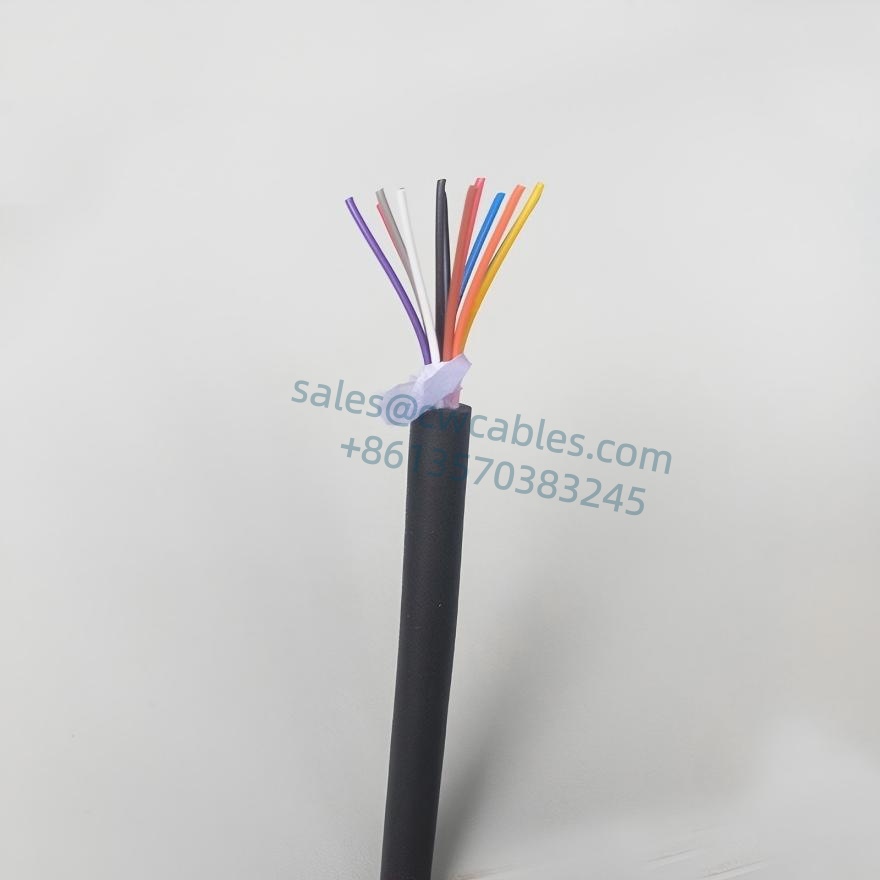

YY01 20X0.20mm²(24AWG) Unshielded PVC Flexible Tray Control Cables
MODELİ | Çekirdek Sayısı ve kesit alanı (MM²) | TEL RENGİ | Adedi |
YY01 flexible cable | 0.14 | 50 colors According to the product catalog The first 50 colors specified. |
2.3.4.6.8.10.12.14.16.20.26.30.40.50 cores: Minimum order quantity is one roll. For specifications other than 50 cores, the minimum order quantity is 1000 meters. For 50 cores and above, the minimum order quantity is 3000 meters. |
0.2 | 2.3.4.5.6.8.10.12.14.16.20.24.26 cores: Minimum order quantity is one roll. For specifications other than 30 cores, the minimum order quantity is 1000 meters. For 30 cores and above, the minimum order quantity is 3000 meters. |
||
0.3 | 2.3.4.5.6.8.10.12.14.16.20.24.26 cores: Minimum order quantity is one roll. For specifications other than 30 cores, the minimum order quantity is 1000 meters. For 30 cores and above, the minimum order quantity is 3000 meters. |
||
00,5 | Yellow/Green core Black: with number |
5.6.7.8.10.12.16.20.24.26.30 cores: Minimum order quantity is one roll. For 36, 40, and 50 cores, the minimum order quantity is 400 meters. For specifications other than 50 cores, the minimum order quantity is 1000 meters for up to 50 cores. |
|
00,75 | Yellow/Green core Black: with number |
5.6.8.10 cores: Minimum order quantity is one croll. For 12, 14, 16, 18, 20, 24, 26, 30, 36, and 40 cores, the minimum order quantity is 400 meters. For specifications other than 50 cores, the minimum order quantity is 1000 meters for up to 50 cores. |
|
00,75 | Yellow/Green core Black: with number |
5.6.7.10.12.16.20 cores: Minimum order quantity is one roll. For 24, 26, and 30 cores, the minimum order quantity is 400 meters. For specifications other than 30 cores, the minimum order quantity is 1000 meters for up to 30 cores. |
|
1.5 | Yellow/Green core Black: with number |
up to 20 cores: Minimum order quantity is 400 meters. |
Teknik Parametre
YY01 FLEXIBLE CONTROL CABLE (COLOR CORE) Parameter | ||||
HAYIR. | Ürün Kodu | Çekirdek Sayısı ve kesit alanı | Yaklaşık dış çap (mm) | Dış kılıf rengi |
(NO.Xm㎡) | ||||
1 | YY01 02 0014 | 2×0.14 | 3.6 | Siyah |
2 | YY01.03.0014 | 3×0,14 | 3.8 | Siyah |
3 | YY01.04.0014 | 4×0.14 | 4.2 | Siyah |
4 | YY01.06.0014 | 6×0,14 | 4.8 | Siyah |
5 | YY01.08.0014 | 8×0,14 | 5.2 | Siyah |
6 | YY01.10.0014 | 10×0,14 | 6.0 | Siyah |
7 | YY01.12.0014 | 12×0,14 | 6.2 | Siyah |
8 | YY01.14.0014 | 14×0.14 | 6.5 | Siyah |
9 | YY01.16.0014 | 16×0,14 | 6.8 | Siyah |
10 | YY01.20.0014 | 20×0,14 | 7.4 | Siyah |
11 | YY01.26.0014 | 26×0,14 | 8.2 | Siyah |
12 | YY01.30.0014 | 30×0.14 | 8.5 | Siyah |
13 | YY01.40.0014 | 40×0.14 | 9.6 | Siyah |
14 | YY01.50.0014 | 50×0.14 | 10.8 | Siyah |
15 | YY01.02.0020 | 2×0,2 | 3.8 | Siyah |
16 | YY01.03.0020 | 3×0,2 | 4.0 | Siyah |
17 | YY01.04.0020 | 4×0,2 | 4.5 | Siyah |
18 | YY01.05.0020 | 5×0,2 | 4.8 | Siyah |
19 | YY01.06.0020 | 6×0,2 | 5.2 | Siyah |
20 | YY01.08.0020 | 8×0,2 | 5.5 | Siyah |
21 | YY01.10.0020 | 10×0,2 | 6.2 | Siyah |
22 | YY01.12.0020 | 12×0,2 | 6.4 | Siyah |
23 | YY01.14.0020 | 14×0.2 | 6.8 | Siyah |
24 | YY01.16.0020 | 16×0,2 | 7.2 | Siyah |
25 | YY01.20.0020 | 20×0,2 | 8.0 | Siyah |
26 | YY01.24.0020 | 24×0.2 | 8.8 | Siyah |
27 | YY01.26.0020 | 26×0,2 | 9.0 | Siyah |
28 | YY01.02.0030 | 2×0,3 | 4.2 | Siyah |
29 | YY01.03.0030 | 3×0,3 | 4.4 | Siyah |
30 | YY01.04.0030 | 4×0,3 | 4.8 | Siyah |
31 | YY01.05.0030 | 5×0,3 | 5.2 | Siyah |
32 | YY01.06.0030 | 6×0,3 | 5.5 | Siyah |
33 | YY01.07.0030 | 7×0.3 | 5.5 | Siyah |
34 | YY01.08.0030 | 8×0,3 | 6.0 | Siyah |
35 | YY01.09.0030 | 9×0.3 | 6.5 | Siyah |
36 | YY01.10.0030 | 10×0,3 | 7.0 | Siyah |
37 | YY01.12.0030 | 12×0,3 | 7.2 | Siyah |
38 | YY01.14.0030 | 14×0.3 | 7.5 | Siyah |
39 | YY01.16.0030 | 16×0,3 | 8.0 | Siyah |
40 | YY01.18.0030 | 18×0.3 | 8.4 | Siyah |
41 | YY01.20.0030 | 20×0,3 | 8.6 | Siyah |
42 | YY01.24.0030 | 24×0.3 | 9.6 | Siyah |
43 | YY01.26,0030 | 26×0.3 | 9.8 | Siyah |
44 | YY01.30.0030 | 30×0.3 | 10.2 | Siyah |
45 | YY01.40.0030 | 40×0.3 | 11.2 | Siyah |
46 | YY01.50.0030 | 50×0.3 | 12.5 | Siyah |
Special PVC sheathing, with good flexibility.
• Temperature range: Mobile installation: -5°C to +70°C
Fixed installation: -15°C to +70°C
• Nominal voltage: 300/300V
• Test voltage: 1500V
• Insulation resistance: minimum 20 MOhmxkm
• Minimum bending radius: Mobile installation: 7.5 times the cable diameter
Fixed installation: 6 times the cable diameter
• Complies with EU RoHS and Reach regulations.
Control Cable Structure
- Tinned copper conductor, fine copper wire.
- Complies with DIN VDE 0295 Class 6 and IEC 60228 Class 6.
- • Special PVC insulation.
- • Color-coded core wire identification.
- • Optimum pitch layering of the cores.
- • Special PVC outer sheath.
- • Black color (RAL 9005) matte
