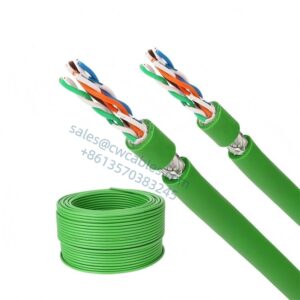

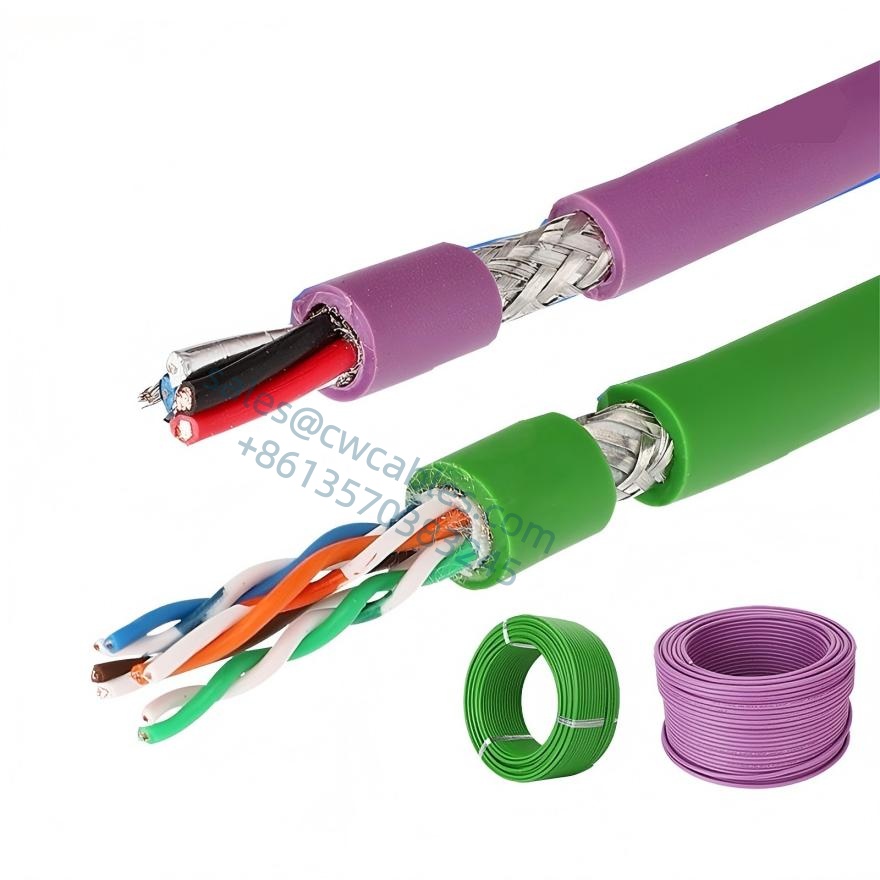

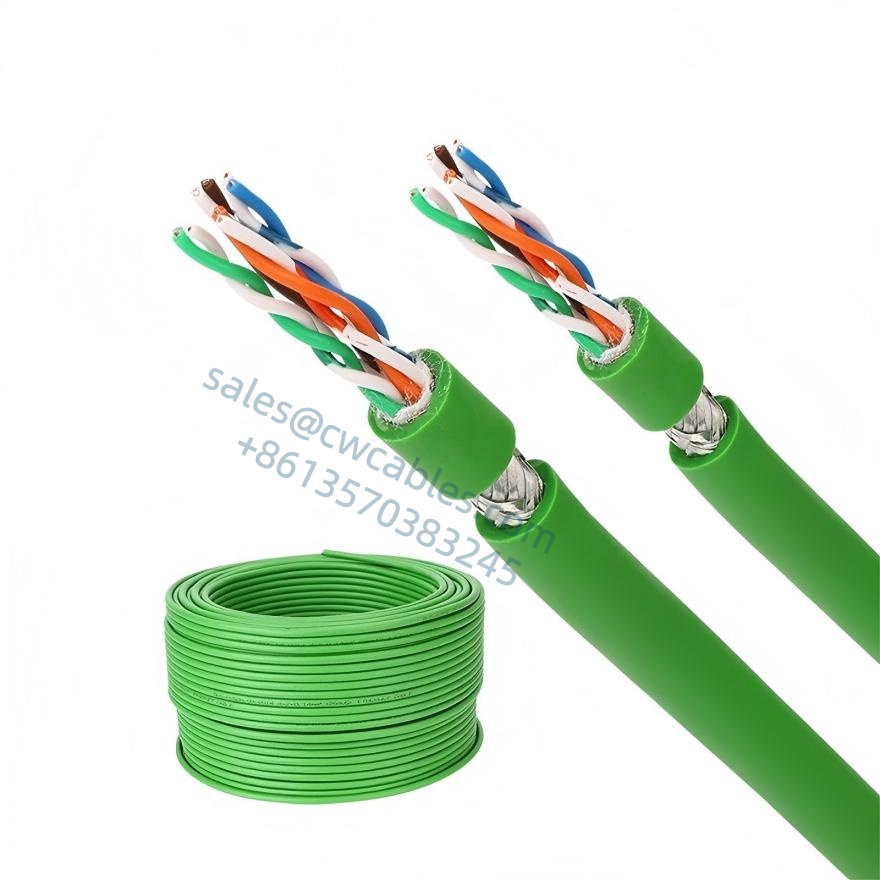

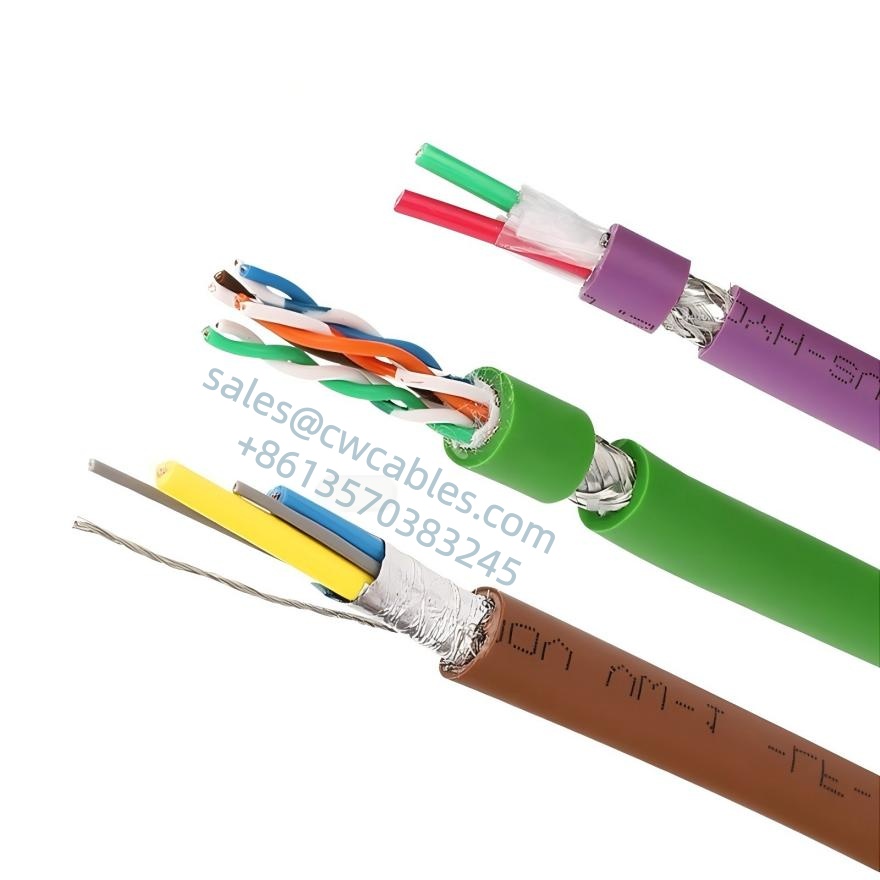

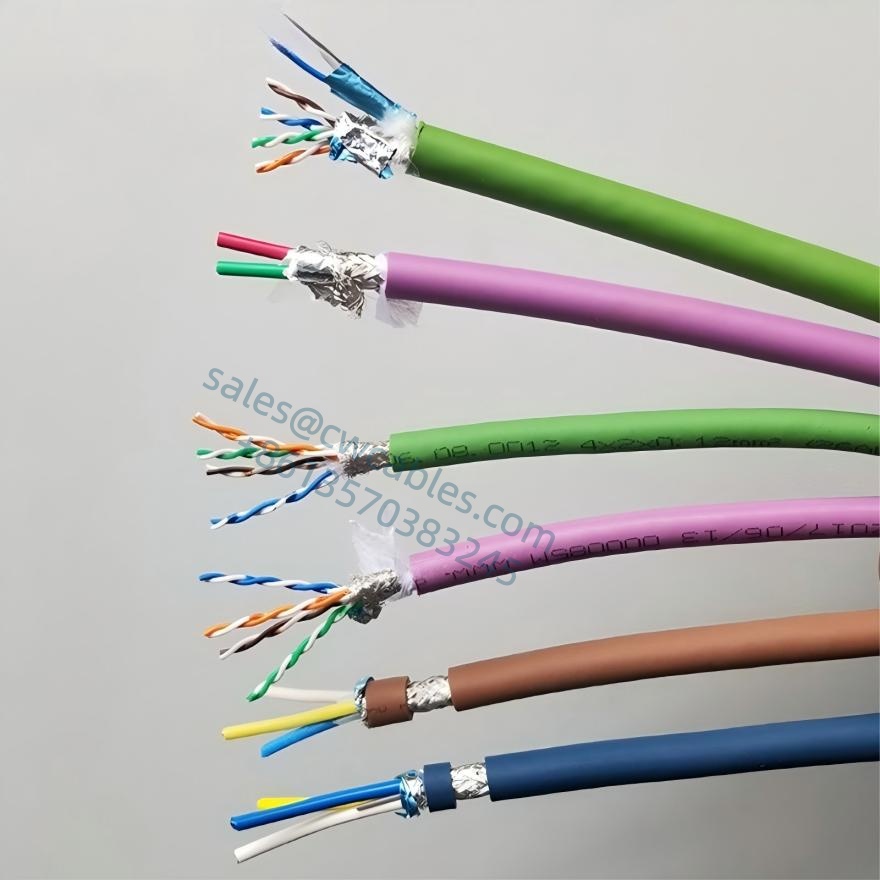

Data Transmission High Flexible Industrial Ethernet Cable For Drag Chain applied to data transmission of data transmission of
Ethernet/IP, EtherCAT, and other derivative bus systems. This high -flexible bus cable uses special structural design and modified
quilt materials. It has high wear resistance and medium resistance, which can withstand long -term acceleration, deceleration,
stretching and compression stress, and millions of periodic bending Essence
Technical Parameter Data Transmission High Flexible Industrial
Ethernet Cable For Drag Chain
Special PVC sheath.vey flexible
Comply with the Bus Cable Specification
Temperature range: Move installation -5 ° C to+70 ° C
Fixed installation -15 ° C to+70 ° C
Voltage 30V
Test voltage 500V
Yalıtım direnci:
Minimum 20mohm xkm
Minimum bending radius: Movement of 14X cable diameter
Fixed installation 7X cable diameter
Comply with EU ROHS and Reach regulations.
Comply with the Bus Cable Specification
Temperature range: Move installation -5 ° C to+70 ° C
Fixed installation -15 ° C to+70 ° C
Voltage 30V
Test voltage 500V
Yalıtım direnci:
Minimum 20mohm xkm
Minimum bending radius: Movement of 14X cable diameter
Fixed installation 7X cable diameter
Comply with EU ROHS and Reach regulations.
Bare copper conductor, good copper wire,
Compliance with DIN VDE0295 and IEC 60228 standards
Insulation meets bus standards
Core wire identification meets bus standards
The twisted method meets the bus standard
Improved tin -plated copper wire woven shielding
Minimum coverage rate 85%
Special PVC jacket
Green (RAL6018) matte
Compliance with DIN VDE0295 and IEC 60228 standards
Insulation meets bus standards
Core wire identification meets bus standards
The twisted method meets the bus standard
Improved tin -plated copper wire woven shielding
Minimum coverage rate 85%
Special PVC jacket
Green (RAL6018) matte
| Ethernet/CAT5e Parameter | ||||
| HAYIR. | Ürün Kodu | Çekirdek Sayısı ve kesit alanı | Yaklaşık dış çap (mm) | Dış kılıf rengi |
| (NO.Xm㎡) | ||||
| 1 | BUS-HY506.08.0014 | 4x2x0,14 | 6.5 | Black Green |
| 2 | BUS-HY1006.08.0020 | 4x2x0,2 | 7 | Black Green |
| Ethernet/CAT6A Parameter | ||||
| HAYIR. | Ürün Kodu | Çekirdek Sayısı ve kesit alanı | Yaklaşık dış çap (mm) | Dış kılıf rengi |
| (NO.Xm㎡) | ||||
| 1 | BUS-HY506.08.0014 | 4x2x0,14 | 6.5 | Black Green |
