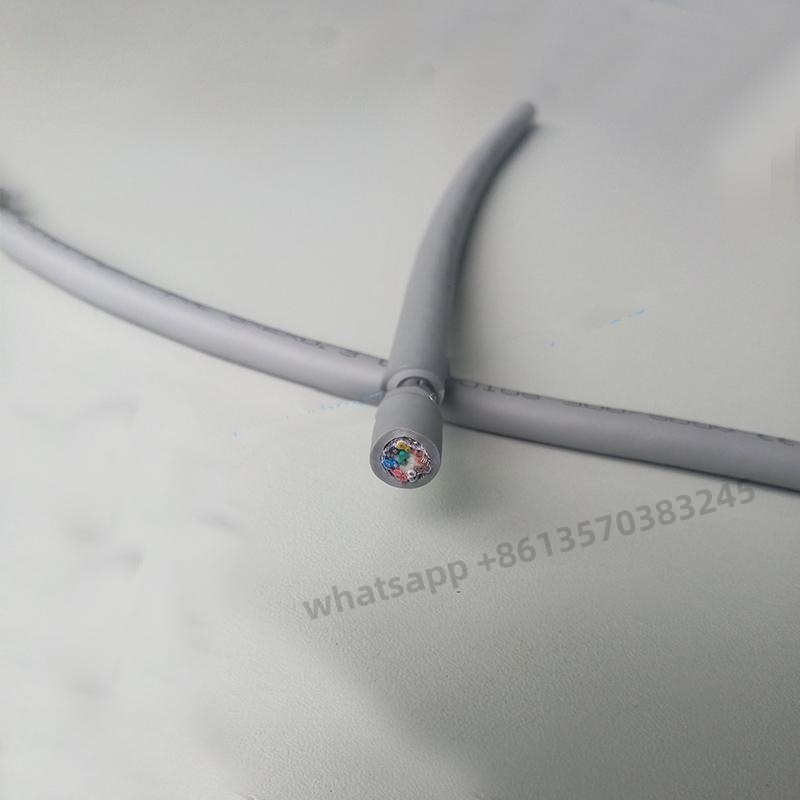

TY50.02 ULTRA HIGH FLEXIBLE CONTROL CABLE SHIELDED
(20 million times reliability tests for drag chain)
Overhead application travel distance is less than 50 meters
Технические данные
Temperature Range:
Moving inside the drag chain: +5°C to 80°C
Moving outside the drag chain: -5°C to 80°C
Bending Radius:
Moving inside the drag chain: Minimum 7.5xd
Moving outside the drag chain: Minimum 6xd
Drag Chain Life:
Factors affecting the service life of cables within the drag chain:
Temperature, Bending radius, Travel distance, Speed
TUV and Stable Drag Chain Testing Standards:
Temperature range: +15°C to 25°C
Bending radius: 7.5xd
Travel distance: 0.9 meters
Speed: 90 cycles/minute
The drag chain’s life can reach: 20 million cycle times
Maximum Speed and Acceleration:
Overhead: 3 m/s Sliding: 2 m/s Acceleration: 18 m/s²
Travel Distance:
For overhead applications, travel distance is less than 50 meters
Standard Voltage: 300/500V
Test Voltage: 2000V
Приложение
Especially suitable for mechanical equipment, machine tools, and other continuous high-intensity, high-speed drag chain bending applications. Particularly ideal for high-speed, medium to long-distance drag chain applications. The TY50.02 series drag chain cables have been widely used in woodworkin machinery, stone equipment, laser equipment, glass equipment, as well as in the packaging industry, logistics industry, and 3C automation for indoor drag chain systems.

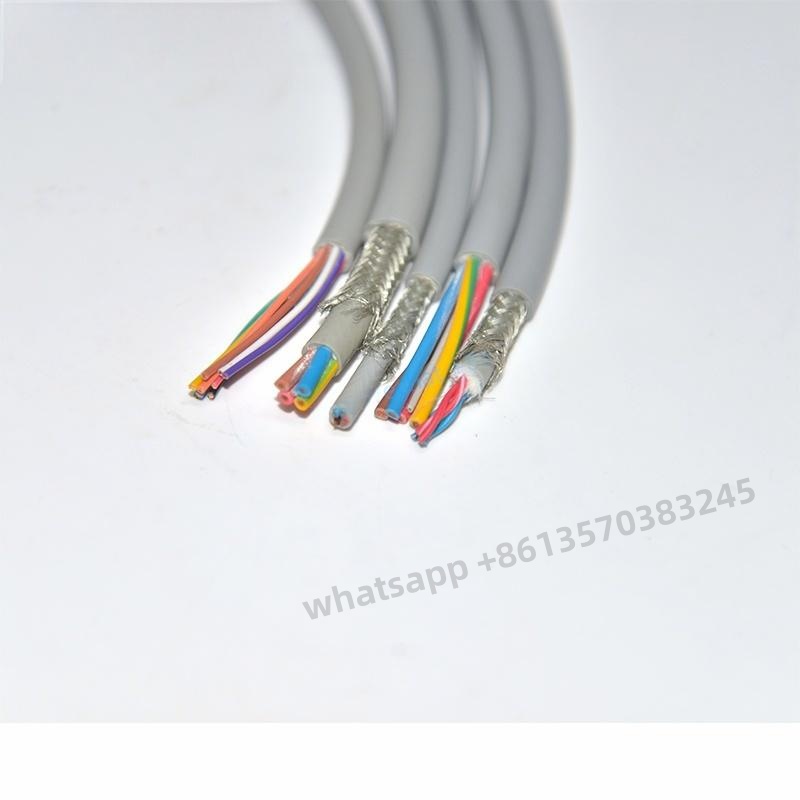

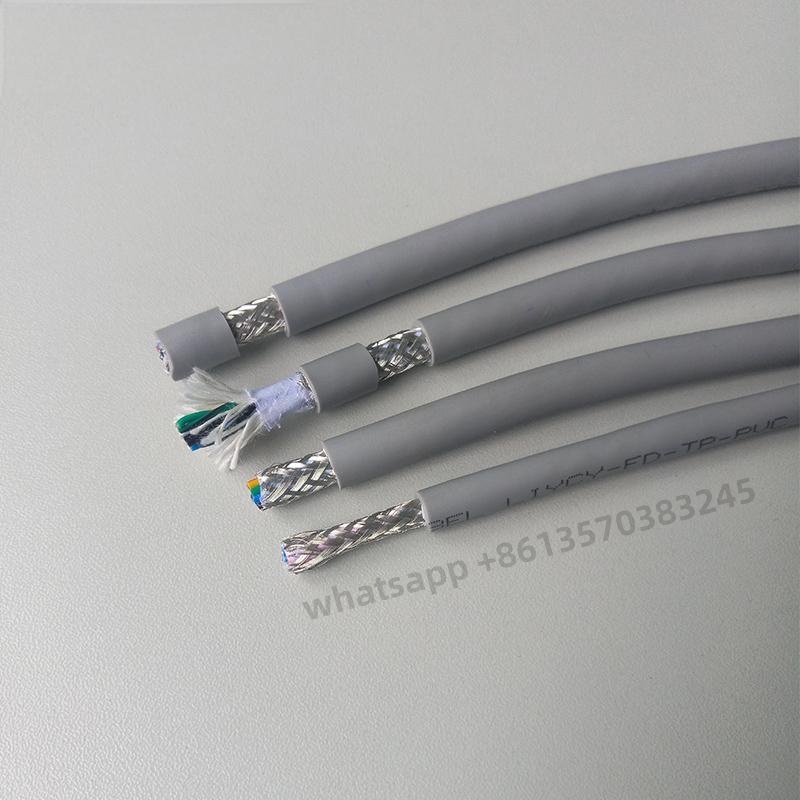

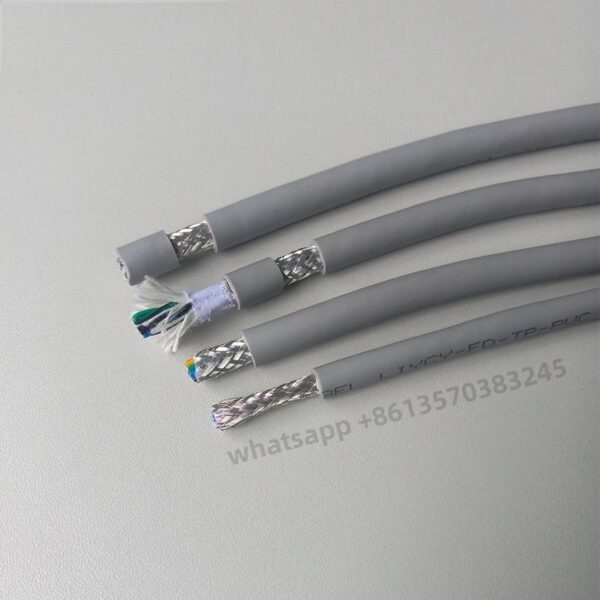

Структура кабеля

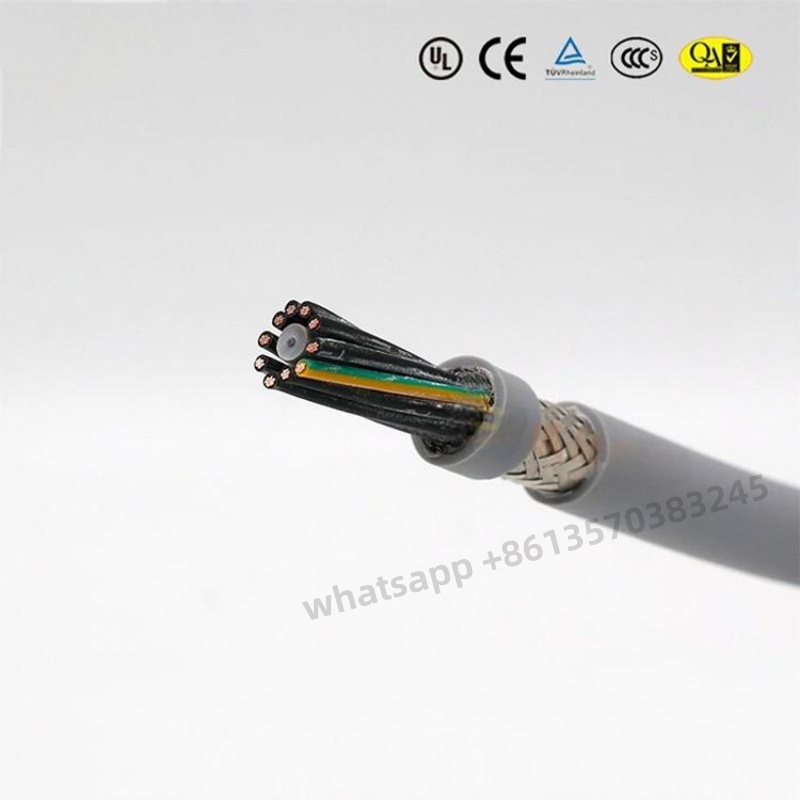

Product Structure:
Complies with UL758 STYLE 20200
Conductor:
Fine bare copper stranded wire with high bend strength, conforming to DIN VDE 0295 Class 5 and IEC 60228 Class 5
Insulation:
High mechanical performance TPE polymer insulation
Core Wire Color:
Cross-sectional area < 0.5 mm²: Colored core wires for differentiation, colors conform to DIN 47100 standard
Cross-sectional area ≥ 0.5 mm²: Green-yellow ground wire with black core wire marked with white numbers
Stranding Method:
For core wire quantity < 12: Short pitch stranding in one layer
For core wire quantity ≥ 12: Grouped and twisted twice to enhance torsional strength
Inner Sheath: Modified PVC Polymer
Overall Shielding: High-strength tinned copper wire shielding, optical coverage ≥ 85%
Outer Jacket:
Modified high-strength PVC polymer
| Элемент | Код продукта | Number of Cores and Cross-Sectional Area | Approximate Outer Diameter | Цвет | Product Number | минимальный заказ |
| 1 | TY50.02.03.0025 | 3×0.25 | 5.50 | Серый | C-201 | |
| 2 | TY50.02.05.0025 | 5×0.25 | 6.20 | Серый | C-203 | |
| 3 | TY50.02.07.0025 | 7×0.25 | 7.20 | Серый | C-205 | |
| 4 | TY50.02.12.0025 | 12×0.25 | 10.00 | Серый | C-209 | ※ |
| 5 | TY50.02.02.0034 | 2×0.34 | 5.80 | Серый | C-219 | |
| 6 | TY50.02.05.0034 | 5×0.34 | 7.00 | Серый | C-222 | |
| 7 | TY50.02.07.0034 | 7×0.34 | 8.00 | Серый | C-224 | |
| 8 | TY50.02.12.0034 | 12×0.34 | 11.00 | Серый | C-228 | ※ |
| 9 | TY50.02.02.0050 | 2×0,5 | 6.00 | Серый | C-238 | |
| 10 | TY50.02.03.0050 | 3G0.5 | 6.50 | Серый | C-239 | |
| 11 | TY50.02.04.0050 | 4G0.5 | 6.80 | Серый | C-240 | |
| 12 | TY50.02.05.0050 | 5G0.5 | 7.50 | Серый | C-241 | |
| 13 | TY50.02.07.0050 | 7G0.5 | 8.50 | Серый | C-243 | |
| 14 | TY50.02.12.0050 | 12Г0,5 | 12.00 | Серый | C-247 | ※ |
| 15 | TY50.02.18.0050 | 18G0.5 | 14.00 | Серый | C-250 | ※ |
| 16 | TY50.02.25.0050 | 25G0.5 | 16.00 | Серый | C-253 | ※ |
| 17 | TY50.02.36.0050 | 36G0.5 | 18.20 | Серый | C-255 | ※ |
| 18 | TY50.02.03.0075 | 3G0.75 | 6.80 | Серый | C-258 | |
| 19 | TY50.02.04.0075 | 4G0.75 | 7.50 | Серый | C-259 | |
| 20 | TY50.02.05.0075 | 5Г0.75 | 8.00 | Серый | C-260 | |
| 21 | TY50.02.07.0075 | 7G0.75 | 9.50 | Серый | C-262 | ※ |
| 22 | TY50.02.12.0075 | 12G0.75 | 13.00 | Серый | C-266 | ※ |
| 23 | TY50.02.18.0075 | 18G0.75 | 15.00 | Серый | C-269 | ※ |
| 24 | TY50.02.25.0075 | 25G0.75 | 17.00 | Серый | C-272 | ※ |
| Элемент | Код продукта | Number of Cores and Cross-Sectional Area | Approximate Outer Diameter | Цвет | Product Number | минимальный заказ |
| 25 | TY50.02.36.0075 | 36G0.75 | 20.50 | Серый | C-274 | ※ |
| 26 | TY50.02.02.0100 | 2×1,0 | 7.00 | Серый | C-276 | |
| 27 | TY50.02.03.0100 | 3G1.0 | 7.50 | Серый | C-277 | |
| 28 | TY50.02.04.0100 | 4G1.0 | 8.00 | Серый | C-278 | |
| 29 | TY50.02.05.0100 | 5G1.0 | 8.80 | Серый | C-279 | |
| 30 | TY50.02.07.0100 | 7G1.0 | 10.00 | Серый | C-281 | ※ |
| 31 | TY50.02.12.0100 | 12G1.0 | 14.20 | Серый | C-285 | ※ |
| 32 | TY50.02.18.0100 | 18G1.0 | 17.00 | Серый | C-288 | ※ |
| 33 | TY50.02.25.0100 | 25G1.0 | 18.80 | Серый | C-291 | ※ |
| 34 | TY50.02.03.0150 | 3G1.5 | 8.00 | Серый | C-296 | |
| 35 | TY50.02.04.0150 | 4G1.5 | 8.80 | Серый | C-297 | |
| 36 | TY50.02.05.0150 | 5G1.5 | 9.50 | Серый | C-298 | ※ |
| 37 | TY50.02.07.0150 | 7G1.5 | 11.00 | Серый | C-300 | ※ |
| 38 | TY50.02.12.0150 | 12G1.5 | 15.50 | Серый | C-304 | ※ |
| 39 | TY50.02.18.0150 | 18G1.5 | 19.30 | Серый | C-307 | ※ |
| 40 | TY50.02.25.0150 | 25G1.5 | 21.80 | Серый | C-310 | ※ |
| 41 | TY50.02.36.0150 | 36G1.5 | 26.00 | Серый | C-312 | ※ |
| 42 | TY50.02.03.0250 | 3G2.5 | 10.00 | Серый | C-315 | ※ |
| 43 | TY50.02.04.0250 | 4G2.5 | 11.00 | Серый | C-316 | ※ |
Notes
Notes
1.G = With yellow-green ground wire X = Without yellow-green ground wire
2.American Wire Gauge (AWG) sizes are approximate; actual cross-sectional area prevails
3.For wire with an outer diameter greater than 10mm, a minimum order of 10 meters is required for the specified ※ items, and delivery will be made as needed
