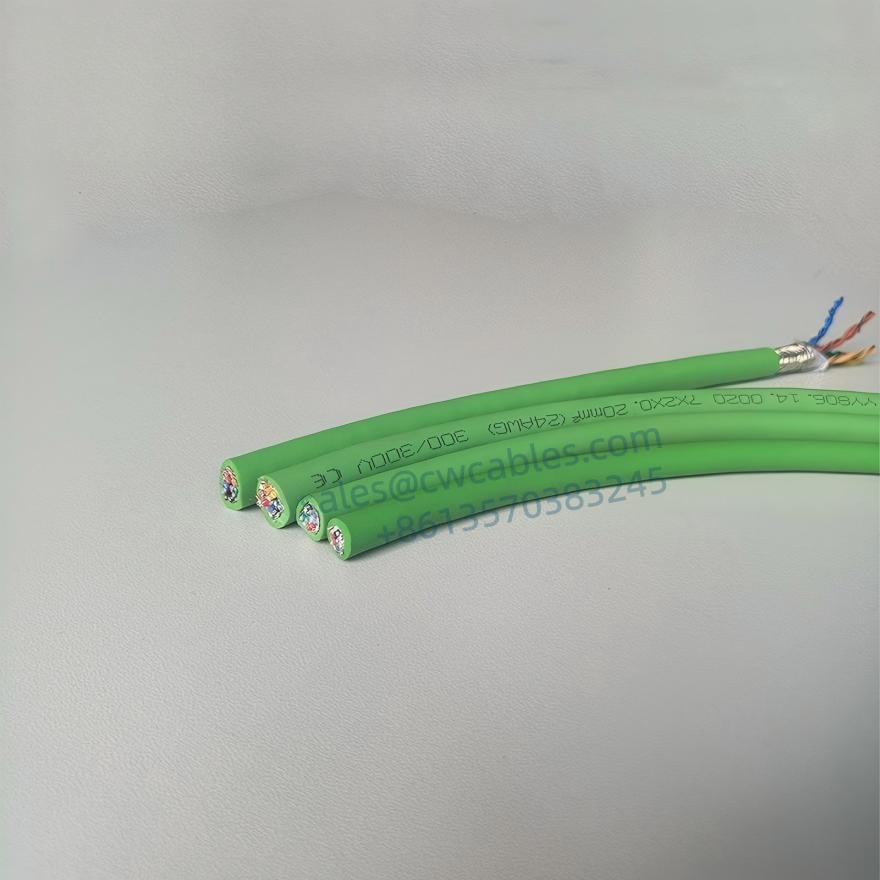

YP506 3X2X0.2mm²(24AWG) PUR ドラッグチェーンコンベヤポリウレタンケーブルツイストペア
drag chain conveyors polyurethane cable is a widely used cable type in many industrial and commercial applications.
This cable is popular mainly due to its special materials and design, which provide excellent performance, especially in flexibility, wear resistance, oil resistance, and high and low temperature resistance
drag chain conveyors polyurethane cable twisted pair Parameter
| YP506 HIGH FLEXIBLE DRAG CHAIN DATA PUR CABLE ( 5 million times reliability tests for drag chain)) | ||||
| いいえ。 | 製品コード | コア数と断面積 | おおよその外径（mm） | 外被シース色 |
| (NO.Xm㎡) | ||||
| 1 | YP506.04.0020 | 2x2x0.2 | 5.8 | Black/ Green |
| 2 | YP506.04.0021 | 2×2×0.3 | 6.8 | Black/ Green |
| 3 | YP506.04.0022 | 2x2x0.4 | 7.8 | Black/ Green |
| 4 | YP506.04.0023 | 2×2×0.5 | 8.8 | Black/ Green |
drag chain conveyors polyurethane cable twisted pair Technical data
Special PUR sheath with high flexibility
●Temperature range: Mobile installation -20°C to +80°C
固定設置 -40°C ～ +90°C
●公称電圧 Uo/U 300/300V
●試験電圧1500V
●Insulation resistance: Minimum 20 MOhm x km
●最小曲げ半径：モバイル設置時 ケーブル径の7.5倍
固定設置 ケーブル直径の 6 倍
●Complies with EU RoHS and Reach regulations requirements

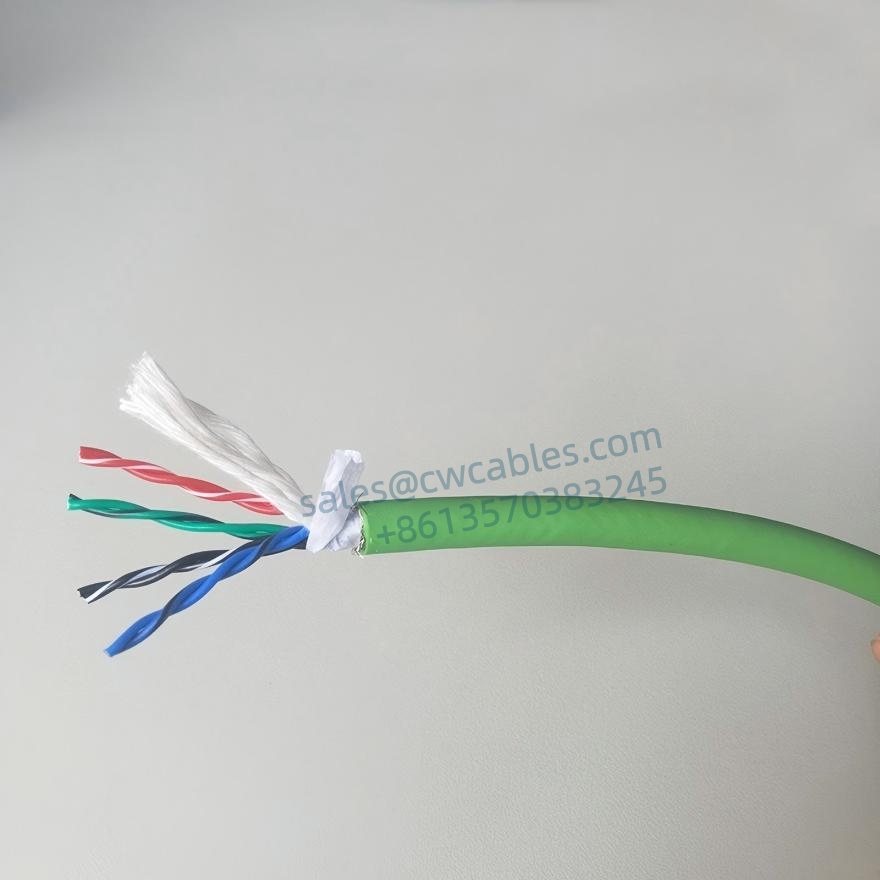

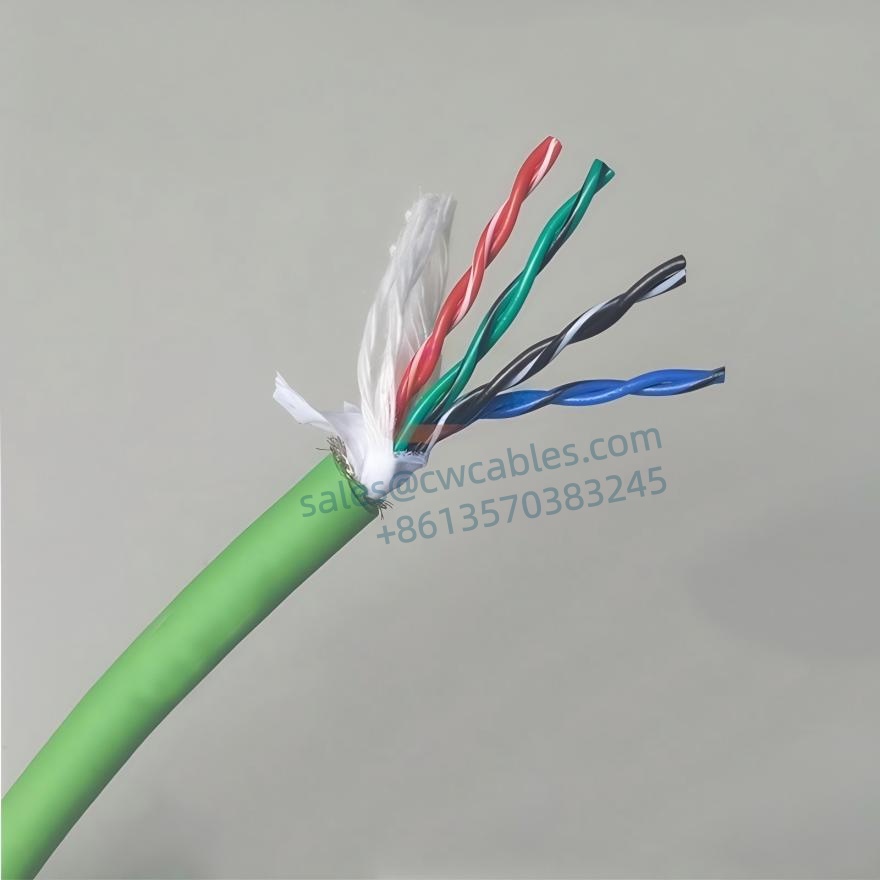

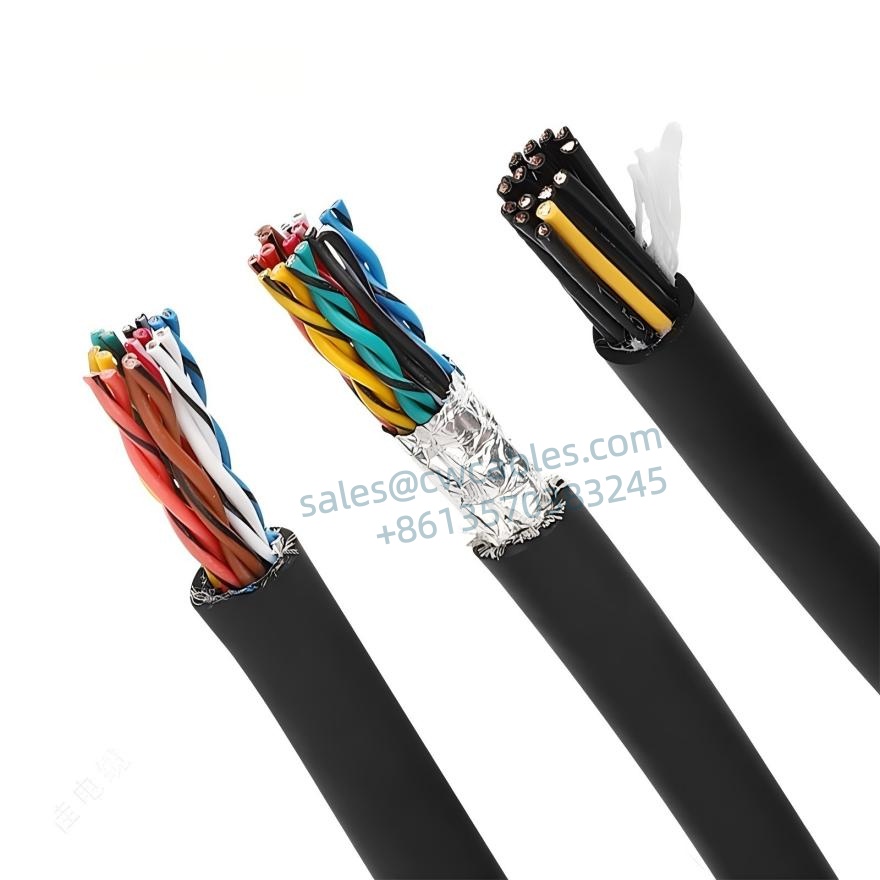

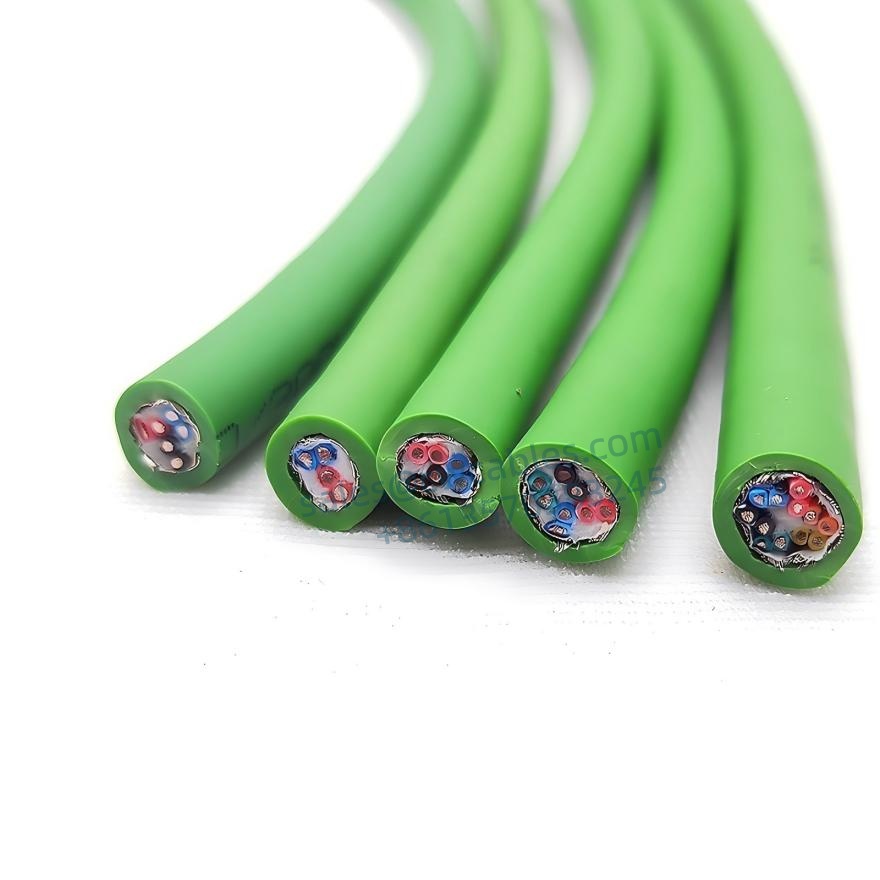

drag chain conveyors polyurethane cable twisted pair Structure:
●Tinned copper (below 0.5mm²) or bare copper (0.5mm² and above) conductors Fine copper wire,
compliant with DIN VDE 0295 class 6 and IEC 60228 class 6
●特殊PVC絶縁体
●Color-coded cores (below 0.5mm²)
●Black cores with continuous white numerical coding (0.5mm² and above)
●Optimum lay length of stranded cores
●改良型錫メッキ銅線編組シールド
●Minimum overall shielding coverage of 80%
●特殊PVC外装シース
●Black color (RAL 9005) with matte finish
| High Flexibility 5 Million Times Drag Chain Cable Test Standards | ||
| Drag Chain Bending Test Test Method: Take a 2-meter finished cable, with a bending radius of 6 times the outer diameter of the cable, a moving stroke of 900 mm, and reciprocating movement at a speed of 90 times/minute. |
Two-Wheel Winding Test Test Method: Take a 5-meter finished cable, according to the specified pulley diameter and weight of the weights. The pulley moves at a speed of 0.33 m/sec, and the moving distance is more than 1.0 meter under reciprocating conditions |
90-Degree Bend Test Test Method: Take a 2-meter finished cable, with a bending radius of 2.5 times the outer diameter of the cable, according to the standard specified weight of the weights, bending at a speed of 40 times/minute |
| Judgment Criteria: 1. The number of reciprocations exceeds 5,000,000 times without open circuit or short circuit. 2. The sheath is not broken | Judgment Criteria: 1. The number of reciprocations exceeds 200,000 times without open circuit or short circuit. 2. The sheath is not broken | Judgment Criteria: 1. The number of reciprocations exceeds 100,000 times without open circuit or short circuit. 2. The sheath is not broken |
