TP200.07 ULTRA HIGH FLEXIBLE PUR POWER CABLE (20 million times reliability tests for drag chain) Overhead application travel distance is less than 200 meters
Données techniques
Moving inside the drag chain: -20°C to 80°C
Moving outside the drag chain: -40°C to 80°C
Bending Radius:
Moving inside the drag chain: Minimum 7.5 xd
Moving outside the drag chain: Minimum 6 xd
Drag Chain Life:
Factors affecting the service life of cables within the drag chain:
Temperature, Bending radius, Travel distance, Speed
TUV and Stable Drag Chain Testing Standards:
Temperature range: +15°C to 25°C
Bending radius: 7.5xd
Travel distance: 0.9 meters
Speed: 90 cycles/minute
The drag chain’s life can reach: 20 million cycle times
Maximum Speed and Acceleration:
Overhead: 10 m/s Sliding: 5 m/s Acceleration: 80 m/s²3
Travel Distance:
For overhead applications, travel distance is less than 200 meters
Standard Voltage: 600/1000V
Test Voltage: 4000V
Application
Especially suitable for mechanical equipment, machine tools, and other applications involving continuous high-intensity and high-speed bending of drag chains. This ultra-flexible drag chain cable uses modified high-strength TPE insulation, which provides excellent bending and folding resistance, with the conductors utilizing an optimal pitch single-layer twisting. Particularly ideal for use in high-speed, long-distance drag chains. The TP200.07 series drag chain cables have been widely used in indoor drag chain systems in warehousing equipment, processing equipment, packaging equipment, indoor cranes, glass equipment, as well as in the packaging and logistics industries.

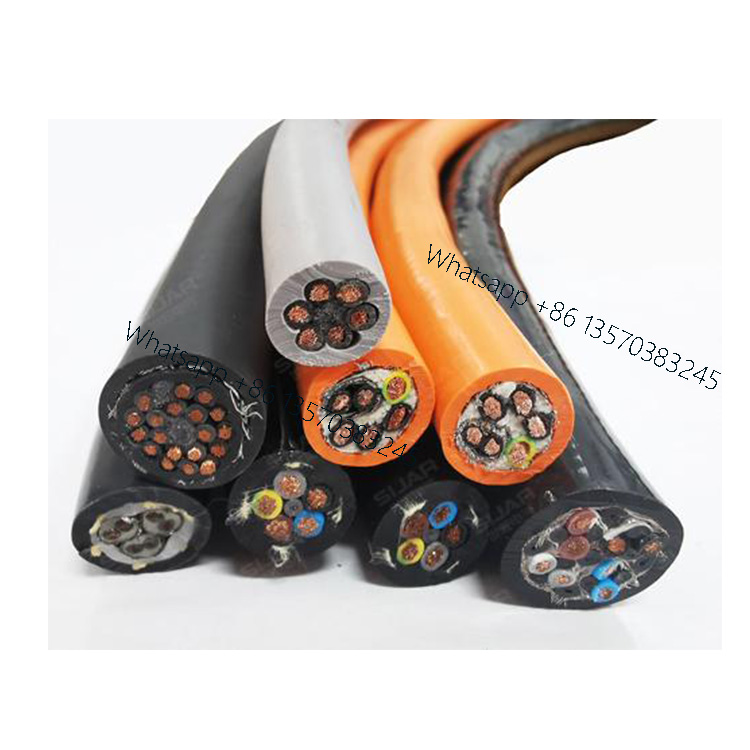

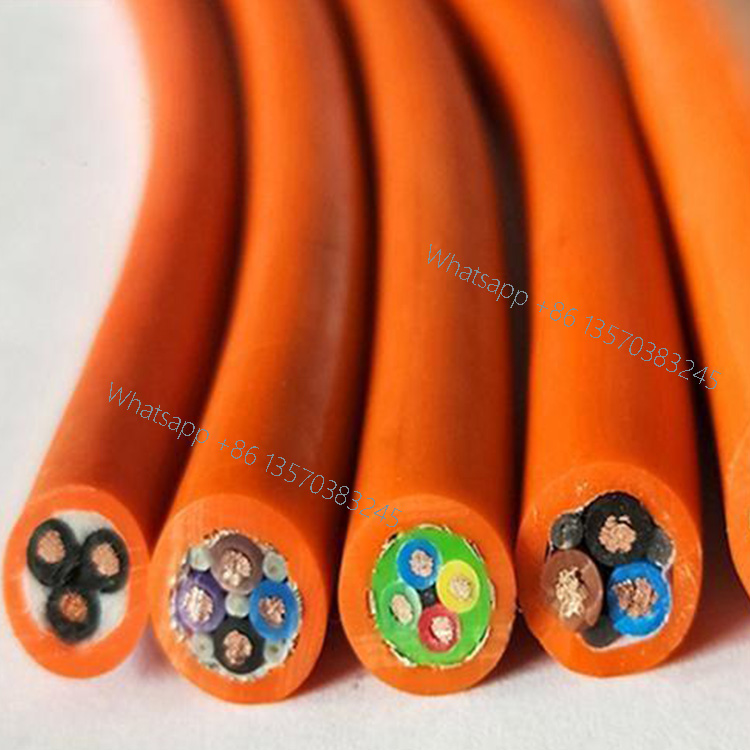

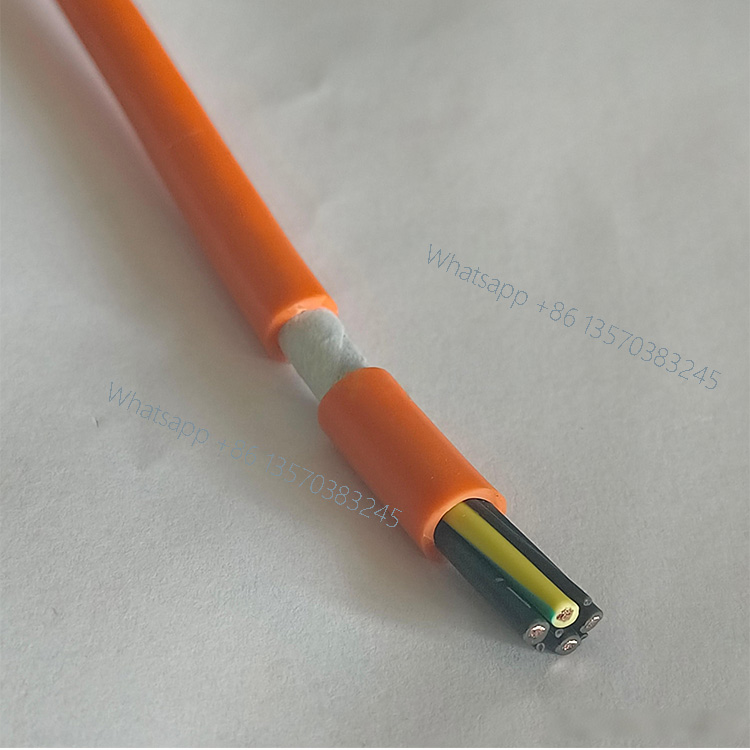

Structure du câble
Product Structure:
Complies with UL758 STYLE 20940

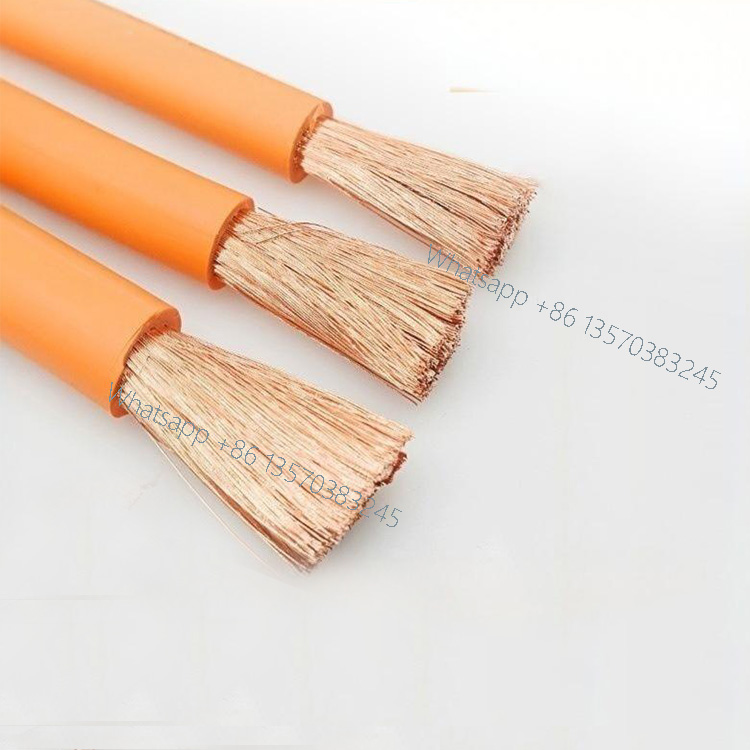

Conductor:
Fine bare copper stranded wire with high bend strength, conforming to DIN VDE 0295 Class 5 and IEC 60228 Class 5
Insulation:
High mechanical performance TPE polymer insulation
Core Wire Color:
The color of the single core wire is black.
For multiple core wire combinations, one green-yellow ground wire is used along with black core wires marked with white numbers
Stranding Method:
Short pitch single-layer twisting.
Outer Jacket:
Modified high-strength PUR polymer
| Article | Code produit | Number of Cores and Cross-Sectional Area | Approximate Outer Diameter | Couleur | Product Number | MOQ |
| 1 | TP200.07.01.0400 | 1×4.0 | 6.00 | orange/black | C-1300 | |
| 2 | TP200.07.01.0600 | 1×6.0 | 6.50 | orange/black | C-1301 | |
| 3 | TP200.07.01.1000 | 1×10.0 | 8.00 | orange/black | C-1302 | |
| 4 | TP200.07.01.1600 | 1×16.0 | 9.20 | orange/black | C-1303 | |
| 5 | TP200.07.01.2500 | 1×25.0 | 10.80 | orange/black | C-1304 | ※ |
| 6 | TP200.07.01.3500 | 1×35.0 | 12.50 | orange/black | C-1305 | ※ |
| 7 | TP200.07.01.5000 | 1×50.0 | 14.40 | orange/black | C-1306 | ※ |
| 8 | TP200.07.01.7000 | 1×70.0 | 16.50 | orange/black | C-1307 | ※ |
| 9 | TP200.07.01.9500 | 1×95.0 | 19.00 | orange/black | C-1308 | ※ |
| dix | TP200.07.04.0400 | 4G4.0 | 11.50 | orange/black | C-1311 | ※ |
| 11 | TP200.07.04.0600 | 4G6.0 | 13.00 | orange/black | C-1312 | ※ |
| 12 | TP200.07.04.1000 | 4G10.0 | 17.00 | orange/black | C-1313 |
Notes
1.G = With yellow-green ground wire X = Without yellow-green ground wire
2.American Wire Gauge (AWG) sizes are approximate; actual cross-sectional area prevails
3.For wire with an outer diameter greater than 10mm, a minimum order of 10 meters is required for the specified ※ items, and delivery will be made as needed
