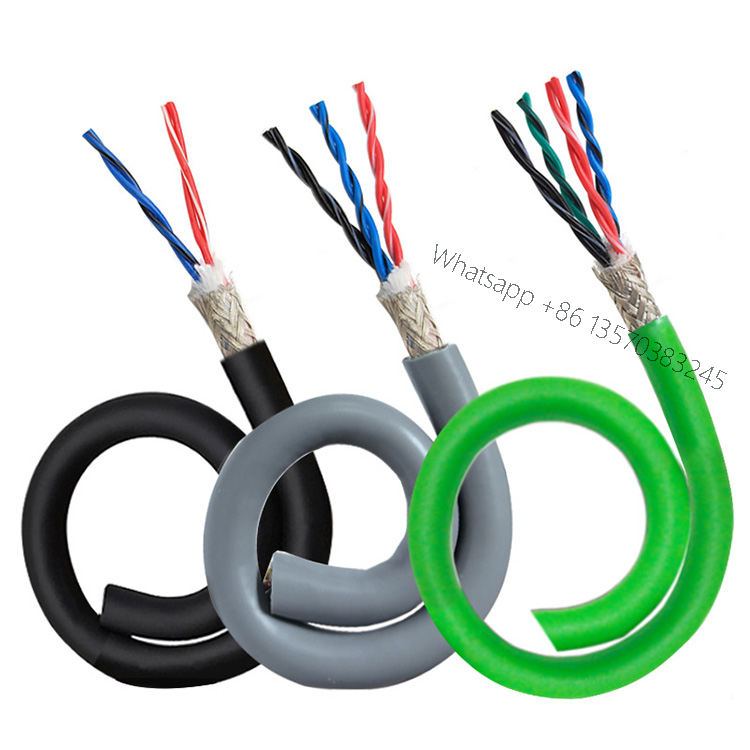

TP2006 ULTRA HIGH FLEXIBLE DATA PUR CABLE TWIST PAIR SHIELDED (20 million times reliability tests for drag chain) Overhead application travel distance is less than 100 meters
TP2006.08.0025 4x2x0.25mm2 300/300V
Données techniques
Moving inside the drag chain: -20°C to 80°C
Moving outside the drag chain: -40°C to 80°C
Bending Radius:
Moving inside the drag chain: Minimum 7.5 xd
Moving outside the drag chain: Minimum 6 xd
Drag Chain Life:
Factors affecting the service life of cables within the drag chain:
Temperature, Bending radius, Travel distance, Speed
TUV and Stable Drag Chain Testing Standards:
Temperature range: +15°C to 25°C
Bending radius: 7.5xd
Travel distance: 0.9 meters
Speed: 90 cycles/minute
The drag chain’s life can reach: 20 million cycle times
Maximum Speed and Acceleration:
Overhead: 5 m/s Sliding: 3 m/s Acceleration: 40 m/s²3
Travel Distance:
For overhead applications, travel distance is less than 100 meters
Standard Voltage: 300/300V
Test Voltage: 1500V
Application
Especially suitable for mechanical equipment, machine tools, and other applications involving continuous high-intensity and high-speed bending of drag chains. Particularly ideal for long-distance high-speed drag chains and sliding applications under 100 meters. The TP2006 series drag chain cables have been widely used in indoor drag chain systems in woodworking machinery, stone equipment, laser equipment, glass equipment, as well as in the packaging industry, logistics industry, and 3C automation.

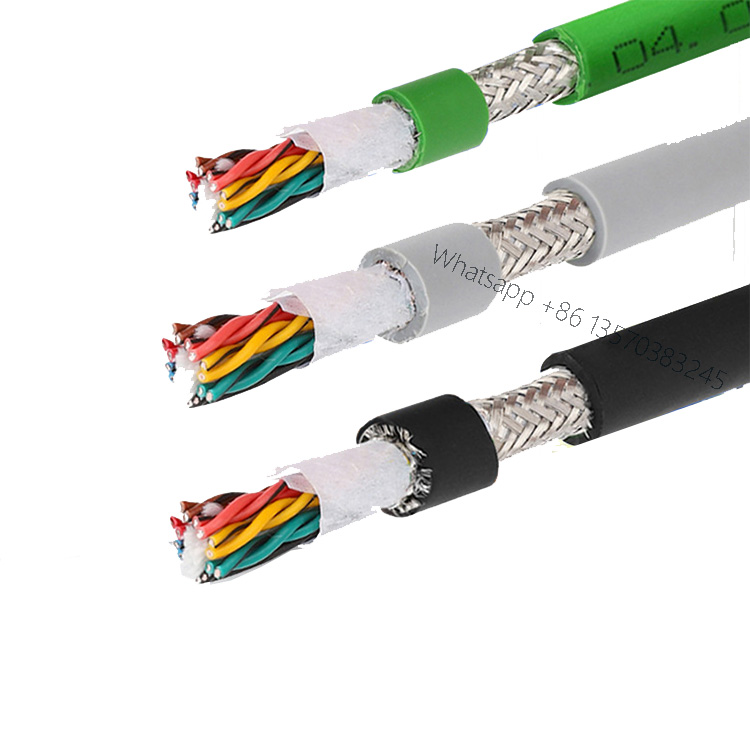

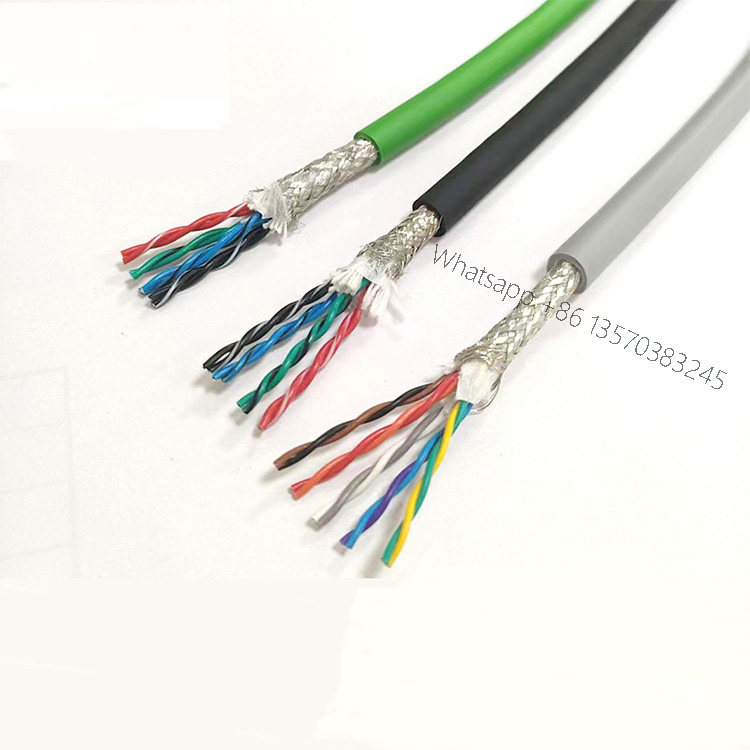

Structure du câble
Product Structure:
Complies with UL758 STYLE 20233
Conductor:
Fine bare copper stranded wire with high bend strength, conforming to DIN VDE 0295 Class 5 and IEC 60228 Class 5
Insulation:
High mechanical performance TPE polymer insulation
Core Wire Color:
For cross-sectional area < 0.5 mm²: uses colored core wires for distinction, with colors conforming to DIN 47100 standard. For cross-sectional area > 0.5 mm²: one yellow-green ground wire combined with black core wires marked with white numbers.
Stranding Method:
The core wires are twisted in a layered manner with optimal pitch.
Overall Shielding: High-strength tinned copper wire shielding, optical coverage ≥ 85%
Outer Jacket:
Modified high-strength PUR polymer
| Article | Code produit | Number of Cores and Cross-Sectional Area | Approximate Outer Diameter | Couleur | Product Number | MOQ |
| 1 | TP2006.02.0025 | 1Px0.25 | 4.80 | Gris | C-1700 | |
| 2 | TP2006.04.0025 | 2Px0.25 | 6.00 | Gris | C-1701 | |
| 3 | TP2006.06.0025 | 3Px0.25 | 6.30 | Gris | C-1702 | |
| 4 | TP2006.08.0025 | 4Px0.25 | 7.00 | Gris | C-1703 | |
| 5 | TP2006.10.0025 | 5Px0.25 | 7.50 | Gris | C-1704 | |
| 6 | TP2006.12.0025 | 6Px0.25 | 8.20 | Gris | C-1705 | |
| 7 | TP2006.16.0025 | 8Px0.25 | 9.20 | Gris | C-1707 | |
| 8 | TP2006.20.0025 | 10Px0.25 | 11.00 | Gris | C-1708 | ※ |
| 9 | TP2006.28.0025 | 14Px0.25 | 11.00 | Gris | C-1710 | ※ |
| dix | TP2006.06.0034 | 3Px0.34 | 6.70 | Gris | C-1714 | |
| 11 | TP2006.02.0050 | 1Px0.5 | 5.50 | Gris | C-1724 | |
| 12 | TP2006.04.0050 | 2Px0.5 | 7.50 | Gris | C-1725 | |
| 13 | TP2006.06.0050 | 3Px0.5 | 8.00 | Gris | C-1726 | |
| 14 | TP2006.08.0050 | 4Px0.5 | 8.80 | Gris | C-1727 | |
| 15 | TP2006.10.0050 | 5Px0.5 | 9.20 | Gris | C-1728 | |
| 16 | TP2006.12.0050 | 6Px0.5 | 10.60 | Gris | C-1729 | ※ |
| 17 | TP2006.16.0050 | 8Px0.5 | 12.80 | Gris | C-1731 | ※ |
| 18 | TP2006.20.0050 | 10Px0.5 | 14.50 | Gris | C-1732 | ※ |
| 19 | TP2006.28.0050 | 14Px0.5 | 14.50 | Gris | C-1734 | |
| 20 | TP2006.02.0026 | 1Px0.26 | 12.71 | Gris | C-1700 |
Notes
1.G = With yellow-green ground wire X = Without yellow-green ground wire
2.American Wire Gauge (AWG) sizes are approximate; actual cross-sectional area prevails
3.For wire with an outer diameter greater than 10mm, a minimum order of 10 meters is required for the specified ※ items, and delivery will be made as needed
