Servo motor and feedback cables are purpose-engineered components enabling rapid integration with computer-aided CNC machinery – including CNC mills, drilling machines, and similar precision equipment. These high-performance solutions seamlessly integrate power delivery and critical data transmission within a single robust assembly
The servo motor cable family encompasses three core types:
Motor connection cables (power transmission)
Feedback cables (encoder/resolver signals)
Data transmission cables (drive communications)
Beyond CNC applications, these cables serve vital roles in: Temperature-controlled motor assemblies Intelligent servo drive systems across industrial automation Below, we present an overview of common industrial-grade servo cable constructions. Should your specific application require a tailored solution not featured here, our cable engineering specialists are prepared to collaborate. As a premier manufacturer of specialized cabling, we design and produce custom motor connection cables to meet your exact operational demands.
Données techniques
●Special PVC sheath with high flexibility
● Plage de températures: installation mobile: -5 ° C à + 70 ° C
Fixed installation: -15°C to +80°C
●Rated voltage Uo/U: 300/500V
● Tension de test: 2000v
●Insulation resistance: Minimum 20 MOhms per kilometer
●Minimum bending radius: Mobile installation: 7.5x cable diameter
Fixed installation: 6x cable diameter
● Conforme aux réglementations de l'UE ROHS et à la portée.

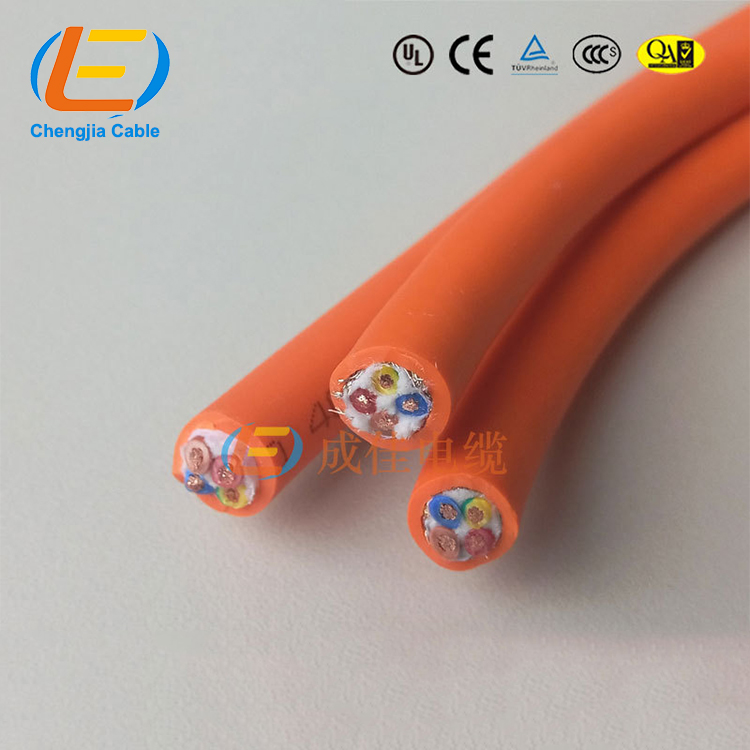

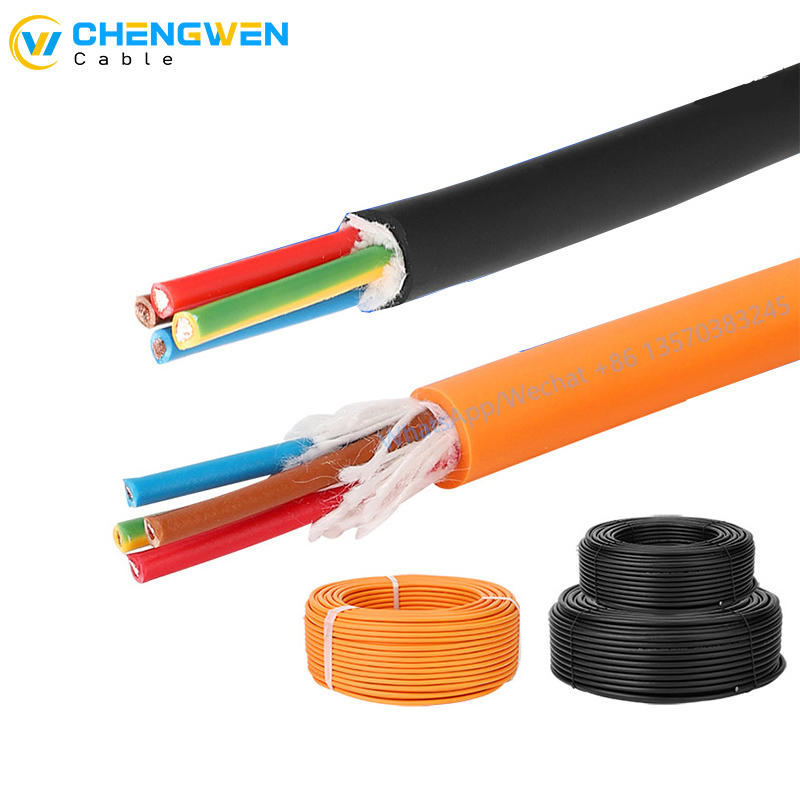

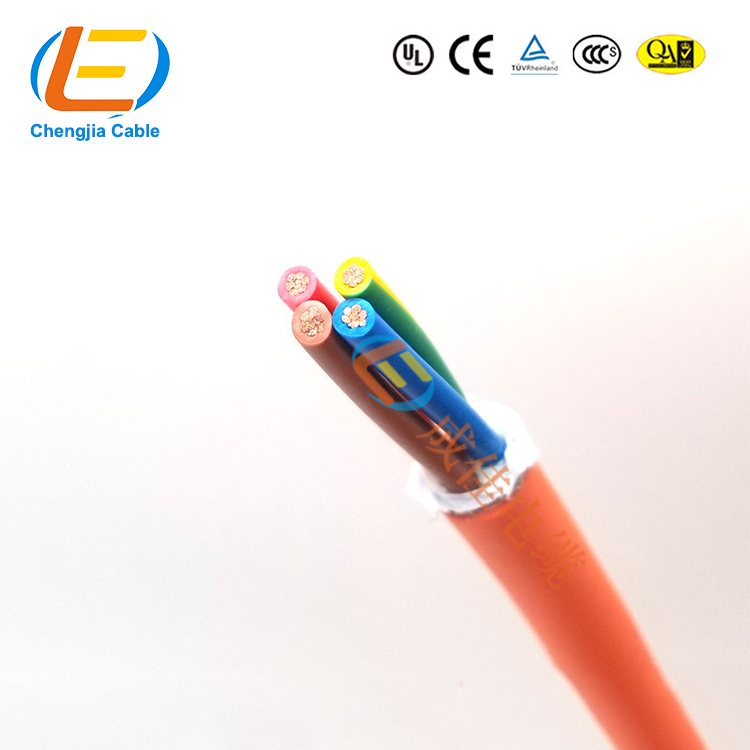

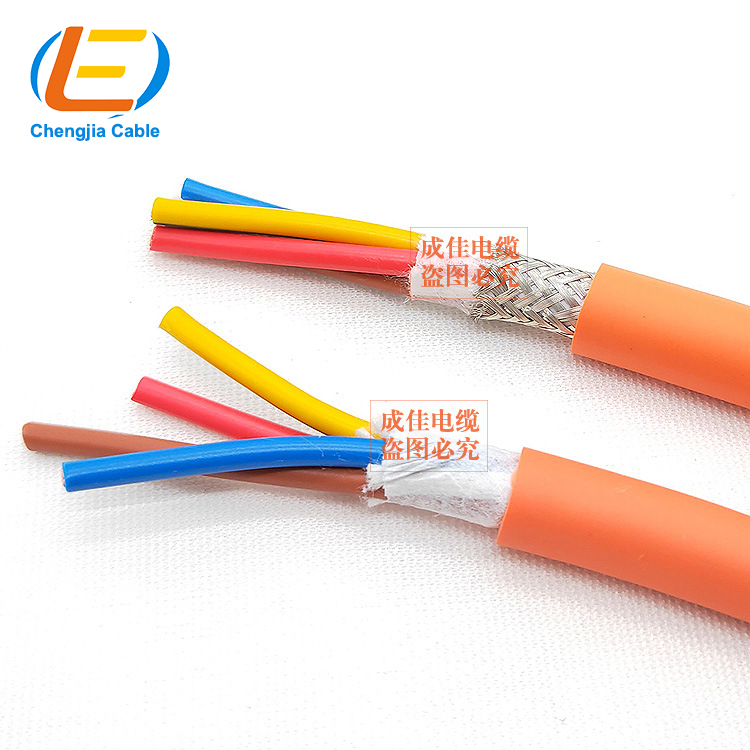

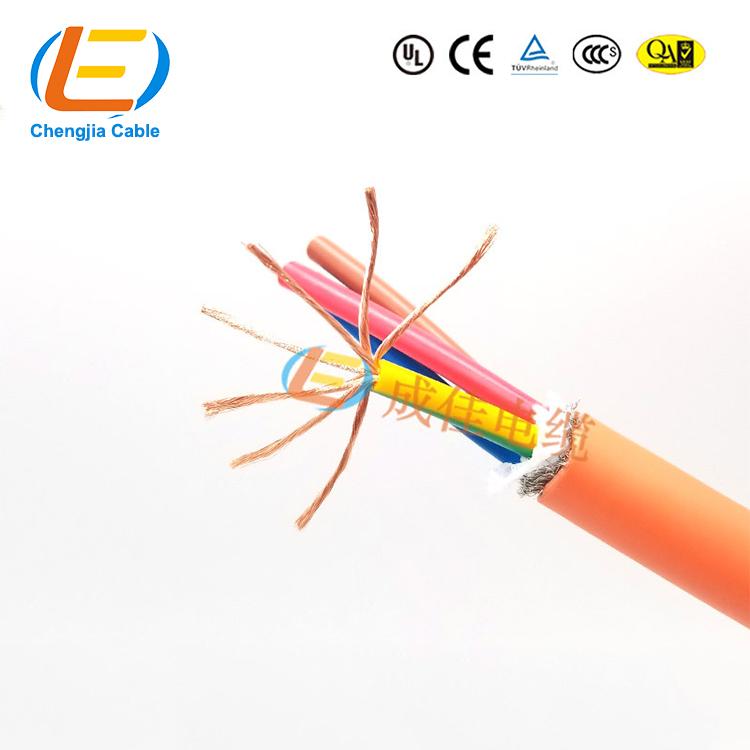

Structure du câble
●Bare copper conductor, fine copper wire Compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6
●Isolation spéciale en PVC
●Color-coded core identification Optimal pitch twisted layer for the cores
●Includes a yellow-green grounding wire (for 3 cores and above)
●Special PVC outer sheath ●Grey,orange, black, or color can be customized according to customer requirements.
| Produit | Article | Modèle | Spécification | DE | Couleur | Marque |
| High Flexible servo power cable (5 million times reliability tests for drag chain) | 1 | YY507.02.0050 | 2 * 0,5 mm2 | 5.6 | Black/orange | Couleurs de fil noyau standard en porcelaine: bleu, marron, rouge, jaune / vert |
| 2 | YY507.04.0050 | 4 * 0,5 mm2 | 6.5 | Black/orange | ||
| 3 | YY507.04.0075 | 4 * 0,75 mm2 | 7.2 | Black/orange | ||
| 4 | YY507.04.0100 | 4 * 1,0 mm2 | 7.8 | Black/orange | ||
| 5 | YY507.04.0150 | 4 * 1,5 mm2 | 9 | Black/orange | ||
| 6 | YY507.04.0250 | 4 * 2,5 mm2 | 11 | Black/orange | ||
| 7 | L-YY507.02.0050 | 2 * 0,5 mm2 | 5.6 | Noir | Couleurs de fil noyau standard UL: noir, blanc, rouge, jaune / vert | |
| 8 | L-YY507.04.0050 | 4 * 0,5 mm2 | 6.5 | Noir | ||
| 9 | L-YY507.04.0075 | 4 * 0,75 mm2 | 7.2 | Noir | ||
| dix | YY507.04.0130 | 4 * 1,3 mm2 | 8.3 | Noir | ||
| 11 | YY507.04.0200 | 4 * 2,0 mm2 | dix | Noir | ||
| 12 | MC-YY507.04.0050 | 4 * 0,5 mm2 | 6.3 | Noir | Cordon d'alimentation Gecko Head, UL imprimé, noyau Couleurs de fil noir, blanc, rouge, jaune / vert |
|
| 13 | MC-YY507.06.2024 | 4 * 0,5 + 2 * 0,2 | 6.3 | Noir |
