YY07 4G0.75mm²(19AWG) Câble d'alimentation flexible industriel multiconducteur à 4 conducteurs
This Multi-Conductor Industrial Flexible Power Cable is suitable for applications that require fixed installation or occasional movement of mechanical equipment and machine tools. It is made with specially modified insulation and sheathing materials, which provide features such as abrasion resistance, chemical resistance, and the ability to withstand repetitive bending for over a million cycles while maintaining stability. Therefore, this flexible cable is commonly used in applications where high cable requirements are needed.
| MODÈLE | Nombre de noyaux et section transversale (MM²) | COULEUR DU FIL | MOQ |
| Câble d'alimentation flexible YY07 | 0.5 | Jaune/Vert Bleu Marron Rouge Blanc Noir | 2.3.4.5 noyaux, commande minimum d'un rouleau. Pour d'autres combinaisons d'âmes et de couleurs, commande minimum de 400 mètres. Pour les couleurs non disponibles, commande minimum de 3000 mètres. |
| 0.75 | Jaune/Vert Bleu Marron Rouge Blanc Noir | ||
| 1 | Jaune/Vert Bleu Marron Rouge Blanc Noir | ||
| 1,5 | Jaune/Vert Bleu Marron Rouge Blanc Noir | ||
| 2.5 | Jaune/Vert Bleu Marron Rouge Blanc Noir | ||
| 4 | Jaune/Vert Bleu Marron Rouge Noir | ||
| 6 | Jaune/Vert Bleu Marron Rouge Noir |
| YY07 FLEXIBLE POWER CABLE Parameter | ||||
| Non. | Code produit | Nombre de noyaux et section transversale | Diamètre extérieur approximatif （mm) | Couleur de la gaine extérieure |
| (NO.Xm㎡) | ||||
| 1 | YY07.02.0050 | 2×0,5 | 5.6 | Noir |
| 2 | YY07.03.0050 | 3G0.5 | 6 | Noir |
| 3 | YY07.04.0050 | 4G0.5 | 6.5 | Noir |
| 4 | YY07.02.0075 | 2×0,75 | 6 | Noir |
| 5 | YY07.03.0075 | 3G0.75 | 6.5 | Noir |
| 6 | YY07.04.0075 | 4G0.75 | 7.2 | Noir |
| 7 | YY07.02.0100 | 2×1,0 | 6.4 | Noir |
| 8 | YY07.03.0100 | 3G1.0 | 6.9 | Noir |
| 9 | YY07.04.0100 | 4G1.0 | 7.8 | Noir |
| dix | YY07.02.0150 | 2×1.5 | 7.5 | Noir |
| 11 | YY07.03.0150 | 3G1.5 | 8.2 | Noir |
| 12 | YY07.04.0150 | 4G1.5 | 9.0 | Noir |
| 13 | YY07.05.0150 | 5G1.5 | 9.0 | Noir |
| 14 | YY07.02.0250 | 2×2.5 | 9.0 | Noir |
| 15 | YY07.03.0250 | 3G2.5 | 9.8 | Noir |
| 16 | YY07.04.0250 | 4G2.5 | 11.0 | Noir |
| 17 | YY07.05.0250 | 5G2.5 | 12.5 | Noir |
| 18 | YY07.02.0400 | 2×4 | 11.0 | Noir |
| 19 | YY07 03 0400 | 3G4.0 | 12.0 | Noir |
| 20 | YY07.04.0400 | 4G4.0 | 13.0 | Noir |
| 21 | YY07.05.0400 | 5G4.0 | 14.8 | Noir |
| 22 | YY07.02.0600 | 2×6 | 12.2 | Noir |
| 23 | YY07.03.0600 | 3G6.0 | 13.0 | Noir |
| 24 | YY07.04.0600 | 4G6.0 | 14.4 | Noir |
| 25 | YY07.05.0600 | 5G6.0 | 16.5 | Noir |
| 26 | YY07.04.1000 | 4G10.0 | 19.5 | Noir |
| 27 | YY07.04.1600 | 4G10.0 | 23.0 | Noir |
| 28 | YY07.06.1922 | 4G0,75+2×0,3 | 8.2 | Noir |
| 29 | YY07.06.1520 | 4G0,75+2×0,3 | 10,0 | Noir |
| 30 | YY07.04.1315 | 3×2.5+1G1.5 | 10.8 | Noir |
| 31 | YY07.04.1113 | 3×4.0+1G2.5 | 12.2 | Noir |
| 32 | YY07.04.0911 | 3×6.0+1G4.0 | 14,0 | Noir |
Multi-Conductor Industrial Flexible Power CableTechnical Parameter
Special PVC sheathing, offering excellent flexibility.

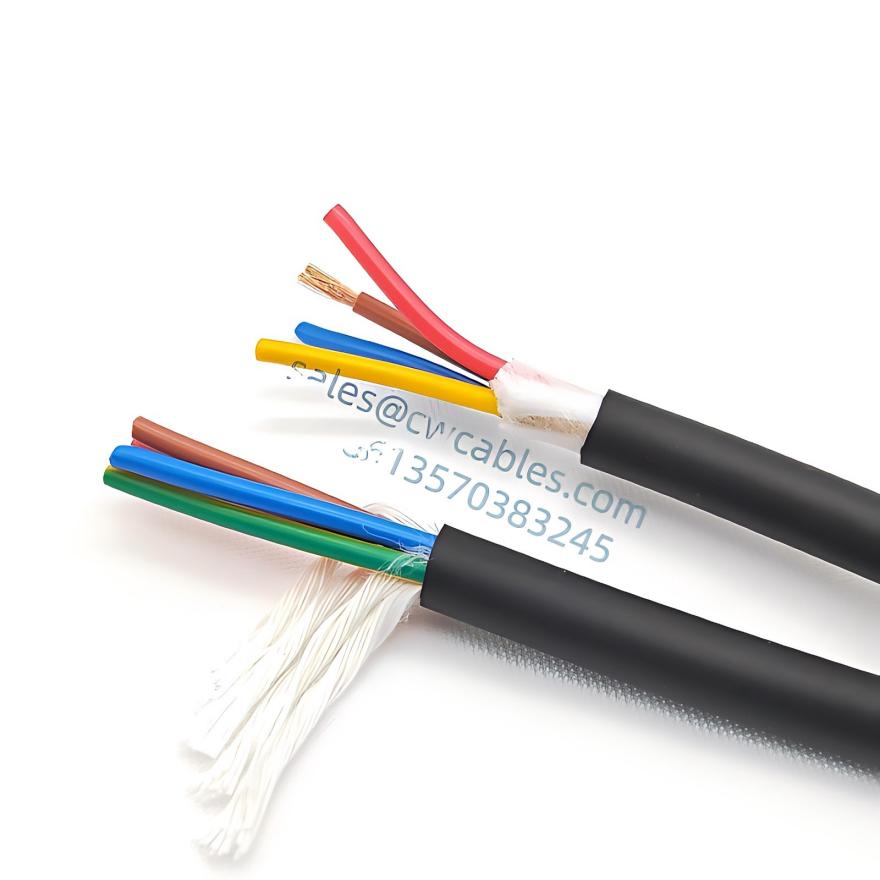

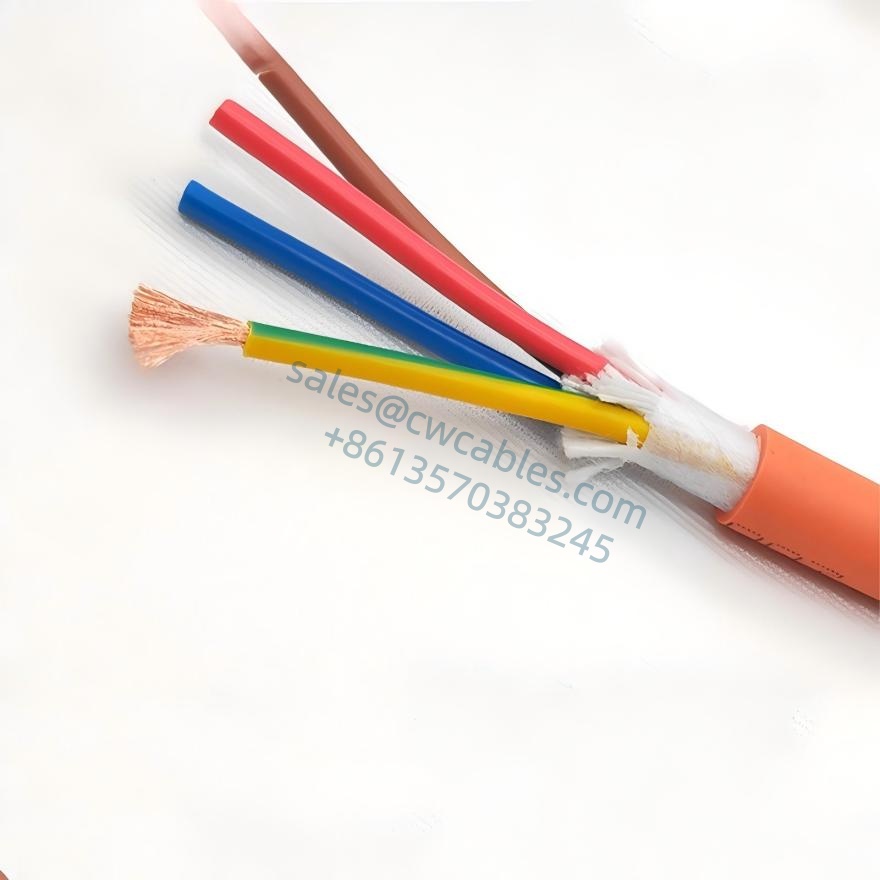

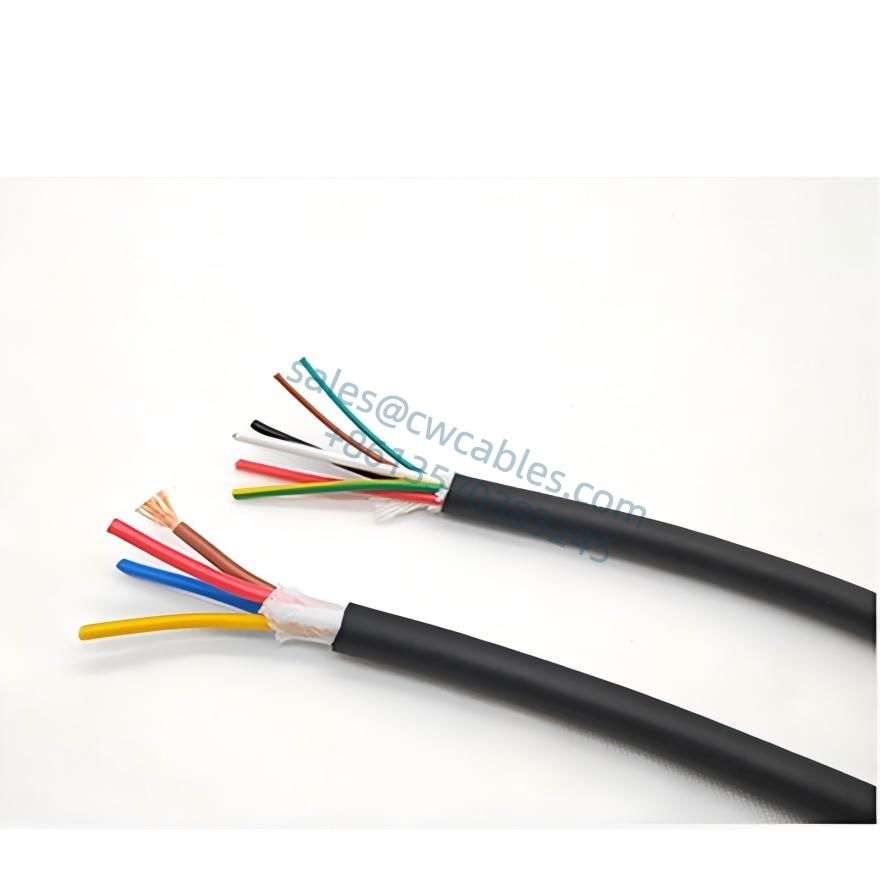

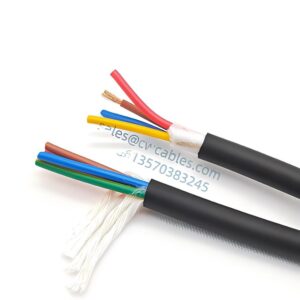

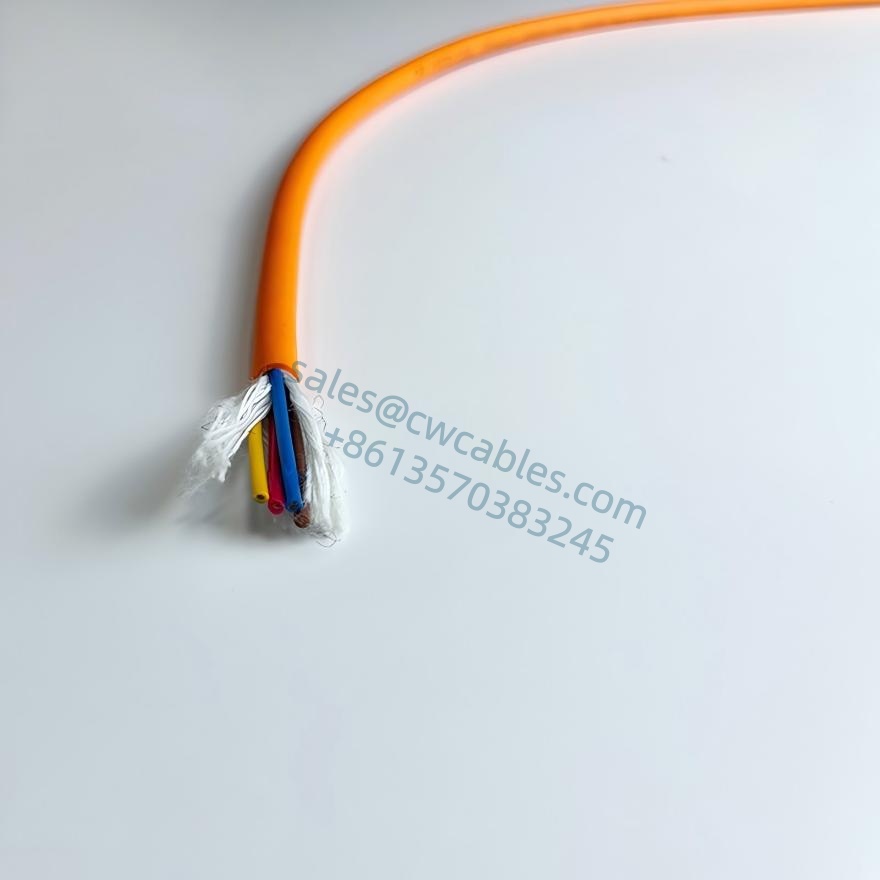

Multi-Conductor Industrial Flexible Power Cable Structure
● Bare copper conductor, fine copper wire Complies with DIN VDE 0295 Class 6 and IEC 60228 Class 6
● Isolation spéciale en PVC
● Color-coded core wires
● Optimal lay length for twisted cores
● With yellow-green grounding conductor (for 3 cores and above)
● Special PVC outer sheathing
● Black color (RAL 9005) with matte finish
