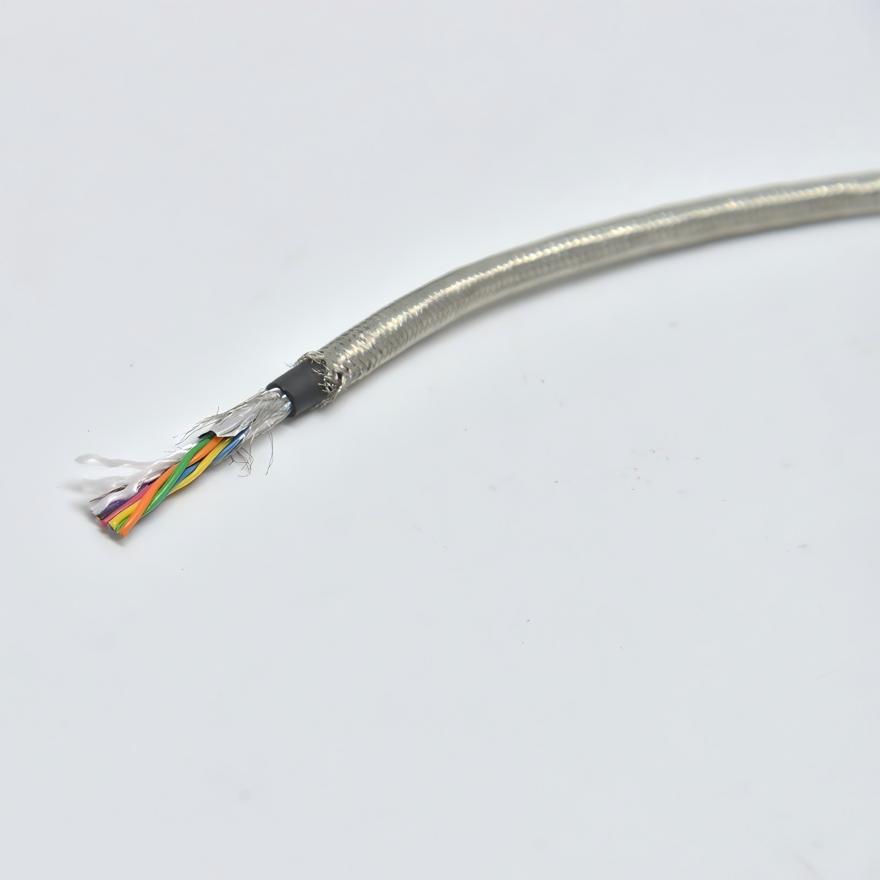

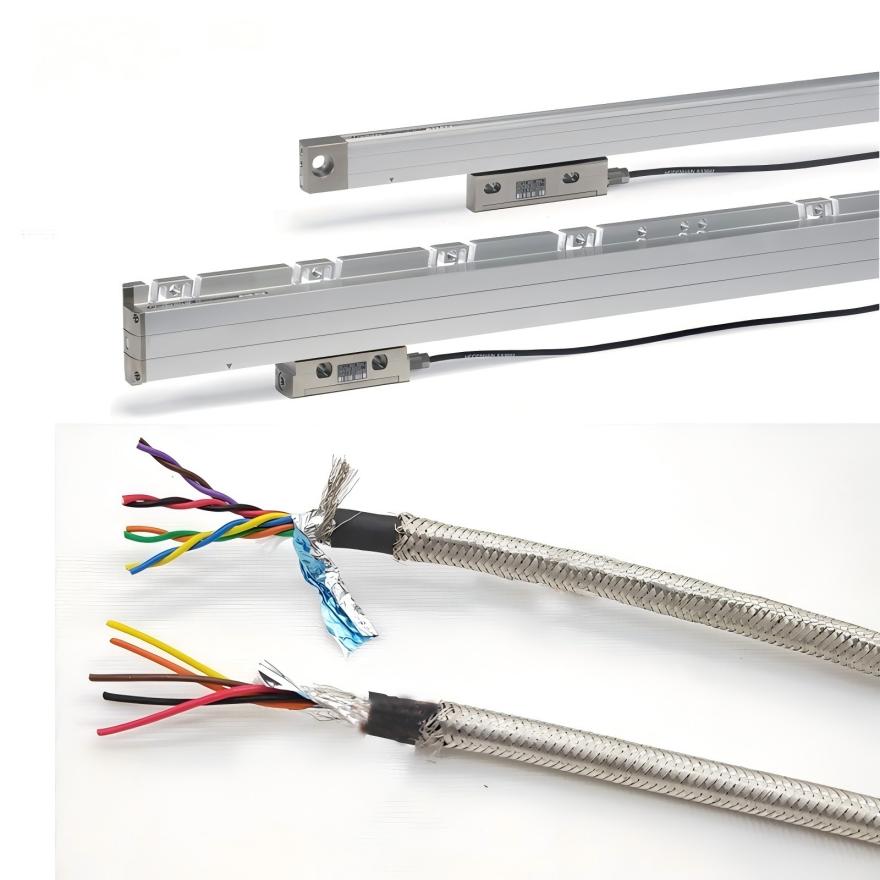

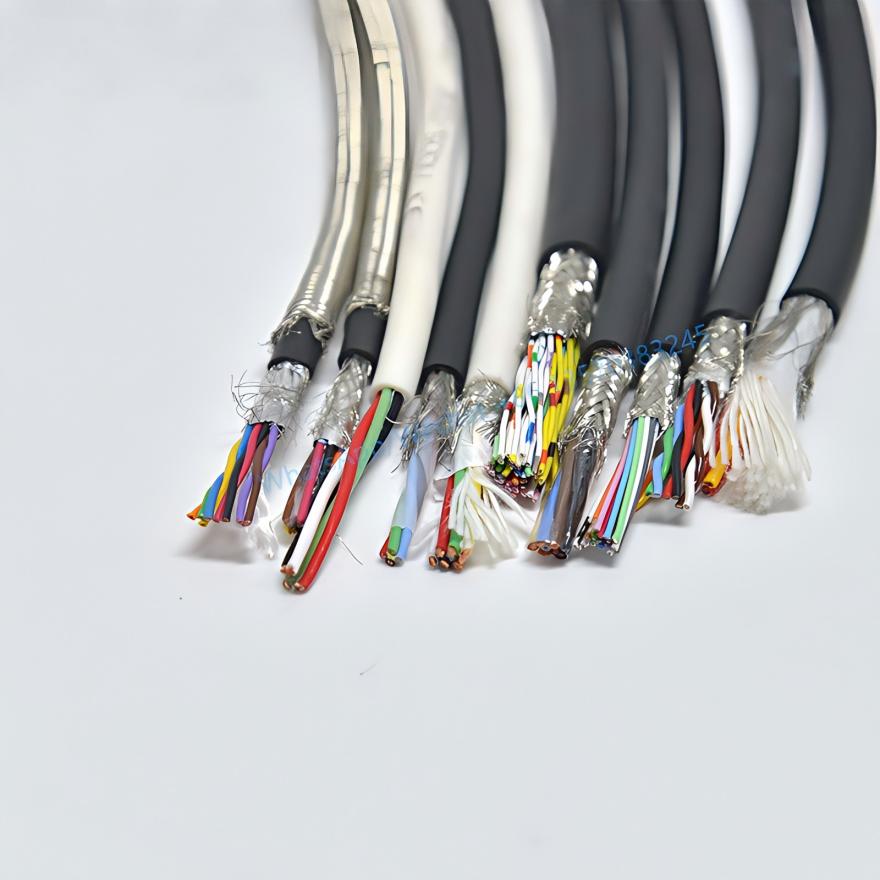

Linear Scale Grating Ruler CNC Milling Lathe Encoder Cable
Especially suitable for long-term, high-speed drag chain, bending, and high-strength applications for grating rulers. Grating ruler cables must meet the highest requirements in terms of mechanical, chemical, and thermal performance. They must withstand high-speed acceleration and deceleration, tensile and compressive stress, as well as tens of millions of cycles of periodic bending. They also need to be able to withstand high temperatures, metal chip splashing, oil resistance, and resistance to other chemicals.
Paramètre technique
● Special Teflon insulation, special PUR sheath with ultra-high strength and bending/torsion performance.
● Complies with TUV 2 PfG 2577 Class V requirements.
● Temperature range: Mobile installation: -20°C to +80°C. Fixed installation: -40°C to +90°C.
● Nominal voltage: 30V.
● Test voltage: 500V.
● Insulation resistance: minimum 100 MOhmxkm.
● Minimum bending radius: Mobile installation: 6 times the cable diameter. Fixed installation: 4 times the cable diameter.
● Conformité aux réglementations européennes RoHS et Reach.

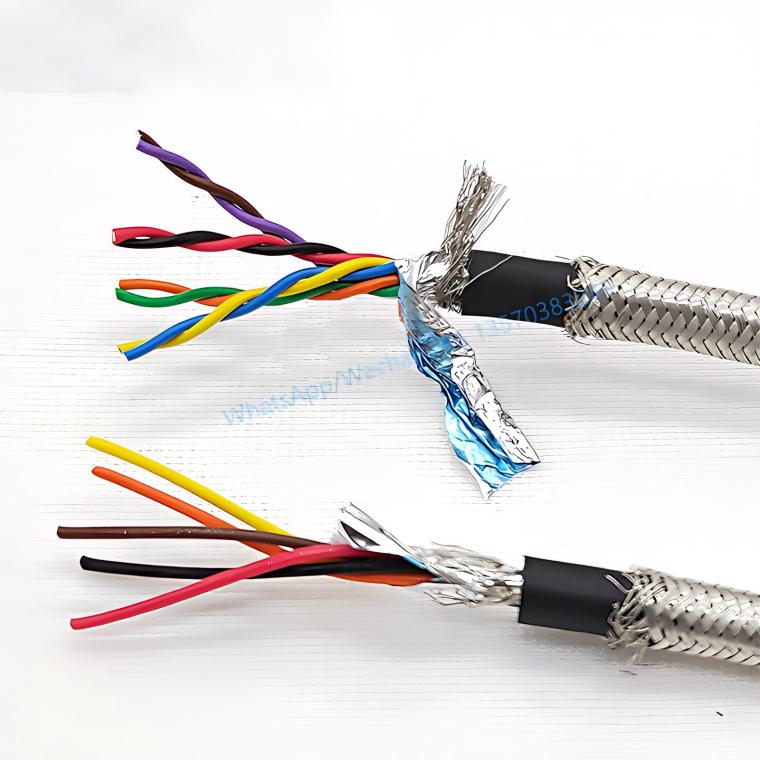

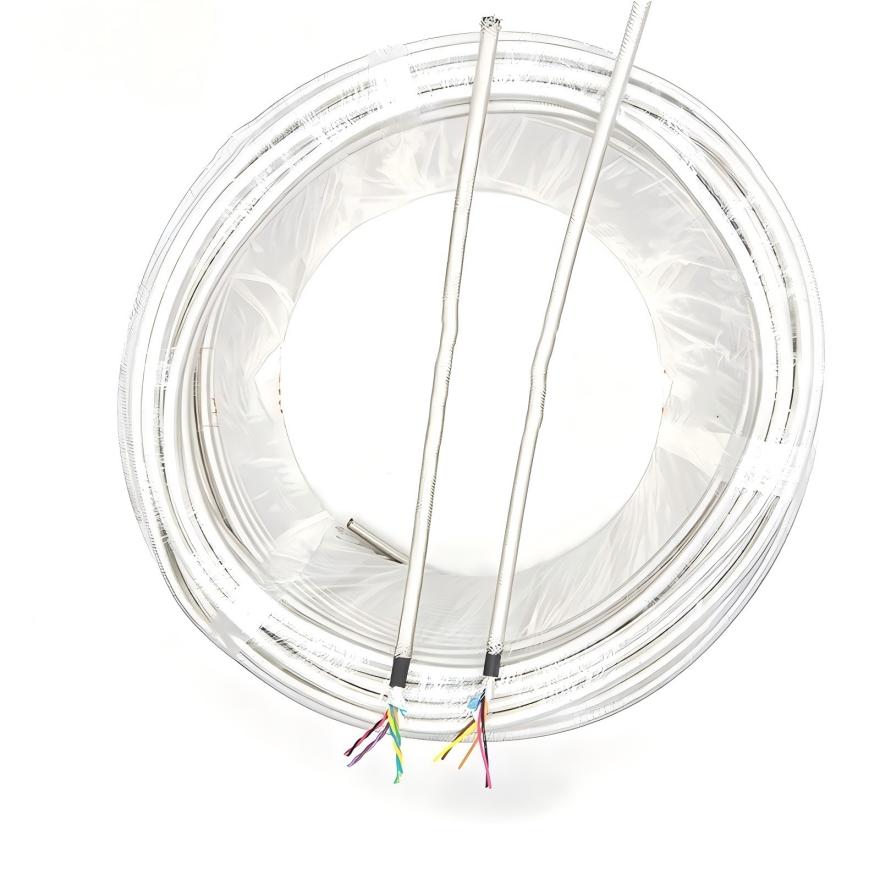

Structure du câble
● Tinned copper conductor, ultra-fine copper wire Complies with DIN VDE 0295 Class 6 and IEC 60228 Class 6
● Special fluororesin insulation
● Core wires are color-coded
● Core wires are twisted with optimal lay length
● Improved tinned copper wire shielding
● Minimum coverage of 90%
● Black color (RAL9005), matte finish
| GRATING RULES CABLES
( 50 million times reliability tests for drag chain) |
||||
| Non. | Code produit | Nombre de noyaux et section transversale | Diamètre extérieur approximatif （mm) | Couleur de la gaine extérieure |
| (NO.Xm㎡) | ||||
| 1 | SEN-FP5002.08.0008 | 8×0.08 | 4.5 | Noir |
| 2 | SEN-FP5002.12.0008 | 12×0.08 | 4.8 | Noir |
.
Customization of special models according to requirements is available, including cables with different conductor cross-sectional areas, materials, shielding, colors, and other specifications for the sheath.
