Cables de torsión altamente flexibles Cable para robot industrial
This type of cable is particularly suitable for long-term twisting, bending, and high-intensity applications in complex environments such as industrial robots and other machinery. It is capable of withstanding continuous, high-intensity mechanical stress from bending and twisting, making it an excellent choice to ensure the reliability and extended lifespan of robotic products.
Parámetro técnico
● Special fluororesin insulation, special PVC sheathing with ultra-high strength and bending, twisting performance
● Complies with TUV 2 PfG 2577 Class V requirements
● Temperature range: Mobile installation -20°C to +80°C Fixed installation -40°C to +105°C
● Nominal voltage Uo/U for power supply 300/500 V, data Uo/U 300/300 V
● Test voltage for power supply 2000 V, data 1500V
● Insulation resistance: Minimum 100 MOhm xkm
● Minimum bending radius: Mobile installation 6x cable diameter Fixed installation 4x cable diameter
● Cumple con las regulaciones RoHS y Reach de la UE

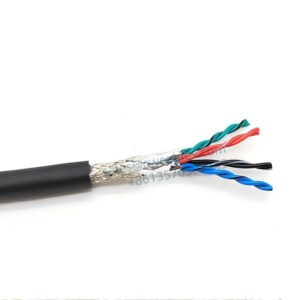

Highly Flexible Torsion Cables Industrial Robot Cable Structure
● Tin-plated copper (below 0.5mm2) or bare copper (0.5mm2 and above) conductors, ultra-fine copper wire, complying with DIN VDE 0295 Class 6 and IEC 60228 Class 6
● Aislamiento especial de resina fluorada
● Core wire color-coded
● Optimal pitch twisting of the cores
● Blindaje trenzado de alambre de cobre estañado mejorado
●Minimum coverage rate of 85%
● Funda exterior de PVC especial
● Acabado mate negro (RAL9005)
| INDUSTRIAL ROBOT POWER CABLE ( 50 million times reliability tests for drag chain) | ||||
| No. | Código de producto | Número de núcleos y área de sección transversal. | Diámetro exterior aproximado (mm) | Color de la funda exterior |
| (NO.Xm㎡) | ||||
| 1 | RO-FY5002.06.2024 | 4×0.5+(2×0.2) | 7.0 | Negro |
| 2 | RO-FY5002.06.1922 | 24×0.75+(2×0.3) | 8.0 | Negro |
| 3 | RO-FY5002.06.1522 | 4×1.5+(2×0.3) | 9.2 | Negro |
| INDUSTRIAL ROBOT DATA CABLE ( 50 million times reliability tests for drag chain) | ||||
| No. | Código de producto | Número de núcleos y área de sección transversal. | Diámetro exterior aproximado (mm) | Color de la funda exterior |
| (NO.Xm㎡) | ||||
| 1 | RO-FY5006.06.0020 | 3x2x0.2 | 5.5 | Negro |
| 2 | RO-FY5006.16.0020 | 8x2x0.2 | 8.6 | Negro |
| 3 | RO-FY5006.06.0030 | 3x2x0.3 | 6.2 | Negro |
Está disponible la personalización de modelos especiales según los requisitos, incluidos cables con diferentes áreas de sección transversal del conductor, materiales, blindaje, colores y otras especificaciones para la funda.
Robot body cable testing standards
1.Vertical torsion test
Test method: Take a 2-meter finished cable, fix the distance at 200mm, rotate the angle at positive and negative 180 degrees, and perform torsion at a speed of 12 times per minute for 1 minute each time.
Judgment criteria: 1.No open circuit or short circuit after exceeding 500,000 cycles of back and forth movement. 2.No cracking in the sheath.
2.2D torsion test
Test method: Take a 2.5-meter finished cable, fix the distance at 1 meter, apply the standard specified weight, rotate the angle at positive and negative 90 degrees or 180 degrees, and perform torsion at a speed of 60 cycles per minute.
Judgment criteria: 1.No open circuit or short circuit after exceeding 5,000,000 cycles of back and forth movement. 2.No cracking in the sheath.
3.3D torsion test
Test method: Take a 1-meter finished cable, fix the distance according to the standard requirements. The upper part is bent at positive and negative 90 degrees, while the base rotates at positive and negative 180 degrees. Perform bending and torsion at a speed of 30 cycles per minute
Judgment criteria: 1.No open circuit or short circuit after exceeding 5,000,000 cycles of back and forth movement. 2.No cracking in the sheath.
4.Two-wheel bending test
Test method: Take a 5-meter finished cable and, according to the specified pulley diameter and weight, move the pulley back and forth at a speed of 0.33 meters per second with a travel distance of at least 1.0 meter. Judgment criteria:
Judgment criteria: 1.No open circuit or short circuit after exceeding 1,000,000 cycles of back and forth movement. 2.No cracking in the sheath.
5.90-degree bend test
Test method: Take a 2-meter finished cable, with a bending radius of 2.5 times the cable diameter, apply the weight specified by the standard, and perform bending at a speed of 40 cycles per minute.
Judgment criteria: 1.No open circuit or short circuit after exceeding 1,000,000 cycles of back and forth movement. 2.No cracking in the sheath.
6.Bending and rotating test
Test method: Take a 1.5-meter finished cable, fix the distance at 300mm, with a bending radius of 150mm, and rotate at a speed of 50 revolutions per minute.
Judgment criteria No open circuit or short circuit after exceeding 50,000 cycles of back and forth movement. No cracking in the sheath.
