Precision motion control depends on clean, reliable feedback from theالتشفيرto the drive or controller. The right cable protects low-level signal integrity againstelectrical noise, flexing, oil, abrasion, and installation stress. This encoder cable guide explains how to match shielding, conductor design, connector style, environment, and budget so your motor encoder cable supports stable positioning, repeatability, and long service life.
What is encoder cable selection?
Encoder cable selection is the process of choosing the correct cable construction, shielding, conductor size, connector type, flexibility rating, and environmental protection for an encoder feedback system. A proper choice ensures the controller receives accurate position, speed, and direction signals without noise, voltage drop, intermittent faults, or premature cable failure.
Encoder Cable Selection Fundamentals
Encoder cables carry feedback signals from rotary, linear, or motor-mounted encoders to drives,الشركات المحدودة العامة, CNC controllers, robots, and motion controllers. Because these signals can be low voltage and high frequency, the cable must preserve waveform quality while resisting interference from motors,VFDs, contactors, welders, and other industrial noise sources.
واستنادًا إلى بياناتنا الداخلية وتحليلات السوق، إليك التفاصيل:
Prevents false counts, jitter, and position errors
أزواج ملتوية
Signal balance
Improves differential signal integrity
حجم الموصل
Voltage drop and durability
Supports required cable length and motion stress
مادة السترة
المقاومة البيئية
Protects against oil, coolant, abrasion, and chemicals
تصنيف المرن
Motion life
Prevents conductor fatigue in moving applications
نوع الموصل
Installation reliability
Reduces wiring errors and downtime
Impedance/capacitance
Signal quality
Helps maintain clean high-speed encoder pulses
ل التشفير التزايدي, cable selection often focuses on maintaining clean A, B, and Z channel signals. For absolute encoders, especiallyمباحث أمن الدولة, BiSS, EnDat, or fieldbus-based feedback, impedance, shielding, and pair geometry become even more important. A well-matched cable prevents intermittent feedback errors that are difficult to diagnose once the machine is running.
نصيحة احترافية لـ cwcables:I always start encoder cable selection by checking the encoder output type and cable length before looking at jacket or connector options. If the signal architecture is wrong, even the most rugged cable will not solve feedback instability.
How Does encoder cable selection Work?
Encoder cable selection works by matching electrical, mechanical, and environmental requirements to the motion system. You evaluate encoder signal type, cable length, noise exposure, flexing, temperature, chemicals, connector compatibility, and grounding method, then choose a cable that preserves signal integrity under real operating conditions.
Signal, Motion, and Environment Matching
The selection process should begin with the encoder datasheet and end with the actual machine environment. A cable that performs well in a static cabinet may fail quickly on a robot arm, drag chain, spindle, gantry, or servo axis exposed to coolant and continuous movement.
A practical encoder cable selection workflow includes:
Identify the encoder output
Incremental: TTL, HTL, line driver, open collector, push-pull
Absolute: SSI, BiSS, EnDat, Hiperface, CANopen,إيثركات-based feedback
Confirm the required conductor layout
موصلات الطاقة
أزواج الإشارة
سلك التصريف
Overall shield
Pair shields if required
Calculate cable length and signal sensitivity
Longer runs usually need better shielding and lower capacitance.
TPE for wider temperature and dynamic applications
Verify connectors and pinout
M12, M23, M17, D-sub, RJ45-style, or manufacturer-specific connectors
Straight or angled plug
طريقة إنهاء الدرع
Plan grounding and routing
Keep encoder cables away from motor power cables.
Use correct shield bonding at the drive, cabinet, or both ends depending on system design.
Encoder cable shielding selection is especially important because encoder feedback errors often appear as random alarms, skipped counts, unstable speed control, or positioning drift. Selecting the correct cable upfront reduces commissioning time and long-term maintenance costs.
نصيحة احترافية لـ cwcables:I recommend routing encoder cables separately from motor power cables even when using high-quality shielding. Shielding is protection, not permission to ignore cable routing best practices.

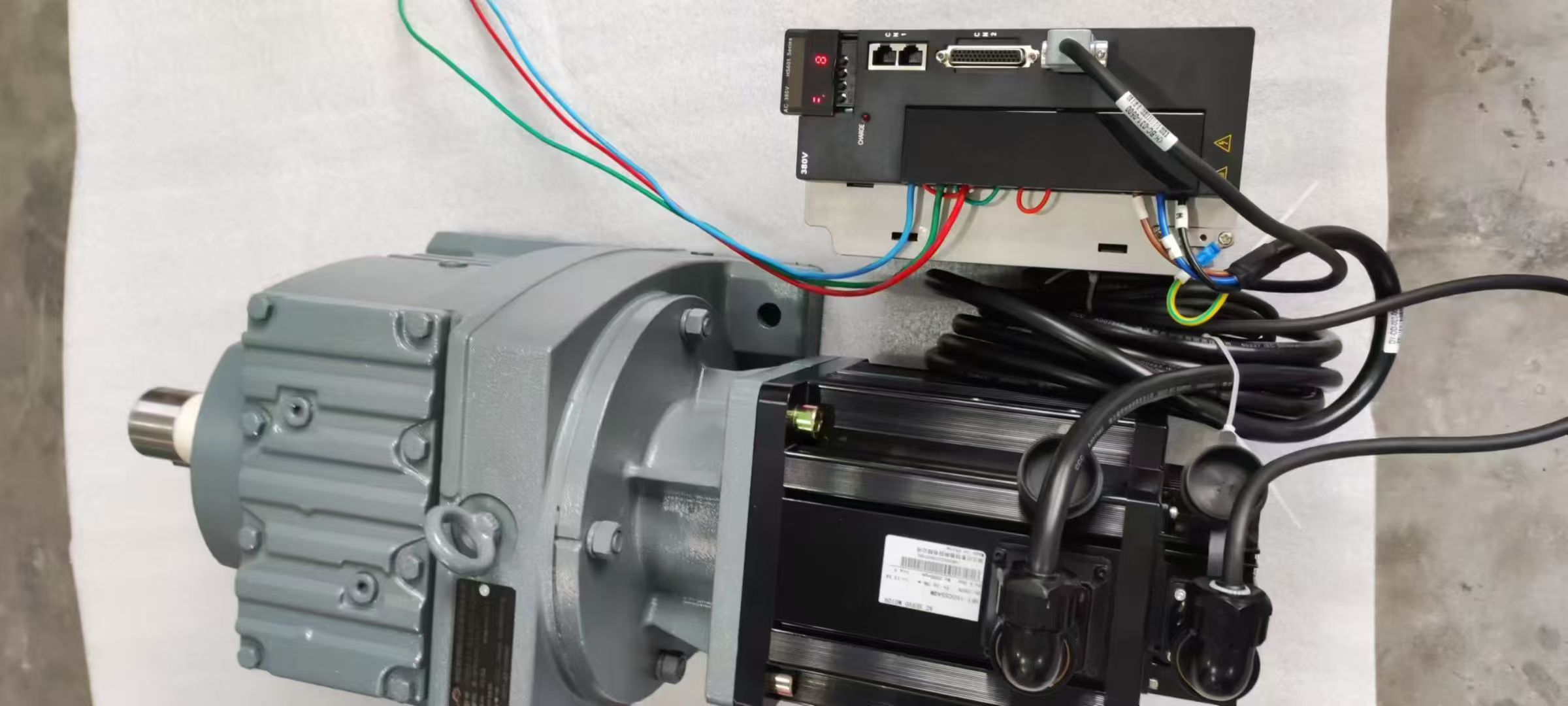

كابل مؤازر
What are the benefits of encoder cable selection?
Proper encoder cable selection improves feedback accuracy, reduces electrical noise problems, extends cable life, and prevents costly downtime. It helps motion systems maintain stable position control, cleaner speed regulation, repeatable machine movement, and fewer nuisance faults in demanding industrial environments.
مزايا الأداء والموثوقية
A carefully selected encoder cable directly supports the quality of the feedback loop. In precision motion control, the controller can only correct motion based on the signal it receives. If that signal is distorted, delayed, interrupted, or corrupted by noise, the machine may lose accuracy even if the encoder and servo drive are high quality.
واستنادًا إلى بياناتنا الداخلية وتحليلات السوق، إليك التفاصيل:
فائدة
Impact on Motion Control
نتيجة نموذجية
سلامة إشارة أفضل
Cleaner encoder pulses or data
Fewer position errors
Improved EMI resistance
Lower interference from drives and motors
Reduced nuisance alarms
عمر خدمة أطول
Less fatigue and jacket damage
Lower replacement frequency
Easier installation
Correct connectors and pinout
Faster commissioning
Better environmental protection
Resistance to oil, coolant, and abrasion
Fewer field failures
Stable grounding
Controlled shield behavior
Lower noise coupling
Reduced troubleshooting
Fewer intermittent faults
Less unplanned downtime
For high-speed axes, even minor signal distortion can create large positioning problems. In packaging machinery, CNC systems, robotics, semiconductor equipment, medical automation, and printing machines, feedback quality is closely tied to production quality. A properly specified motor encoder cable helps maintain repeatability across thousands or millions of cycles.
Good encoder cable selection also reduces hidden costs. Intermittent encoder faults can consume hours of technician time because they may only appear during acceleration, machine warm-up, cable movement, or nearby switching events. Choosing the correct cable construction makes the entire control system more predictable.
نصيحة احترافية لـ cwcables:I treat encoder cable selection as part of the motion system design, not as an accessory decision. A low-cost cable can become expensive quickly if it causes one avoidable production stop.

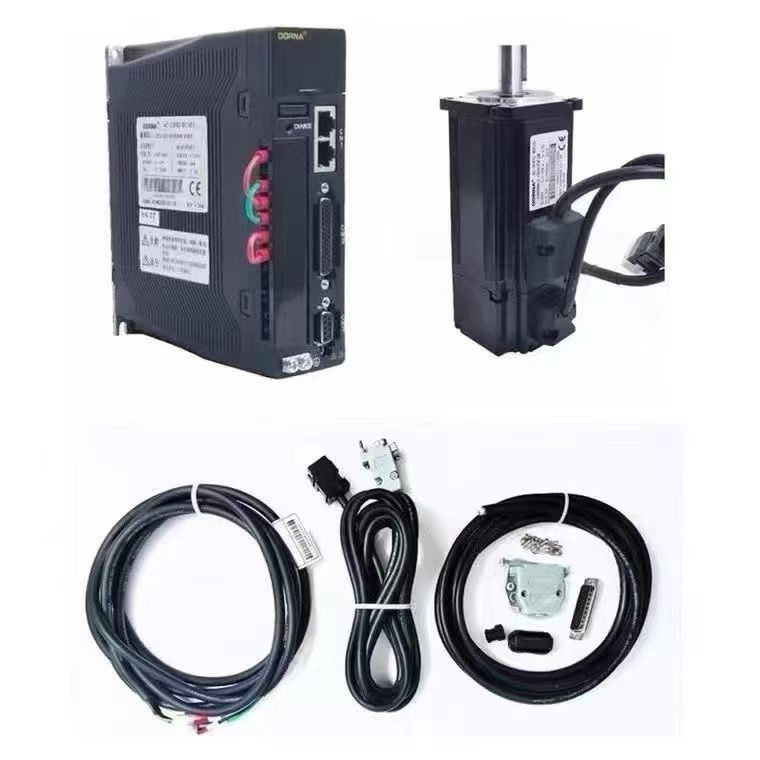

كابل مؤازر
How to maintain a encoder cable selection?
Maintaining encoder cable performance means inspecting the cable, connectors, routing, strain relief, shielding, and grounding over time. Regular checks help detect jacket wear, loose connectors, oil damage, shield breaks, conductor fatigue, and routing changes before they create encoder faults or motion accuracy problems.
ممارسات الفحص والصيانة الوقائية
Encoder cable maintenance is about preserving the original electrical and mechanical conditions that made the cable suitable. Even a well-selected cable can fail if it is crushed, bent below its minimum radius, exposed to unexpected chemicals, or pulled at the connector.
Use this maintenance checklist:
Inspect the jacket
Look for cuts, swelling, cracking, flattening, abrasion, or chemical softening.
تحقق من نصف قطر الانحناء
Confirm the cable is not bent tighter than the manufacturer’s recommended radius.
التحقق من تخفيف الضغط
Ensure cable clamps and glands support the cable without crushing it.
Inspect connector locking
Check threaded couplings, bayonet locks, and latch mechanisms.
Look for contamination
Remove oil, coolant, dust, and metal chips from connector areas.
Confirm cable routing
Keep encoder cables separated from motor, brake, and power wiring.
Check shield continuity
Verify the shield connection if noise symptoms appear.
Monitor drag-chain behavior
Ensure the cable moves freely and is not twisted, kinked, or rubbing.
استبدل الكابلات التالفة مبكرًا
Do not wait for intermittent faults to become machine shutdowns.
For dynamic applications, cable life is influenced by acceleration, bend radius, travel distance, torsion, temperature, and cable carrier design. If the machine has been modified, maintenance teams should recheck whether the existing cable still matches the updated motion profile.
نصيحة احترافية لـ cwcables:I never recommend repairing a damaged encoder cable in a high-precision axis unless it is an approved serviceable assembly. Splices can change impedance, shielding, and reliability in ways that are hard to predict.
What is the price of encoder cable selection?
The price of encoder cable selection depends on cable length, conductor count, shielding design, jacket material, flex rating, connector type, certification, and customization. Basic static encoder cables cost less, while high-flex, oil-resistant, torsion-rated, or pre-molded assemblies for servo systems cost more.
نطاقات التسعير ومحركات التكلفة
Encoder cable cost is best evaluated as total installed value rather than unit price alone. A cheaper cable may be acceptable for a short, static, low-noise application, but it may be unsuitable for a long servo axis, continuous-flex machine, or electrically noisy cabinet.
واستنادًا إلى بياناتنا الداخلية وتحليلات السوق، إليك التفاصيل:
نوع الكابل
مستوى التكلفة النموذجي
أفضل حالة استخدام
محركات التكلفة الرئيسية
Basic static encoder cable
قليل
Fixed cabinet or machine wiring
Conductor count, length, basic shielding
Shielded industrial encoder cable
واسطة
General automation and servo feedback
Overall shield, twisted pairs, jacket quality
كابل تشفير عالي المرونة
متوسطة إلى عالية
سلاسل السحب والمحاور المتحركة
Fine-strand conductors, flex-rated insulation
Oil-resistant PUR encoder cable
متوسطة إلى عالية
CNC, packaging, factory automation
PUR jacket, abrasion resistance
كابل آلي ذو تصنيف الالتواء
عالي
Robot arms and rotating axes
Torsion design, special materials
Pre-terminated motor encoder cable
متوسطة إلى عالية
Fast installation and reduced wiring errors
Connectors, molding, pinout, testing
Custom encoder cable assembly
عامل
OEM systems and retrofit projects
Design, certification, length, connector sourcing
When budgeting, include more than cable price. Consider downtime risk, connector labor, testing time, installation complexity, replacement frequency, and machine accessibility. A high-quality cable assembly may cost more upfront but reduce startup delays and service calls.
For OEMs and system integrators, cwcables can support encoder cable selection by aligning the cable design with application requirements such as signal type, flex life, shielding strategy, connector configuration, and environmental exposure.
نصيحة احترافية لـ cwcables:I advise buyers to compare encoder cables by application fit, not just by price per meter. The right cable often pays for itself by preventing just one encoder-related downtime event.
الميزات الرئيسية والمقارنة
The best encoder cable combines low-noise signal transmission, effective shielding, correct pair geometry, durable insulation, suitable jacket material, reliable connectors, and the right flex rating. Comparing these features side by side helps engineers choose a cable that fits both the control signal and the machine environment.
Feature Comparison for Common Encoder Cable Designs
واستنادًا إلى بياناتنا الداخلية وتحليلات السوق، إليك التفاصيل:
ميزة
Basic Shielded Cable
High-Flex Encoder Cable
كابل تشفير المحرك المؤازر
Robotic/Torsion Encoder Cable
أفضل تطبيق
Static or low-motion wiring
سلاسل السحب والمحاور المتحركة
Servo feedback between motor and drive
Robot arms and rotating systems
التدريع
Overall braid or foil
High-coverage braid/foil
Overall shield, sometimes pair shielding
Flexible shield optimized for torsion
البناء الزوجي
Standard twisted pairs
Fine-strand twisted pairs
Signal pairs plus power/reference conductors
Torsion-stable conductor layout
مادة السترة
PVC or standard industrial jacket
بور أو تب
PUR, PVC, or OEM-specified jacket
PUR/TPE specialty jacket
مقاومة فليكس
منخفضة إلى معتدلة
عالي
معتدلة إلى عالية
Very high torsion resistance
مقاومة الزيت
يعتمد على سترة
Usually good with PUR
Often required in servo systems
عالية عادة
حماية EMI
معتدلة إلى جيدة
جيد إلى ممتاز
جيد إلى ممتاز
Good, with motion durability
تعقيد التثبيت
قليل
واسطة
واسطة
عالي
التكلفة النموذجية
قليل
متوسطة إلى عالية
متوسطة إلى عالية
عالي
Best buying priority
Cost-effective reliability
Flex life and shielding
Correct pinout and drive compatibility
Torsion life and ruggedness
A strong encoder cable guide should always distinguish between electrical features and mechanical features. For example, a cable can have excellent shielding but still fail quickly if installed in a drag chain without a high-flex conductor design. Conversely, a very flexible cable may still perform poorly if it lacks proper shielding for a noisy servo environment.
Encoder cable shielding selection should consider both shield coverage and termination. Braid shields generally provide strong mechanical durability and low-resistance grounding, while foil shields can improve coverage at certain frequencies. Many industrial encoder cables use combined foil and braid shielding to balance performance.
نصيحة احترافية لـ cwcables:I like to specify the cable by failure mode: noise risk, flex risk, chemical risk, or connector risk. Once the main risk is clear, the correct feature set becomes much easier to choose.
عوامل التكلفة والشراء
Buying the right encoder cable requires balancing price, signal quality, machine environment, flex life, connector reliability, and supplier support. The lowest-cost option is not always economical if it increases installation time, creates feedback faults, or requires frequent replacement in demanding motion applications.
Practical Purchasing Criteria
A good purchasing decision starts with application data. Before requesting a quote, gather the encoder model, drive model, pinout, required cable length, connector type, operating environment, motion profile, and compliance requirements. This avoids mismatched assemblies and reduces redesign work.
تشمل عوامل الشراء المهمة ما يلي:
Encoder and drive compatibility
Confirm signal type, voltage, wiring layout, and pin assignment.
طول الكابل
Longer cables may require better shielding, lower capacitance, and differential signaling.
Noise environment
High-noise areas need stronger encoder cable shielding selection.
الملف الشخصي للحركة
Static, flexing, torsion, and drag-chain applications require different cable constructions.
موثوقية الموصل
Molded connectors can reduce wiring errors and improve sealing.
التعرض البيئي
Check oil, coolant, UV, temperature, abrasion, moisture, and chemicals.
مساحة التثبيت
Consider cable diameter, bend radius, connector angle, and routing path.
Certification needs
أول، سي، بنفايات, REACH, flame ratings, or machine-specific standards may apply.
Supplier engineering support
A knowledgeable supplier can help validate the cable before production or installation.
تكلفة دورة الحياة
Include replacement labor, downtime, and troubleshooting time.
For OEM production, repeatability matters. Standardized cable assemblies reduce technician variation and simplify inventory. For maintenance teams, having pre-tested replacement motor encoder cable assemblies can significantly reduce machine recovery time.
نصيحة احترافية لـ cwcables:I recommend sharing the full motion application with the cable supplier, not just the length and connector. Details like drag-chain travel, nearby VFDs, and coolant exposure often determine whether the cable succeeds.
خاتمة
Encoder cable selection is essential for reliable precision motion control because it protects feedback signals from noise, movement, and environmental damage. By matching shielding, conductor design, jacket material, connectors, and flex rating to the application, engineers can improve accuracy, reduce downtime, and extend system life.
قائمة الاختيار النهائية
Choosing the right encoder cable is a technical decision that affects machine accuracy and reliability. The best approach is to evaluate electrical requirements first, then mechanical motion, then environmental exposure, and finally installation and cost factors.
استخدم قائمة المراجعة النهائية هذه قبل الشراء:
Confirm encoder output type and voltage.
Match conductor count and twisted-pair layout.
Choose shielding based on EMI risk and cable length.
Select static, high-flex, drag-chain, or torsion-rated construction.
Verify jacket material for oil, coolant, abrasion, and temperature.
Confirm connector type, pinout, sealing, and locking method.
Plan shield termination and grounding.
Route encoder cables away from motor power cables.
Consider pre-terminated assemblies for faster installation.
Work with a supplier that understands precision motion systems.
For projects that require dependable encoder feedback, cwcables can help specify or customize encoder cable assemblies for servo systems, automation equipment, robotics, CNC machinery, and other precision motion applications.
نصيحة احترافية لـ cwcables:I always view the encoder cable as part of the feedback device, not just wiring. If the cable cannot preserve the signal, the controller cannot deliver true precision motion.
