Choosing the right moving كابل إيثرنت is less about softness and more about motion rating, bend radius, التدريع, and conductor life. A standard flexible cable handles occasional movement during installation or service, while a continuous flex cable is engineered for repetitive motion in سلاسل السحب, الروبوتات, gantries, and automation systems. Understanding the difference helps prevent signal loss, jacket cracking, conductor fatigue, and unexpected downtime.

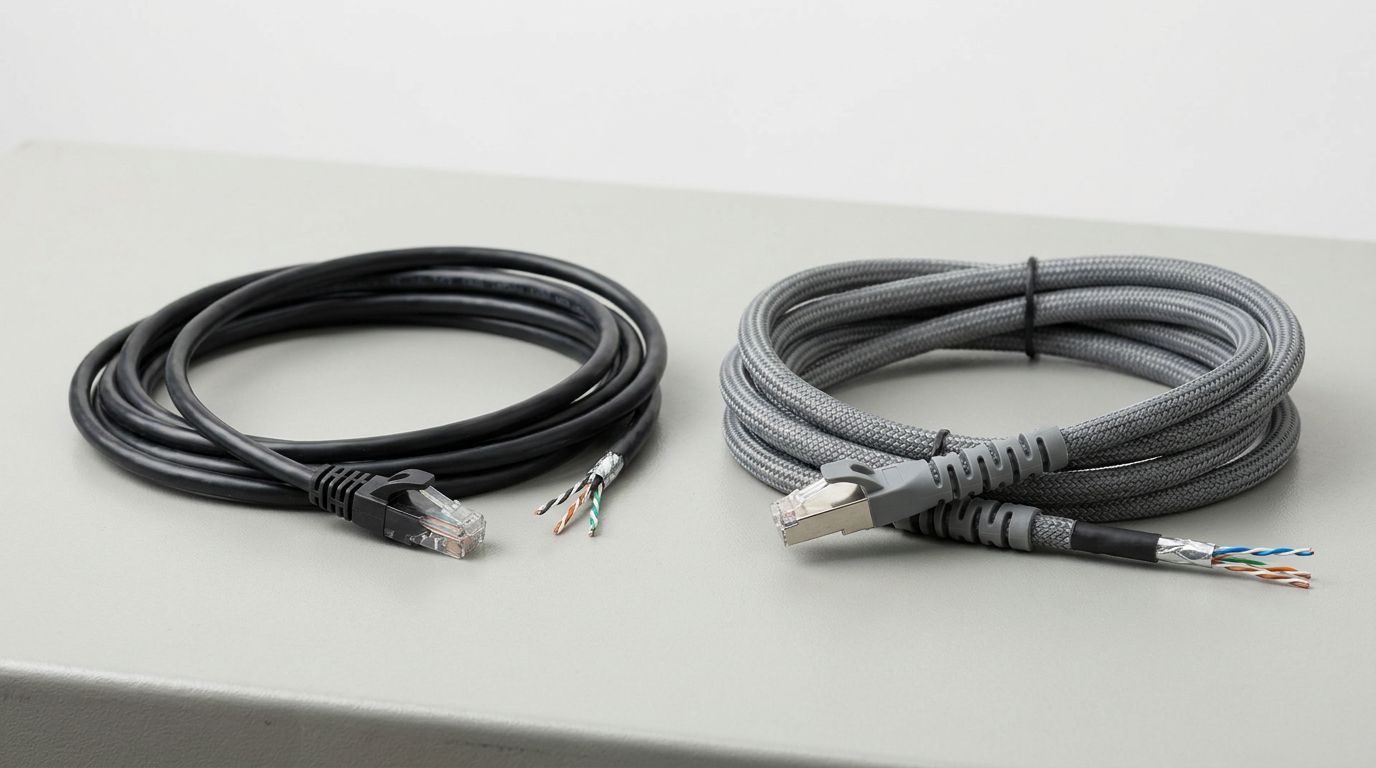

What is flexible vs continuous flex ethernet cable?
Flexible Ethernet cable is designed to bend more easily than standard cable, but it is not always built for constant motion. Continuous-flex Ethernet cable is engineered for repeated rolling, torsional, or robotic movement, using specialized conductors, jackets, and stranding to maintain network performance through millions of flex cycles.
Core Definition and Application Difference
A flexible Ethernet cable is typically used where routing convenience matters: control panels, patching, equipment cabinets, portable devices, and installations that may need occasional repositioning. It offers easier handling than rigid cable but may still fail prematurely if exposed to repeated mechanical motion.
A continuous-flex Ethernet cable is built for applications where the cable moves as part of machine operation. This includes drag chains, pick-and-place robots, machine vision systems, معدات CNC, packaging lines, and automated guided systems.
واستنادًا إلى بياناتنا الداخلية وتحليلات السوق، إليك التفاصيل:
| نوع الكابل | الغرض الأساسي | Motion Frequency | حالة الاستخدام النموذجية | Risk if Misused |
|---|---|---|---|---|
| كابل إيثرنت قياسي | التثبيت الثابت | None or very rare | Office, building wiring | Conductor breakage under movement |
| كابل إيثرنت مرن | Easy routing and occasional movement | قليل | Patch panels, cabinets, portable setups | Fatigue in repetitive motion |
| Continuous-Flex Ethernet Cable | حركة الآلة المتكررة | عالي | Drag chains, robots, automation | Best option for dynamic systems |
| Torsion-Rated Ethernet Cable | Twisting movement | High rotational stress | Robotic arms, rotary axes | Non-torsion cable may fail quickly |
نصيحة احترافية لـ cwcables: I recommend treating “flexible” as an installation feature and “continuous-flex” as a service-life rating. If the cable moves every machine cycle, choose continuous-flex from the start.

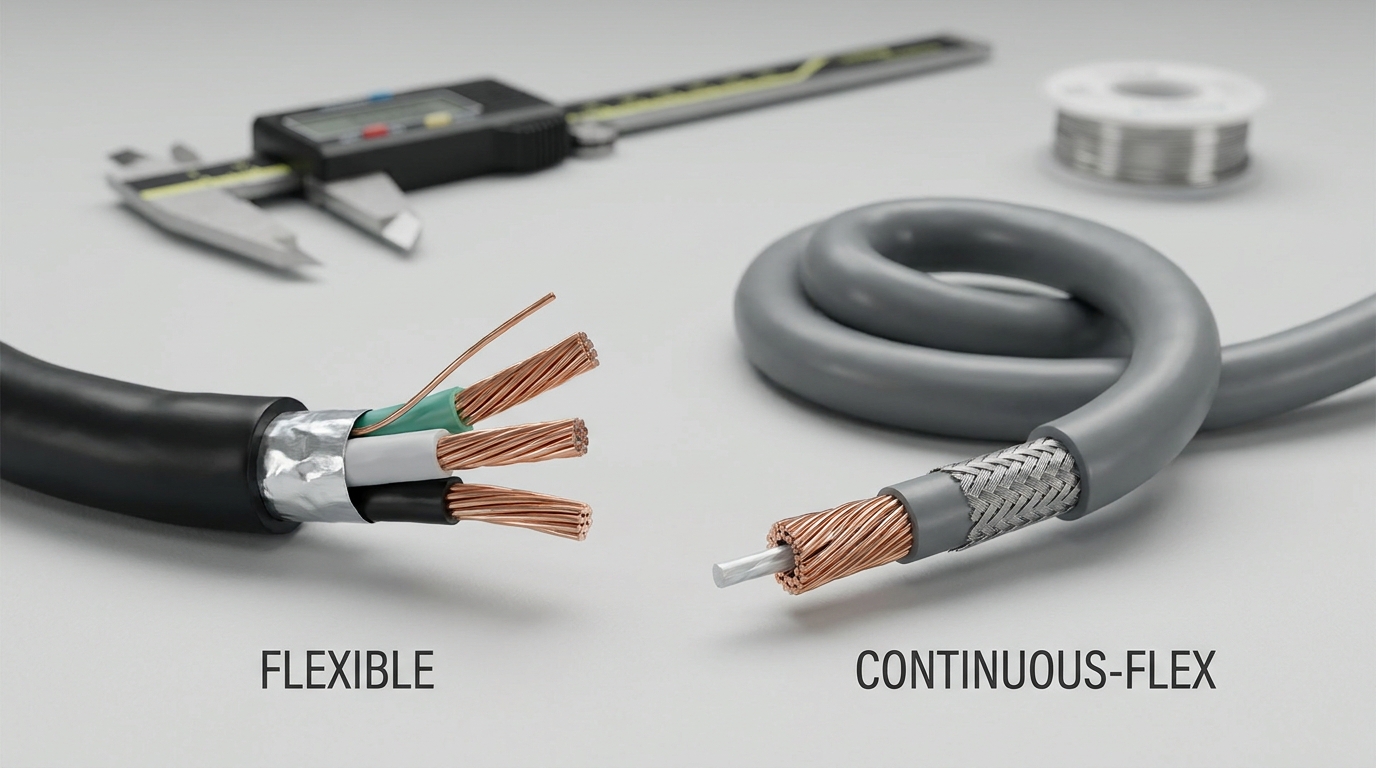

How Does flexible vs continuous flex ethernet cable Work?
Flexible cable works by using materials and conductor designs that allow easier bending during routing. Continuous-flex cable goes further, combining fine-stranded conductors, motion-rated insulation, abrasion-resistant jackets, and optimized shielding so Ethernet data remains stable while the cable repeatedly bends, rolls, or twists.
Mechanical and Electrical Working Principle
Ethernet cable performance depends on maintaining conductor geometry, مقاومة, shielding integrity, and pair balance. When a cable bends repeatedly, copper conductors can work-harden, insulation can deform, and shielding can separate or fracture. These changes may cause فقدان الحزمة, intermittent connectivity, or complete conductor failure.
Continuous-flex designs reduce these risks through controlled stranding, carefully selected jacket compounds, and internal construction that distributes stress evenly.
تشمل عناصر العمل الرئيسية ما يلي:
- الموصلات النحاسية الدقيقة reduce fatigue during repeated bending.
- Special insulation compounds help maintain pair spacing and electrical performance.
- احباط أو جديلة التدريع protects data signals in electrically noisy industrial environments.
- Low-friction jacket materials reduce wear inside cable carriers and drag chains.
- طول الاستلقاء الأمثل helps prevent pair deformation during motion.
- Defined minimum bend radius ensures the cable is not over-stressed during operation.
نصيحة احترافية لـ cwcables: I always check both the electrical category and the mechanical rating. A cable can meet Cat5e, Cat6, or Cat6A performance on paper but still be wrong for a moving axis.

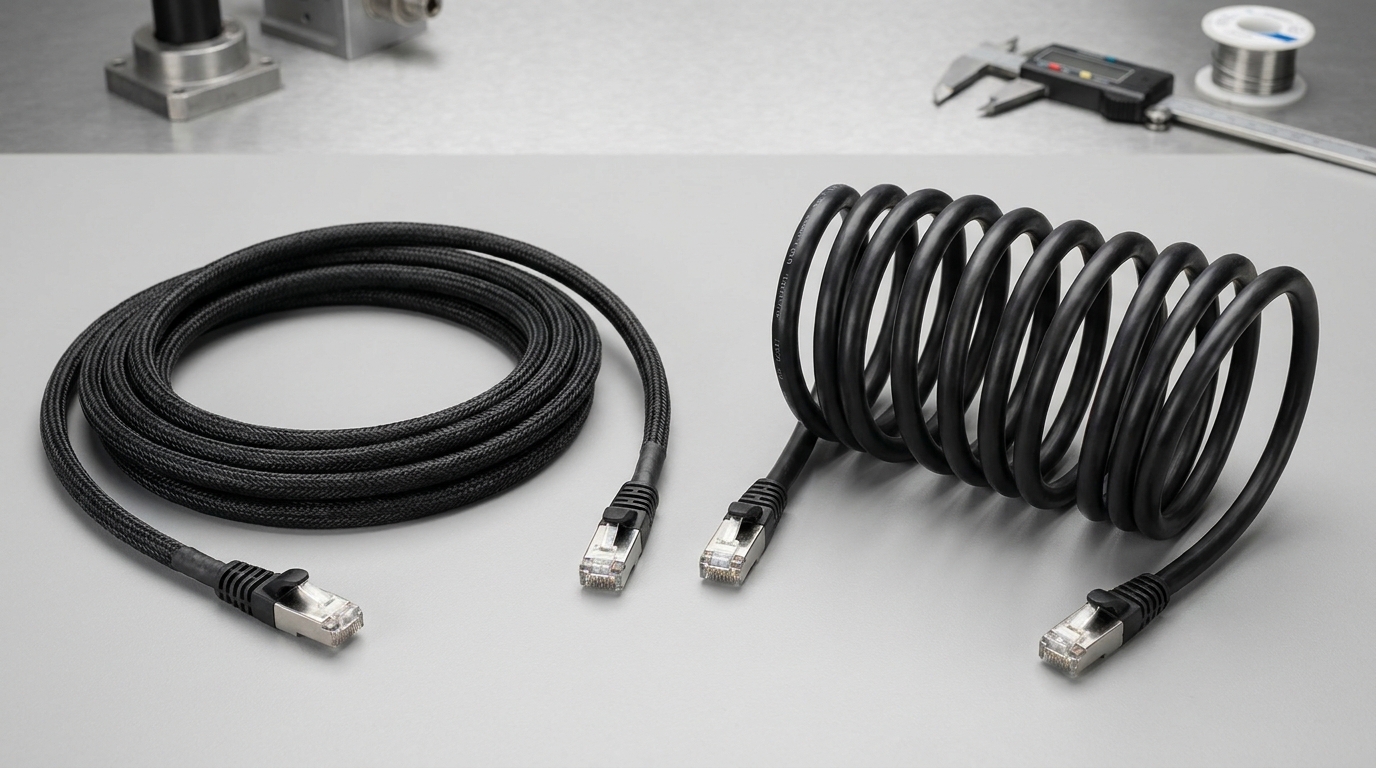

What are the benefits of flexible vs continuous flex ethernet cable?
The main benefit is matching cable construction to movement severity. Flexible Ethernet cable improves handling and routing in low-motion installations, while continuous-flex Ethernet cable delivers longer service life, fewer communication faults, better uptime, and greater reliability in automated systems where cables move repeatedly.
Practical Benefits by Use Environment
Selecting between flexible and continuous-flex Ethernet cable prevents both overbuying and under-specifying. Flexible cable is cost-effective when motion is occasional. Continuous-flex cable is more expensive, but it reduces replacement labor, troubleshooting time, and production interruptions in dynamic applications.
واستنادًا إلى بياناتنا الداخلية وتحليلات السوق، إليك التفاصيل:
| فائدة | كابل إيثرنت مرن | Continuous-Flex Ethernet Cable |
|---|---|---|
| Easier installation | ممتاز | ممتاز |
| Handles repeated bending | محدود | ممتاز |
| ملاءمة سلسلة السحب | Usually not recommended | مصممة لذلك |
| Long-term automation uptime | معتدل | عالي |
| Resistance to conductor fatigue | معتدل | عالي |
| Typical upfront cost | أدنى | أعلى |
| Best value in moving machinery | محدود | قوي |
For industrial users, the biggest benefit of continuous-flex cable is predictable performance. It helps prevent intermittent faults that are difficult to diagnose, especially in machine vision, PLC communication, servo networks, and high-speed industrial Ethernet systems.
نصيحة احترافية لـ cwcables: I look at the cost of downtime before looking at cable price. In automation, one unplanned stop can cost far more than upgrading to a proper continuous flex cable.
How to maintain a flexible vs continuous flex ethernet cable?
Maintenance depends on motion exposure. Flexible Ethernet cable should be protected from sharp bends, crushing, and repeated movement. Continuous-flex Ethernet cable should be inspected for jacket wear, correct bend radius, cable carrier alignment, strain relief, and connector integrity to preserve signal quality and mechanical life.
قائمة الفحص والصيانة الوقائية
Even the best moving ethernet cable can fail early if installed incorrectly. Most failures come from over-tight bending, poor strain relief, twisting inside a drag chain, excessive tensile load, or abrasion against machine surfaces.
Use this maintenance checklist:
- Verify bend radius: Keep the cable within the manufacturer’s recommended minimum bend radius.
- فحص السترة: Look for cracking, flattening, cuts, swelling, or abrasion.
- Check cable carrier alignment: Ensure the cable moves smoothly without binding or crossing over itself.
- Avoid overfilling drag chains: Crowded carriers increase friction and heat buildup.
- Confirm strain relief: Do not allow pulling force to transfer directly to connectors.
- فحص الموصلات: يفحص RJ45, م12, or industrial Ethernet connectors for looseness or corrosion.
- Monitor network errors: Packet loss, link drops, and intermittent communication may indicate cable fatigue.
- Replace damaged cables promptly: Do not wait for complete failure in critical systems.
نصيحة احترافية لـ cwcables: I prefer scheduled inspection over reactive replacement. If a continuous-flex cable is in a high-cycle axis, include it in the machine’s preventive maintenance plan.
What is the price of flexible vs continuous flex ethernet cable?
Flexible Ethernet cable usually costs less because it is built for easier handling rather than high-cycle motion. Continuous-flex Ethernet cable costs more due to specialized conductors, jackets, shielding, testing, and motion-rated construction, but it often provides better lifetime value in machines that move constantly.
عوامل التسعير النموذجية
Cable price varies by category rating, shielding, jacket material, conductor design, certifications, length, connector type, and flex-cycle rating. A simple flexible patch cable may be economical, while a continuous-flex Cat6A shielded cable with molded industrial connectors can cost significantly more.
واستنادًا إلى بياناتنا الداخلية وتحليلات السوق، إليك التفاصيل:
| عامل | خيار أقل تكلفة | خيار التكلفة الأعلى | لماذا يهم؟ |
|---|---|---|---|
| فئة إيثرنت | كات5e | Cat6A أو أعلى | Higher bandwidth and stricter electrical control |
| التدريع | UTP | F/UTP, S/FTP, braid shield | حماية أفضل لـ EMI |
| سترة | بولي كلوريد الفينيل | PUR، TPE، مواد مقاومة للزيت | مقاومة أفضل للتآكل والمواد الكيميائية |
| تصنيف الحركة | مرن | المرن المستمر | Longer service life in movement |
| نمط الموصل | معيار RJ45 | الصناعية RJ45 أو M12 | Better ruggedness |
| Cable assembly | كابل السائبة | Custom terminated assembly | Reduces field labor and errors |
In general, choose flexible cable when the application is mostly stationary. Choose continuous-flex cable when the cable is expected to bend, roll, or travel repeatedly during normal operation.
نصيحة احترافية لـ cwcables: I advise customers not to compare only price per foot. Compare expected replacement frequency, machine downtime, connector labor, and troubleshooting cost.
الميزات الرئيسية والمقارنة
The key difference is duty cycle. Flexible Ethernet cable is easier to bend and route, while continuous-flex Ethernet cable is purpose-built for repeated motion. The right choice depends on bend frequency, environment, shielding needs, cable carrier use, and required network speed.
Feature-by-Feature Selection Table
واستنادًا إلى بياناتنا الداخلية وتحليلات السوق، إليك التفاصيل:
| ميزة | كابل إيثرنت مرن | Continuous-Flex Ethernet Cable | أفضل خيار عندما |
|---|---|---|---|
| القدرة على الحركة | حركة عرضية | حركة ديناميكية متكررة | Use continuous-flex for moving machine axes |
| مقاومة الانحناء | جيد | ممتاز | Continuous bending is expected |
| Flex-cycle life | Not always specified | Rated for high cycle counts | Long service life is required |
| Drag chain use | عادة ما تكون محدودة | Commonly supported | Cable runs inside a cable carrier |
| Conductor construction | Stranded or flexible | Fine-stranded, motion-optimized | Fatigue resistance matters |
| متانة السترة | القياسية إلى المحسنة | Abrasion, oil, and motion resistant | Industrial exposure is present |
| حماية EMI | التدريع الاختياري | Often shielded for automation | Motors, drives, or welders are nearby |
| تكلفة التثبيت | أدنى | أعلى | Budget is the top priority |
| Lifetime cost | Good in static use | Better in moving systems | Downtime must be minimized |
| تطبيقات نموذجية | Cabinets, panels, field patching | Robotics, CNC, packaging, conveyors | Application includes repetitive motion |
The safest selection rule is simple: if the cable only moves during installation or maintenance, flexible cable is usually enough. If the cable moves during machine operation, choose continuous-flex Ethernet cable.
نصيحة احترافية لـ cwcables: I always ask one question first: “Will this cable move while the machine is running?” If the answer is yes, I start with a continuous-flex specification.
عوامل التكلفة والشراء
Buying the right cable requires balancing upfront cost with mechanical risk, electrical performance, and downtime exposure. Flexible cable is suitable for low-motion budgets, while continuous-flex cable is the better investment for automation, robotics, and any application where Ethernet communication must survive repeated movement.
Buying Criteria for Reliable Selection
Before purchasing, define the actual operating conditions. Many cable failures happen because buyers select only by Ethernet category, such as Cat6, without checking mechanical life, bend radius, or environmental resistance.
ضع في اعتبارك عوامل الشراء هذه:
- نوع الحركة: Bending, rolling, twisting, torsion, or combined movement.
- Cycle frequency: Occasional movement versus thousands or millions of cycles.
- Cable carrier requirements: Drag chain dimensions, fill rate, and travel distance.
- أداء الشبكة: Cat5e أو Cat6 أو Cat6A أو أعلى حسب السرعة وعرض النطاق الترددي.
- احتياجات التدريع: Choose shielded cable near motors, VFDs, welders, or high-noise equipment.
- مادة السترة: PUR or TPE may be better for oil, abrasion, and industrial environments.
- نوع الموصل: RJ45 may work in cabinets; M12 is often preferred in rugged machinery.
- احتياجات الامتثال: Check UL, RoHS, CE, or application-specific standards.
- دعم الموردين: Work with a cable provider that understands automation environments.
For cwcables customers, the best buying decision usually starts with the machine motion profile, not just the cable category.
نصيحة احترافية لـ cwcables: I recommend documenting bend radius, travel length, cycle rate, and environmental exposure before requesting a quote. That gives the supplier enough information to specify the correct moving ethernet cable.
خاتمة
Flexible Ethernet cable and continuous-flex Ethernet cable are not interchangeable in demanding motion applications. Flexible cable supports easier routing and occasional movement, while continuous-flex cable is engineered for repeated machine motion. Choosing correctly improves uptime, protects signal integrity, and reduces long-term maintenance cost.
إرشادات الاختيار النهائي
Use flexible Ethernet cable for low-motion applications where convenience, routing, and cost efficiency are the main goals. Use continuous-flex Ethernet cable when the cable is part of a moving system, especially in automation, robotics, drag chains, and industrial Ethernet networks.
A simple decision guide:
- Choose flexible Ethernet cable for patching, panels, equipment cabinets, and occasional movement.
- Choose continuous-flex Ethernet cable for drag chains, robotic arms, CNC equipment, packaging lines, and moving machine axes.
- Choose shielded continuous-flex cable when motion and electrical noise are both present.
- Choose rugged industrial connectors when vibration, moisture, or mechanical stress may affect the connection.
- Consult cwcables when the application involves high cycles, tight bend radius, or harsh industrial environments.
نصيحة احترافية لـ cwcables: If you are unsure, I would rather help you specify the cable before installation than troubleshoot intermittent Ethernet failures after the machine is running.
