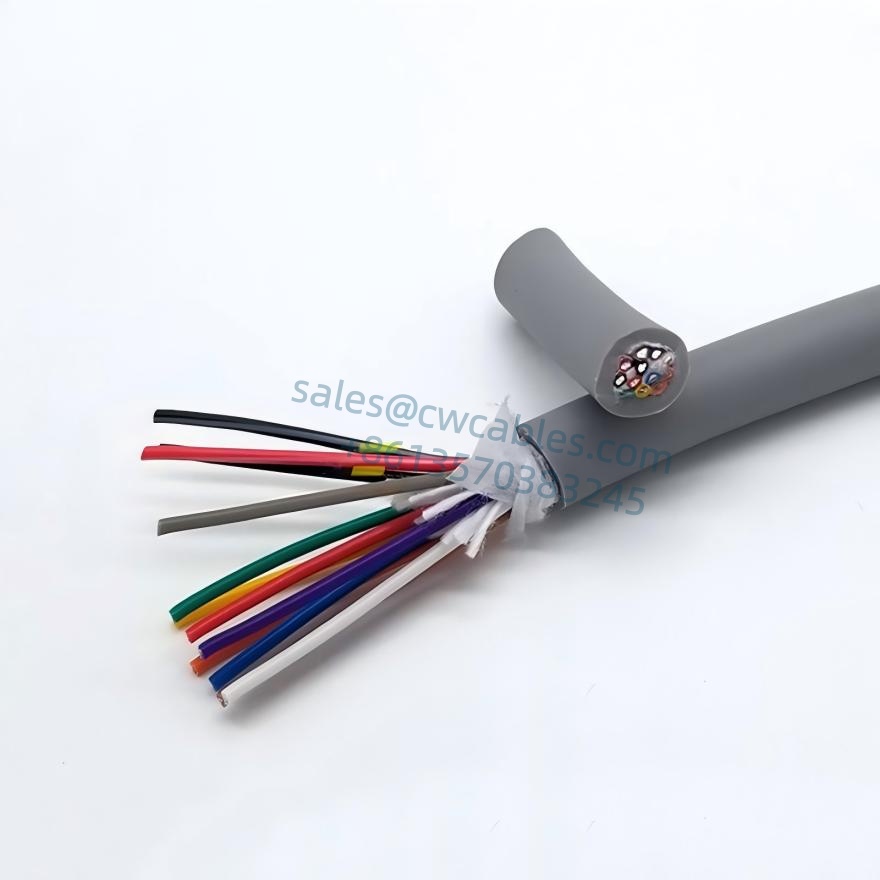

![YY502 TRVVP High Flexibility Servo Cable](http://sc04.alicdn.com/kf/H648289cbaecd4310b6d46c8a9e73b9a9f/257605182/H648289cbaecd4310b6d46c8a9e73b9a9f.jpg)

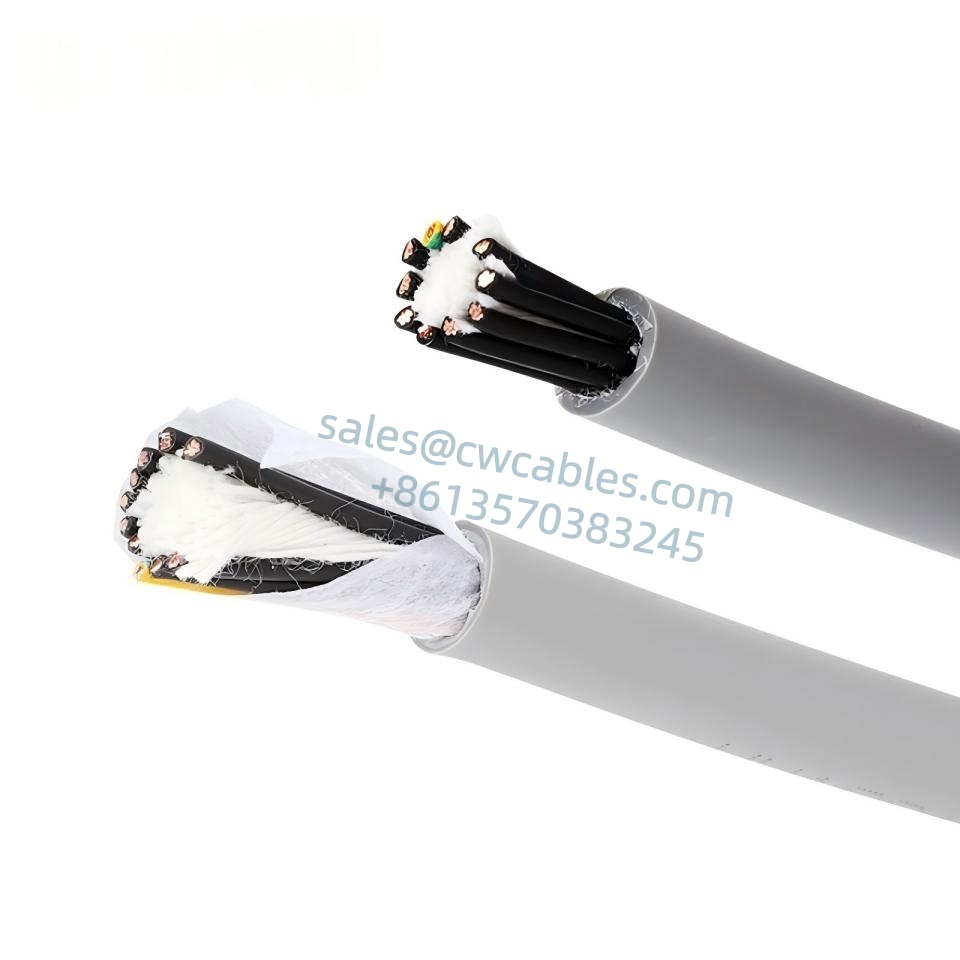

![YY502 TRVVP High Flexibility Servo Cable](http://sc04.alicdn.com/kf/H2fc5d07241824ca8b64ad40545075863T/257605182/H2fc5d07241824ca8b64ad40545075863T.jpg)

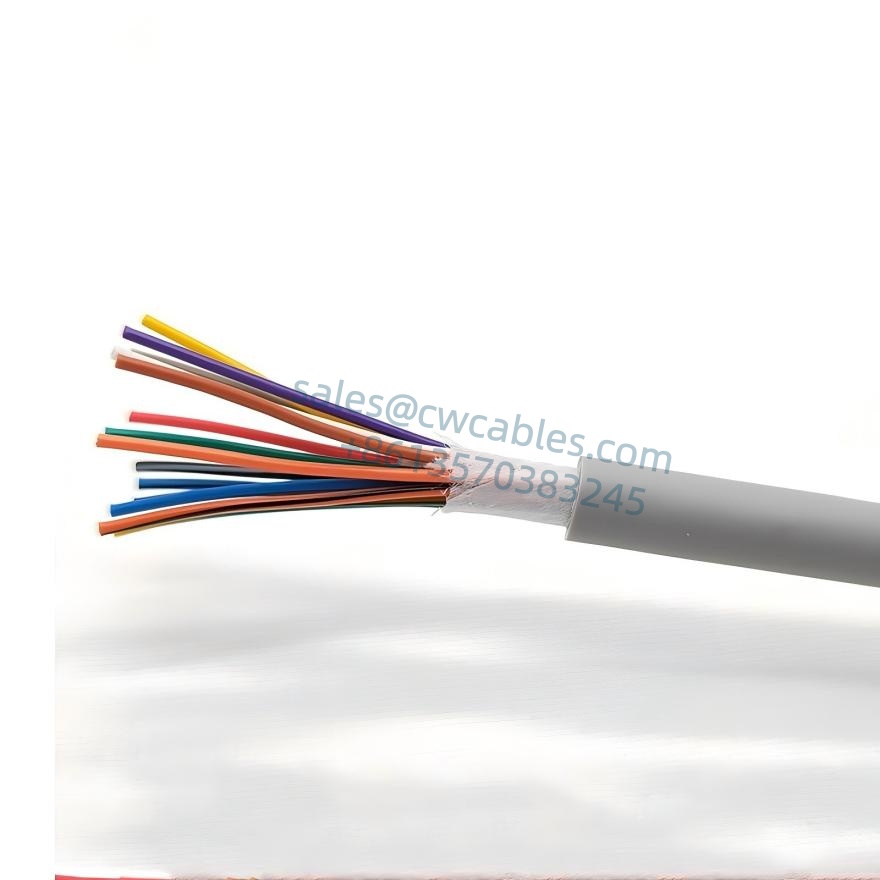

![YY502 TRVVP High Flexibility Servo shield Cable](http://sc04.alicdn.com/kf/Hb2641da40d5044f080948f841d8e7849H/257605182/Hb2641da40d5044f080948f841d8e7849H.jpg)
TRVVP high flexibility servo cable is suitable for installation under continuous reciprocating motion, especially the frequent
bending occasions under the industrial environment, the drag chain of modern machinery standard components and the
logistics system, operating system, mechanical automation system and other CNC machine tools, electronic equipment,
metal stamping, wood and stone Machinery, glass and door and window machinery, injection molding machines, manipulators,
robots, construction machinery, heavy machinery factories, automobile manufacturing, lifting and transportation equipment,
automated warehouses, docks, fire trucks and other indoor and outdoor environments
![](http://sc04.alicdn.com/kf/Hc22bb078e7444cc3b54a66d41af1cef3X/257605182/Hc22bb078e7444cc3b54a66d41af1cef3X.jpg)
![](http://sc04.alicdn.com/kf/Hf2290bd661504931b24fe8dc75cc79b8m/257605182/Hf2290bd661504931b24fe8dc75cc79b8m.jpg)
TRVVP High Flexibility Servo Cable Technical Parameter
Tiêu chuẩn
|
Comply with EU RoHS and Reach regulations
|
|||
Nhạc trưởng
|
sử dụng dây đồng mạ thiếc chất lượng cao
|
|||
Vật liệu cách nhiệt
|
Special PVC sheath with high flexibility
|
|||
Phạm vi nhiệt độ:
|
Cài đặt di động -5°C đến +70°c Đã sửa lỗi cài đặt -15°C đến +80°c
|
|||
Insulation resistance:
|
Minimum 20 MOhm x km
|
|||
Màu sắc
|
Black (other colors can be customized)
|
|||
Bán kính uốn tối thiểu:
|
Mobile installation 7.5×cable diameter Fixed installation 6x cable diameter
|
|||
Định mức điện áp
|
Uo/U 300/300V
|
|||
Điện áp thử nghiệm
|
1500 V
|
|||
Ứng dụng:
|
Suitable for various non-standard automated production equipment such as CNC machine tools, industrial robots, servo drives,
woodworking machinery, mask machines, manipulators, dispensing machines, laser equipment, stamping lines, logistics automation, ceramic production equipment, etc., which can withstand long-term acceleration, Deceleration, tensile and compressive stress, and high-speed periodic bending, and always maintain high stability. |
TRVVP High Flexibility Servo Cable Structure
![](http://sc04.alicdn.com/kf/Ha308a0f28c6d497f9986a1f2a72a966cB/257605182/Ha308a0f28c6d497f9986a1f2a72a966cB.jpg)
1. Tinned copper (less than 0.5m㎡) or bare copper (0.5m㎡ and above) conductor thin copper wire, in line with DIN VDE 0295 category 6 and IEC60228 Class 6
2. Cách nhiệt PVC đặc biệt
3. Color core wire identification (less than 0.5m㎡)
4. Black core wire, with continuous white digital code (0.5m㎡ and above), yellow-green ground wire on the outer layer (3 core and above)
5. Lõi dây được bện thành từng lớp có bước cao độ tốt nhất
6. Tấm chắn bện dây đồng mạ thiếc cải tiến
7. The minimum coverage rate is 80%
8. Vỏ ngoài bằng nhựa PVC đặc biệt
9. Màu đen (RAL 9005) mờ
![](http://sc04.alicdn.com/kf/He8ce0abf5b9c4f5a8b28f8de584dac11e/257605182/He8ce0abf5b9c4f5a8b28f8de584dac11e.jpg)
